ETP Plant--Effluent Treatment Plant for Industrial & Domestic Sewage

Specifications

                   ETP Plant--Effluent Treatment Plant for Industrial & Domestic

Brief Introduction:

Membrane-bioreactor technology (MBR technology) is a new pattern of wastewater disposal technology which combines the membrane separation technology and biotechnology. It uses membrane separation equipment to cut the activated sludge and macromolecular organic matters in the biochemical reactor pool so that to instead the second sedimentation pool. So the density of activated sludge can be greatly increased, and the hydraulic retention time (HRT) and the sludge retention time (SRT) can be controlled separately, however, those refractory materials would react and degradate continuously in the reactor.

Therefore, the membrane-bioreactor technology greatly enhanced the function of bioreactor by membrane separation technology. Compared with traditional biological disposal measures, the membrane-bioreactor is of high biochemical efficiency, of strong resistance to load shock, of stable water quality, of small floor space, of long mud elimination cycle, and of easy automatic control, etc. It is currently one of the most promising new technologies for wastewater disposal, which has been researched and applied extensively in Japan, France, Canada and some other countries since the 1990s.

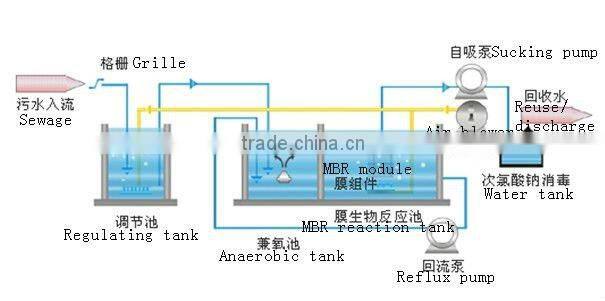

Technical Flow Chart
