Help CenterBSD400 Horizontal Heat Shrink Packing Machine
Related Products
-
BSD400 Vertical Shrink Tunnel Wrap Packing MachineNegotiableMOQ: 1 Piece -
BS4525 Circulating Air Small Heat Tunnel Shrink Wrapping MachineNegotiableMOQ: 1 Set
-
ST6030 Semi-Auto PET Bottle Shrink Wrapping MachineNegotiableMOQ: 1 Set
-
ST6030AF Side Feed Automatic Bottle Shrink Wrapping MachineNegotiableMOQ: 1 Set
-
BSL-560A Automatic L Bar Sealing Shrink Packing MachineNegotiableMOQ: 1 Set
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Name |
Horizontal Heat Shrink Packing Machine |
|
Model |
BS400 |
BS450 |
Shrink Tunnel Size |
800*400*200mm |
800*450*250mm |
Shrink Tunnel Temp. |
Max.300 oC |
Max.300 oC |
Packaging Size |
350*130mm |
400*180mm |
Voltage |
220V-50Hz / 380V-50Hz |
220V-50Hz / 380V-50Hz |
Power |
6.5kw |
8kw |
Conveying Speed |
10m/min |
10m/min |
Conveyor Loading |
10kg |
10kg |
Film Material |
PVC,POF,PP,PE Etc. |
PVC,POF,PP,PE Etc. |
Dimensions |
1200*630*750mm |
1200*750*900mm |
Weight |
80kg |
90kg |
Note: Due to the escalating changes heat shrink packing machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Principle
>Heat shrink packing machine principle: Shrink film wrapped in the package surface, after tunnel heated to bind tightly Shrink film packaging surface, it shows the appearance of the package, improve product sales of.
- Function
>After packaged goods heat shrink packing machine can play sealed, moisture, pollution prevention role, and to protect the product from external shocks, has a buffer, especially fragile, it can prevent scattering of broken containers.
>For the collection of packaging products, shrink film packaging to save packaging costs more than traditional cardboard boxes.
- Scope
>The heat shrink packing machine is widely used in toys, electronics, electrical appliances, stationery, books, records, hardware tools, daily necessities, medicines, cosmetics, beverages, fruits and other goods packaging industry.

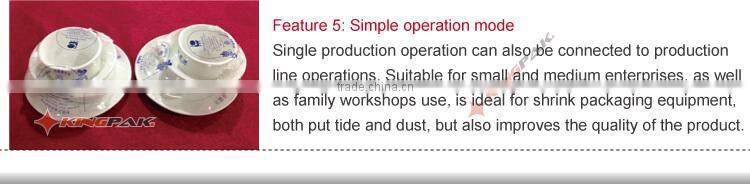

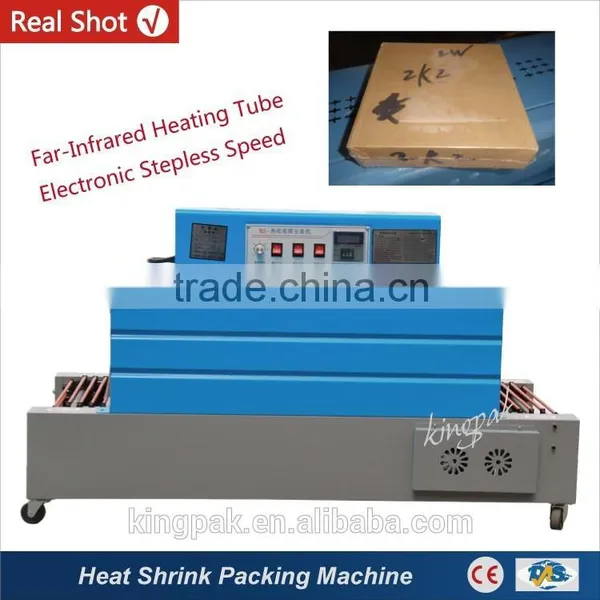

3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

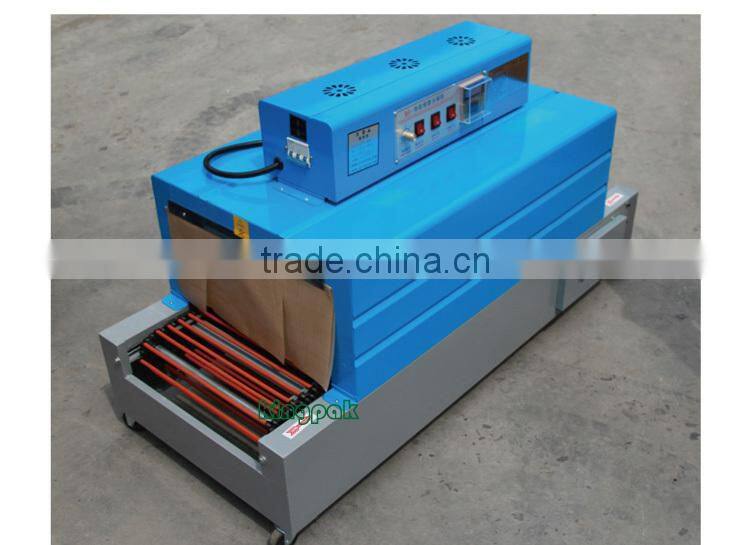

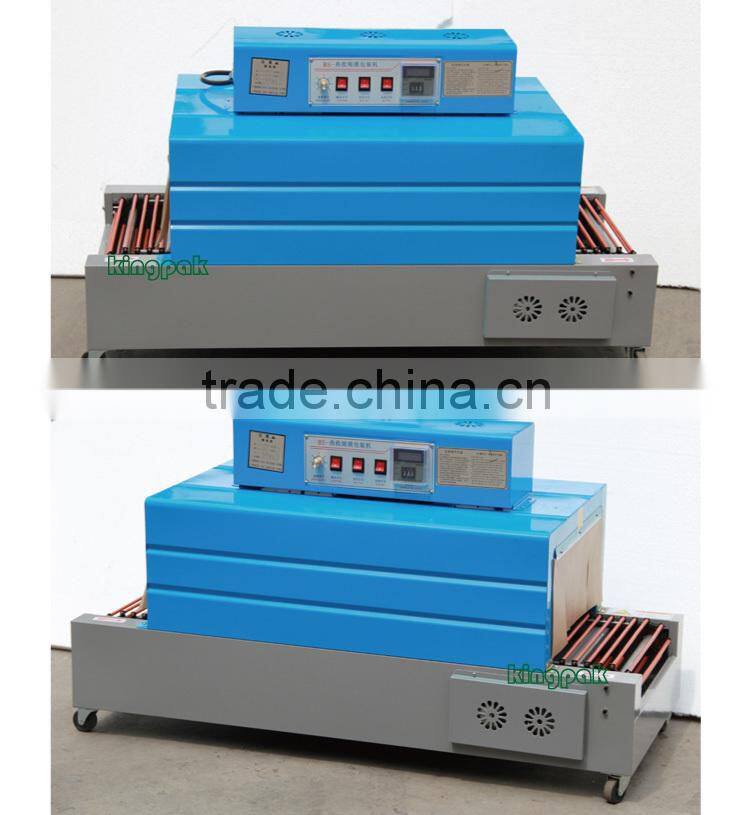

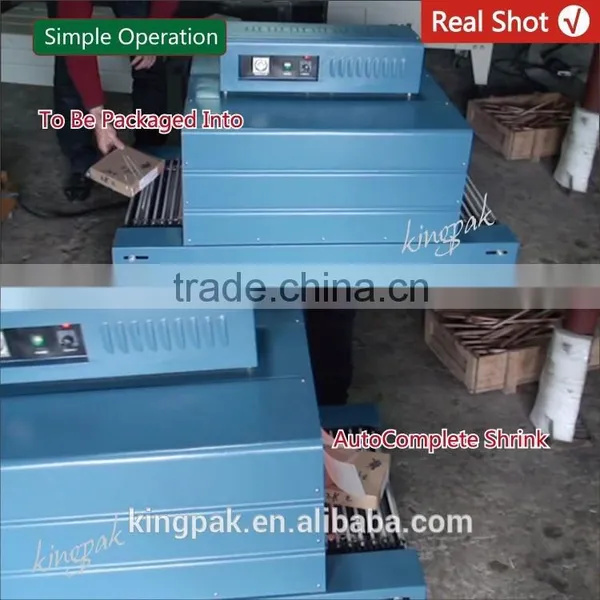

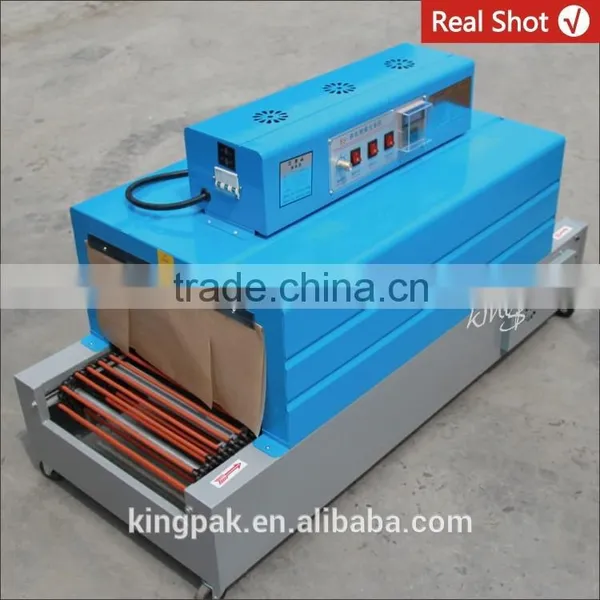

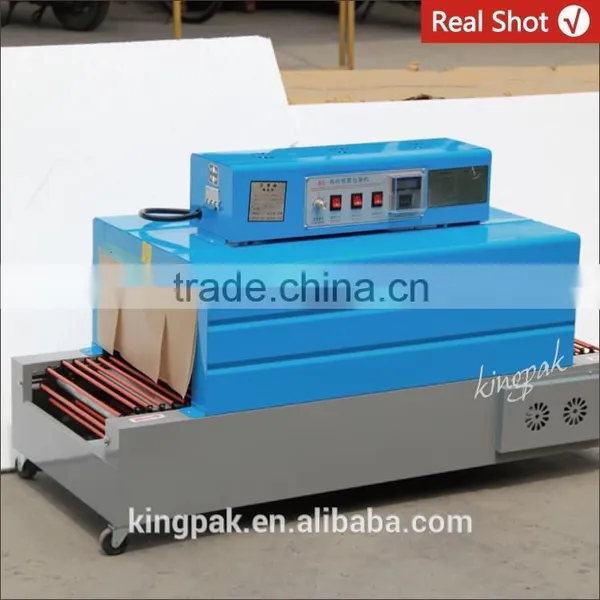

4. Whole Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

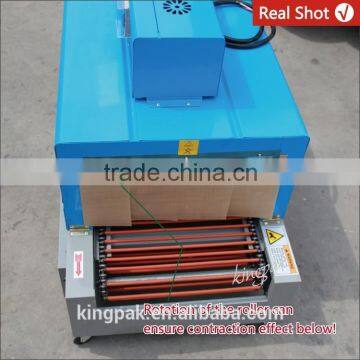

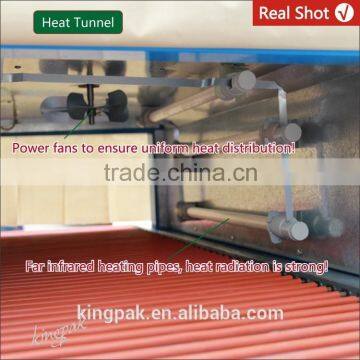

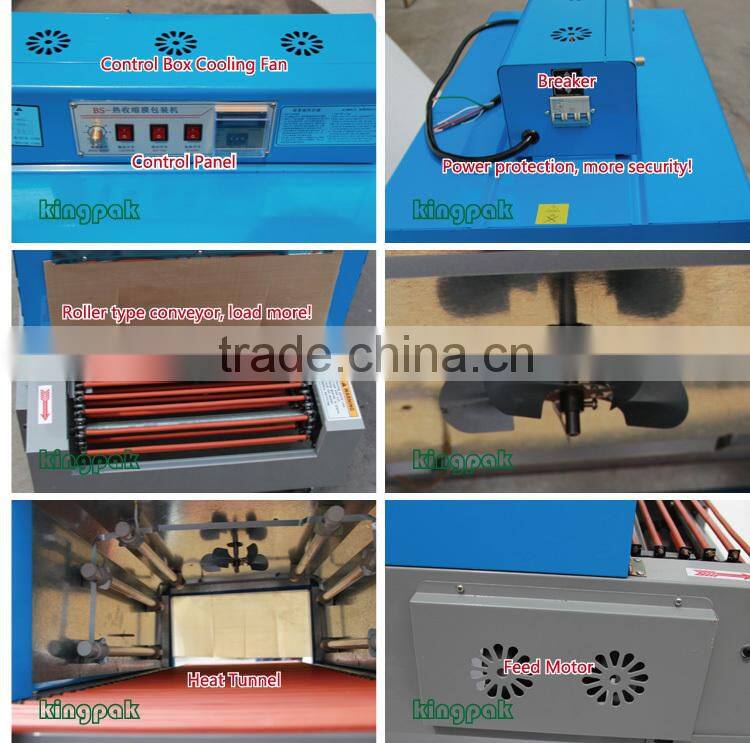

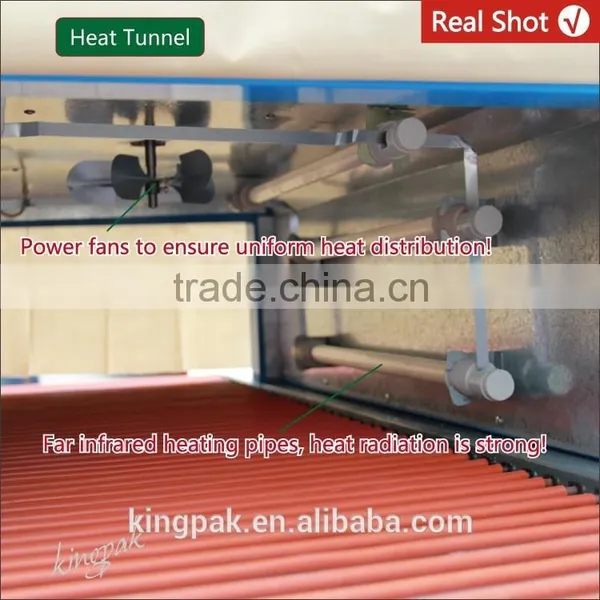

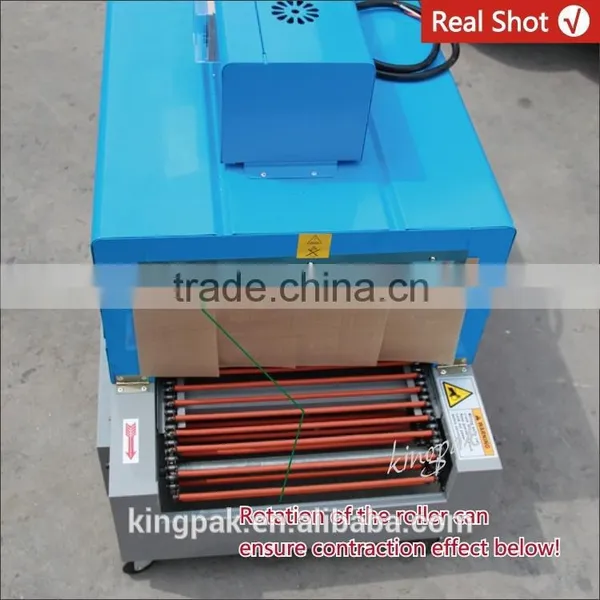

5. Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
6. Packing Effect
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
