Help CenterST6030AF Side Feed Automatic Bottle Shrink Wrapping Machine
Related Products
-
BSL-560A Automatic L Bar Sealing Shrink Packing MachineNegotiableMOQ: 1 Set -
GP403 Semi-Auto Heat Shrink Sleeve Label MachineNegotiableMOQ: 1 Set
-
BSL2015 Shrink Wrapping Machine For Books Carton Box Sealing Cutting MachineNegotiableMOQ: 1 Piece
-
BS4525 Bottle Pallet Heat Shrink Wrap Packing MachineNegotiableMOQ: 1 Piece
-
BFS5540 2 In 1 Thermal Shrink Packaging MachineNegotiableMOQ: 1 Set
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Name |
Side Feed Automatic Bottle Shrink Wrapping Machine |
|
Model |
ST6030AF Auto Sleeve Sealer |
SM6540 Shrinking Tunnel |
Control System |
PLC or MCU control |
|
Packing Speed |
8-18pcs/min |
15m/min |
Packing Size Max. |
L500*W300*H300mm |
W650*H400mm*L(Unlimited) |
Packing Size Min. |
L280*W100*H100mm |
|
Conveyor |
H850±50*W300*L2000mm |
|
Tunnel Size |
|
L1800*W650*H400mm |
Seal/Cut Time |
0.5-1.5s |
|
Shrink Time/Temp |
|
0-0.6s / 0-300 oC |
Film Width/Thickness |
Max.600/0.4-0.12mm |
|
Film Material |
PE,POF,PVC,PP |
PE,POF,PVC,PP |
Air Pressure |
4-8Mpa |
|
Voltage |
220/240V 50Hz |
380V 50Hz |
Rated Power |
2Kw |
24Kw |
Dimension |
L2750*W1530*H1970mm |
L3200*W950*H1580mm |
Gross weight |
600kg |
400kg |
Note: Due to the escalating changes automatic bottle shrink wrapping machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Structure

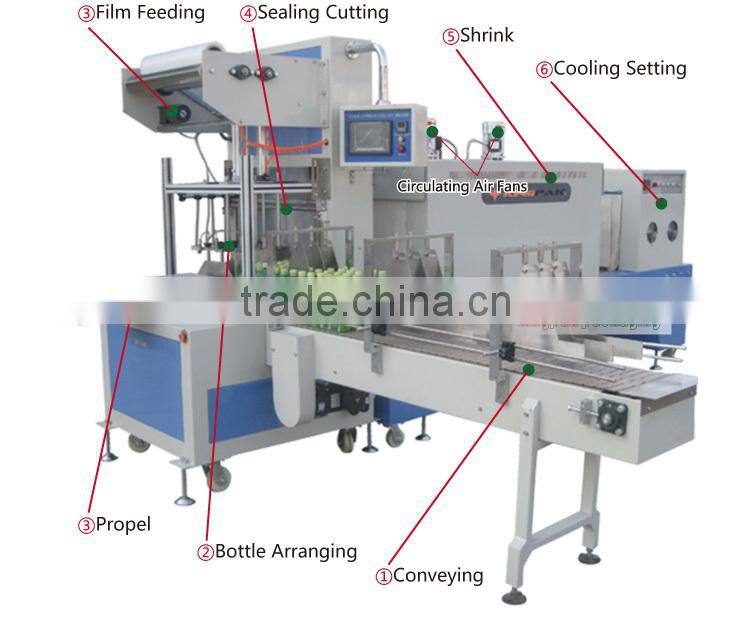

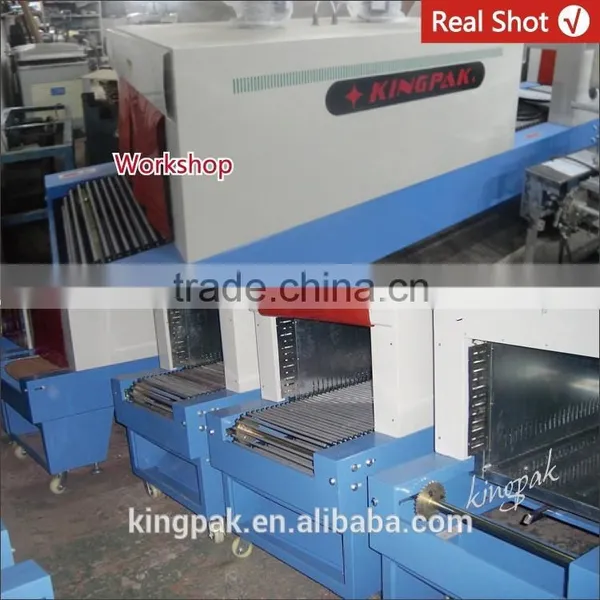

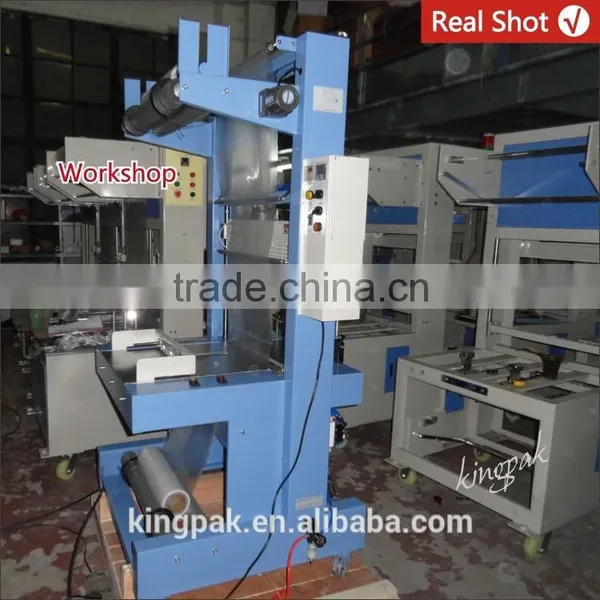

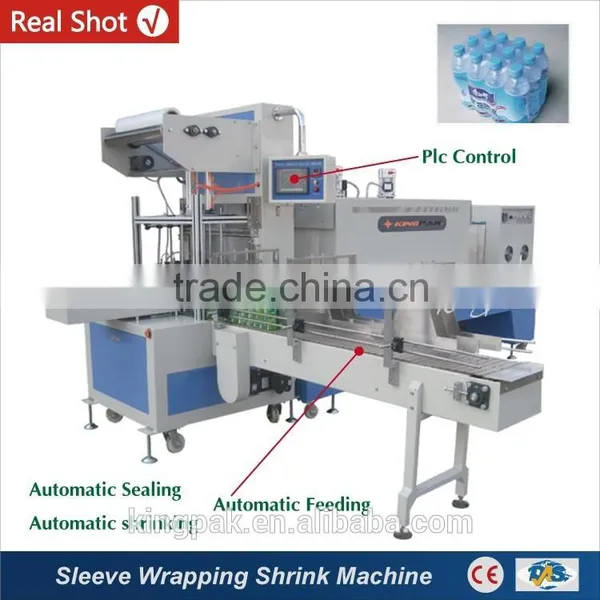

>Automatic bottle shrink wrapping machine is composed of three parts: automatic sleeve sealer, automatic feed conveyor line, shrink tunnel.
>All packaging processes all done automatically, the entire control section completed by the PLC or microcontroller.
- Function
>The machine working order: automatic feeding - automatic transmission - automatic alignment - Automatic Wrapping - Automatic shrink - automatic cooling stereotypes. Compared to cardboard boxes and wooden packaging, cuff-style wrap film packaging with low cost, convenient advantages.
>Packaging whether they are single row, double, three rows, four rows of columns for structure or structural layers, can complete package. Models can be designed with a tray according to customer requirements.
>After the article Sleeve Wrap film packaging, has a beautiful appearance, clean, dust, moisture, damage, easy handling and storage characteristics.

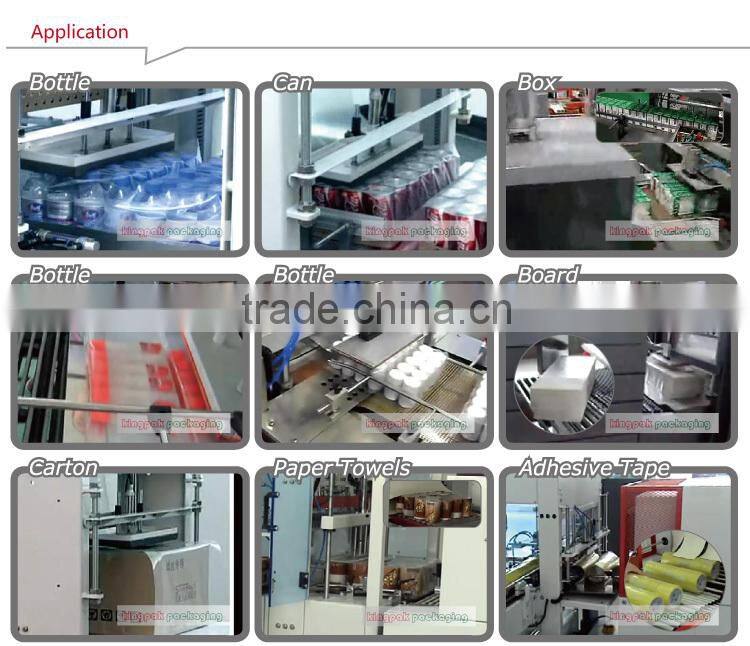

- Scope
>This automatic bottle shrink wrapping machine is widely used in mineral water, fruit juice, beverage, milk products, food, candy, beer, wine, pharmacy, stationery, hardware tools and other products of the secondary wrap film packaging.

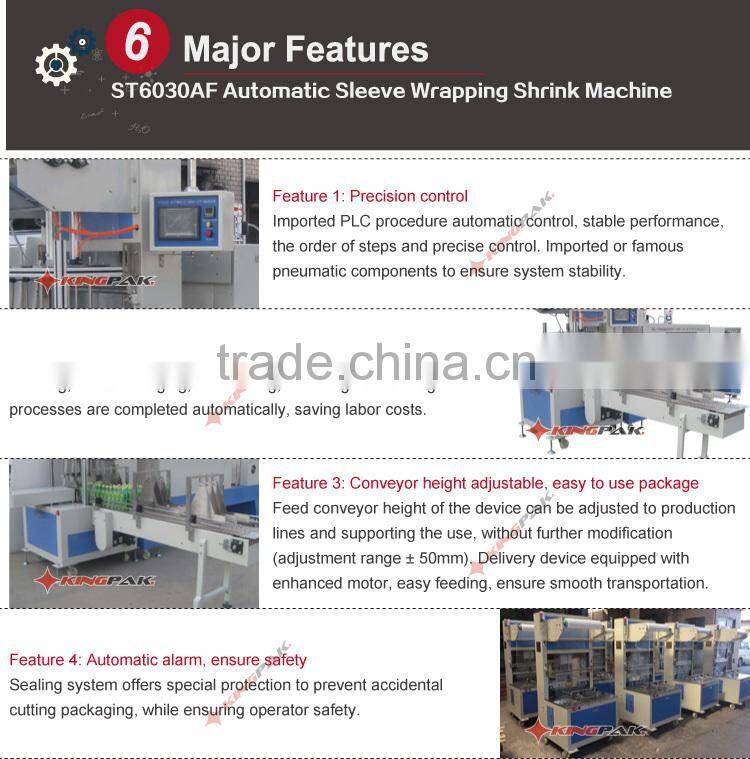

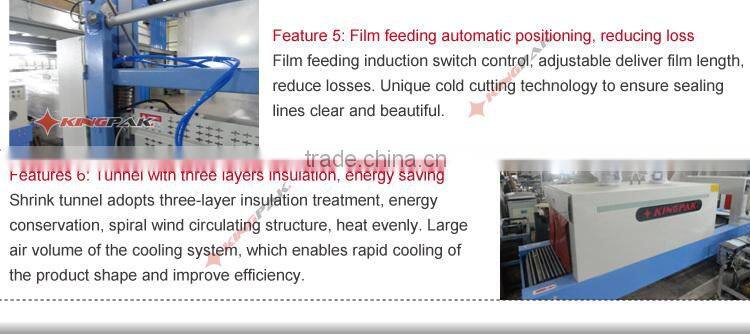

3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

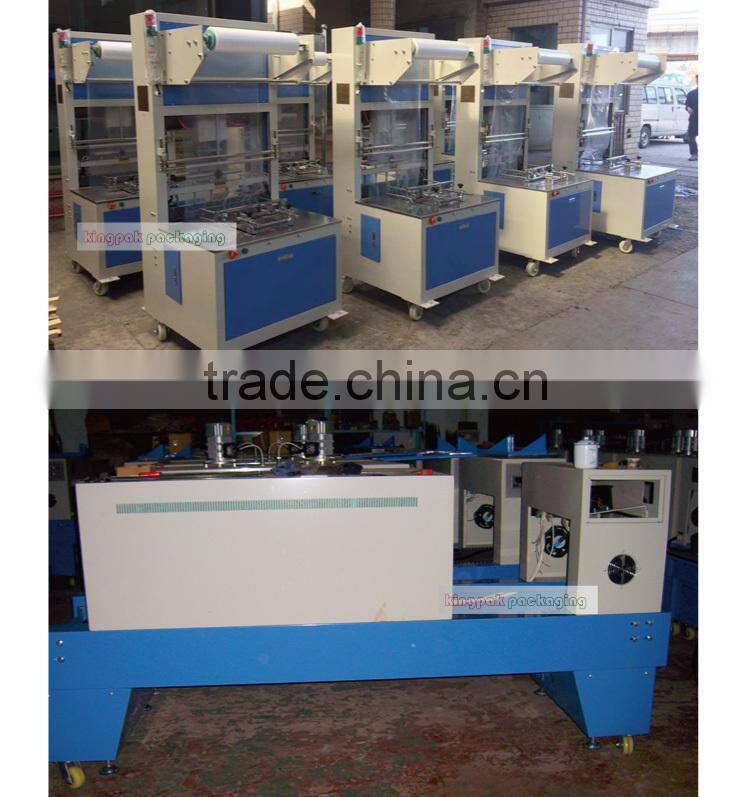

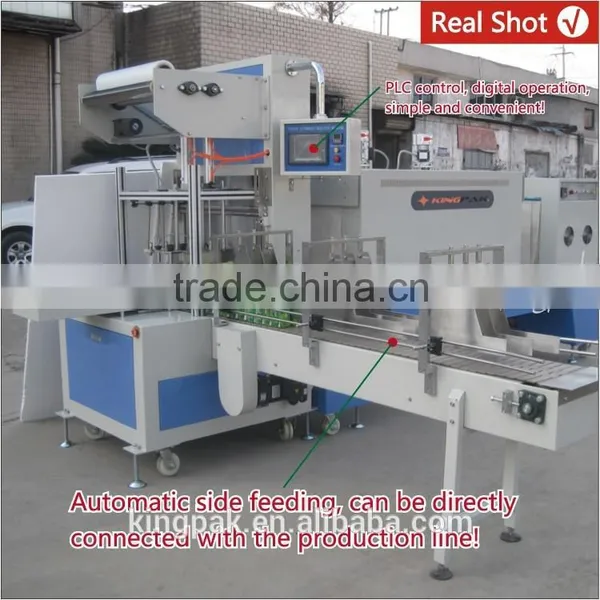

4. Whole Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

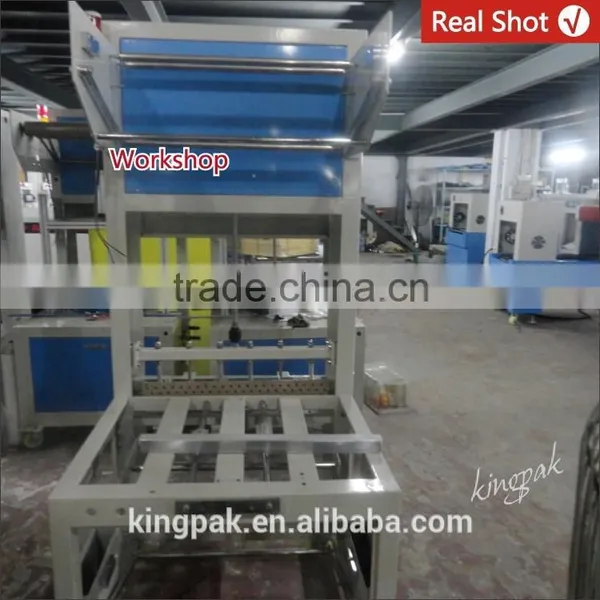

5. Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
6. Packing Effect
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
