BSL-560A Automatic L Bar Sealing Shrink Packing Machine

BSL-560A Automatic L Bar Sealing Shrink Packing Machine photo-1

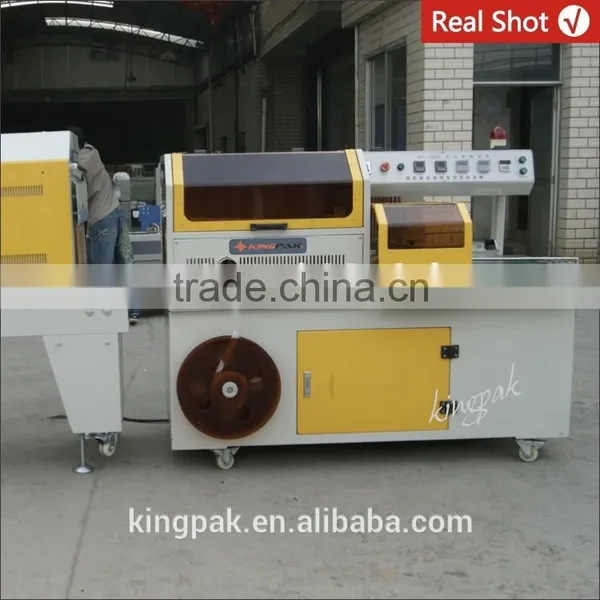

BSL-560A Automatic L Bar Sealing Shrink Packing Machine photo-2

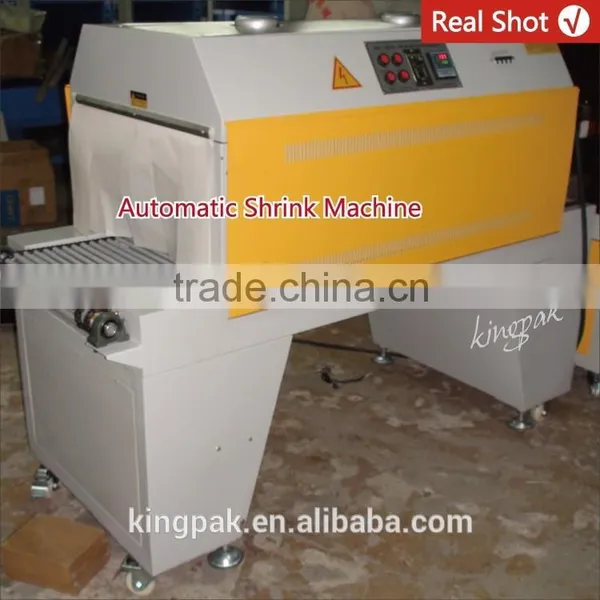

BSL-560A Automatic L Bar Sealing Shrink Packing Machine photo-3

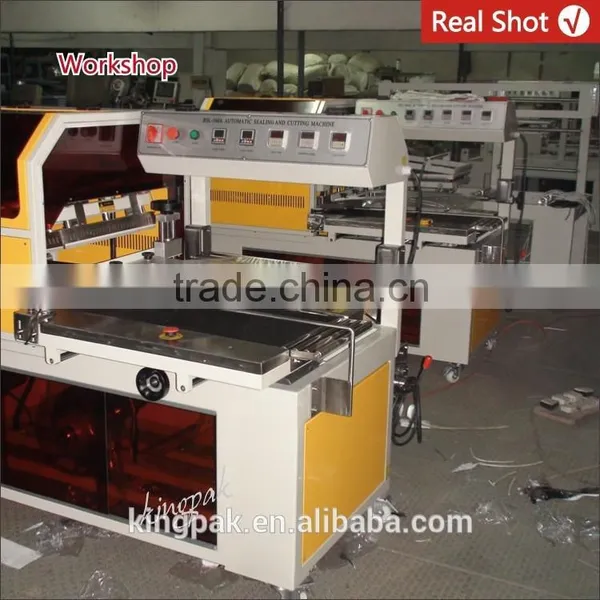

BSL-560A Automatic L Bar Sealing Shrink Packing Machine photo-4

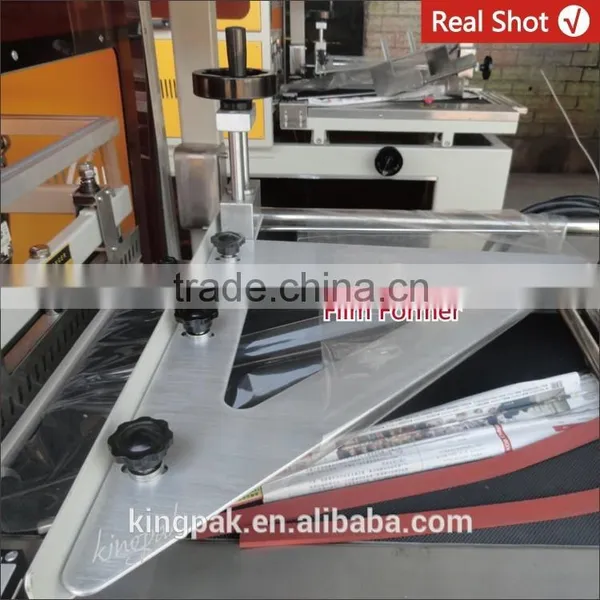

BSL-560A Automatic L Bar Sealing Shrink Packing Machine photo-5

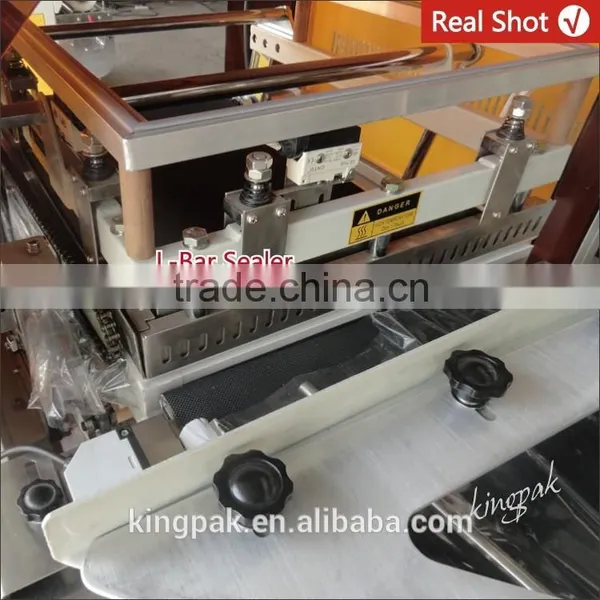

BSL-560A Automatic L Bar Sealing Shrink Packing Machine photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanhai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V 50Hz, 220V/380V 50Hz
Power 1500w
Place of Origin Zhejiang, China
Brand Name kingpak
Model Number L-Bar Sealer
Dimension(L*W*H) 1600*770*1450mm
Weight 420KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



Product Overview



1. Specifications

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

Name

Automatic L Bar Sealing Shrink Packing Machine

Model

BSL-560A Automatic L Bar

BSD400 AutomaticShrinker

Control System

PLC/MCU control



Closing Type

L-bar



Packing/Tunnel Speed

15-35pcs/min

10m/min

Shrink Time/Temp



0-0.6s / 0-300 oC

Shrink Tunnel Size



800*400*200mm

Conveyor Loading



10kg

Closing/Packing Size

570*480mm (L-Sealing)

350*130mm

Packing Height

125mm



Worktable Height

780-850mm



Voltage

220V/380V 50Hz

220V/380V 50Hz

Rated Power

1.5kw

6.5kw

Air Pressure

5bar(0.5mpa)



Film Size Max.

530(w)*280mm



Film Material

PVC,POF,PP,PE,folded film

PVC,POF,PP,PE,folded film

Dimensions

1600*770*1450mm

1200*750*1250mm

Weight

420kg

110kg

Note: Due to the escalating changes automatic l bar sealing shrink packing machine, the above technical parameters for reference only, to prevail in kind, please understand!



2. Basic Introduction

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

- Function

 >Automatic l bar sealing shrink packing machine is the packaged goods film, then the film after shrinking machine against the outer product or packaging, it shows that the appearance of goods, improve the appearance and value of the goods.

 >One-piece, pieces, trays and other items wrapped in a layer close to the surface of the film, can prevent dust, put the tide, against discoloration and other effects, easy to sell and transport.

 >The automatic l bar sealing shrink packing machine is a fully automatic unmanned operation sealer is widely used in the packaging of the assembly-line production, high efficiency, automatic film feeding punch device and manually adjustable guide film feed conveyor system and manually adjustable platform the application of different width and height of the product.

- Scope

 >This automatic l bar sealing shrink packing machine is suitable for shrink cutlery, cartons, books and magazines, crafts, toys, hardware tools, software, electronic products, sports goods, office supplies, PCS, cosmetics and other products, wrap film packaging.

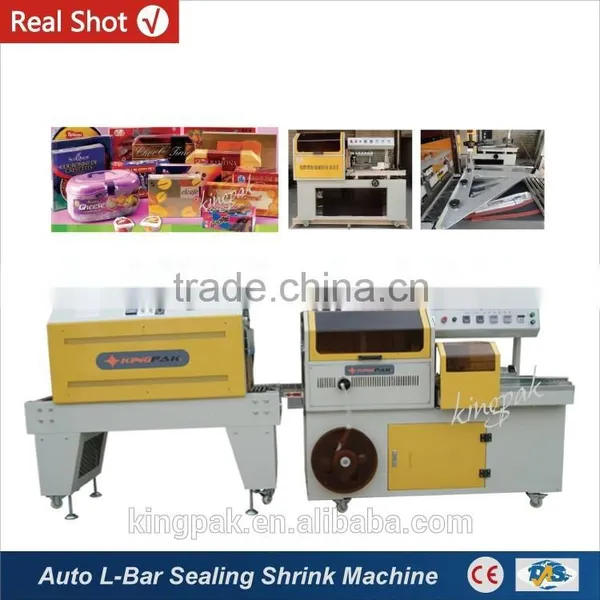

BSL-560A Automatic L Bar Sealing Shrink Packing Machine

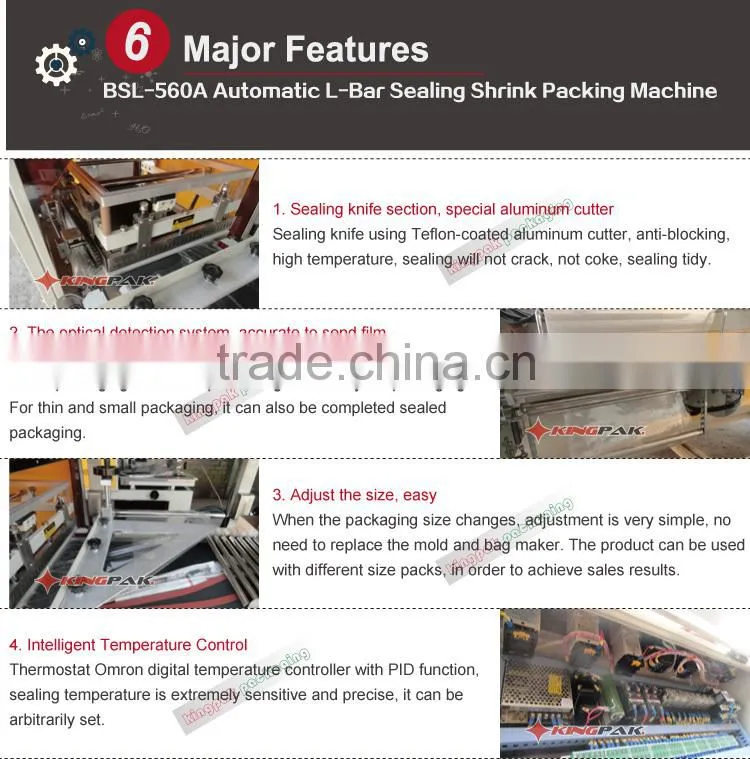

3. Feature

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

BSL-560A Automatic L Bar Sealing Shrink Packing MachineBSL-560A Automatic L Bar Sealing Shrink Packing Machine









Details Structure

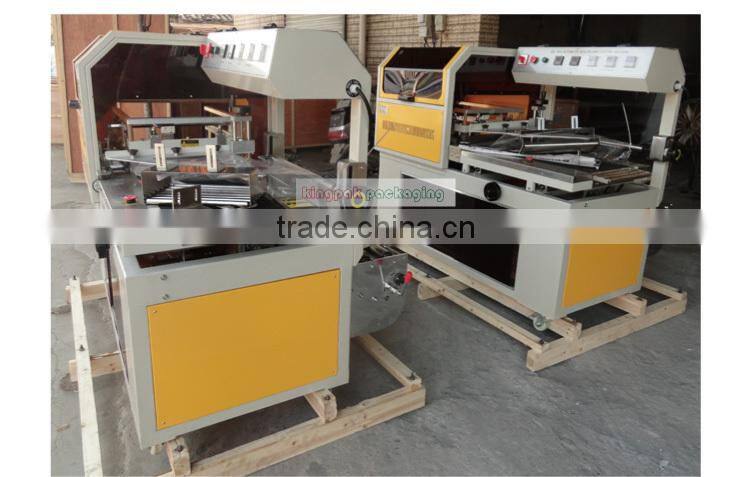

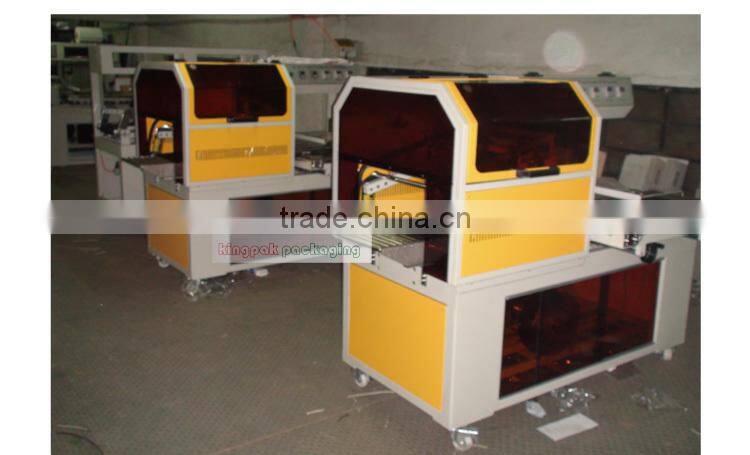

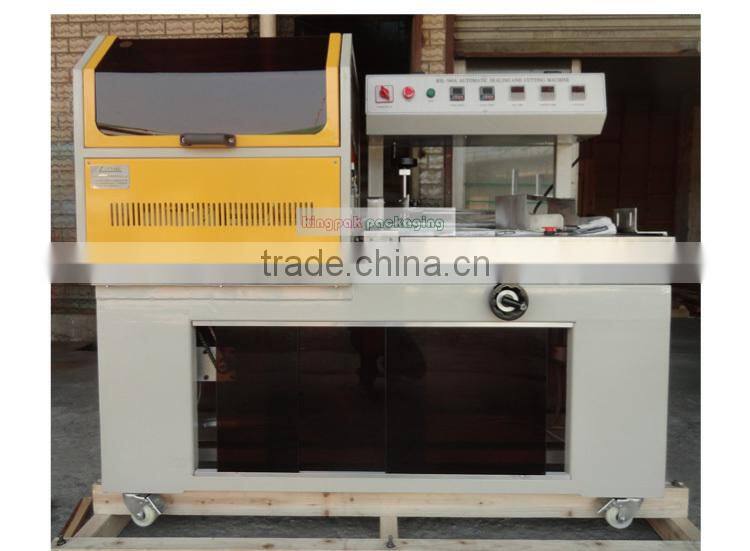

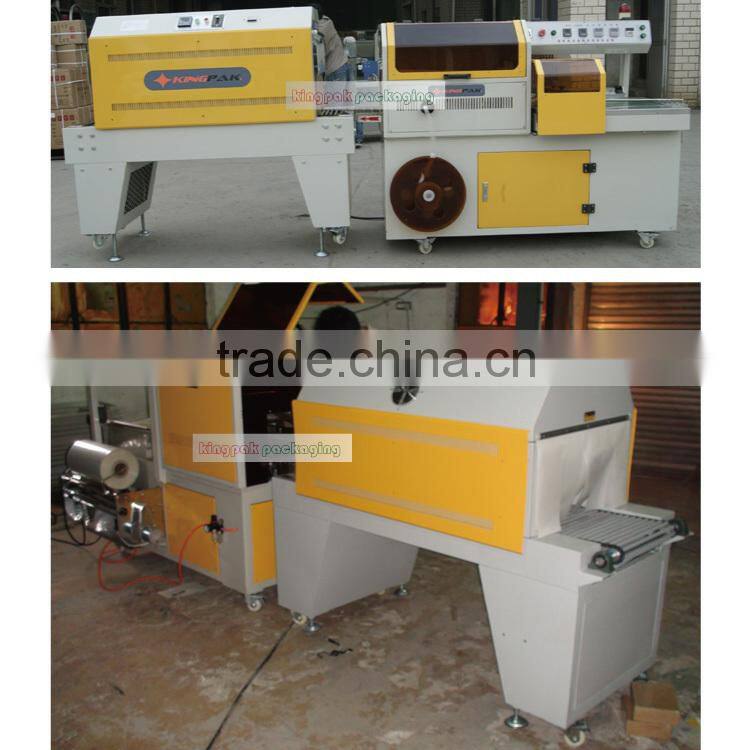

4. Whole Show

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

BSL-560A Automatic L Bar Sealing Shrink Packing MachineBSL-560A Automatic L Bar Sealing Shrink Packing MachineBSL-560A Automatic L Bar Sealing Shrink Packing MachineBSL-560A Automatic L Bar Sealing Shrink Packing Machine

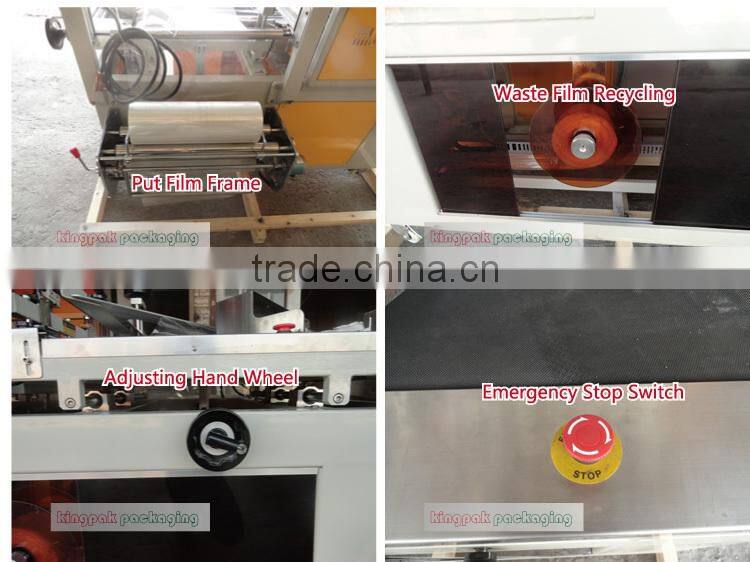

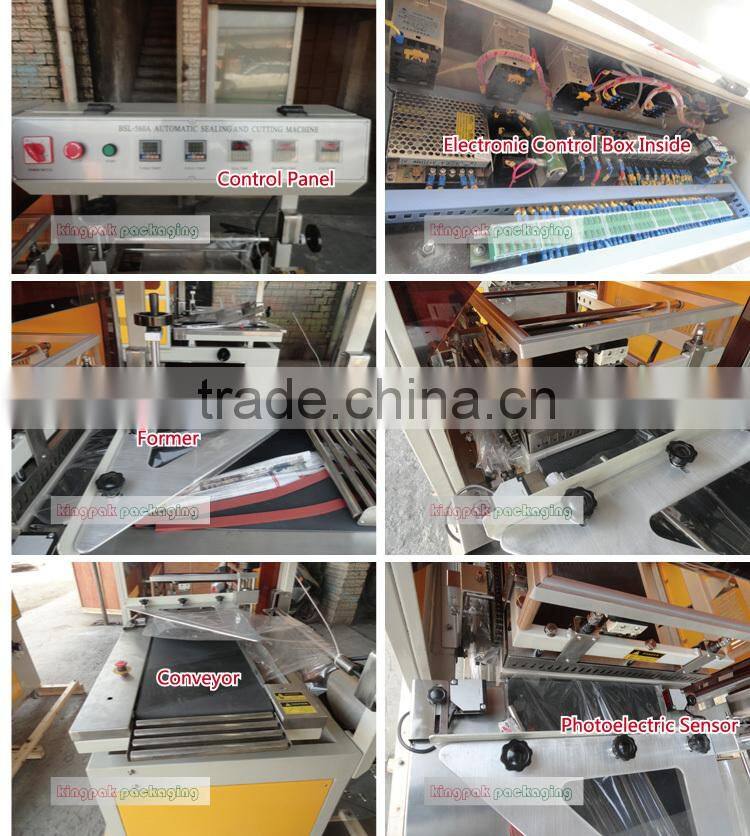

5. Details Show



¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

BSL-560A Automatic L Bar Sealing Shrink Packing MachineBSL-560A Automatic L Bar Sealing Shrink Packing Machine





Enterprise Show

BSL-560A Automatic L Bar Sealing Shrink Packing MachineBSL-560A Automatic L Bar Sealing Shrink Packing MachineBSL-560A Automatic L Bar Sealing Shrink Packing Machine
