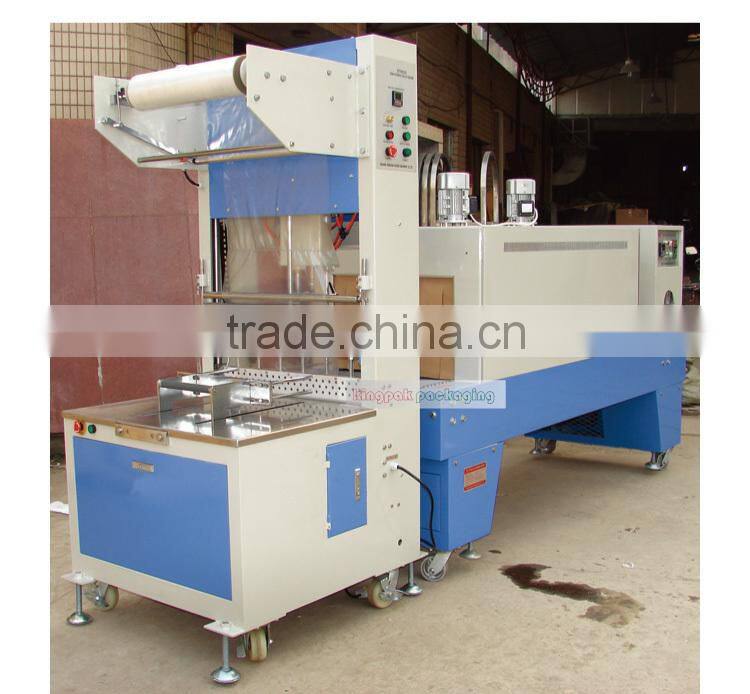

Help CenterST6030 Semi-Auto PET Bottle Shrink Wrapping Machine
Related Products
-
ST6030AF Side Feed Automatic Bottle Shrink Wrapping MachineNegotiableMOQ: 1 Set -
BSL-560A Automatic L Bar Sealing Shrink Packing MachineNegotiableMOQ: 1 Set
-
GP403 Semi-Auto Heat Shrink Sleeve Label MachineNegotiableMOQ: 1 Set
-
BSL2015 Shrink Wrapping Machine For Books Carton Box Sealing Cutting MachineNegotiableMOQ: 1 Piece
-
BS4525 Bottle Pallet Heat Shrink Wrap Packing MachineNegotiableMOQ: 1 Piece
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Name |
Semi-Auto PET Bottle Shrink Wrapping Machine |
|
Model |

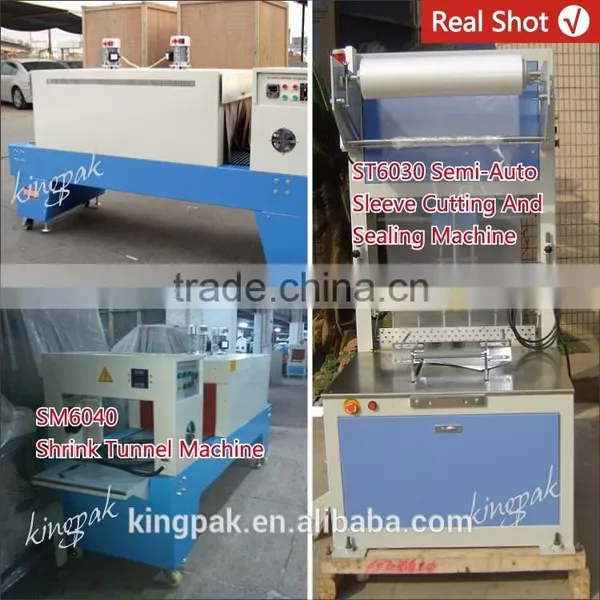

ST6030 Sleeve Wrapper |
SM6040 Shrink tunnel |
Max. Packing Size |
L500*W300*H350mm |
W600mm*H400mm*L Unlimited |
Min. Packing Size |
280*100*100mm |
|
Packing Speed |
6-10pcs/minute |
15m/min |
Voltage |
220V/50Hz |
380V/50Hz |
Rated Power |
1.8KW |
20KW |
Sealing Time |
0.5-1.5S |
|
Shrink Time/Temperature |
|
0-0.6S / 0 -300 oC |
Film Width |
Max. 600mm |
|
Film Thickness |
0.04 -0.12mm |
|
Dimension |
L1030*W850*H1970mm |
L3200*W850*H1580mm |
Gross weight |
350kg |
380KG |
Working Air Pressure |
4-8Mpa |
|
Shrink film |
PE,POF,PVC,PP |
PE,POF,PVC,PP |
Note: Due to the escalating changes pet bottle shrink wrapping machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

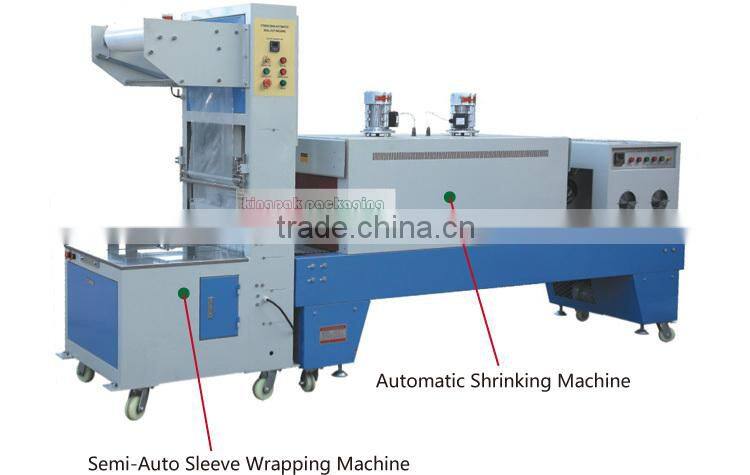

- Structure

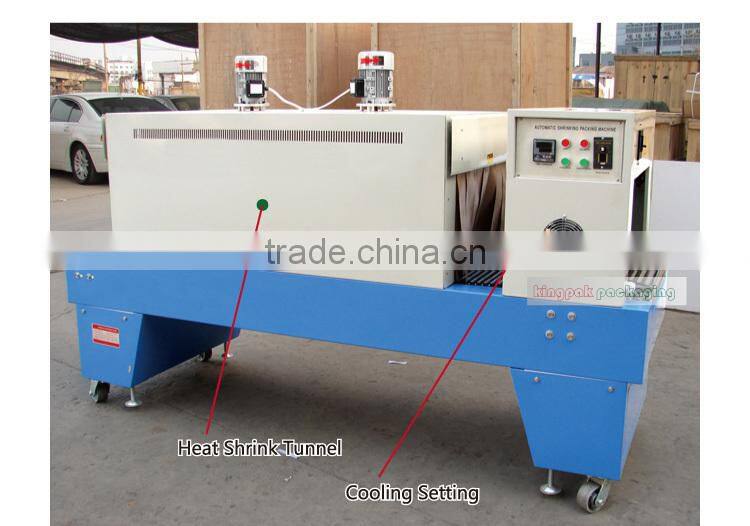

>The semi-auto pet bottle shrink wrapping machine is composed by a sealer and shrink packaging machines to heat shrinkable film for packaging materials, after the product was wrapped in film (cutting and sealing), into the shrink packaging machine to complete the package.
>This machine electrical parts imported high-quality components, the operative part of the action of high-quality pneumatic components, the operation is extremely simple, performance is very stable, very low failure rate, longer life.
- Function

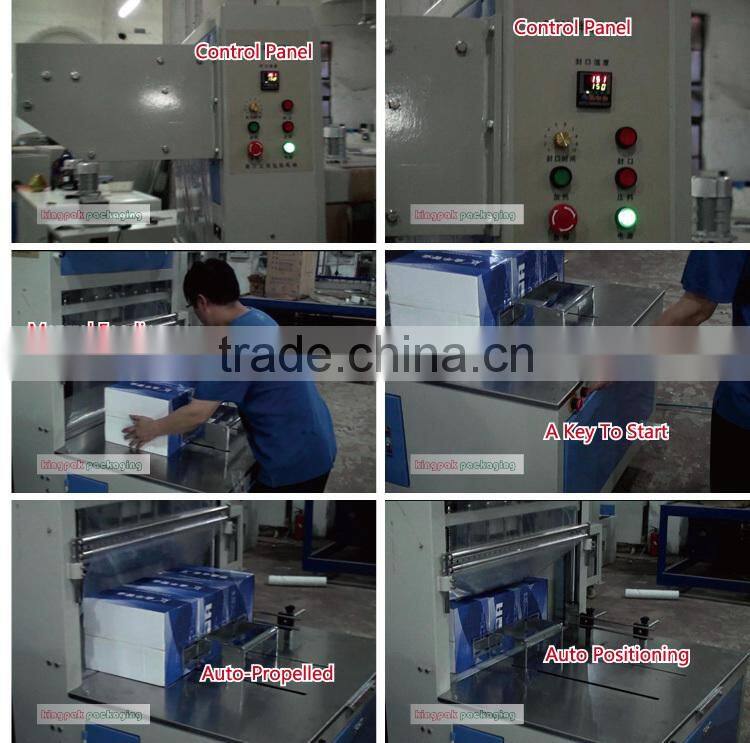

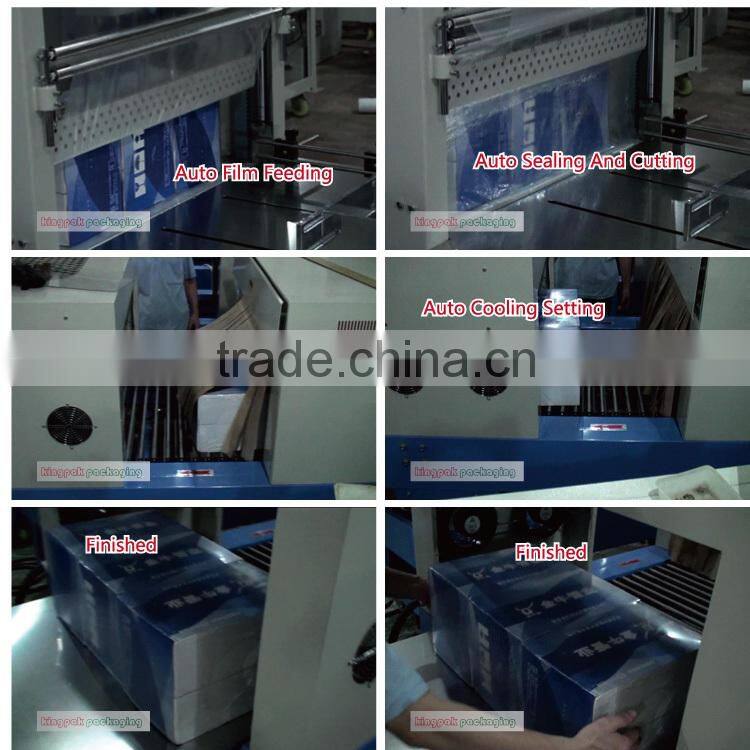

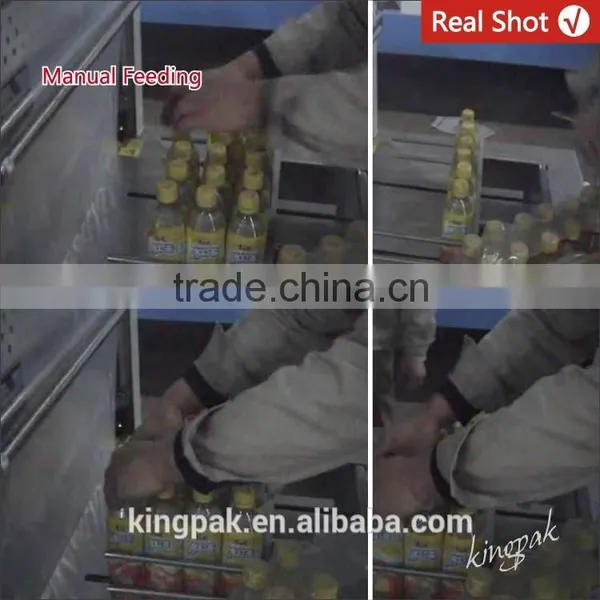

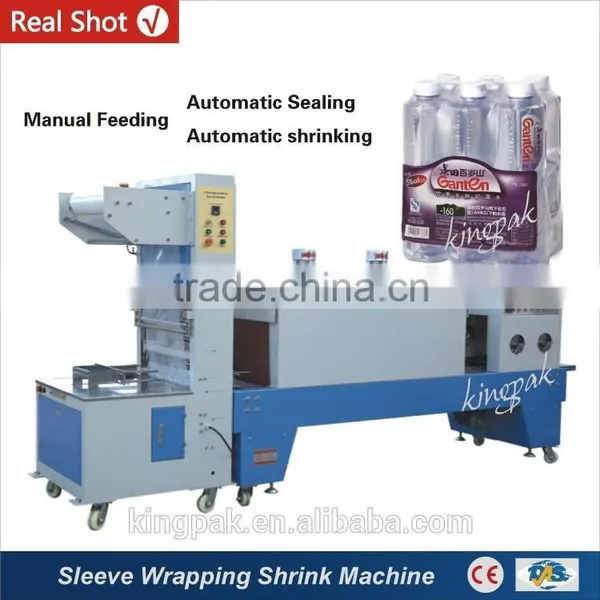

>The machine working order: Manual feeding - Automatic Conveying - Automatic Wrapping - Automatic Shrink - Automatic Cooling Setting. Shrink wrap film packaging, compared to traditional carton packaging, significant savings in packaging costs.
- Scope
>This shrink wrapping machine applies to drinks, beer, mineral water, cans, glass bottles, ceramic products, such as paper-tray, no paper tray or a single set of shrink wrap film packaging.
3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

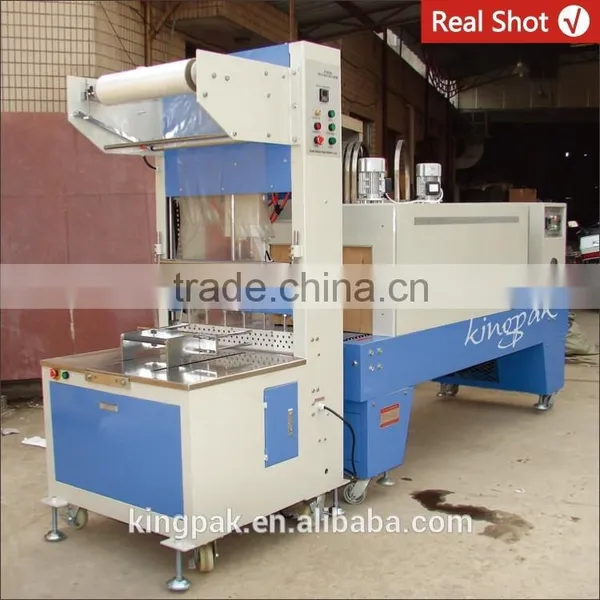

4. Whole Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

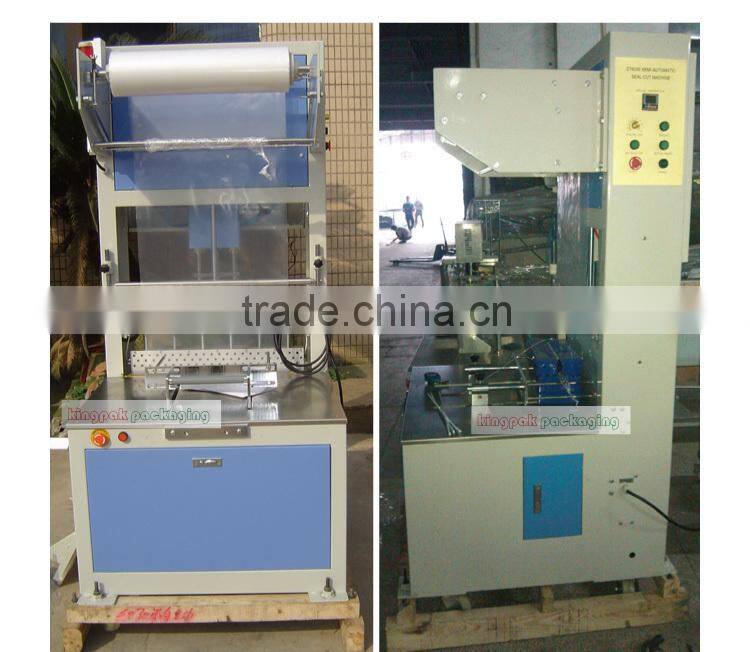

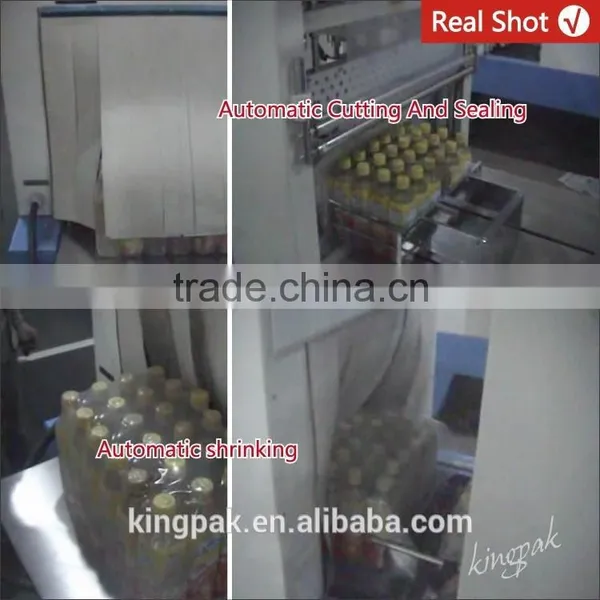

5. Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

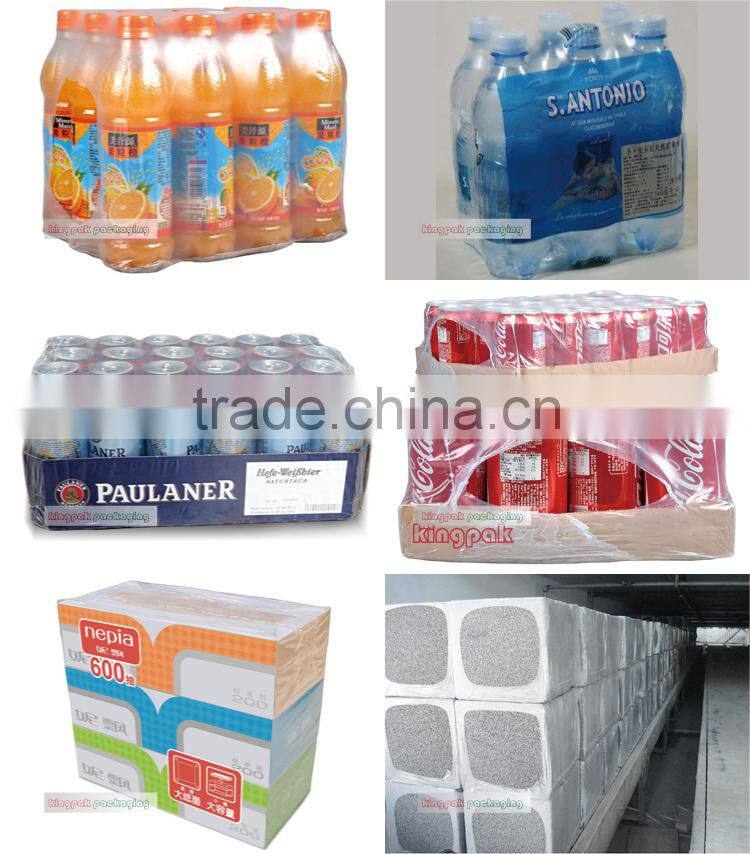

6. Packing Effect
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
