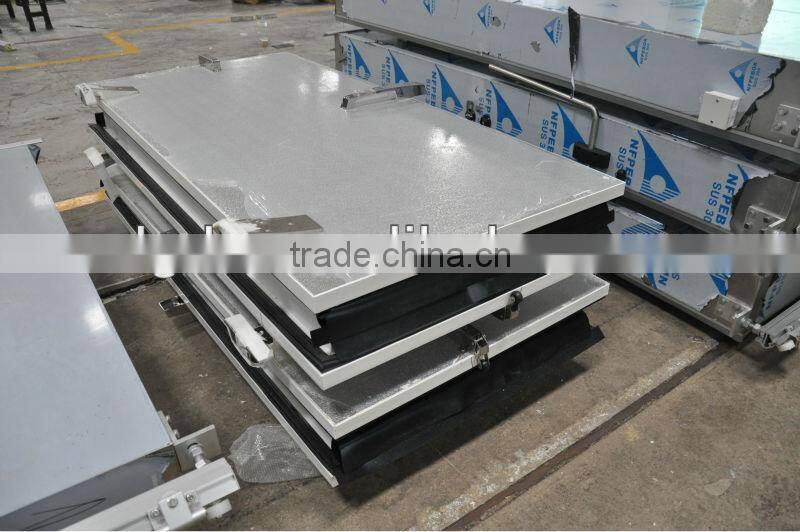

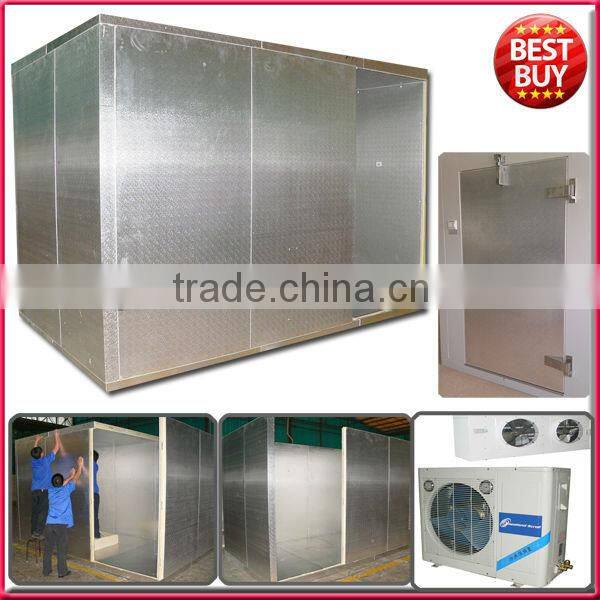

30m3 Cold Storage room with embossing aluminum panels
we are the Professional manufacturer specializes in designing and manufacturing Cold Storage room .
our factory found in 1992 . we have twenty years experience to design and manufacture the
Cold Storage room .
In order to design the best Cold Storage room for you , plase answer us the following questions:
1.Which country the Cold Storage room located?
2. Cold Storage room being installing inside the building or putting outside the house?
3.What is the ambient temperature(°C)
4.External dimension of the Cold Storage room ?(m)
5.What Kind of products is gonna store in the room?
6.Required temperature inside the Cold Storage room (°C)?
7.Original temperature of products before put into the Cold Storage room (°C)
8.what kind of door your require? Hinged door,manual/electric sliding door or glass door?
9.Both sides of panels are with steel sheet covered. The steel sheet optional: painted galvanized steel,embossed stucco aluminum, stainless steel.Which do you like ?
Cold Storage room Temperature Range for more products
| Storage products | Storage temperature approach |
| Vegetables, Fruit storage | -5~5 degree centigrade |
| Drink, Beer storage | 2~8 degree centigrade |
| Meat, Fish freeze storage | -18~--25 degree centigrade |
| Medicine storage | 2~8 degree centigrade |
| Medicine freeze storage | -20 degree centigrade |
| Meat, Fish blast freezer | -35~-40 degree centigrade |
Some Cold Storage room specification for your reference
| Specification/Model | DCWF-10 | DCWF-15 | DCWF-20 |
| Storage volume | 10 | 15 | 20 |
| Exterior dimensions | 2366W X 2366L X 2300H | 2366W X 3549L X 2300H | 2366W X 4732L X 2300H |
| Interior dimensions | 2166W X 2166L X 2100H | 2166W X 3349L X 2100H | 2166W X 4532L X 2100H |
| Power | 220V/50HZ 2HP | 220V/50HZ 2HP | 380V/50HZ 3HP |
| Color and malerial | Grey-white color coated painted gaivanised mild steel | Grey-white color coated painted gaivanised mild steel | Grey-white color coated painted gaivanised mild steel |
| Storage temperature | >-20 | >-20 | >-20 |
custom-made Cold Storage room Product information for your reference | |
Dimension |
L4(m) *W3 (m)*H2.5(m) |
Panel |
Wall& ceiling panel |
Floor panel: | |
Foaming material |
BASF |
door |
hinge door W800*H1900mm |
Temp.of room |
-5~+4 degree C |
Purpose of cold storag room |
fruit,vegetable,flower,fresh meat etc |
Refrigeration unit |
Copeland 3hp |
Refrigeration type |
air cooled |
Fittings |
all necessary fittings are included, optional |
Cold Storage room panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |

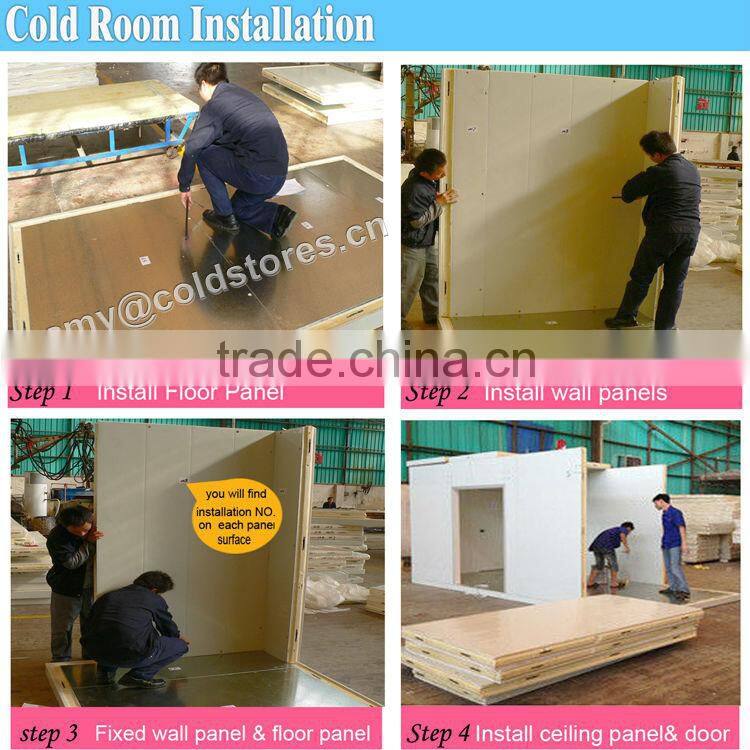

Cold Storage room Installation
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.
Our panel advantage :

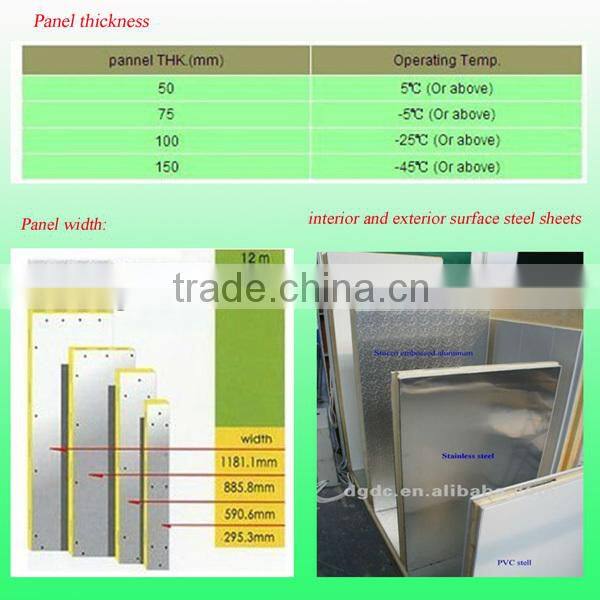

1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each Cold Storage room panel , when panel lock together,the cool air will not leak,and the hot air can not come in .
Cold Storage room floor: galvanized steel floor panel , skidproof floor or reinforced concrete floor
Cold Storage room condensing units :split unit or monolithic unit

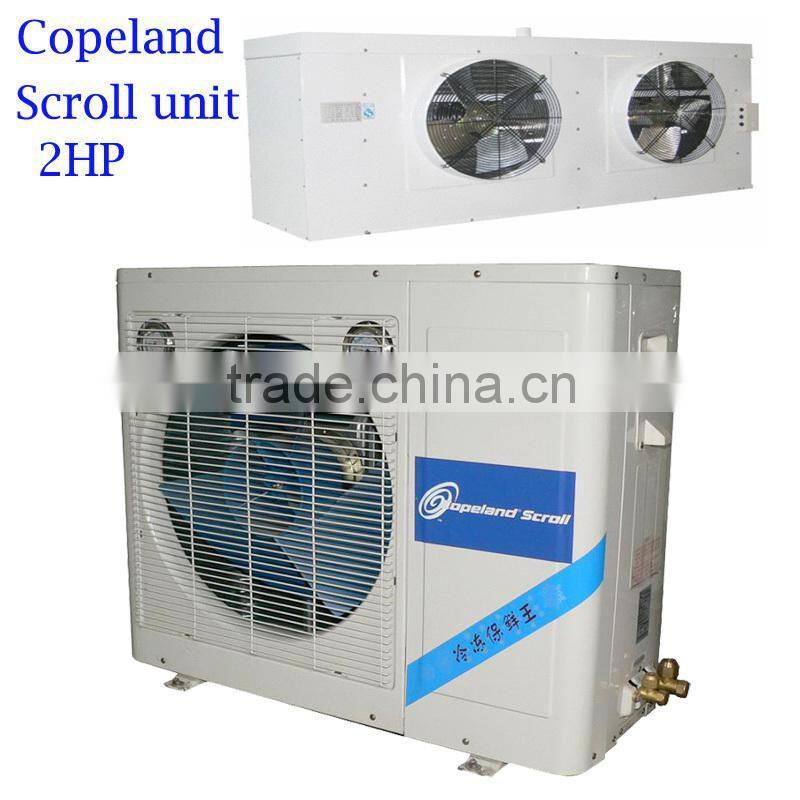

Copeland unit
ZANOTTI monolithic unit

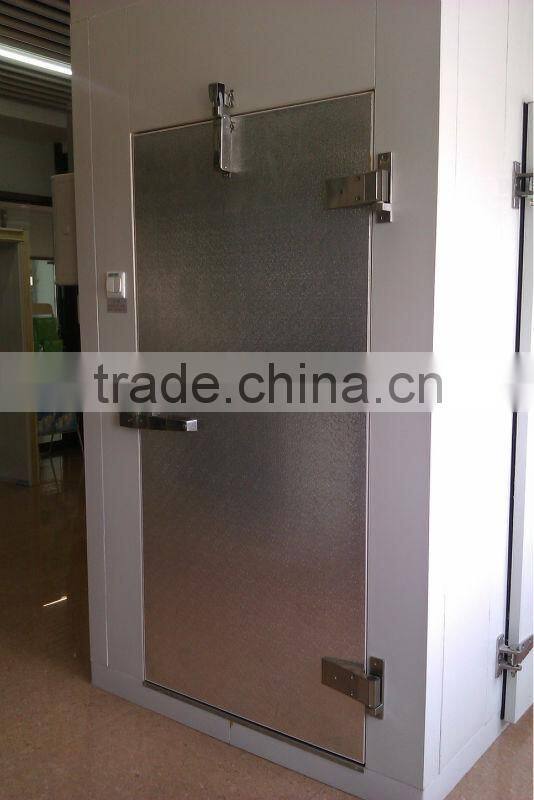

Cold Storage room Door

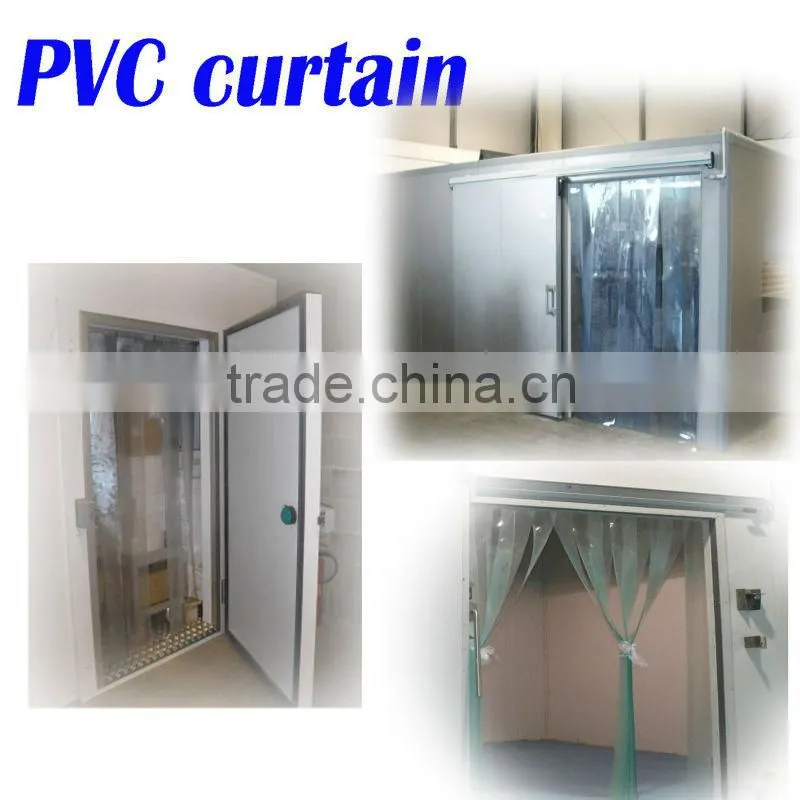

Cold Storage room door can be with the PVC curtain
production line for our Cold Storage room
Cold Storage room package
Polyurethane sandwich insulation panels are packed with bubble paper
Refrigeration unit: condensing unit and evaporator cooling unit are packed in plywood box
Cold Storage room parts are packed in cartons

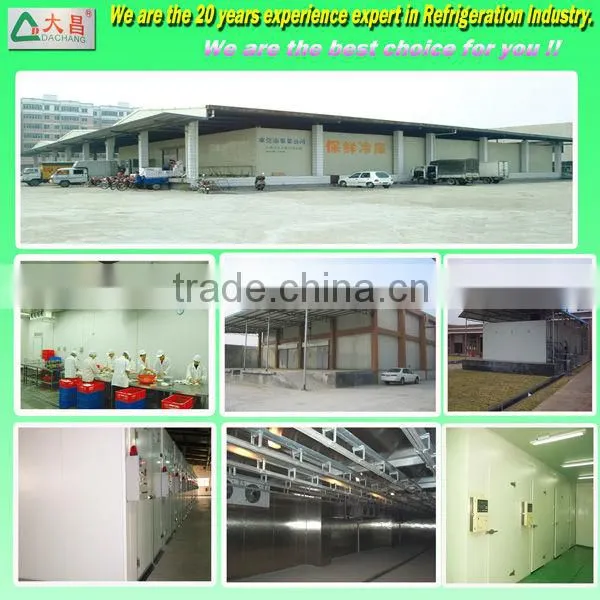

Some of our Cold Storage room Project :(Domestic and Overseas )
