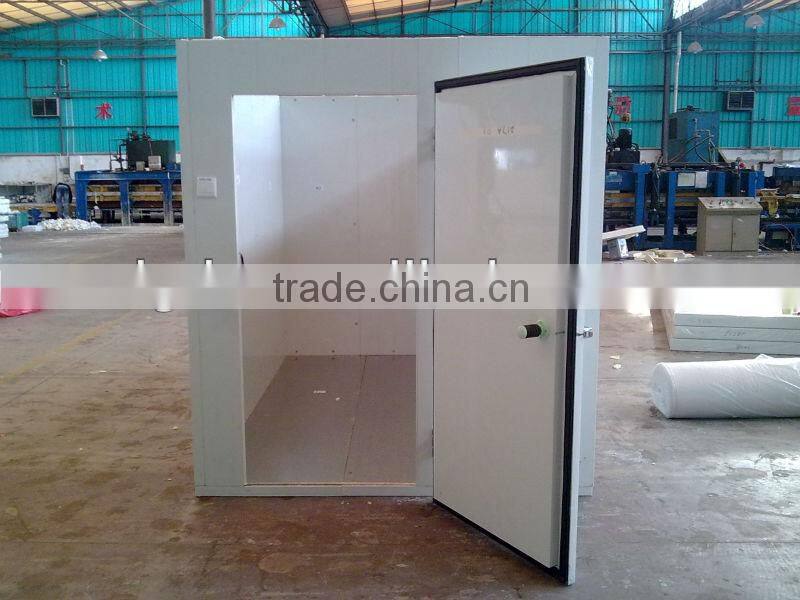

Freezer room for meat and fish -25C
Freezer room Product Feature
1. The Freezer room panel is durable in use, color lasting & coated layer keeping.
2. It is made with Bayer polyurethane material by high pressure foaming. The cold room panel density is up to 40kg/m3 or above.
3. The internal cold room floor panel of our cold room is made by 1.0mm galvanized steel and durable for anti-scratch.
4. The hinged door panel of our coldroom is made by heavy duty door hinge, heavy duty door lock and hydraulic door closer.
5. The connection of our cold room panels are made with PE sealing rubber which is with high quality sealing.
6. The connection of our cold room is with cam lock construction and excentric fasterners for tight connection and sealing of the cold room
Freezer room Product information:
Dimension |
Length (m) *Width (m)*Height (m) According to client's requirement . |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-45~+20 degree, optional |
Purpose of cold room |
fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
we are a professional manufacturer,which help our clients to customize the Freezer room . Pls answer us the your detailed requirement. Tks!
Freezer room Inner can install the shelf
plastics-dipping shelf (5 pcs/set) (L:726*W:600mm)
Freezer room door
Convex hinged door

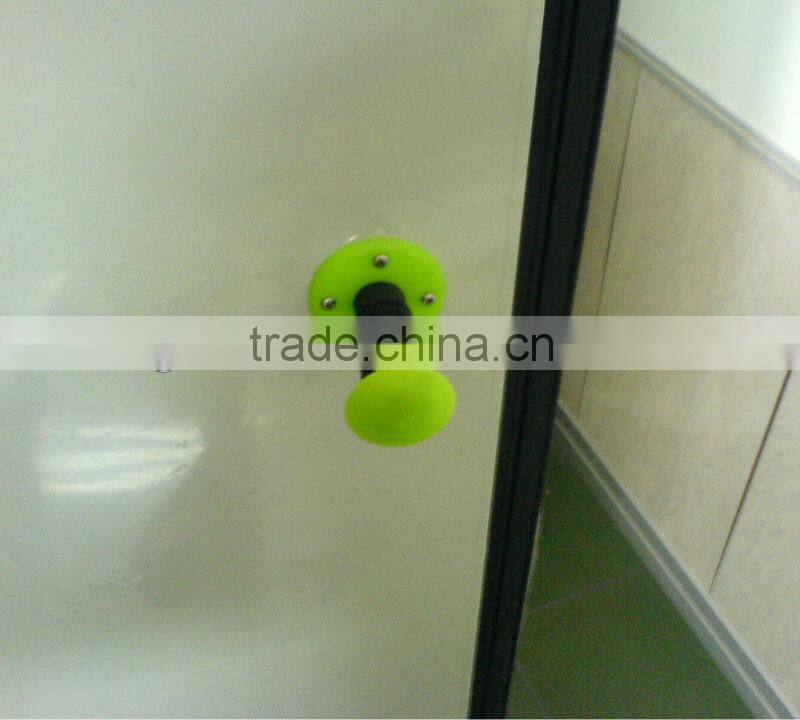

There is with the saft lock at the back of the door :
Freezer room panel&install tool:
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |

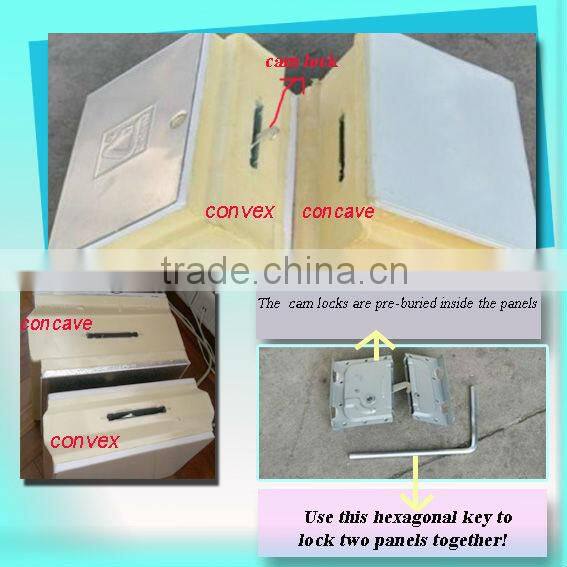

Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.
our panel advantage :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard
2.All the panels we produce are with fire retardant, self-Extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years.
4. Gasket is around the edge of each Freezer room panel , when panel lock together,the cool air will not leak,and the hot air can not come in .It enable the cold room with better air-tightness. So our panel is with excellent thermal insulation effect . It can save much more energy consumption.

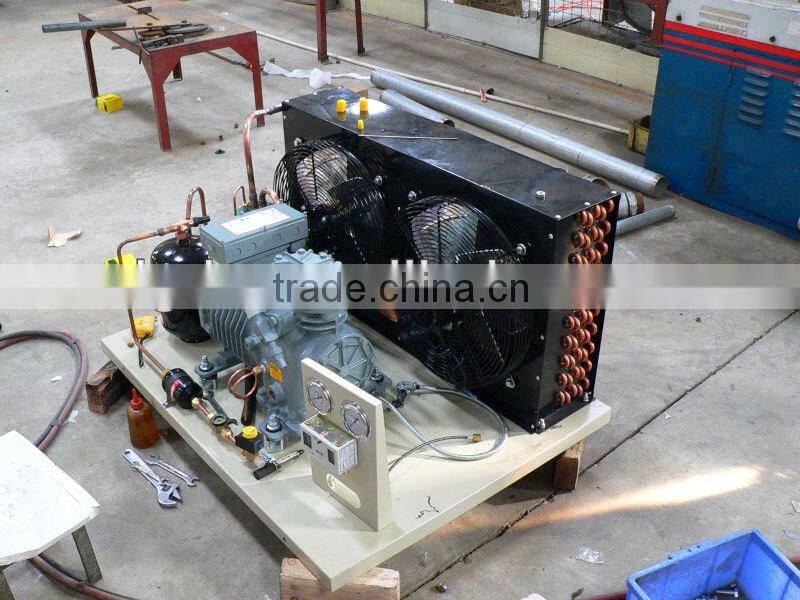

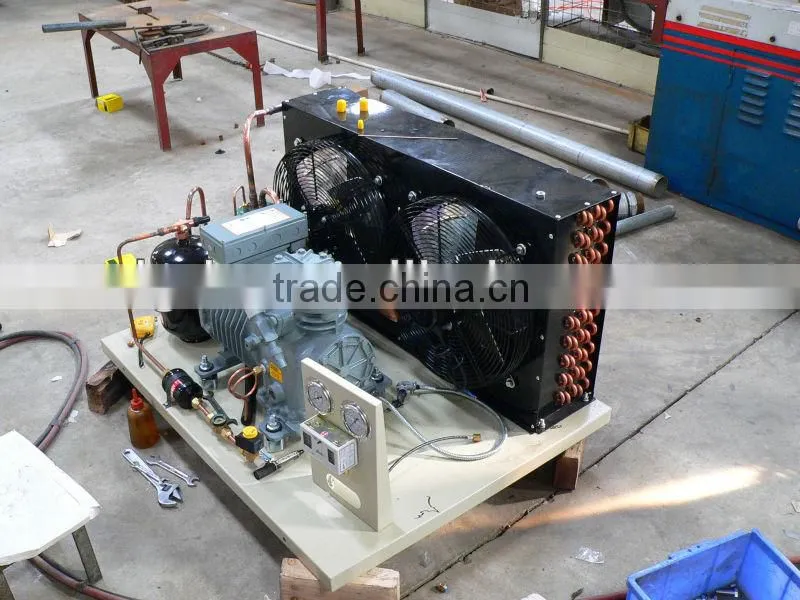

Freezer room condensing units: ( Copeland )
Freezer room fan
production line for our Freezer room
Freezer room Electrical Cabinet
Our Electrical Cabinet accessories are adopted the imported famouse brand accessories ,such as the French Schneider brand contactor, Italy EVCO brand temperature controller .
So our Electrical Cabinet is very high quality and durable .
So you know why our cooling room production cost is higher then other suppliers.
Some of our Freezer room Project :(Domestic and Overseas )
Take part in the Exhibition every year:
