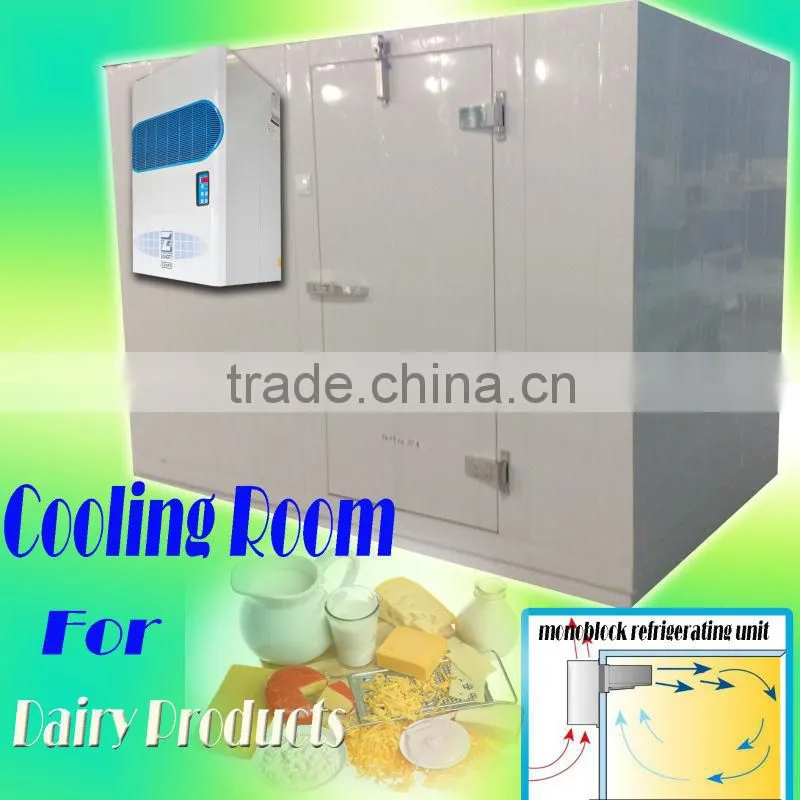

Cooling Roomfor Dairy products storage
Cooling Room Product Features
Cooling Room are made up of standard sized panels, all of which easily lock together. They’re supplied flat packed making it easier to unload and are much less space consuming. they are ideal for commercial sized refrigeration rooms for the end customers, they offer the perfect tailored solution to perfectly fit into the space you have available.Available in stainless steel as well as the standard galvanised steel sheet with food safe polyester, the panels contain highly efficient insulation materials which are encased within the surfaces. They are easily cleaned and are made from accredited food safe materials.
Cooling Room Temperature Range for your reference
| Storage products | Storage temperature approach |
| Vegetables, Fruit storage | -5~5 degree centigrade |
| Drink, Beer storage | 2~8 degree centigrade |
| Meat, Fish freeze storage | -18~--25 degree centigrade |
| Medicine storage | 2~8 degree centigrade |
| Medicine freeze storage | -20 degree centigrade |
| Meat, Fish blast freezer | -35~-40 degree centigrade |
Cooling Room Product information
Dimension |
Length (m) *Width (m)*Height (m) According to client's requirement . |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-45~+20 degree, optional |
Purpose of cold room |
fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
Cooling Room panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
Cooling Room Installation tool: hexagonal key
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.
Our panel advantage :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each Cooling Room panel , when panel lock together,the cool air will not leak,and the hot air can not come in .
Cooling Room floor:
can do the PU Panel floor or concrete floor
Cooling Room condensing units: Zanotti Monoblock condensing unit
Advantage :
1). Adopt imported Hermetic piston type compressor
2). Imported branded MAVIB,EBM Fan
3).Capillary expansion system , Refrigerant Gas R404a
4).Intelligent automatic defrosting system ,which can save much more energy consumption.
5).Easy to install , just need to hang on the panel outside wall .
Do not need any other expansion valve ,copper pipe and Electrical Cabinet any more .
Cooling Room Inner cooler
Flush hinged door for the Cooling Room
More door for your choose (the size can be customize )
| No | Door type | door size | door heater voltage |
| 1 | Flush door | 800mm W*1900mm H | 24V / 36V |
| 2 | not flush mounted hinged door | 832mm W*1860mm H | 24V / 36V |
| 3 | sliding door | 832mm W*1860mm H | 24V / 36V |
production line for our Cooling Room
Cooling Room Package

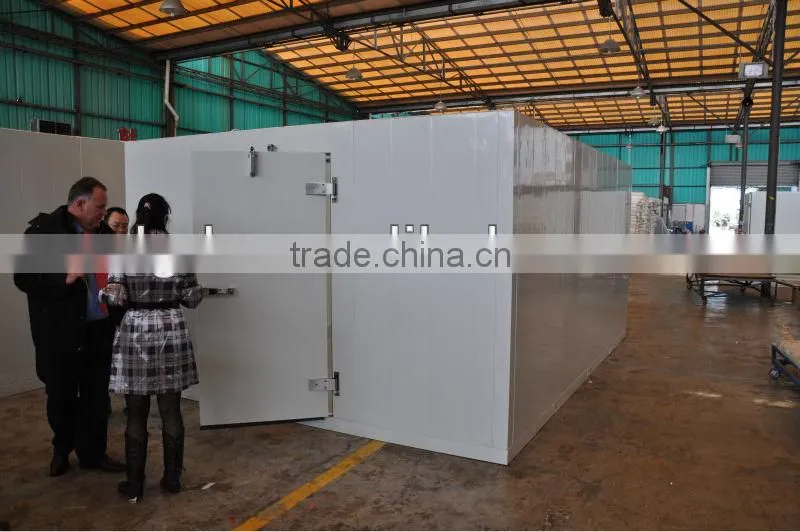

Some of our Cooling Room Project :(Domestic and Overseas )
Take part in the Cooling Room Exhibition every year:
