Standard Cold Room
Detailed Product Description
Cold storage Coldroom Walk in freezer is a new product with various standard dimension sizes. The storage capacity of it may be specified
or selected according to customer's requirements. The storage temperature of the cold room is
displayed and controlled by digital thermostat for precise control temperature and temperature
adjustment to achieve the utmost energy efficiency and perfect storage of food.
Features of our Cold storage Coldroom Walk in freezer Panel:
1. The cold storage room panel is durable in use, color lasting & coated layer keeping.
2. It is made with Bayer polyurethane material by high pressure foaming. The coldroom panel
density is up to 40kg/m3 or above.
3. The internal coldroom floor panel of our cold room is made by 1.0mm galvanized steel
and durable for anti-scratch.
4. The hinged door panel of our cold-room is made by heavy duty door hinge, heavy duty door lock and hydraulic door closer.
5. The connection of our coldroom panels are made with PE sealing rubber which is with high
quality sealing.
6. The connection of our coldroom is with cam lock construction and excentric fasterners for
tight connection and sealing of the coldroom.
Dimension |
Length (m) *Width (m)*Height (m) |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |

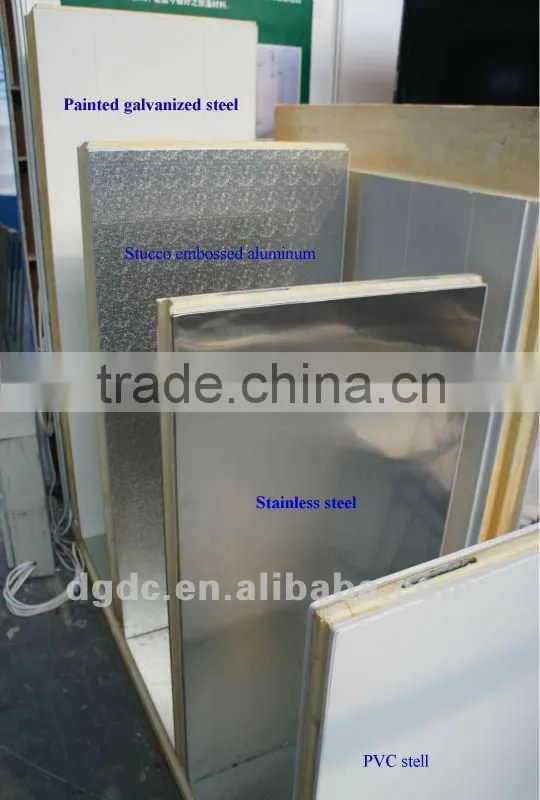

Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-30~+5 degree, optional |
Purpose of cold room |
fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
Feature
1. The ColdRoom can be designed walking in, even the truck, you can choose the type,such as checkered plate, concrete floor or just normal.
2. the ColdRoom cold room comprises prefabricated panel. easy setting and backout. You can desice the thickness of the panel or we can design for you.
3. the panel's interior and exterior surface is covered with steel sheets.
Optional: painted galvanized steel. stucco embossed aluminum, stainless steel. PVC stell

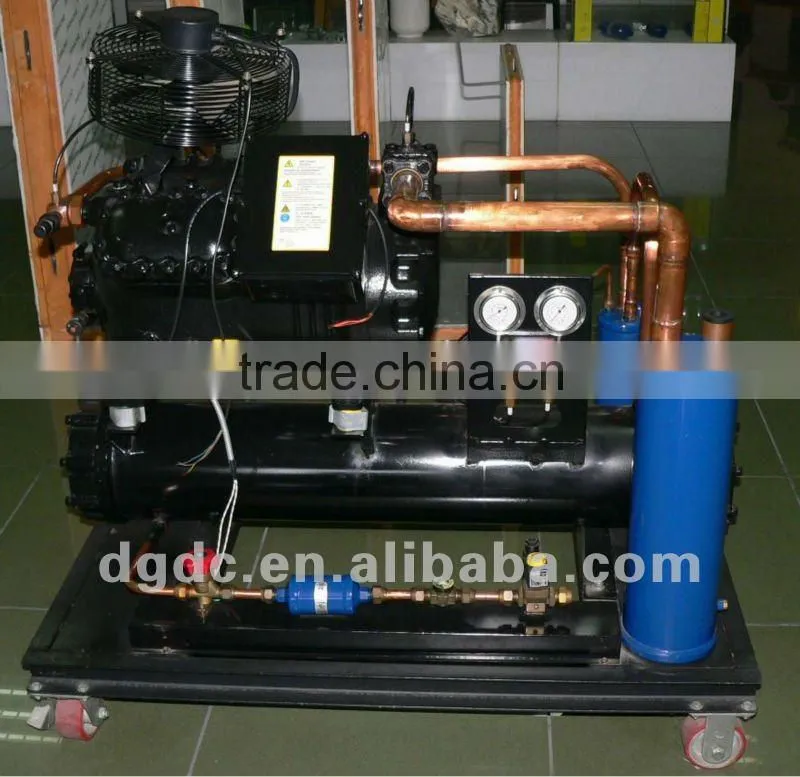

4. refrigeration unit, we can design to desice how many and how big the unit is.

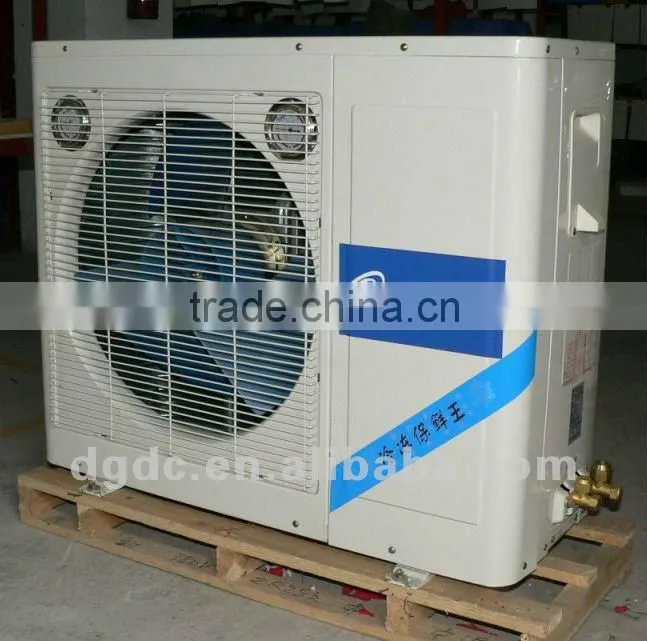

--outside unit: usually we choose Bitzer or Copeland or Danfoss Compressor
--hermetic/ semi-hermetic/ monoblock
--air cooled
--refrigerant R404a

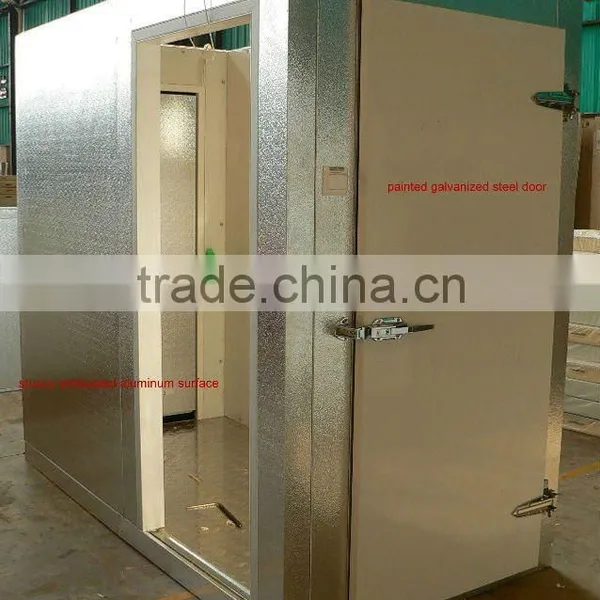

5. door: hinge door, convex door, sliding door optional
the door has frame electrical heater to prevent frozen stuck
the door has internal safety knob for emergency opening.

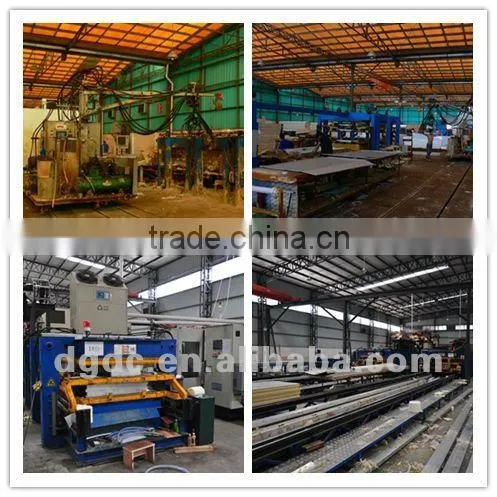

Production Line
DACHANG company provide the pefect solutions to the modular ColdRoom cold room for 20years !
DACHANG company attend the related exhibitions every year.
A.the 23rd China Refrigeration 2012 held in Beijing in April.
