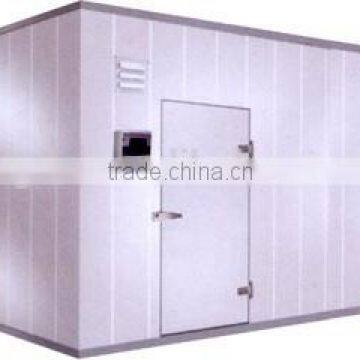

Standard cold room with painted galvanized steel material
standard modular cold room is a new product with various standard dimension sizes. The storage capacity of it
may be specified or selected according to customer's requirements. The storage temperature of the Standard Modular cold room is displayed and controlled by digital thermostat for precise control
temperature and temperature adjustment to achieve the utmost energy efficiency and perfect storage of food.
standard modular cold room feature:
1.Environmentally friendly foaming,polyurethane panel thickness:100mm,density about 43kg/m3,with gasket. Panels are male(convex groove) and female (concave groove) type,cam locks preburried inside the panels,use a key to fasten.
2.White color painted galvanized steel finish
3.Convex door,heavy duty, with safety knob inside for opening inside.It can be changed to hinge door base on customer's requirement.
4.Copeland brand compressor,durable to use,with good refrigeration.
5.Necessary parts are included.
6.Environmentally friendly refrigerant R404a
standard modular cold room pecification:

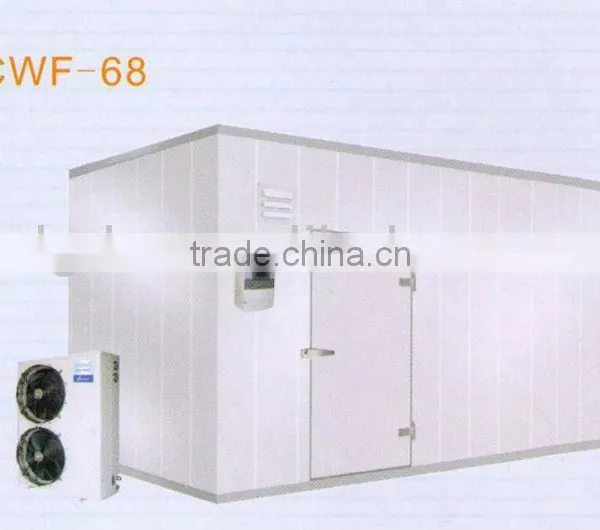

| Model | DCWF-54 | DCWR-54 | DCWF-68 | DCWR-68 |
| strorage volume | 54 m3 | 54 m3 | 68 m3 | 68 m3 |
|
Exterior dimension (W*L*H) |
4732*5919*2300mm | 4732*5919*2300mm | 5915*5919*2300mm | 5915*5919*2300mm |
|
Interior dimension (W*L*H) |
4532*5715*2100mm | 4532*5715*2100mm | 4715*4715*2100mm | 4715*4715*2100mm |
| Door | convex door | convex door | convex door | convex door |
|
Refrigeration/ Power |
(DC-50FLG/4850W)*2 | DC-50FHG/4850W | (DC-50FLG/4850W)*2 |
(DC-30FHG/2650W) *2 |
| Cooler /Power | DD30/500W*2 | DL40/500W | DD30/500W | (DL25/270W)*2 |
| Refrigeration unit /weight |
(940*340*1240mm/110kg) *2 |
940*340*1240mm/ 110kg |
(940*340*1240mm/110kg) *2 |
(920*320*850mm/53kg) *2 |
| Cooler /weight |
(1330*605*630mm/65kg) *2 |
1330*605*630mm/ 68kg |
(1330*605*630mm/65kg) *2 |
(1580*425*465mm/49kg) *2 |
| Copper pipe and preservation | 5m | 5m | 5m | 5m |
| Power | at client's request | at client's request | at client's request | at client's request |
| Storage temperature | -20 degree | -5 degree | -20 degree | -5 degree |
| Refrigerant | R404a | R404a | R404a | R404a |
| Fitting | pressure relief vent&light | pressure relief vent&light | pressure relief vent&light | pressure relief vent&light |
standard modular cold room introduction:

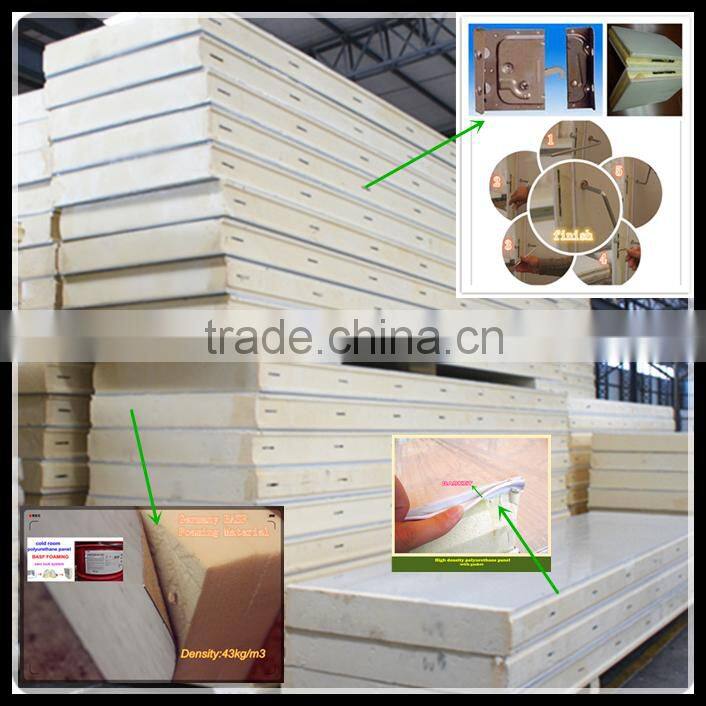

1. standard modular cold room panel
1)Panel test specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
2) standard modular cold room Panel advantages:
1. Our panel foaming material is Germany Brand BASF . The whole panel average density above 43kg/m3 which
enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety
problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each panel , when panel lock together,the cool air will not leak,and the hot air can not come in.
2. standard modular cold room door
1)Door specification
| No | Door type | Door size | Door heater voltage |
| 1 | Hinged door | 800mm W*1900mm H | 24V / 36V |
| 2 | Convex door | 832mm W*1860mm H | 24V / 36V |
| 3 | Sliding door | 832mm W*1860mm H | 24V / 36V |

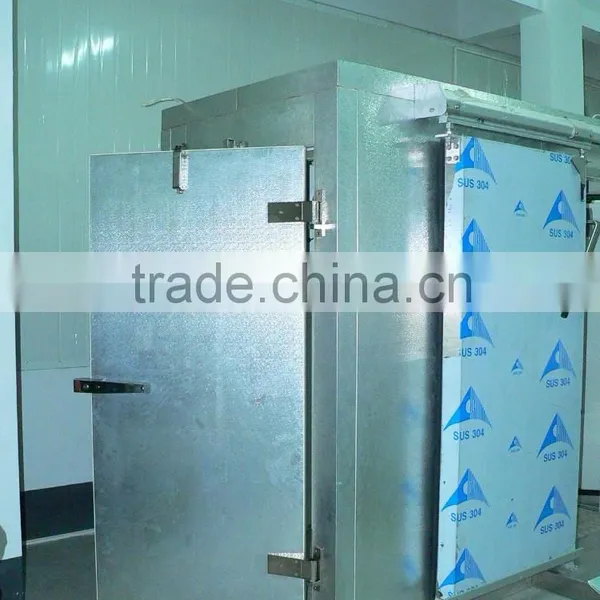

2) standard modular cold room Door picture
3. standard modular cold room refrigeration unit
4. standard modular cold room package
door and panel are packed with PE film and bubble paper, it is easy to ship and save cost.
5. standard modular cold room production procedure
Cold room project:
Cold room exhibition:
Cold room certificate:
standard modular cold room

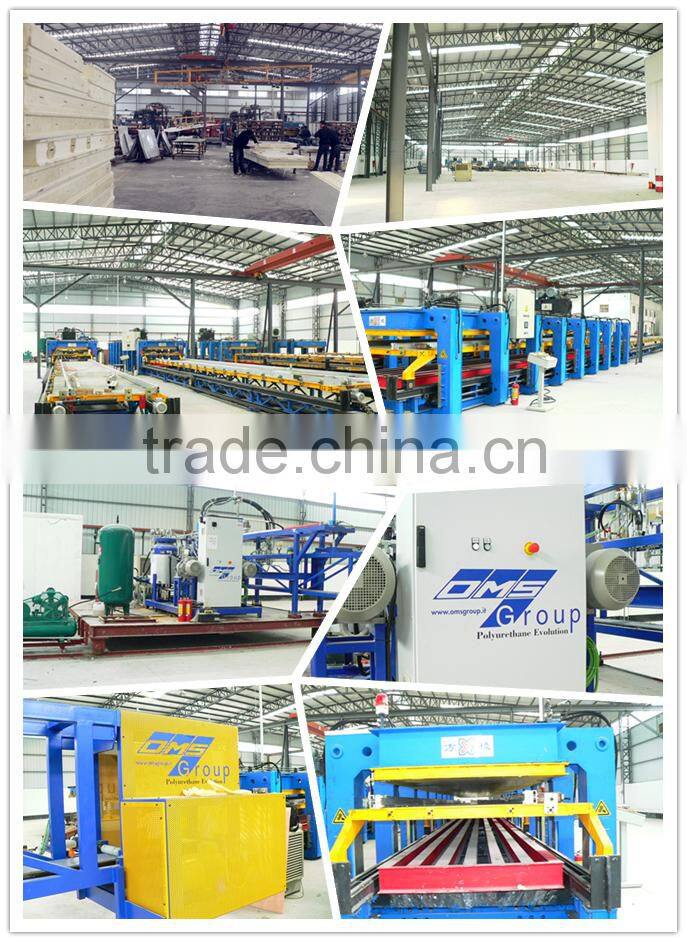

Factory picture:
