Small Cold Storage with monolithic condensing unit
Small Cold Storage Product Features
Small Cold Storage are made up of standard sized panels, all of which easily lock together. They’re supplied flat packed making it easier to unload and are much less space consuming. they are ideal for commercial sized refrigeration rooms for the end customers, they offer the perfect tailored solution to perfectly fit into the space you have available.Available in stainless steel as well as the standard galvanised steel sheet with food safe polyester, the panels contain highly efficient insulation materials which are encased within the surfaces. They are easily cleaned and are made from accredited food safe materials.
Small Cold Storage Temperature Range for your reference
| Storage products | Storage temperature approach |
| Vegetables, Fruit storage | -5~5 degree centigrade |
| Drink, Beer storage | 2~8 degree centigrade |
| Meat, Fish freeze storage | -18~--25 degree centigrade |
| Medicine storage | 2~8 degree centigrade |
| Medicine freeze storage | -20 degree centigrade |
| Meat, Fish blast freezer | -35~-40 degree centigrade |
Small Cold Storage Product information
Dimension |
Length (m) *Width (m)*Height (m) According to client's requirement . |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-45~+20 degree, optional |
Purpose of cold room |
fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
some standard Small Cold Storage size for your reference
| Specification/Model | DCWF-25 | DCWF-68 | DCWF-20 |
| Storage volume | 25 | 68 | 20 |
| Exterior dimensions | 2500W X 2500L X 2500H | 5915W X5915L X 2300H | 2366W X 4732L X 2300H |
| Interior dimensions | 2300X 2300X 2300H | 5715W X 5715L X 2100H | 2166W X 4532L X 2100H |
| Power | 380V/50HZ 2HP | 380V/50HZ 8HP | 380V/50HZ 3HP |
| Color and malerial | Grey-white color coated painted gaivanised mild steel | Grey-white color coated painted gaivanised mild steel | Grey-white color coated painted gaivanised mild steel |
| Storage temperature | >-5 | >-5 | >-5 |
Small Cold Storage panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |

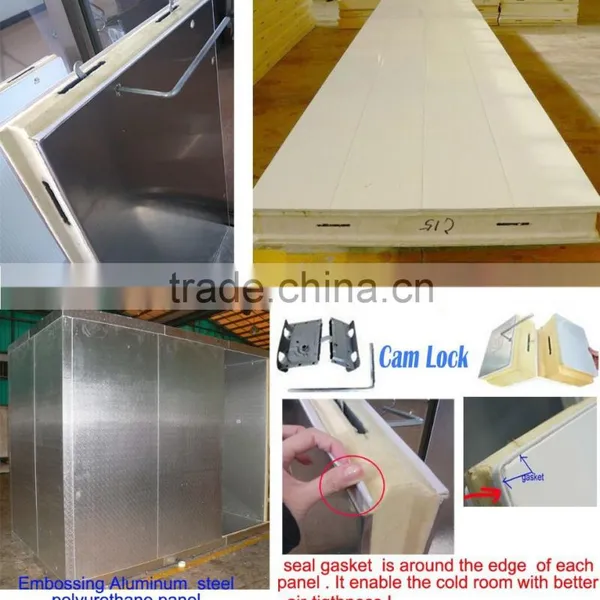

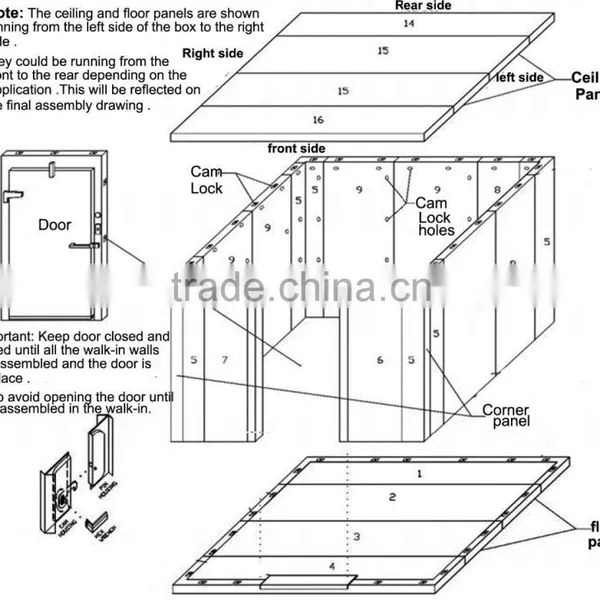

Small Cold Storage Installation tool: hexagonal key
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.
Our panel advantage :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each Small Cold Storage panel , when panel lock together,the cool air will not leak,and the hot air can not come in .

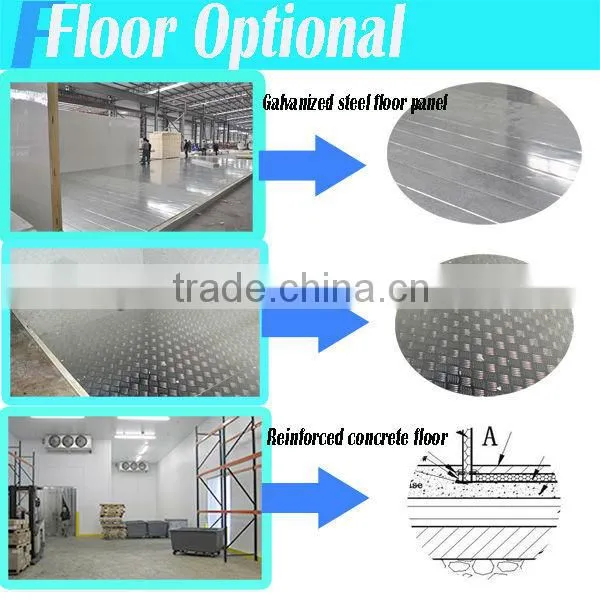

Small Cold Storage floor:
can do the PU Panel floor or concrete floor

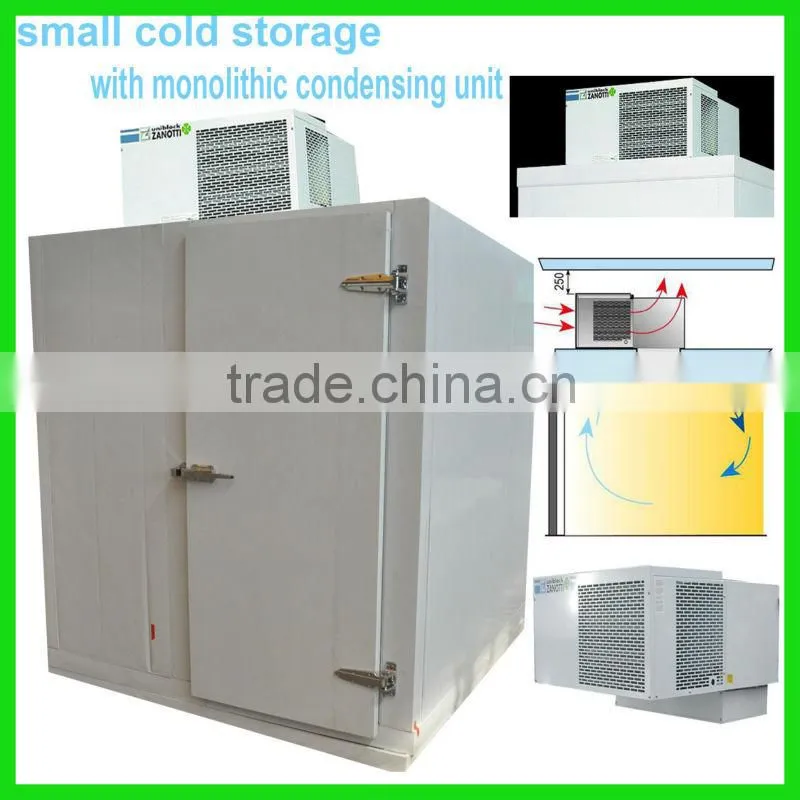

Small Cold Storage condensing units: Zanotti Monoblock condensing unit
Advantage :
1). Adopt imported Hermetic piston type compressor
2). Imported branded MAVIB,EBM Fan
3).Capillary expansion system , Refrigerant Gas R404a
4).Intelligent automatic defrosting system ,which can save much more energy consumption.
5).Easy to install , just need to hang on the panel outside wall .
Do not need any other expansion valve ,copper pipe and Electrical Cabinet any more .

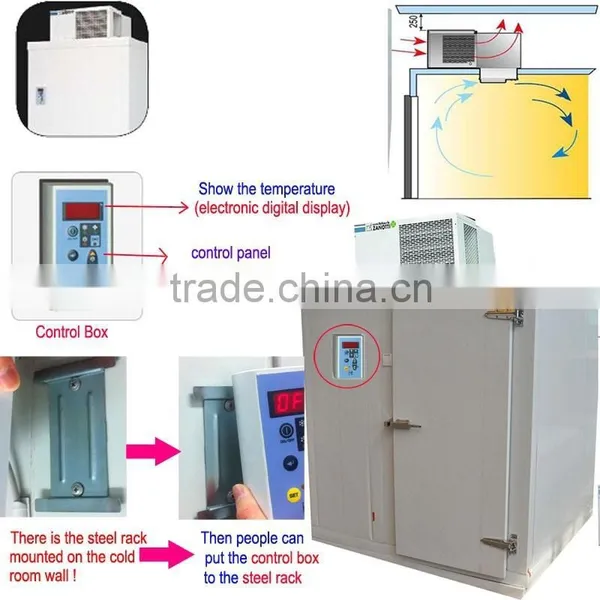

you can choose the wall hanging Monoblock condensing unit or the mounted Condensing unit for the Small Cold Storage
convex hinged door for the Small Cold Storage
More door for your choose (the size can be customize )
| No | Door type | door size | door heater voltage |
| 1 | Flush door | 800mm W*1900mm H | 24V / 36V |
| 2 | not flush mounted hinged door | 832mm W*1860mm H | 24V / 36V |
| 3 | sliding door | 832mm W*1860mm H | 24V / 36V |

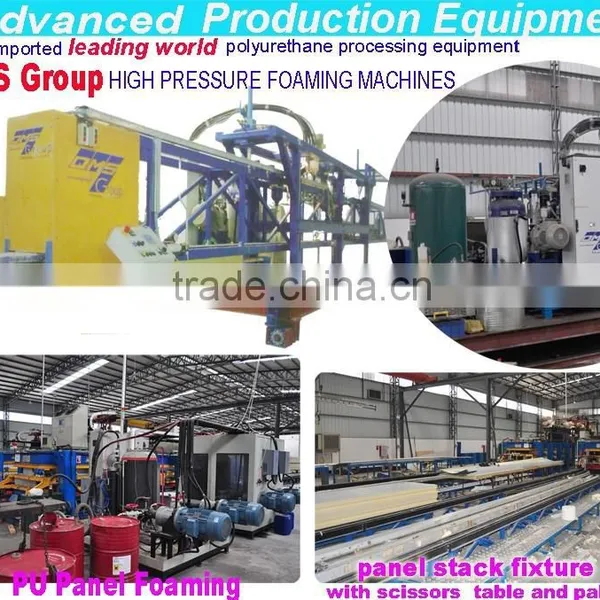

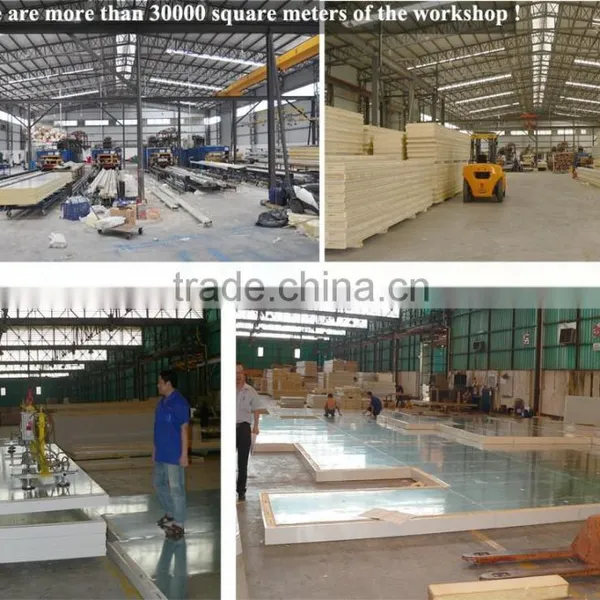

production line for our Small Cold Storage
Small Cold Storage Package
Some of our Cold Storage Project :(Domestic and Overseas )
Take part in the Exhibition every year:
