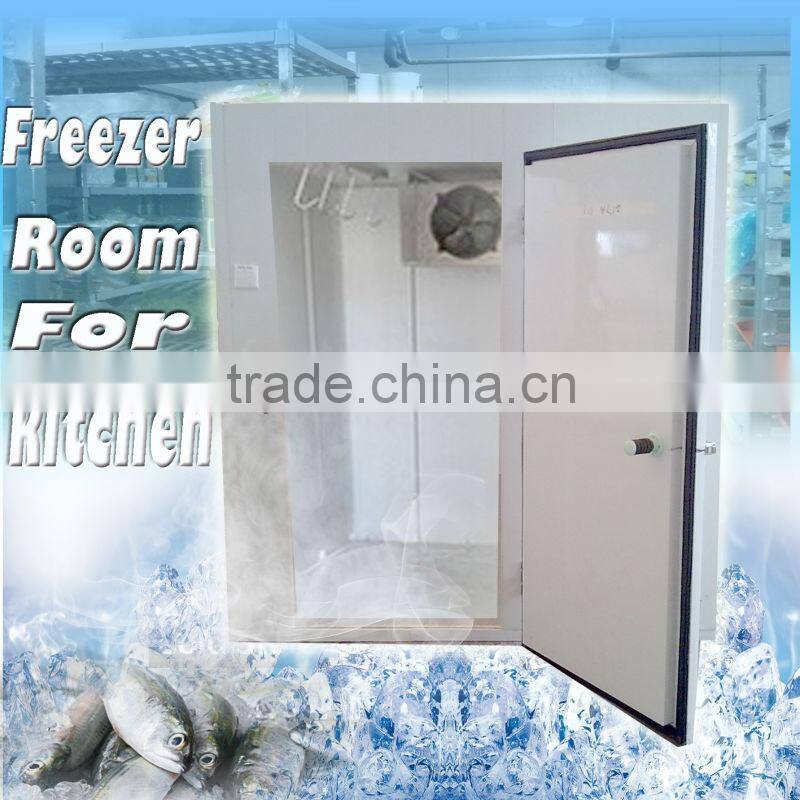

modular cold room freezer (Minus 5 centigrade adjustable)
modular cold room freezer Advantage
1. energy-saving
our modular cold room freezer panels are with excellect insulation effect . Normally, the panels standard thermal conductivity is 0.024W/(m.k). However, our panels can reach 0.021W/ (m.k). Therefore, our panel can save energy consumption of 12.5% than national standard
2.durable panel :more than 15~20 years
3. high-efficiency condensing unit for modular cold room freezer , such as Copeland or Bitzer
4. professional & experienced engineer team give you the professional modular cold room freezer design
5.adopt the advanced production equipment to ensure the fast Delivery
6.Wall wall mounting type condensing unit ,easy to install
modular cold room freezer Temperature Range for more products
| Storage products | Storage temperature approach |
| Vegetables, Fruit storage | -5~5 degree centigrade |
| Drink, Beer storage | 2~8 degree centigrade |
| Meat, Fish freeze storage | -18~--25 degree centigrade |
| Medicine storage | 2~8 degree centigrade |
| Medicine freeze storage | -20 degree centigrade |
| Meat, Fish blast freezer | -35~-40 degree centigrade |
Some modular cold room freezer specification for your reference
| Specification/Model | DCWF-10 | DCWF-15 | DCWF-20 |
| Storage volume | 10 | 15 | 20 |
| Exterior dimensions | 2366W X 2366L X 2300H | 2366W X 3549L X 2300H | 2366W X 4732L X 2300H |
| Interior dimensions | 2166W X 2166L X 2100H | 2166W X 3349L X 2100H | 2166W X 4532L X 2100H |
| Power | 220V/50HZ 3HP | 220V/50HZ 3HP | 380V/50HZ 3HP |
| Color and malerial | Grey-white color coated painted gaivanised mild steel | Grey-white color coated painted gaivanised mild steel | Grey-white color coated painted gaivanised mild steel |
| Storage temperature | >-5 | >-5 | >-5 |
modular cold room freezer customized Product information
Dimension |
Length (m) *Width (m)*Height (m) According to client's requirement . |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-45~+20 degree, optional |
Purpose of cold room |
fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
modular cold room freezer panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |

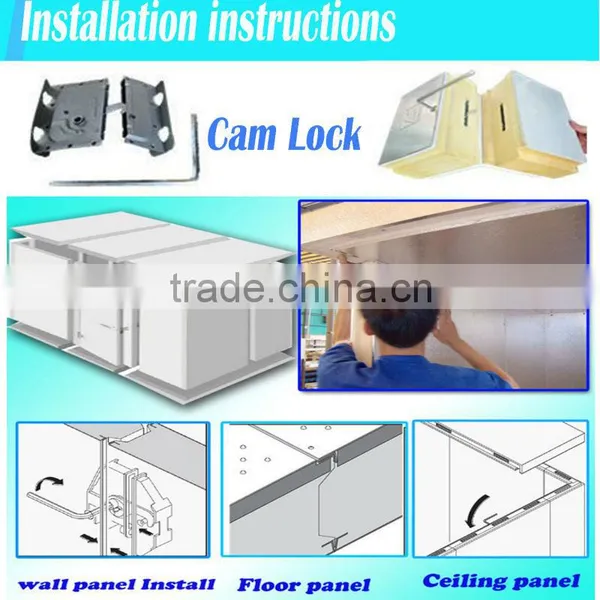

modular cold room freezer Installation tool: hexagonal key
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.

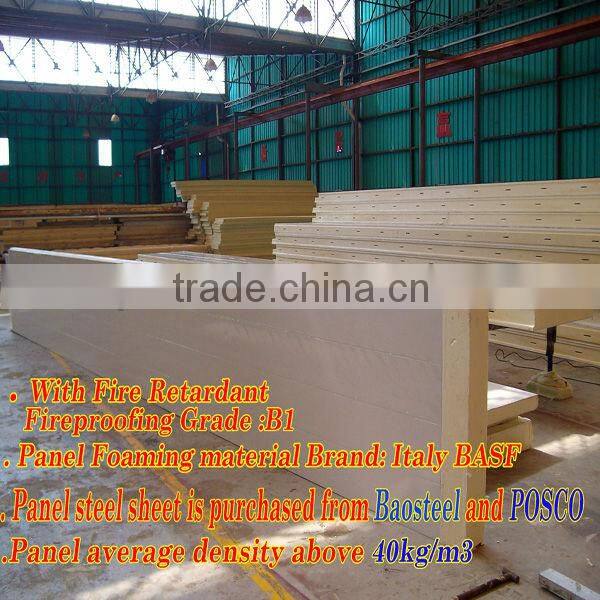

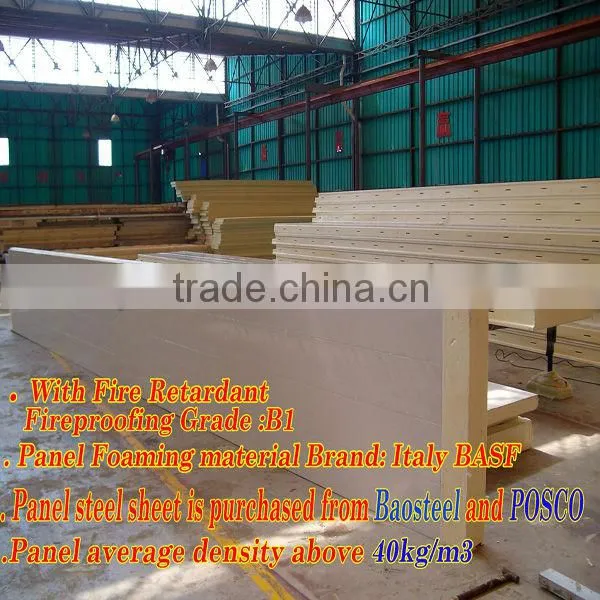

Our panel advantage :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years

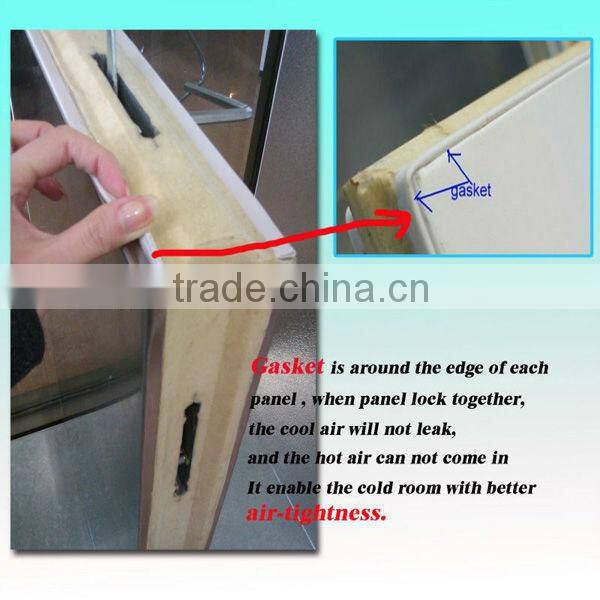

4.Gasket is around the edge of each modular cold room freezer panel , when panel lock together,the cool air will not leak,and the hot air can not come in .
modular cold room freezer floor: galvanized steel floor panel , skidproof floor or reinforced concrete floor

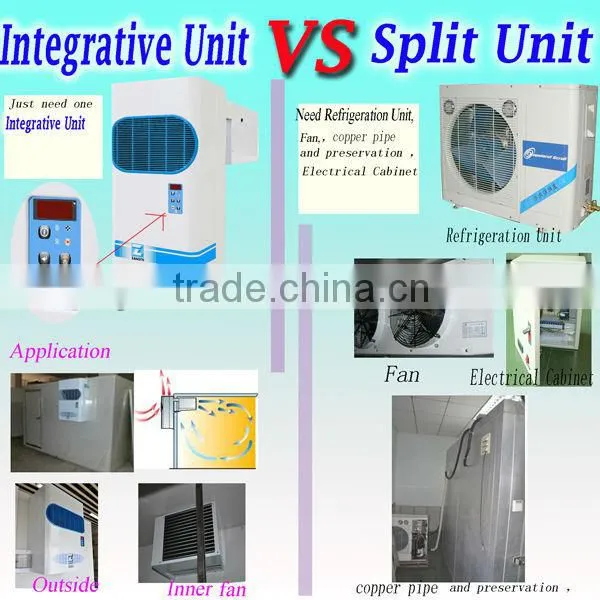

modular cold room freezer condensing units

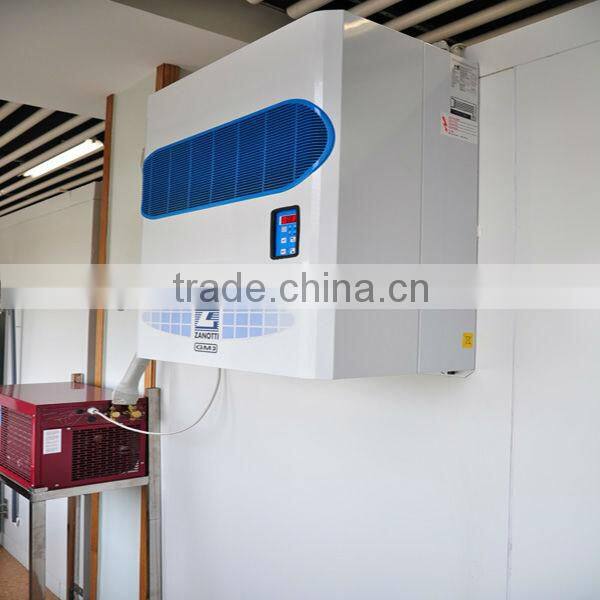

Italy brand ZANOTTI Monoblock condensing unit

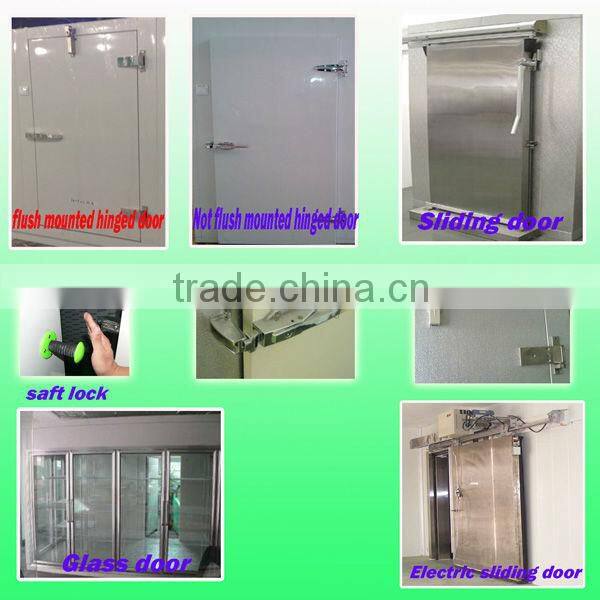

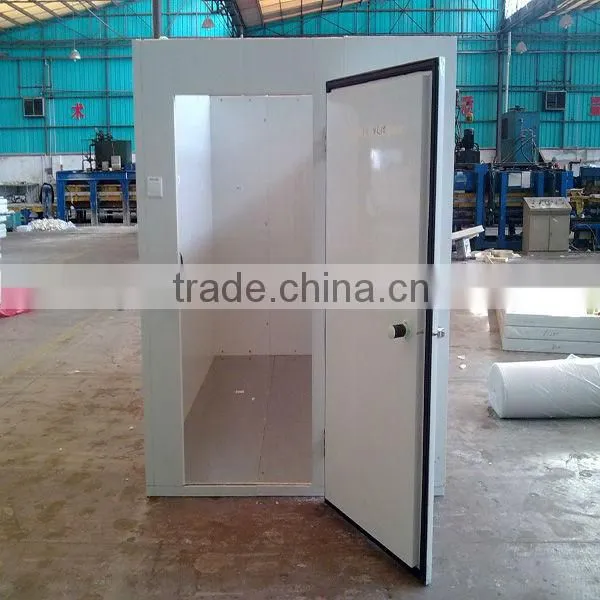

modular cold room freezer door for your choice
size can be changed according to the client's requirement
| No | Door type | door size | door heater voltage |
| 1 | Flush door | 800mm W*1900mm H | 24V / 36V |
| 2 | not flush mounted hinged door | 832mm W*1860mm H | 24V / 36V |
| 3 | sliding door | 1500mm W*2000mm H | 24V / 36V |

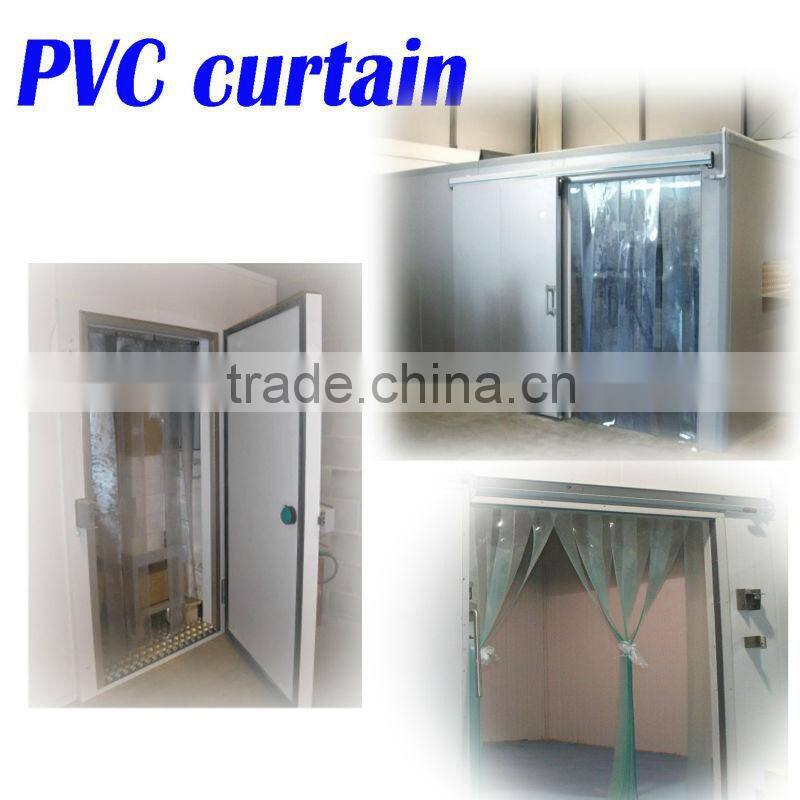

modular cold room freezer door can be with the curtain

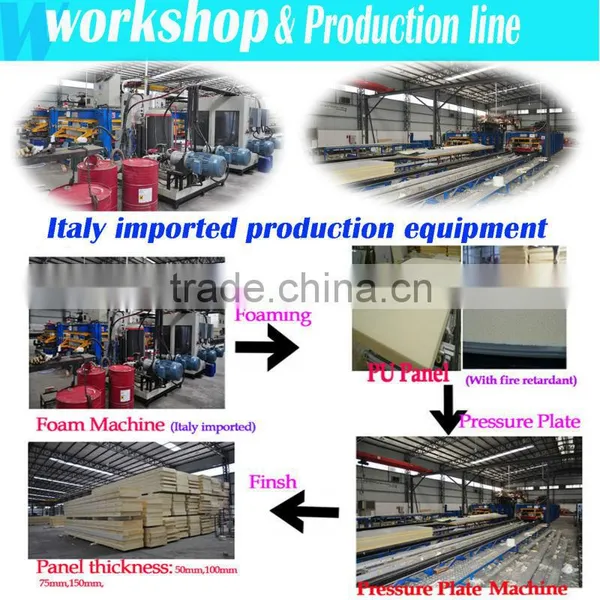

production line for our modular cold room freezer

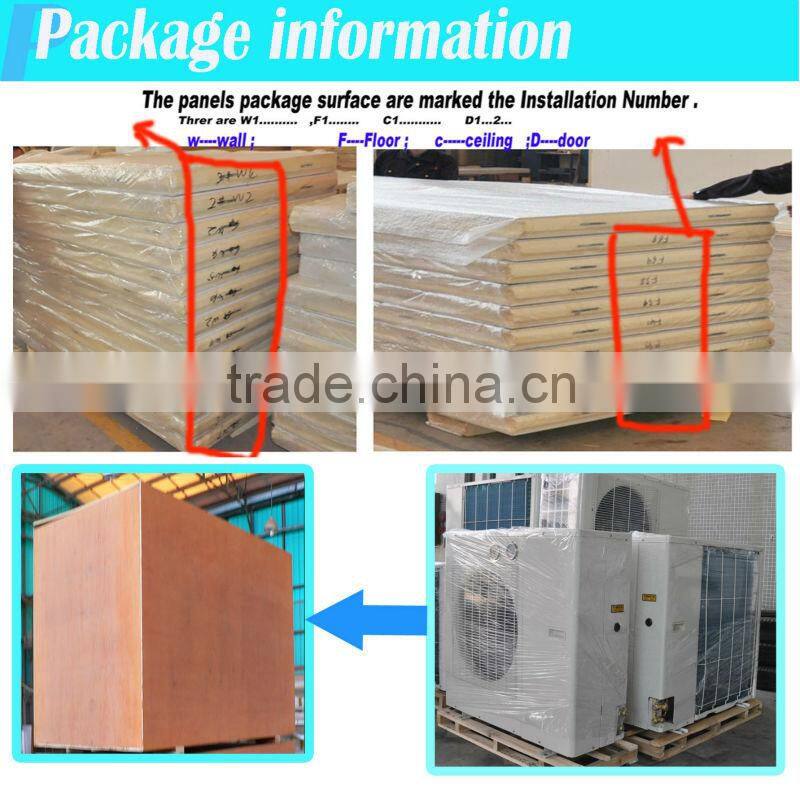

modular cold room freezer package

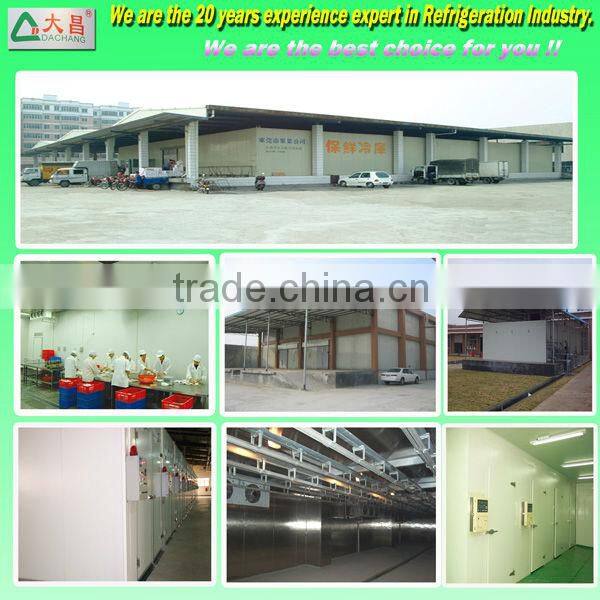

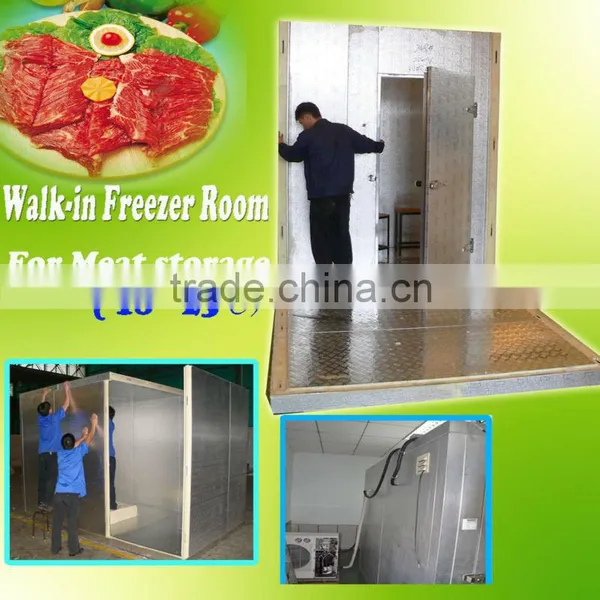

Some of our Project :(Domestic and Overseas )
