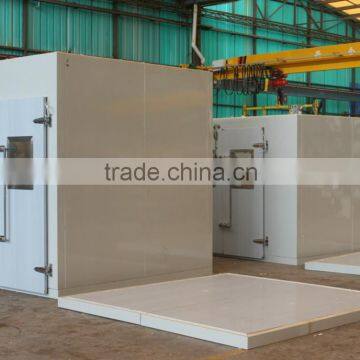

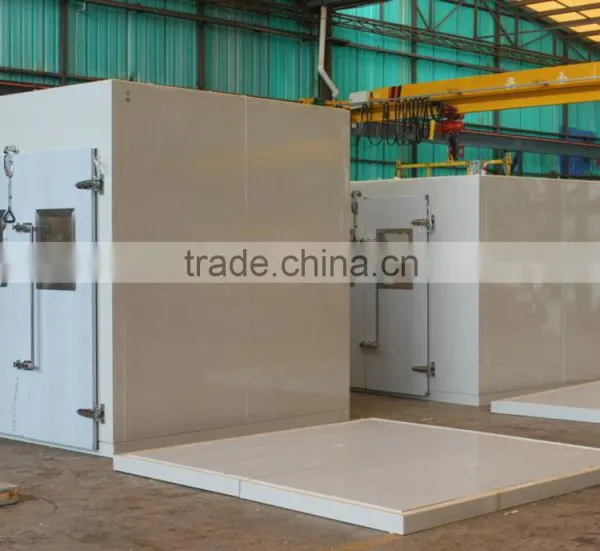

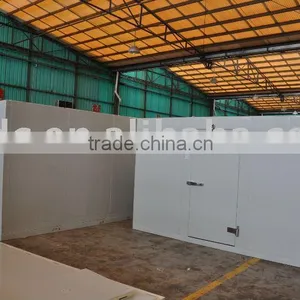

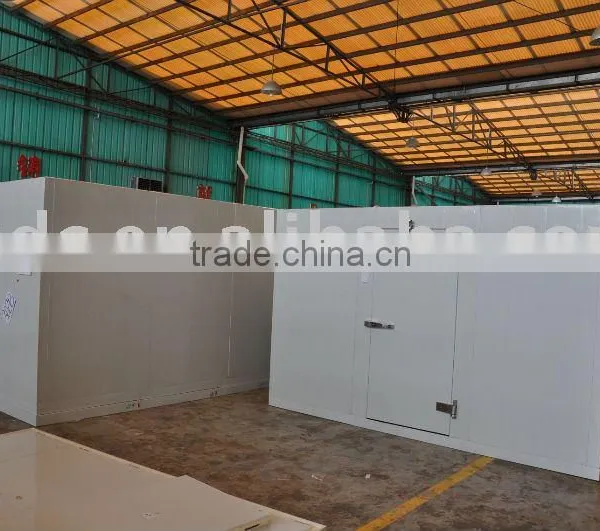

Vegetable cold storage
Polyurethane insulation panel feature:
1. Polyurethane insulation panel is durable in use, color lasting & coated layer keeping.

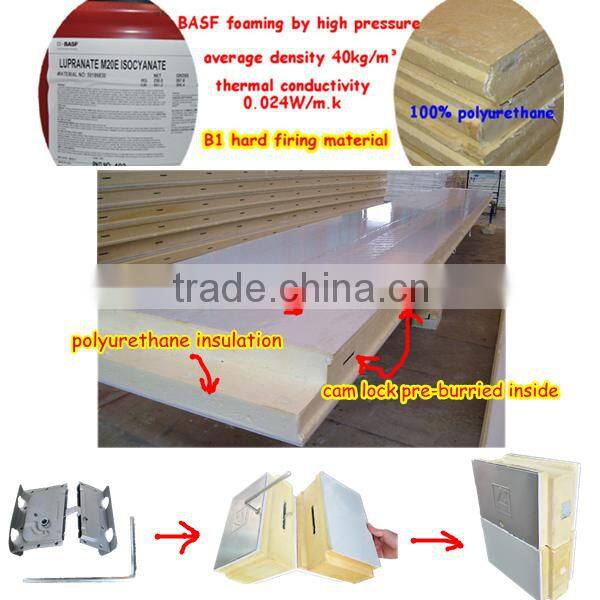

2. It is made with Bayer polyurethane material by high pressure foaming. The polyurethane
insulation panel density is up to 40kg/m3 or above.
3.The maximum length of polyurethane insulation panel is 13.5m and the standard width is 295.3mm with flame retardant.
4. The internal polyurethane insulation floor panel is made by 1.0mm galvanized steel and durable for anti-scratch.
5. The hinged door panel is made by heavy duty door hinge, heavy duty door lock and hydraulic door closer.
6. The connection of our polyurethane insulation panel is made with PE sealing rubber which is with high
quality sealing.

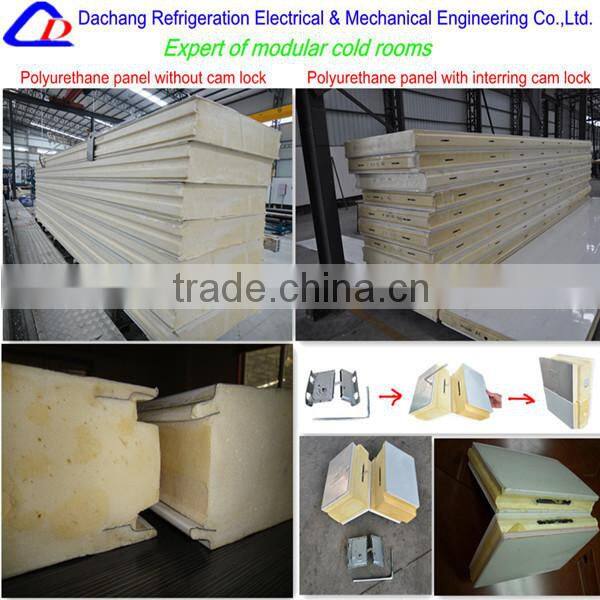

7. The connection of our polyurethane insulation panel is with cam lock construction and excentric
fasterners for tight connection and sealing of the cold room

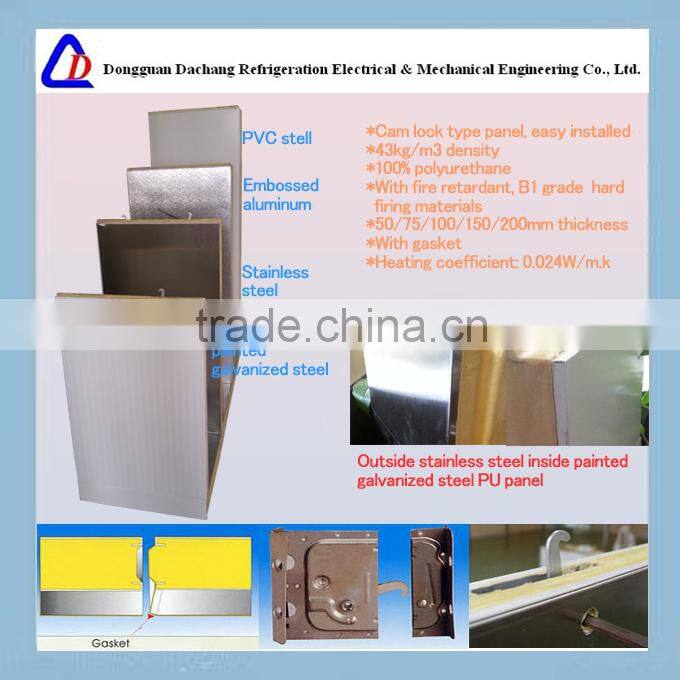

Cold room panel specification:
| Panel | Polyurethane insulation panel,43kg/m3,fire retardant |
| Foaming material | BASF |
| Panel thickness | 50mm,75mm,100mm,150mm,200mm |
| Steel cover | Stucco embossed aluminum,Painted galvanized steel,Stainless steel |
| Panel connection | Cam lock type,use hexagonal key to assemble and disassemble |
Freezer room PU panel testing result
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
Specification of Standard Cold Room:
| Model | DCWF-26 | DCWR-26 |
| Refrigeration storage volume(m3) | 26 | 26 |
| Exterior dimension(mm) | 2366(W)*5915(L)*2300(H) | 2366(W)*5915(L)*2300(H) |
| Interior dimension(mm) | 2166(W)*5715(L)*2100(H) | 2166(W)*5715(L)*2100(H) |
| Refrigeration unit(model/power) | DC-40FLG/4850W | DC-30FHG/2650W |
| Cooler(model/power) | DD60/1100W | DL30/270W |
| Refrigeration unit (packing size/weight) | 940mm(W)*340mm(L)*1240mm(H) /110kg | 920mm(W)*320mm(H)*850mm/53kg |
| Cooler(packing size/weight) | 1330mm(W)*605mm(L)*630mm(H)/65kg | 1580mm(W)*425mm(L)*465mm(H)/49kg |
| Storage temperature | -18 C | -5 C |
| Model | DCEWF-30 | DCWR-30 |
| Refrigeration storage volume(m3) | 30 | 30 |
| Exterior dimension(mm) | 3549W*4732L*2300H | 3549W*4732L*2300H |
| Interior dimension(mm) | 3349W*4532L*2100H | 3349W*4532L*2100H |
| Refrigeration unit(model/power) | DC-50FLG/4850W | DC-30FHG/2650W |
| Cooler(model/power) | DD30/500W | DL30/270W |
| Refrigeration unit (packing size/weight) | 940mm(W)*340mm(L)*1240mm(H) /110kg | 920mm(W)*320mm(H)*850mm/53kg |
| Cooler(packing size/weight) | 1330mm(W)*605mm(L)*630mm(H)/65kg | 1580mm(W)*425mm(L)*465mm(H)/49kg |
| Storage temperature | -18 C | -5 C |
| Model | DCEWF-40 | DCWR-40 |
| Refrigeration storage volume(m3) | 40 | 40 |
| Exterior dimension(mm) | 3549W*5919L*2300H | 3549W*5915L*2300H |
| Interior dimension(mm) | 3349W*5715L*2100H | 3349W*5715L*2100H |
| Refrigeration unit(model/power) | DC-80FLG/7500W | DC-30FHG/2650W |
| Cooler(model/power) | DD30/500W | DL30/270W |
| Refrigeration unit (packing size/weight) | 940mm(W)*340mm(L)*1240mm(H) /110kg | 920mm(W)*320mm(H)*850mm/53kg |
| Cooler(packing size/weight) | 1330mm(W)*605mm(L)*630mm(H)/65kg | 1580mm(W)*425mm(L)*465mm(H)/49kg |
| Storage temperature | -18 C | -5 C |
Cold room door:

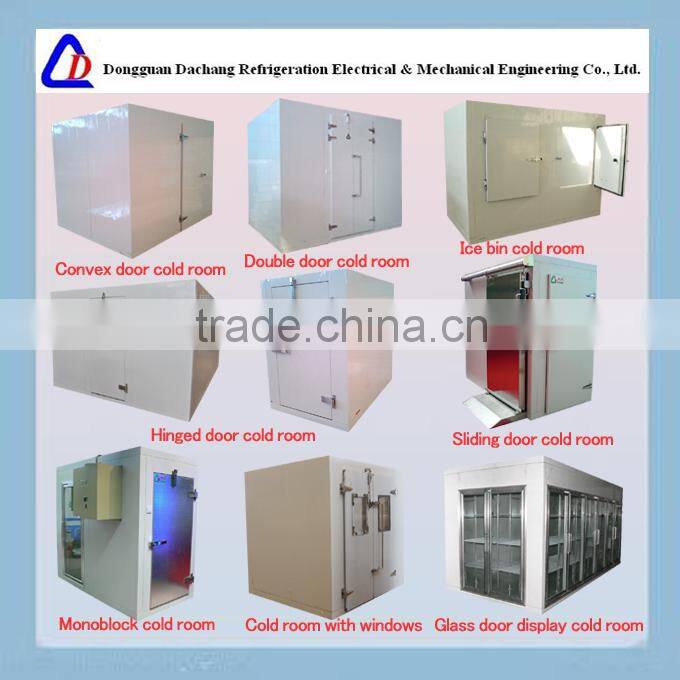

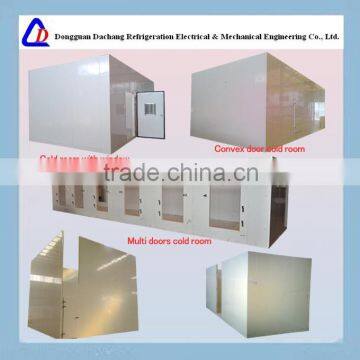

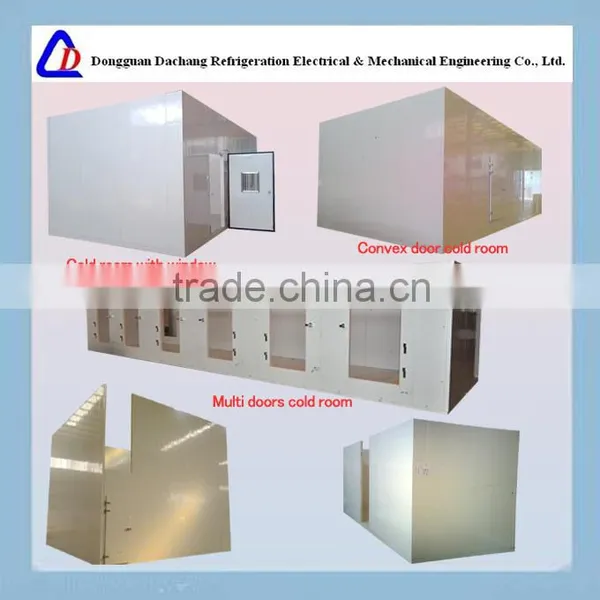

Hinge door, convex door, sliding door, glass door are optional. PU panel, with safety lock inside.
