Frozen Cold Room for Meat and Fish
we are the Professional manufacturer specializes in designing and manufacturing
Frozen Cold Room for Meat and Fish
our factory found in 1992 . we have twenty years experience to design and manufacture the
Frozen Cold Room for Meat and Fish
In order to design the best Frozen Cold Room for Meat and Fish
for you , plase answer us the following questions:
1.Which country the Frozen Cold Room located?
2. Frozen Cold Room being installing inside the building or putting outside the house?
3.What is the ambient temperature(°C)
4.External dimension of the Frozen Cold Room ?(m)
5.What Kind of products is gonna store in the room?
6.Required temperature inside the Frozen Cold Room (°C)?
7.Original temperature of products before put into the Frozen Cold Room (°C)
8.what kind of door your require? Hinged door,manual/electric sliding door or glass door?
9.Both sides of panels are with steel sheet covered. The steel sheet optional: painted galvanized steel,embossed stucco aluminum, stainless steel.Which do you like ?
Frozen Cold Room Temperature Range for more products
| Storage products | Storage temperature approach |
| Vegetables, Fruit storage | -5~5 degree centigrade |
| Drink, Beer storage | 2~8 degree centigrade |
| Meat, Fish freeze storage | -18~--25 degree centigrade |
| Medicine storage | 2~8 degree centigrade |
| Medicine freeze storage | -20 degree centigrade |
| Meat, Fish blast freezer | -35~-40 degree centigrade |
we can design all size Frozen Cold Room for Meat and Fish
Some Frozen Cold Room for Meat and Fish specification for your reference
| Specification/Model | DCWF-30 | DCWF-68 | DCWF-20 |
| Storage volume | 30 | 68 | 20 |
| Exterior dimensions | 3549W X 4732L X 2300H | 5915W X5915L X 2300H | 2366W X 4732L X 2300H |
| Interior dimensions | 3349X 4532X 2100H | 5515W X 5515L X 900H | 2166W X 4532L X 2100H |
| Power | 380V/50HZ 5HP | 380V/50HZ 10 HP | 380V/50HZ 3HP |
| Color and malerial | Grey-white color coated painted gaivanised mild steel | Grey-white color coated painted gaivanised mild steel | Grey-white color coated painted gaivanised mild steel |
| Storage temperature | >-25 | >-25 | >25 |
based Product information of our Frozen Cold Room for Meat and Fish for your reference
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-45~+20 degree, optional |
Purpose of cold room |
fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
Frozen Cold Room for Meat and Fish panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
Our panel advantage :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each Frozen Cold Room for Meat and Fish
panel , when panel lock together,the cool air will not leak,and the hot air can not come in .

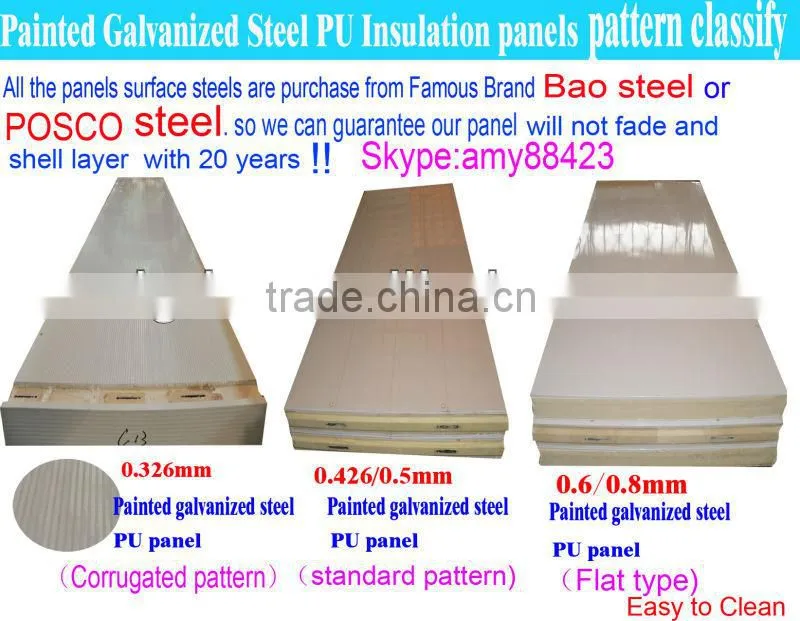

we can do three different pattern for the Frozen Cold Room for Meat and Fish panels,the flat panels is easy to clean
Frozen Cold Room for Meat and Fish Installation tool: hexagonal key
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.
Frozen Cold Room for Meat and Fish floor: galvanized steel floor panel , skidproof floor or reinforced concrete floor

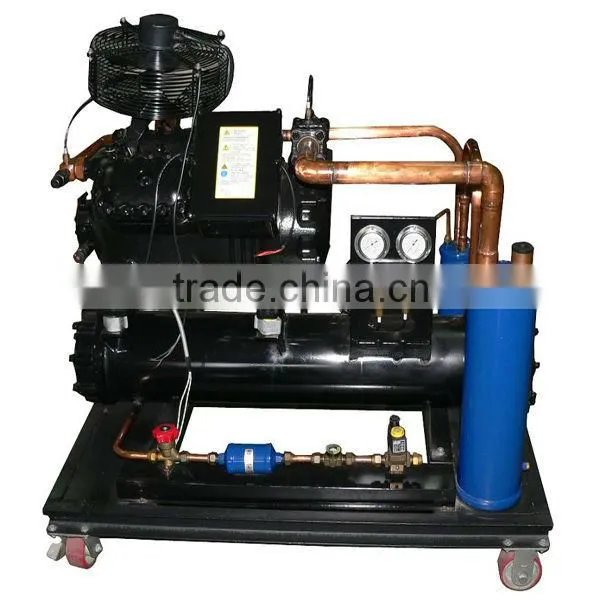

Frozen Cold Room for Meat and Fish condensing units : Copeland unit

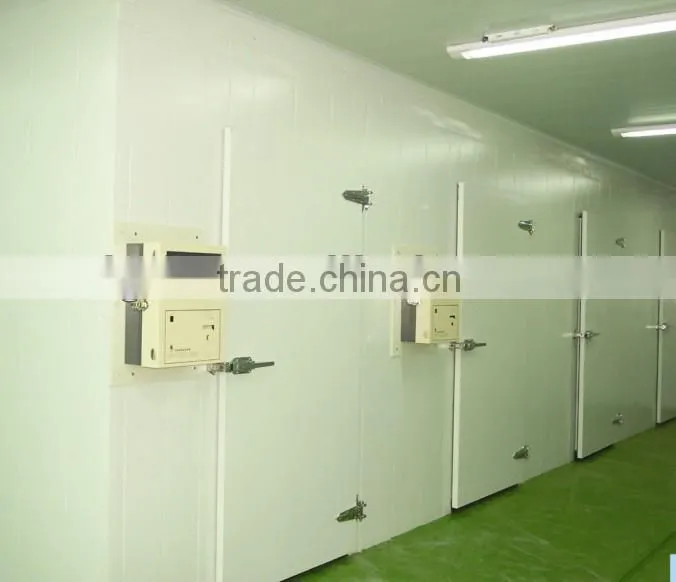

Frozen Cold Room for Meat and Fish door for your reference
Frozen Cold Room for Meat and Fish can with Multi room inside
Frozen Cold Room for Meat and Fish Production line
you can put the table/shelf into the Frozen Cold Room for Meat and Fish
Frozen Cold Room for Meat and Fish package
Some of our Frozen Cold Room for Meat and Fish Project :(Domestic and Overseas )
