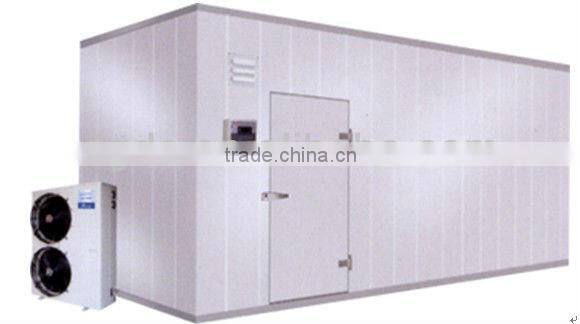

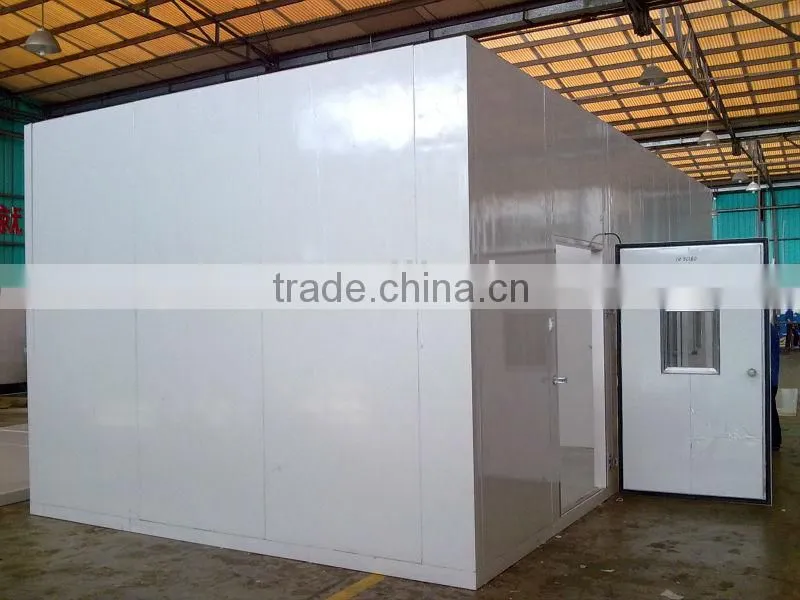

Modular cold storage with polyurethane insulated
Feature

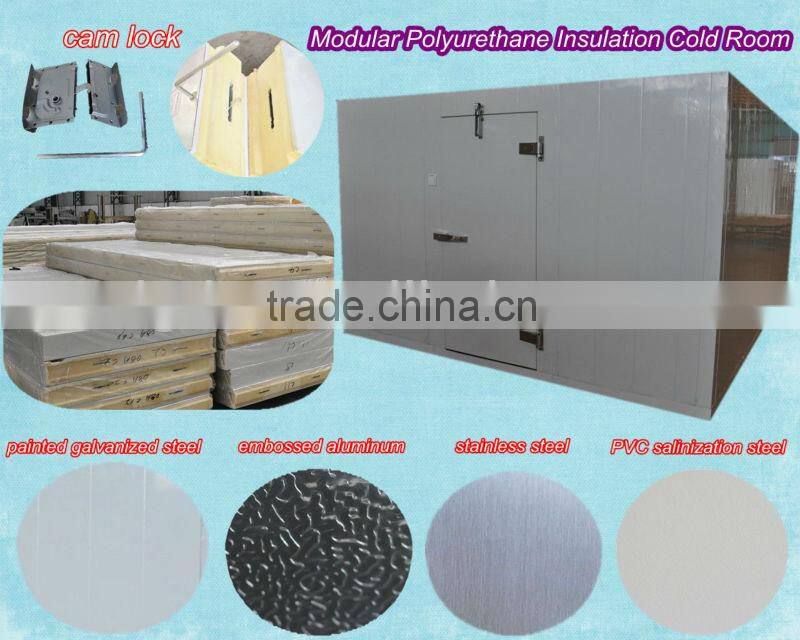

1)Environmentally friendly foaming,polyurethane panel thickness:100mm,density about 43kg/m3,with gasket. Panels are male(convex groove) and female (concave groove) type,cam locks preburried inside the panels,use a key to fasten.
2)white color painted galvanized steel finish
3)convex door,heavy duty.It can be changed to hinge door(automatic closing) base on customer's requirement.
4)Copeland brand compressor,durable to use,with good refrigeration.
5)Necessary parts are included.
6)Environmentally friendly refrigerant R404a
Specificate

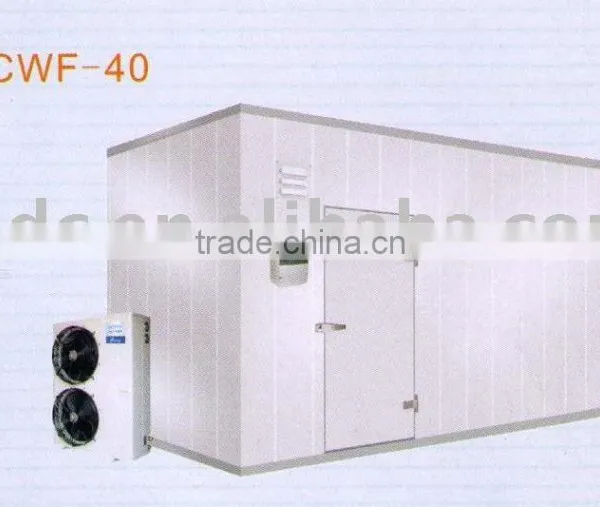

| Model | DCWF-40 | DCWR-40 | DCWF-43 | DCWR-43 |
| strorage volume | 40 m3 | 40 m3 | 43 m3 | 43 m3 |
| Exterior dimension(W*L*H) | 3549*5919*2300mm | 3549*5919*2300mm | 4732*4732*2300mm | 4732*4732*2300mm |
| Interior dimension(W*L*H) | 3349*5715*2100mm | 3349*5715*2100mm | 4532*4532*2100mm | 4532*4532*2100mm |
| Door | convex door | convex door | convex door | convex door |
| Refrigeration/Power | DC-50FLG/4850W | DC-30FHG/2650W | DC-50FLG/4850W | DC-30FHG/2650W |
| Cooler /Power | DD30/500W | DL25/270W | DD30/500W | DL25/270W |
| Refrigeration unit /weight | 940*340*1240mm/110kg | 920*320*850mm/53kg | 940*340*1240mm/110kg | 920*320*850mm/53kg |
| Cooler /weight | 1330*605*630mm/65kg | 1580*425*465mm/49kg | 1330*605*630mm/65kg | 1580*425*465mm/49kg |
| Copper pipe and preservation | 5m | 5m | 5m | 5m |
| Power | at client's request | at client's request | at client's request | at client's request |
| Storage temperature | -18 degree | -5 degree | -18 degree | -5 degree |
| Refrigerant | R404a | R404a | R404a | R404a |
| Fitting | pressure relief vent&light | pressure relief vent&light | pressure relief vent&light | pressure relief vent&light |
Customized walk-in cold room acceptable !!!
Dimension |
Length (m) *Width (m)*Height (m) |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-30~+5 degree, optional |
Purpose of cold room |
fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
DACHANG company provide the pefect solutions to the modular cold storage room for 20years!
Production Line
DACHANG company attend the related exhibitions every year.
