Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > 120T Plastic Injection Molding Machine Price

120T Plastic Injection Molding Machine Price

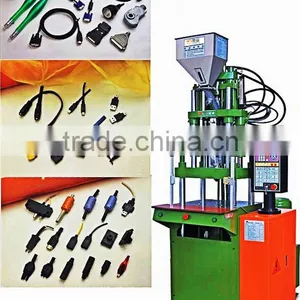

120T Plastic Injection Molding Machine Price thumbnail-1
120T Plastic Injection Molding Machine Price photo-1
US$ 8,000 - 8,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, screw injection
Style:
Vertical
Contact Supplier Request Quote Chat Now
Dongguan Zan Yi Machinery Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, screw injection
Style Vertical
Brand Name ZAN YI
Model Number ZY-1000ST
Place of Origin Guangdong, China
Plastic Type Thermoplastic
Automatic Yes
Injection Weight 199g,228g,260g
Injection Rate 95cm3/sec,129cm3/sec,183cm3/sec
Clamping Force 120T
Opening Stroke 300mm
Power(W) 20KW
Certification CE,ISO9001:2008
After-sales Service Provided Engineers available to service machinery overseas

120T plastic injection molding machine price

Product Details:

Item Name: micro injection molding machine

 Specifications:
MODEL UNIT ZY-1000ST
Screw Diameter Mm 42 45 48
Injection Pressure kg/cm² 1469 1280 1125
Theoretical Shot Volume cm³ 221 254 288
Max.Shot Weight(ps) g 199 228 260
Safe Shot Weight(ps) OZ 7.2 8.1 9.3
Max.Shot Weight(ps) cm³/sec 95 129 183
Injection Rate mm 200
Screw Speed Max. rpm 180
Nozzle Comtact Force Tons 7.5
Nozzle Retraction Stroke mm 210
Number of Temperature Control   5
Clamping Force Tons 120
Platen Size mm 870*560
Distance between tie bere mm 635*425
Min.Mold Height mm 480/280
Opening Stroke mm 300
Max.Open Daylight mm 780/580
Ejetor Force Tons 4.8
Ejetor Stoke mm 45
Max.Hydaulic Pressure kg/cm² 140
Pump Output l/min 56
Oil Resservoir Capacity l 200
Cooling Waer Consumption l/hr 1000-1200
Pump Motor Power KW/HP 14.5/22HP
Berrel Heating Power KW 6
  KW 20
Packing Weight Kg 7200KG
Packing size(LxWxH) m 2.2*1.6*2.8

  Features:

1.Straight scew ejected assembly.

 2.Two(three) phase temperature ,ejected speed,backing pressure and screw speed is

suitable for various plastic to confectioned.

3.Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.

4.Low-pressure closed die assembly can protect the safety of die .

5.Material tube can be lifted ,It is easy to clean stub bar .It is easy to fix die .

6.Can be installed a single mold or double shuttle table.

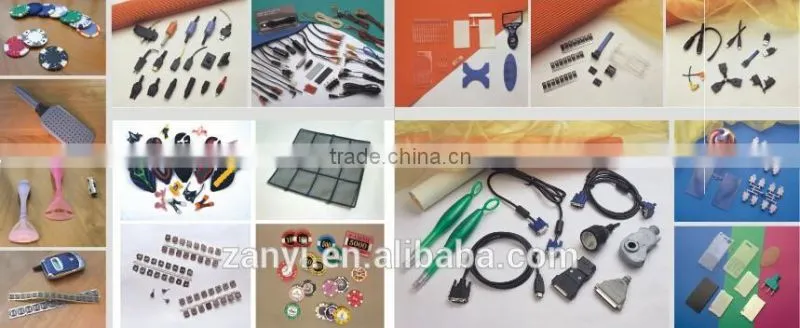

Samples produced:
