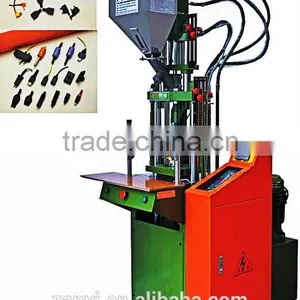

Vertical Injection Moulding Machine

FOB Price

US$ 4,000 - 4,200 / Set

1 Set(Min. Order)

Port Shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, screw injection
Style	Vertical	Brand Name	ZAN YI
Model Number	ZY-160ST-103D	Place of Origin	Guangdong, China
Plastic Type	Thermoplastic	Automatic	Yes
Injection Weight	50g&58g	Injection Rate	34.6~40cm3/sec
Clamping Force	15T	Opening Stroke	190mm
Power(W)	4.2KW	Certification	CE,ISO9001:2008
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

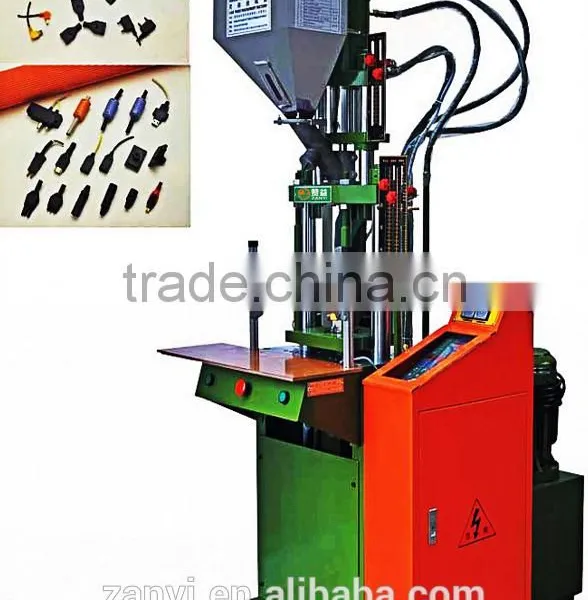

vertical injection moulding machine

Product Details:

Item Name: vertical injection molding machine

Specifications:
MODEL	UNIT	ZY-160ST-103D
Screw Diameter	Mm	26	28
Injection Pressure	kg/cm²	1183	1019
Theoretical Shot Volume	cm³	55.7	64.6
Max.Shot Weight(ps)	g	50	58
Safe Shot Weight(ps)	OZ	1.7	2.0
Max.Shot Weight(ps)	cm³/sec	34.6	40
Injection Rate	mm	105
Screw Speed Max.	rpm	0-215
Nozzle Comtact Force	Tons
Nozzle Retraction Stroke	mm
Number of Temperature Control		2
Clamping Force	Tons	15
Platen Size	mm	450*280
Distance between tie bere	mm	265
Min.Mold Height	mm	100/25
Opening Stroke	mm	190
Max.Open Daylight	mm	290/215
Ejetor Force	Tons	1.3
Ejetor Stoke	mm	35
Max.Hydaulic Pressure	kg/cm²	140
Pump Output	l/min	17.5
Oil Resservoir Capacity	l	80
Cooling Waer Consumption	l/hr	400-600
Pump Motor Power	KW/HP	2.2/3HP
Berrel Heating Power	KW	1.8
Total Electricity	KW	4.2
Packing Weight	Kg	750kg
Packing size(LxWxH)	m	1.51.22.25

Features:

1.Straight screw ejected assembly.

2.Two(three) phase temperature ,ejected speed,backing pressure and screw speed is suitable for various plastic to confectioned.
3.Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4.Low-pressure closed die assembly can protect the safety of die .

Samples produced:
