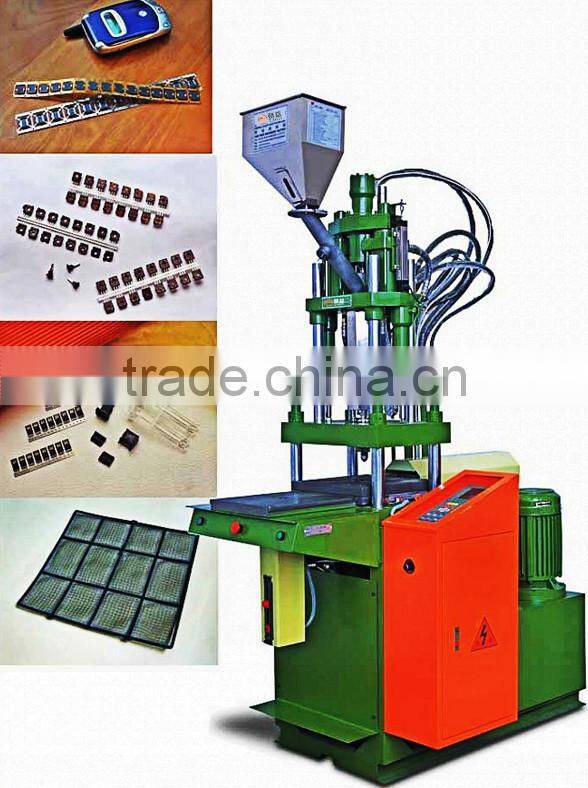

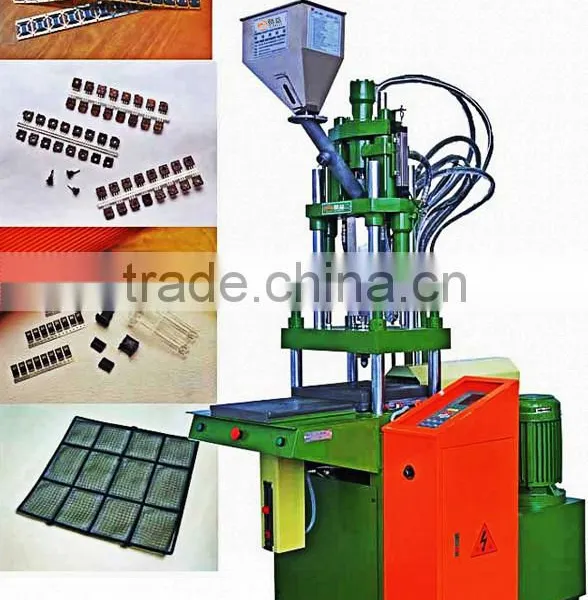

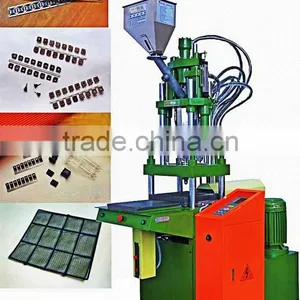

55T ABS Injection Molding Machine Manufacturer
US$ 1 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, screw injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
30T Semi Auto Plastic Injection Molding MachineUS$ 7,000 - 7,200MOQ: 1 Set -
Vertical Injection Moulding MachineUS$ 4,000 - 4,200MOQ: 1 Set
-
Hotsale Vertical 55T Injection Molding MachineUS$ 8,000 - 8,200MOQ: 1 Set
-
Vertical Injection Moulding MachineUS$ 8,000 - 8,200MOQ: 1 Set
-
Mini Injection Molding MachineUS$ 8,000 - 8,200MOQ: 1 Set
Condition
New
Type
Other, screw injection
Style
Vertical
Brand Name
ZAN YI
Model Number
ZY-550ST-D
Place of Origin
Guangdong, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
102g,123g,176g
Injection Rate
49cm3/sec,59cm3/sec,84cm3/sec
Clamping Force
55T
Opening Stroke
200mm
Power(W)
12kw
Certification
CE,ISO9001:2008
After-sales Service Provided
Engineers available to service machinery overseas
55T ABS Injection molding machine Manufacturer
| Specifications: | |||||
| MODEL | UNIT | ZY-550ST-D | |||
| Screw Diameter | Mm | 32 | 35 | 42 | |
| Injection Pressure | kg/cm² | 1642 | 1385 | 960 | |
| Theoretical Shot Volume | cm³ | 113 | 134 | 194 | |
| Max.Shot Weight(ps) | g | 102 | 123 | 176 | |
| Safe Shot Weight(ps) | OZ | 3.6 | 4.3 | 6.0 | |
| Max.Shot Weight(ps) | cm³/sec | 49 | 59 | 84 | |
| Injection Rate | mm | 140 | |||
| Screw Speed Max. | rpm | 0-175 | |||
| Nozzle Comtact Force | Tons | 5.5 | |||
| Nozzle Retraction Stroke | mm | 210 | |||
| Number of Temperature Control | 3 | ||||
| Clamping Force | Tons | 55 | |||
| Platen Size | mm | 450*450 | |||
| Distance between tie bere | mm | 470*280 | |||
| Min.Mold Height | mm | 250/200 | |||
| Opening Stroke | mm | 200 | |||
| Max.Open Daylight | mm | 450/40 | |||
| Ejetor Force | Tons | 1.5 | |||
| Ejetor Stoke | mm | 135 | |||
| Max.Hydaulic Pressure | kg/cm² | 140 | |||
| Pump Output | l/min | 40 | |||
| Oil Resservoir Capacity | l | 150 | |||
| Cooling Waer Consumption | l/hr | 800-1000 | |||
| Pump Motor Power | KW/HP | 7.5/10HP | |||
| Berrel Heating Power | KW | 4.5 | |||
| Total Electricity | KW | 12 | |||
| Packing Weight | Kg | 3.3Ton | |||
| Packing size(LxWxH) | m | 2.2*1.2*3.33 | |||
Features:
1.Alternate the two lower dies of ZY-ST series single-mode cross slide board on a flat surface.The lower die is used for inserted action outside.Because high working safe features,working efficiency can be advanced in a large range . The finished goods are propped up to outside for completion.(Lower die independent thimble)
2.Material tube can be lifted .It is easy to clean stub bar.It is easy to fix die.
