Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > 85T Kawaguchi Plastic Injection Molding Machine

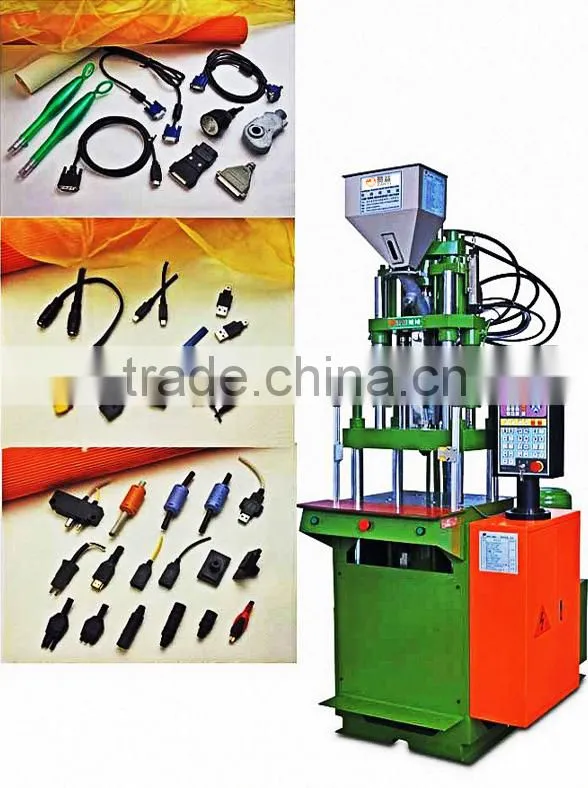

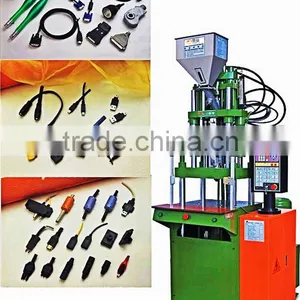

85T Kawaguchi Plastic Injection Molding Machine
US$ 8,000 - 8,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, screw injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
120T Plastic Injection Molding Machine PriceUS$ 8,000 - 8,200MOQ: 1 Set -
35T Rubber Injection Molding MachineUS$ 8,000 - 8,200MOQ: 1 Set
-
45T Injection Molding Machine Spare PartUS$ 8,000 - 8,200MOQ: 1 Set
-
55T ABS Injection Molding Machine ManufacturerUS$ 1 - 20,000MOQ: 1 Set
-
30T Semi Auto Plastic Injection Molding MachineUS$ 7,000 - 7,200MOQ: 1 Set
Condition
New
Type
Other, screw injection
Style
Vertical
Brand Name
ZAN YI
Model Number
ZY-850ST
Place of Origin
Guangdong, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
176g,201g,227g
Injection Rate
99cm3/sec,113cm3/sec,129cm3/sec
Clamping Force
85T
Opening Stroke
255mm
Power(W)
16KW
Certification
CE,ISO9001:2008
After-sales Service Provided
Engineers available to service machinery overseas
85T Kawaguchi Plastic Injection molding machine
| Specifications: | |||||
| MODEL | UNIT | ZY-850ST | |||
| Screw Diameter | Mm | 42 | 45 | 48 | |
| Injection Pressure | kg/cm² | 1027 | 895 | 790 | |
| Theoretical Shot Volume | cm³ | 194 | 223 | 253 | |
| Max.Shot Weight(ps) | g | 176 | 201 | 227 | |
| Safe Shot Weight(ps) | OZ | 6.24 | 7.2 | 8.1 | |
| Max.Shot Weight(ps) | cm³/sec | 99 | 113 | 129 | |
| Injection Rate | mm | 140 | |||
| Screw Speed Max. | rpm | 200 | |||
| Nozzle Comtact Force | Tons | 6.5 | |||
| Nozzle Retraction Stroke | mm | 210 | |||
| Number of Temperature Control | 4 | ||||
| Clamping Force | Tons | 85 | |||
| Platen Size | mm | 740*545 | |||
| Distance between tie bere | mm | 525*325 | |||
| Min.Mold Height | mm | 430/230 | |||
| Opening Stroke | mm | 255 | |||
| Max.Open Daylight | mm | 685/485 | |||
| Ejetor Force | Tons | 2.1 | |||
| Ejetor Stoke | mm | 45 | |||
| Max.Hydaulic Pressure | kg/cm² | 140 | |||
| Pump Output | l/min | 47 | |||
| Oil Resservoir Capacity | l | 180 | |||
| Cooling Waer Consumption | l/hr | 800-1000 | |||
| Pump Motor Power | KW/HP | 11/15HP | |||
| Berrel Heating Power | KW | 5 | |||
| Total Electricity | KW | 16 | |||
| Packing Weight | Kg | 5ton | |||
| Packing size(LxWxH) | m | 2.2*1.4*2.5 | |||
Features:
1.Alternate the two lower dies of CY-ST series single-mode cross slide board on a flat surface.The lower die is used for inserted action outside.Because high working safe features,working efficiency can be advanced in a large range . The finished goods are propped up to outside for completion.(Lower die independent thimble)
2.Material tube can be lifted .It is easy to clean stub bar.It is easy to fix die.
Samples produced:
Contact details
Send Inquiry to This Supplier
Mrs. Jessica Fong
Sales Manager
Dongguan Zan Yi Machinery Technology Co., Ltd.
Dongguan, Guangdong, China
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2011
Factory Size
Below 1,000 square meters
Total Employees
101 - 200 People
