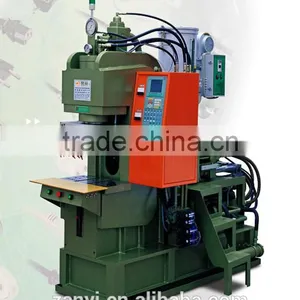

Tpu Injection Machine
US$ 8,000 - 8,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, screw injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
55T Bakelite Vertical Mould MachineUS$ 8,000 - 8,200MOQ: 1 Set -
85T Kawaguchi Plastic Injection Molding MachineUS$ 8,000 - 8,200MOQ: 1 Set
-
120T Plastic Injection Molding Machine PriceUS$ 8,000 - 8,200MOQ: 1 Set
-
35T Rubber Injection Molding MachineUS$ 8,000 - 8,200MOQ: 1 Set
-
45T Injection Molding Machine Spare PartUS$ 8,000 - 8,200MOQ: 1 Set
Condition
New
Type
Other, screw injection
Style
Vertical
Brand Name
ZAN YI
Model Number
ZY-500C
Place of Origin
Guangdong, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
139g,196g,239g
Injection Rate
52cm3/sec,75cm3/sec,92cm3/sec
Clamping Force
55T
Opening Stroke
200mm
Power(W)
13KW
Certification
CE,ISO9001:2008
After-sales Service Provided
Engineers available to service machinery overseas
tpu injection machine
Product Details:
Item Name: pvc sole injection machine
| Specifications: | |||||
| MODEL | UNIT | ZY-500C | |||
| Screw Diameter | Mm | 32 | 38 | 42 | |
| Injection Pressure | kg/cm² | 1506 | 1063 | 870 | |
| Theoretical Shot Volume | cm³ | 153 | 215 | 263 | |
| Max.Shot Weight(ps) | g | 139 | 196 | 239 | |
| Safe Shot Weight(ps) | OZ | 4.89 | 6.9 | 8.4 | |
| Max.Shot Weight(ps) | cm³/sec | 52 | 75 | 92 | |
| Injection Rate | mm | 190 | |||
| Screw Speed Max. | rpm | 0-175 | |||
| Nozzle Comtact Force | Tons | 1.5 | |||
| Nozzle Retraction Stroke | mm | 170 | |||
| Number of Temperature Control | 4 | ||||
| Clamping Force | Tons | 55 | |||
| Platen Size | mm | 480*280 | |||
| Min.Mold Height | mm | 215 | |||
| Opening Stroke | mm | 200 | |||
| Max.Open Daylight | mm | 415 | |||
| Ejetor Force | Tons | 1.5 | |||
| Ejetor Stoke | mm | 135 | |||
| Max.Hydaulic Pressure | kg/cm² | 140 | |||
| Pump Output | l/min | 40 | |||
| Oil Resservoir Capacity | l | 230 | |||
| Cooling Waer Consumption | l/hr | 800-1000 | |||
| Pump Motor Power | KW/HP | 7.5/10HP | |||
| Berrel Heating Power | KW | 4.35 | |||
| Total Electricity | KW | 23 | |||
| Machine Weight | Tons | 4.4 | |||
| Machine Dimensions(L*W*H) | m | 3*1.2*2.1 | |||
| Shipping Weight | Tons | 5 | |||
| Shipping Measurements(L*W*H) | m | 3.1*1.3*2.3 | |||
Features:
1.Full hydraulic vertical clamp parting line horizontal injection unit.
2.Three or four zone barrel temperature control with solid state controllers.
3.“C” Frame construction assures ease of loading and maximum flexability with regards to insert size and shape.
4.Downwar moving clamp assures accurate placement of loose cores or inserts.
5.Low pressure mold closing is standard.
6.Can be installed double Platon or rotary table.
Samples produced:
