150ton Injection Molding Machine
US$ 8,000 - 8,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, screw injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Other, screw injection
Style
Vertical
Brand Name
ZAN YI
Model Number
ZY-1600ST-DM
Place of Origin
Guangdong, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
228g,260g,283g
Injection Rate
103cm3/sec,118cm3/sec,128cm3/sec
Clamping Force
160T
Opening Stroke
300mm
Power(W)
28.5KW
Certification
CE,ISO9001:2008
After-sales Service Provided
Engineers available to service machinery overseas
150ton injection molding machine
Product Details:
Item Name: micro injection machine
| Specifications: | |||||
| MODEL | UNIT | ZY-1600ST-DM | |||
| Screw Diameter | Mm | 45 | 48 | 50 | |
| Injection Pressure | kg/cm² | 2371 | 2094 | 1920 | |
| Theoretical Shot Volume | cm³ | 254 | 288 | 314 | |
| Max.Shot Weight(ps) | g | 228 | 260 | 283 | |
| Safe Shot Weight(ps) | OZ | 6.7 | 9.4 | 10 | |
| Max.Shot Weight(ps) | cm³/sec | 103 | 118 | 128 | |
| Injection Rate | mm | 200 | |||
| Screw Speed Max. | rpm | 180 | |||
| Nozzle Comtact Force | Tons | 7.5 | |||
| Nozzle Retraction Stroke | mm | 300 | |||
| Number of Temperature Control | 5 | ||||
| Clamping Force | Tons | 160 | |||
| Platen Size | mm | 1420×650 | |||
| Min.Mold Height | mm | 480/280 | |||
| Opening Stroke | mm | 300 | |||
| Max.Open Daylight | mm | 780/580 | |||
| Ejetor Force | Tons | 5.5 | |||
| Ejetor Stoke | mm | 135 | |||
| Max.Hydaulic Pressure | kg/cm² | 140 | |||
| Pump Output | l/min | 78 | |||
| Oil Resservoir Capacity | l | 240 | |||
| Cooling Waer Consumption | l/hr | 1200-1600 | |||
| Pump Motor Power | KW/HP | 22/30P | |||
| Berrel Heating Power | KW | 6.5 | |||
| Total Electricity | KW | 28.5 | |||
| Machine Weight | Tons | 7 | |||
| Machine Dimensions(LxWxH) | m | 2.6*2.1*2.8 | |||
| Shipping Weight | Tons | 7.2 | |||
| Shipping Measurements(LxWxH) | m | 2.8*2.35*3 | |||
Features:
1.Installs the double pattern in turn slide the CY-ST series ,two stamping dies about skid in a plane ,a mold takes shape,a mold does inserts.At the same time ,the wring action make the die can produce products with spiral shape.Because high working safe features, working efficiency can be advanced in a large range .The finished goods are propped up to outside for completion.(double-mode independent thimble)
2.Material tube can be lifted.It is easy to clean stub bar.It is easy to fix die.

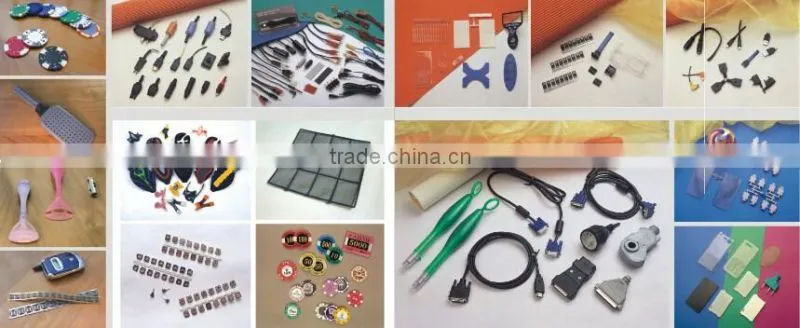

Samples produced:
