Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > Plastic Toy Injection Molding Machine

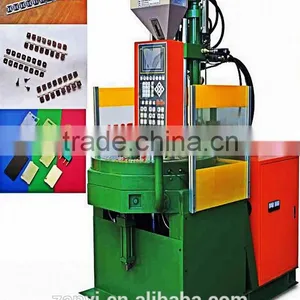

Plastic Toy Injection Molding Machine

Plastic Toy Injection Molding Machine thumbnail-1
Plastic Toy Injection Molding Machine photo-1
US$ 8,000 - 8,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, screw injection
Style:
Vertical
Contact Supplier Request Quote Chat Now
Dongguan Zan Yi Machinery Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, screw injection
Style Vertical
Brand Name ZAN YI
Model Number ZY-850ST-R
Place of Origin Guangdong, China
Plastic Type Thermoplastic
Automatic Yes
Injection Weight 176g,201g,227g
Injection Rate 99cm3/sec,113cm3/sec,129cm3/sec
Clamping Force 85T
Opening Stroke 255mm
Power(W) 16KW
Certification CE,ISO9001:2008
After-sales Service Provided Engineers available to service machinery overseas

plastic toy injection molding machine

Product Details:

Item Name: machine plastic injection

 Specificational:
MODEL UNIT ZY-850ST-R
Screw Diameter Mm 42 45 48
Injection Pressure kg/cm² 1027 895 790
Theoretical Shot Volume cm³ 194 223 253
Max.Shot Weight(ps) g 176 201 227
Safe Shot Weight(ps) OZ 6.24 7.2 8.1
Max.Shot Weight(ps) cm³/sec 99 113 129
Injection Rate mm 140
Screw Speed Max. rpm 200
Nozzle Comtact Force Tons 6.5
Nozzle Retraction Stroke mm 210
Number of Temperature Control   4
Clamping Force Tons 85
DiskStation Pc 2-3
Min.Mold Height mm 430/230
Opening Stroke mm 255
Max.Open Daylight mm 685/485
Ejetor Force Tons 2.2
Ejetor Stoke mm 130
Max.Hydaulic Pressure kg/cm² 140
Pump Output l/min 47
Oil Resservoir Capacity l 180
Cooling Waer Consumption l/hr 800-1000
Pump Motor Power KW/HP 11/15HP
Berrel Heating Power KW 5
Total  Electricity KW 16
Machine Weight Tons 5.5
Machine Dimensions(LxWxH) m 2.5*1.6*2.5
Shipping Weight Tons 5.7
Shipping Measurements(LxWxH) m 2.7*1.8*2.7

 Features:

1. Chinese/English LCD display,can memorize 60 groups of mold data.

2.Double and three position platen runs soomthly and is suitable for producing various kinds of pocket inserts.It greatly improves work efficiency and saves labor.

3.It is safe because the product and delivery and inserting is not performed in molding station but the same work position .Moreover,automatic device can be used onto the machine.

4.Adopting double( pressure,,flux)proportional control,the machine runs with low noise and at a high speed .It is equipped with low-voltage protective function.

Samples produced:

plastic toy injection molding machine





Send Inquiry to This Supplier

* Message
0/5000

Want the best price? Post an RFQ now!
Dongguan Zan Yi Machinery Technology Co., Ltd.
Business Type
Manufacturer, Trading Company
Year Established
2011
Factory Size
Below 1,000 square meters
Total Employees
101 - 200 People
Contact Supplier Request Quote Chat Now
