Specifications
* Waterproof* H.264 8ch DVR
* Up to 30ft IR night vision,Min 0.0Lux
* Linux Based OS
* IR Remote Control
8CH H.264 DVR Security System with 4 Indoor/Outdoor Night Vision Surveillance Cameras
When you are looking for maximum protection for your home or business 24 hours a day, 7 days a week, look no further than this video surveillance system. It is a complete video security system in a box. This quality ZMODO product features an 8 channel DVR and 4 night vision weatherproof cameras. Simple to set up and even easier to use, you can monitor your business or home anytime from anywhere around the world so you will always know what is going on even when you are not there. Zmodo also offers lifetime technical support on this product so you are always covered.
Remote Access Your Cameras Anywhere Anytime
This system allows you to view your footage, no matter the time or location. Access your DVR’s footage over the internet, or directly from yourAndroid™ , Symbian™ , Windows Mobile® , ipad®ios &iPhone®.
Multiple Recording Modes
Choose 24/7 continuous recording, schedule specific recording times by hour or day, or set motion detection recording to help catch only the important information to save on hard drive space.
Instant Email Alerts if Activity Detected
This system is designed to send an email alert, complete with photo of the activity, if any motion is detected, or if any camera experiences video loss.

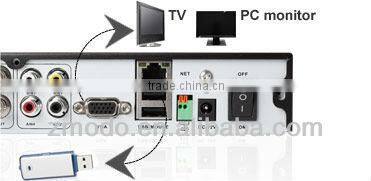

View from a TV or PC monitor
A TV can be used with an AV cable, while a PC monitor can be used with a VGA cable. This gives you more connection options while viewing activity captured by your cameras.
Easy USB Backup
A built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive or external USB hard drive.

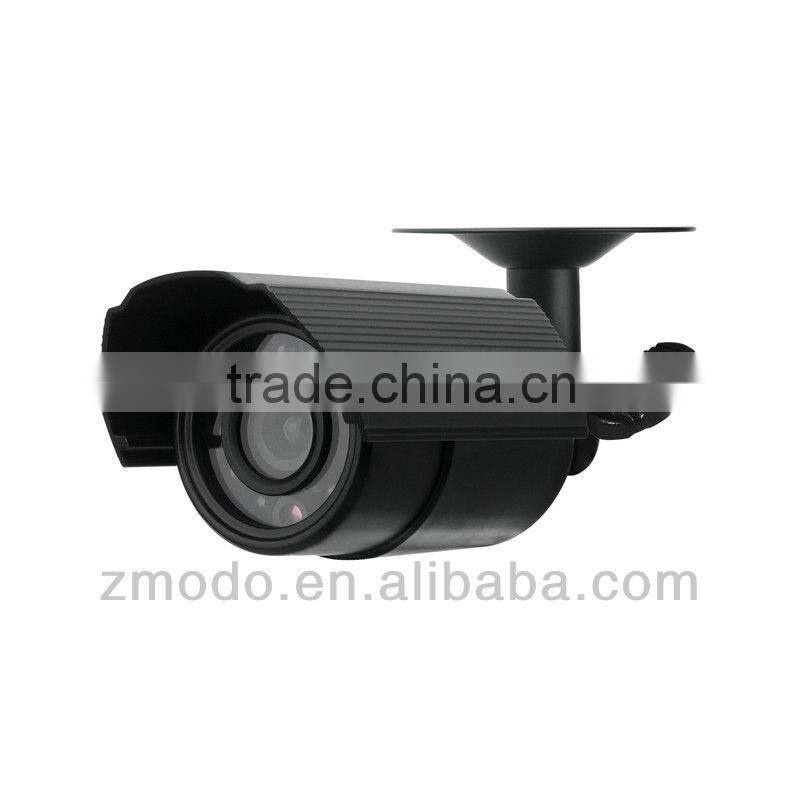

Weatherproof Housing
Each camera is constructed utilizing professional grade materials for the housing and a sunshade to help prevent glare, deterioration, and rusting. The cameras can be mounted in virtually any indoor or outdoor setting
See Day or Night with Infrared Vision
Each camera comes equipped with night vision, allowing you to see any monitored area up to 30ft away in total darkness. The 11 infrared LEDs activate automatically when it becomes dark and deactivate during the day to save energy.

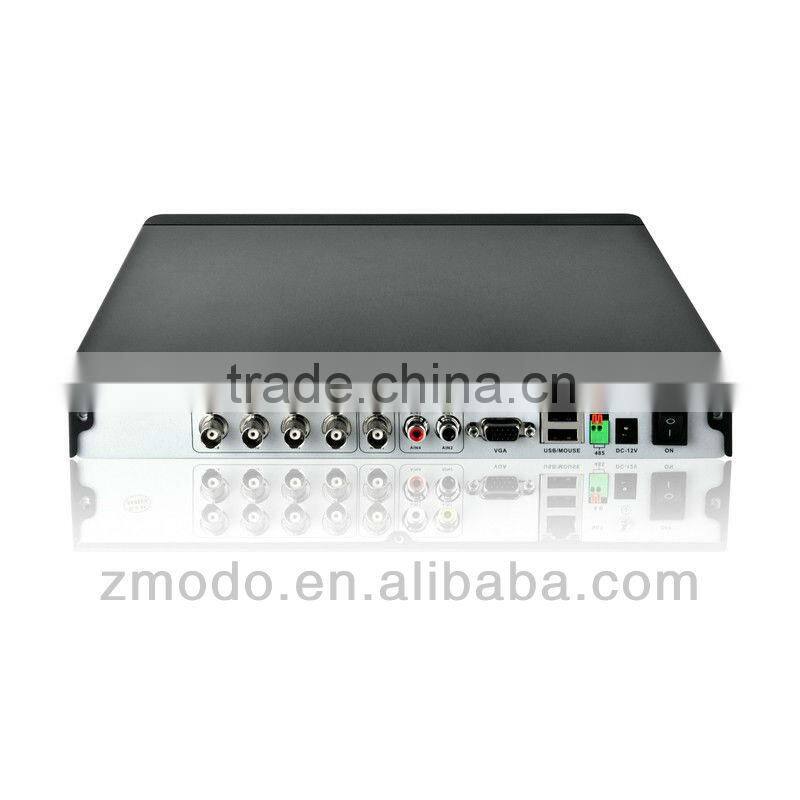

| Model | ZMD-DD-SBN8 - 8CH H.264 StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 8-Channel Input / BNC1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input / BNC 1-Channel Output |
| Display Frame Rate | NTSC: 240 fps @ D1 / PAL: 200 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 240 fps @ CIF / PAL: 200 fps @ CIF |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Network Function | Support Live View with IE & Mobile Phone |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| USB | USB Backup/USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1200mA |
| Dimension | 12.8 "(W) x 10.4" (D) x 3.9"(H) |

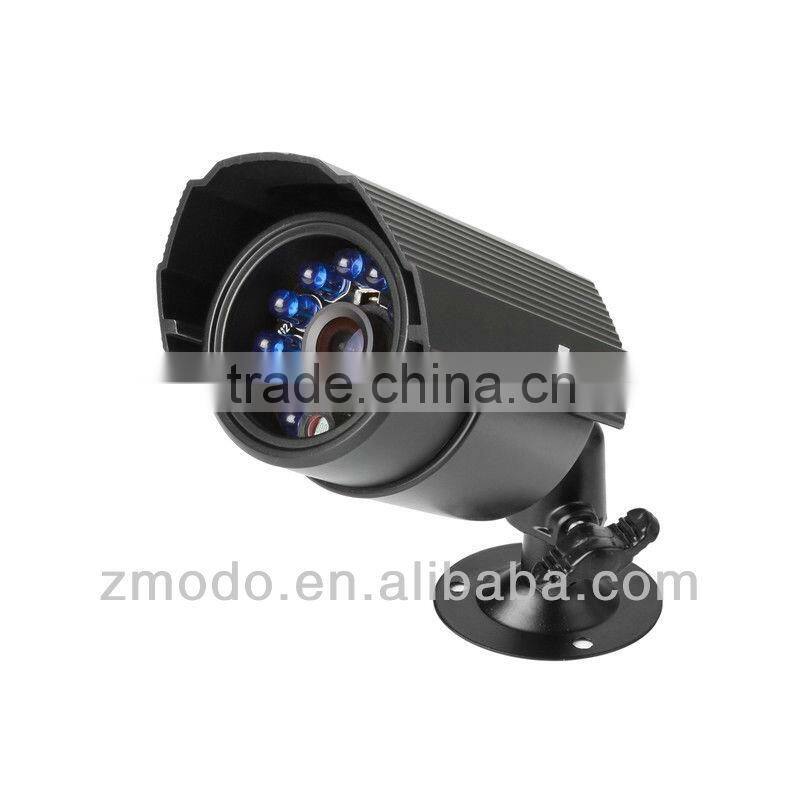

| Model | ZMD-CBR-BAS16NM(CM-C21606BK)- Color IR Bullet Camera |
| Image Sensor | 1/4" Color CMOS |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V) |
| Horizontal Resolution | 480 TV-Lines |
| Lens | 6mm |
| Number of IR LEDs | 11 LEDs |
| Infrared Illumination (Night Vision) | up to 30ft(10~15m) |
| Minimum Illumination | 0.0 Lux |
| S/N Ratio | 48dB |
| Video Output | 1.0Vp-p, 75ohms |
| Weatherproof | Yes |
| Operating Temperature | -25°F~122°F / -32°C ~50°C |
| Power | 12V DC |
| Dimensions (W x D x H) | 2.9" x 2" x 1.8" |
| Gross Weight | 0.38 lbs |
| Material | Metal Shell |
