Specifications
* LAN or Internet Browsing* Support Live View via Smart Phone&3G Mobile
* Linux Based OS
* H.264
* One Year Warranty

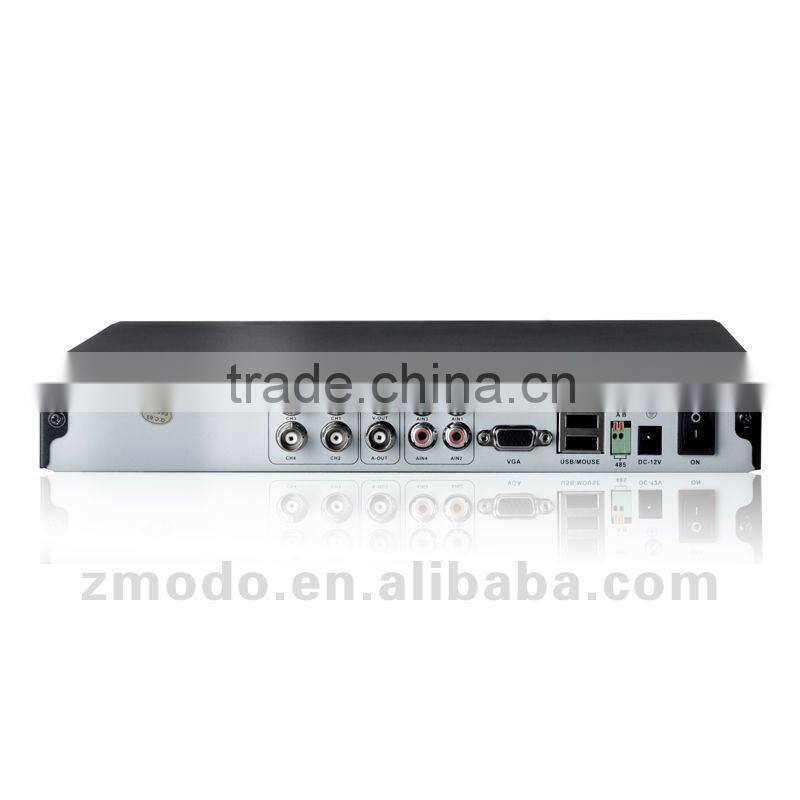

Zmodo 4 CH H.264 Full D1 Real-time Security DVR - iPhone & Android Network
The ZMD-DD-SBN4 is a 4 channel, fully integrated, real time, hardware-based digital video recorder. This standalone DVR is based on an embedded Linux operating system and includes a remote control for easy setup and operation. With the Pan/Tilt/Zoom (PTZ) camera control, network access and USB2.0 backup, this DVR is perfect for the home or small business.
This DVR provides you with real-time D1 resolution, the highest resolution available to DVRs! At 120 FPS (30 FPS Per Channel), recorded video will appear smooth and fluid. D1 gives you 4-times the image size, detail and clarity of conventional CIF quality. Its larger image and added detail makes it easier for you to identify people and objects.
Remote Access Anywhere Anytime via PC or Smartphone
This system allows you to view your footage, no matter the time or location. Access your DVR’s footage over the internet, or directly from your Android™, iPhone®, iPad®, Symbian™, Windows Mobile®, or BlackBerry®.
Advanced Motion Activated Recording
The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events. You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.
Multi-Tasking Functionality
The multi-tasking feature allows up to five functions to occur on the system at one time: record video, watch live video, playback video while also monitoring and managing the system remotely, and also backing up files.
Scheduled Recording Options
Choose the specific days of the week and hours of the day you would like your DVR to record or not record. Each individual camera can be set with its own personalized schedule.
Instant Email Alerts if Activity Detected
This system is designed to send an email alert, complete with photo of the activity, if any motion is detected, or if any camera experiences video loss.
| Model | ZMD-DD-SBN4 - 4CH H.264 StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 4-Channel Input / BNC 1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input / BNC 1-Channel Output |
| Display Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480) / PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Recording Pack Time | 15/30/45/60mins Selectable |
| Simplex / Duplex /Triplex / Pentaplex | Pentaplex |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| Playback Mode | Normal Play /Fast Forward /Fast Rewind/ Frame by Frame |
| USB | USB Backup / USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1000mA |
| Dimension | 300mm (W) x 220mm (D) x 47mm (H) |
