Zmodo IR Dome CCTV Indoor Camera

Specifications

* Up to 66'IR dome camera
* 1/4"Color CMOS
* Wall or ceiling mount
* 14F~122F Operation Temperature
* One Year Warranty

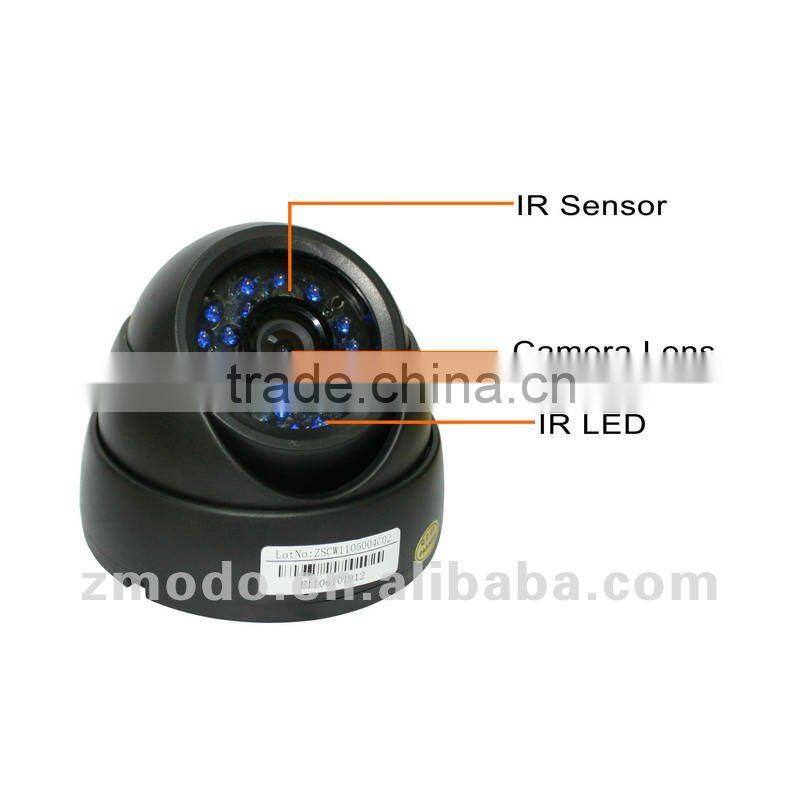

The ir dome camera employs a 1/4" color CMOS solid-state image device which provides high quality image day and night. This dome camera has extremely long life and high reliability.With 24 built-in IR LEDs,this camera can capture video in night vision mode up to 66ft away.



Model	ZMD-CBR-DAS23PM -Color IR Dome Camera
Image Sensor	1/4" Color CMOS
Signal	NTSC/PAL
Effective Fixels	NTSC:652(H)x582(V)/PAL:652(H)x582(V)
Lens Mount	3.6mm
Scanning System	2:1 Interlace
Infrared Irradiation Distance	24 Ultra Strong Infrared LEDs- Visible up to 66 ft (20m)
Minimum Illumination	0 Lux (IR On)
Horizontal Resolution	480 TV-Lines
Synchronization System	Internal Synchronization
S/N Ratio	> 48dB
Gamma	0.45
Auto Gain Control	Built in
Operation Temperature	14F ~ 122 F
Power	12V DC
Back Light Compensation	Auto

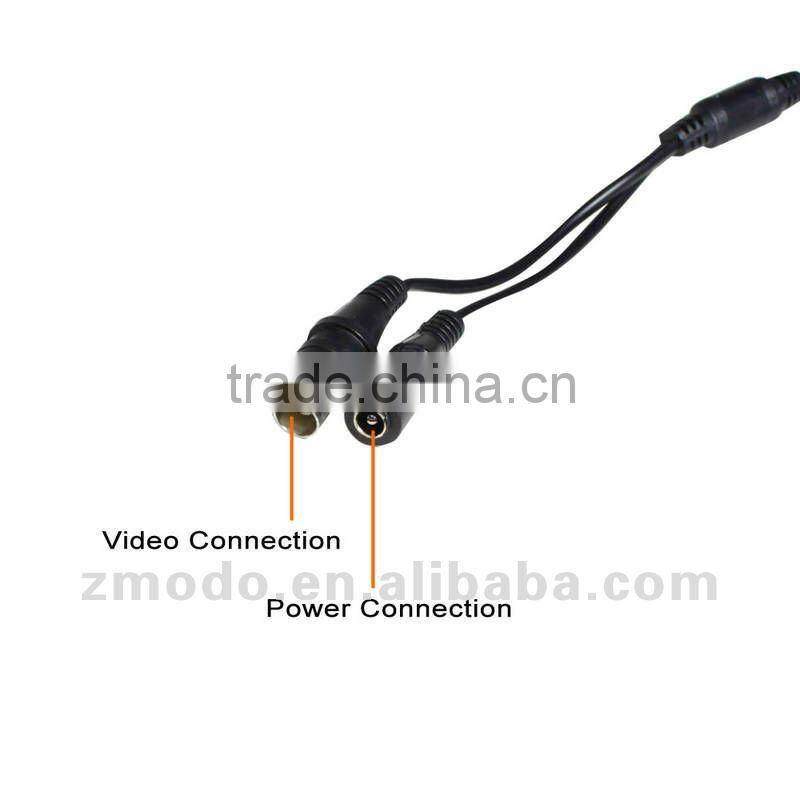

Video Out	1.0p-p 75O BNC
Mount	Ceiling and Wall
Auto Iris	Video / DC
