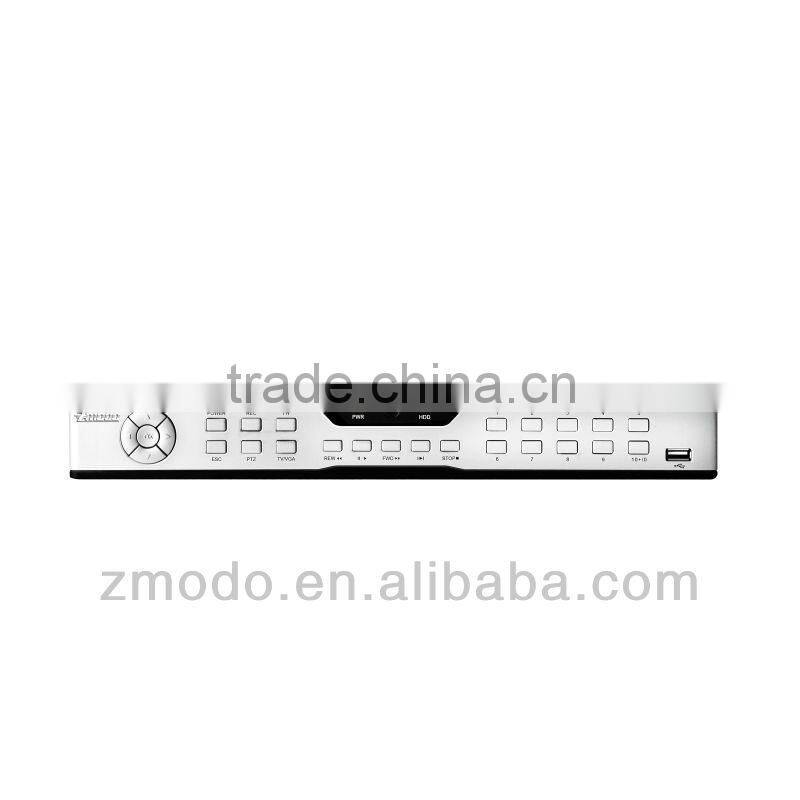

Zmodo Standalone 16 Channel Network DVR

Specifications

* Linux Based OS
* H.264 video compression
* DC12V / 5A power supply
* SATA, Support up to 2TB
* One Year Warranty

16CH H.264 Smart Security DVR with Internet & Smart Phone Monitoring

The ZMD-DC-SBN6 is one of the latest 16CH standalone DVR featuring advanced security functions. With the capacity to record with 16 cameras, it is highly recommended for businesses. It provides the basic surveillance function at an affordable price for your security and surveillance needs.

View Your Camera Footage from Anywhere in the World

With ZMD-DC-SBN6, you’re able to know what is happening at your home or business wherever and whenever you want. You

16CH H.264 Smart Security DVR with Internet & Smart Phone Monitoring

The ZMD-DC-SBN6 is one of the latest 16CH standalone DVR featuring advanced security functions. With the capacity to record with 16 cameras, it is highly recommended for businesses. It provides the basic surveillance function at an affordable price for your security and surveillance needs.

View Your Camera Footage from Anywhere in the World

With ZMD-DC-SBN6, you’re able to know what is happening at your home or business wherever and whenever you want. You have the power to access your DVR’s live video footage over the internet or directly from your supported smart phones, including Android™;  iPhone® & iPad® IOS;  Symbian™;  Windows Mobile®.

Multiple Recording Modes

ZMD-DC-SBN6 supports various kinds of recording modes, including manual recording, scheduled recording, motion detected recording, alarm triggered recording and alarm/motion detection triggered recording.

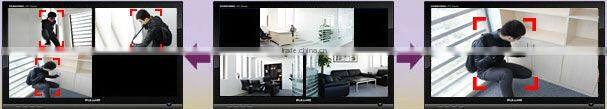

Multiple Viewing Modes Switching

Six viewing modes allow you to view 4, 6, 8, 9 or 16 cameras at once on a split screen, or view only 1 camera at a time.

Advanced Motion Activated Recording

ZMD-DC-SBN6 The motion detection option allows you to record only when motion is detected so that you save hard drive space without missing important events. You can even ensure that false alarms are not triggered as the easy motion detection “mask” allows you to block out areas with constant movement.

Instant Email Alerts if Activity Detected

Once motion detection meets alarm conditions, an email will be sent immediately with the attachment of the snapshot. Once the FTP is set, it will upload the file after the alarm, and the FTP server will receive the snapshot.

Multi-Tasking Functionality

The multi-tasking feature allows up to five functions to occur on the system at one time: record video, watch live video, playback video while also monitoring and managing the system remotely, and also backing up files.

Easy USB Backup

A built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive or external USB hard drive.

Search by Date, Time or Event

Simply choose the desired date and time range, and the requested video clips will appear. Clips are also labeled by event, which makes it easy to find particular footage.

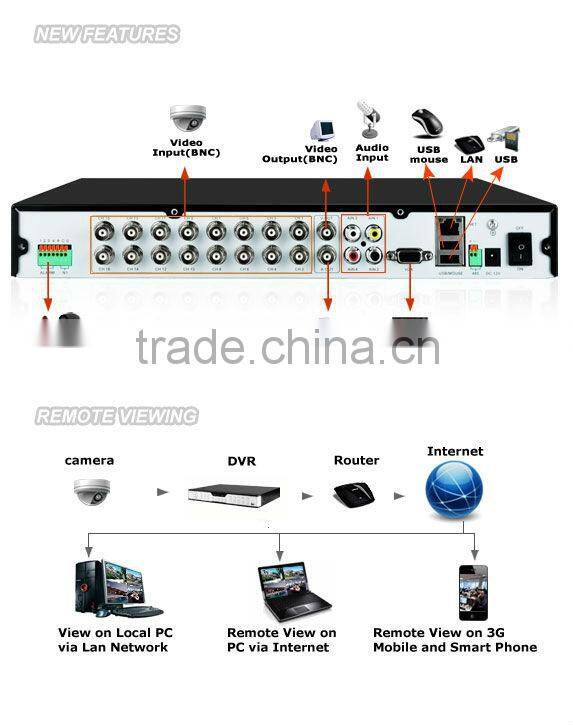

Connect to a TV or PC Monitor

VGA and BNC output allows you to connect to any PC monitor or TV monitor for viewing purposes. This gives you more options when viewing the activity captured by your cameras.

MODLE: ZMD-DC-SBN6----16 Channel Full CIF Real Time DVR
DISPLAY
Video	Inputs	BNC(1.0Vp-p/75Ω)
	Resolution	CIF
Live	Frame Rate	NTSC/PAL:480 fps/400 fps
	Multi Screen Display	800×600@60Hz, 1024×768@60Hz, 1280×1024@60Hz, 1440×900@60Hz

PERFORMANCE
Operating System		Linux Based
Recording	Compression	H.264
	Record Rate	NTSC: 480 fps @ CIF / PAL: 400 fps @ CIF
	Mode	Manual/ Continuous/ Motion Detection/Time Scheduled
Search & Playback	Search Mode	Time & Date, Event List
	Playback Function	Fast Forward / Rewind /Slow Play
Storage	Internal HDD	1 SATA, Support up to 2TB
	DVD Writer (Back up)	nonsupport
	USB (Back up)	Flash drive/USB HDD/USB DVD-RW/Network download
	File Format (Back up)	H.264,MP4,AVI
Smart Phone		iPhone, Android 2.1~2.3,BlackBerry 7, Windows Mobile 5.5~6.1, Symbian V3&V5

INTERFACE
Monitors	Main Composite	CVBS OUT
	VGA	Support
	HDMI	nonsupport
Audio	Inputs / Output	RCA 4-Channel Input / 1-Channel Output
	Compression	G.726/ADPCM-IMA
Alarm	Inputs / Output	4ch Sensor Inputs / 1-ch Alarm Output
	Remote Notification	nonsupport
Connection	Ethernet	RJ45(10M/100M self-adaption)
	Serial Interface	RS-485(PTZ Control)
	Application Support	remote configuration, video browse, local recording, local and remote playback, and remote PTZ control.
	Protocol Support	TCP/IP, PPPoE, DHCP,DDNS

GENERAL
Electrical	Input Voltage	DC12V,5A
	Power Consumption	<12W(Without hard disks)
Operating Temperature		14F~122F/-10 °C to 50 °C
Dimensions		13.9in (W) × 10.8in (D) × 1.9in (H)/354mm (W) × 275mm (D) × 47mm (H)
Weight (Without hard disks)		3.66lbs
Language		11 Language



MODLE: ZMD-DC-SBN6----16 Channel Full CIF Real Time DVR
DISPLAY
Video	Inputs	BNC(1.0Vp-p/75Ω)
	Resolution	CIF
Live	Frame Rate	NTSC/PAL:480 fps/400 fps
	Multi Screen Display	800×600@60Hz, 1024×768@60Hz, 1280×1024@60Hz, 1440×900@60Hz

PERFORMANCE
Operating System		Linux Based
Recording	Compression	H.264
	Record Rate	NTSC: 480 fps @ CIF / PAL: 400 fps @ CIF
	Mode	Manual/ Continuous/ Motion Detection/Time Scheduled
Search & Playback	Search Mode	Time & Date, Event List
	Playback Function	Fast Forward / Rewind /Slow Play
Storage	Internal HDD	1 SATA, Support up to 2TB
	DVD Writer (Back up)	nonsupport
	USB (Back up)	Flash drive/USB HDD/USB DVD-RW/Network download
	File Format (Back up)	H.264,MP4,AVI
Smart Phone		iPhone, Android 2.1~2.3,BlackBerry 7, Windows Mobile 5.5~6.1, Symbian V3&V5

INTERFACE
Monitors	Main Composite	CVBS OUT
	VGA	Support
	HDMI	nonsupport
Audio	Inputs / Output	RCA 4-Channel Input / 1-Channel Output
	Compression	G.726/ADPCM-IMA
Alarm	Inputs / Output	4ch Sensor Inputs / 1-ch Alarm Output
	Remote Notification	nonsupport
Connection	Ethernet	RJ45(10M/100M self-adaption)
	Serial Interface	RS-485(PTZ Control)
	Application Support	remote configuration, video browse, local recording, local and remote playback, and remote PTZ control.
	Protocol Support	TCP/IP, PPPoE, DHCP,DDNS

GENERAL
Electrical	Input Voltage	DC12V,5A
	Power Consumption	<12W(Without hard disks)
Operating Temperature		14F~122F/-10 °C to 50 °C
Dimensions		13.9in (W) × 10.8in (D) × 1.9in (H)/354mm (W) × 275mm (D) × 47mm (H)
Weight (Without hard disks)		3.66lbs
Language		11 Language
