Outdoor Armored Fiber Optic Cable Direct Buried GYTS

Description

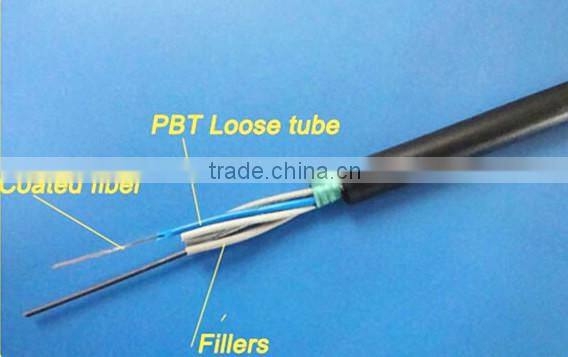

In the GYTA cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. An APL/PSP is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.

Application: Duct/Aerial

Temperature Range:

Storing temperature:-40℃ to +70℃

Operating temperature:-40℃ to +70℃

Characteristics

1, Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length.

2, Critical protection to fibers.

3, The following measures are taken to ensure the water blocking performance of the cable.

- Single steel wire used as the central strength member

- Special water-blocking filling compound in the loose tube.

- 100% cable core filling

Standards

Comply with standard YD/T 901-2009 as well as IEC 60794-1

Technical Parameters

Note:

1.Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.

3. Standard Reel Length: 3000m/reel: other lengths available on request.

1. Standard Packaging:

Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.

2. Sheath mark

The following printing(white hot foil indentatioin)is applied at 1-meter intervals.

a. Supplier: Guanglian or as cuctomer required

b. Standard Code(Product Type, Fiber Type, Fiber Count)

c. Year of manufacture: xxx

d. Length marking in meters

1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc

2. Payment: We accept T/T, L/C and Western Union, just choose what you like

3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.

4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely

Quote Request Information

1. Fiber Count: 2 to 144 Fibers

2. Fiber type: Single mode: G652D, G655,G657. Multimode: 50/125,62.5/125. OM3

3. Order Quantity

Hunan guanglian photoelectricity technologies  Co.,Ltd  is the professional enterprise on fiher optical cable at widely range of outdoor fiber optic / aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /Adss and OPGW for power system transmmision.

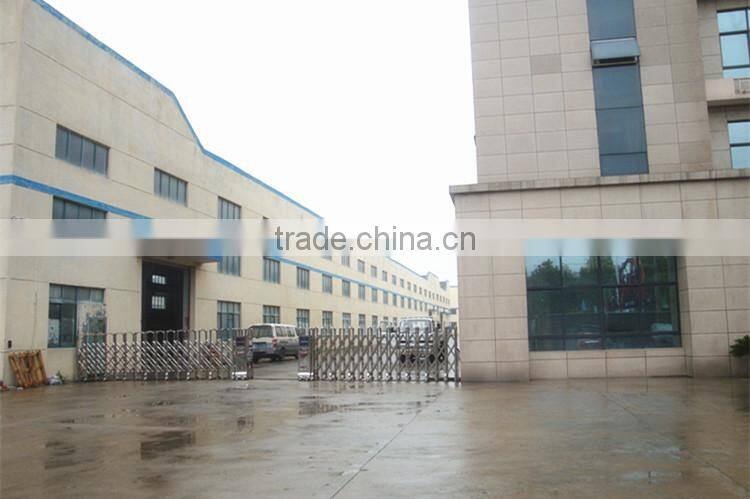

1. The Gate of Factory

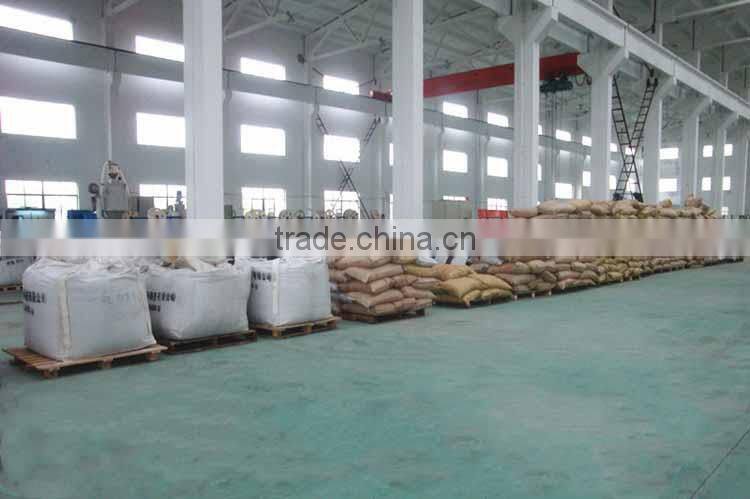

 2. Raw Material

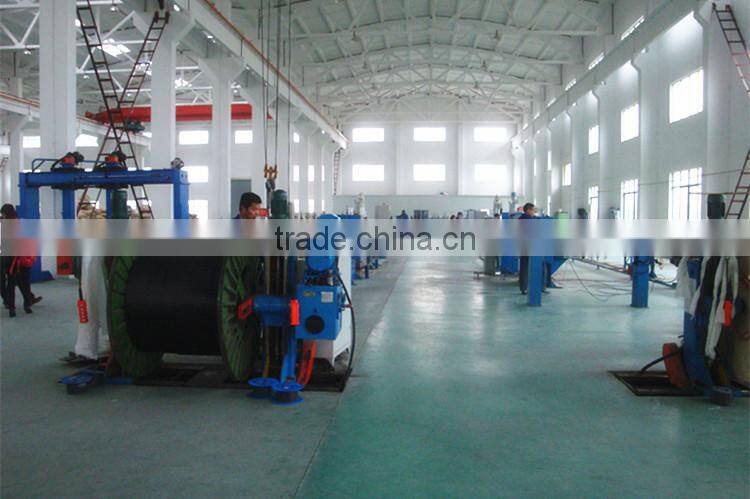

3. Production Line

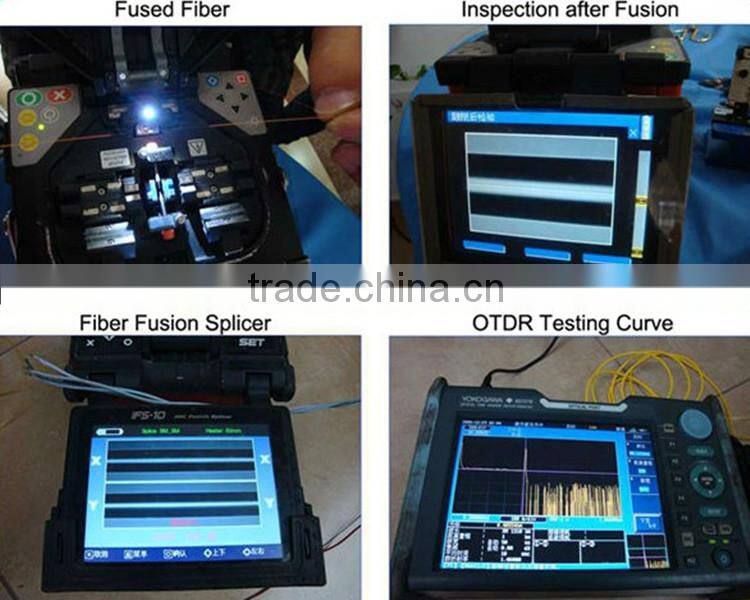

4. Fiber Optic Cable Testing

Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.

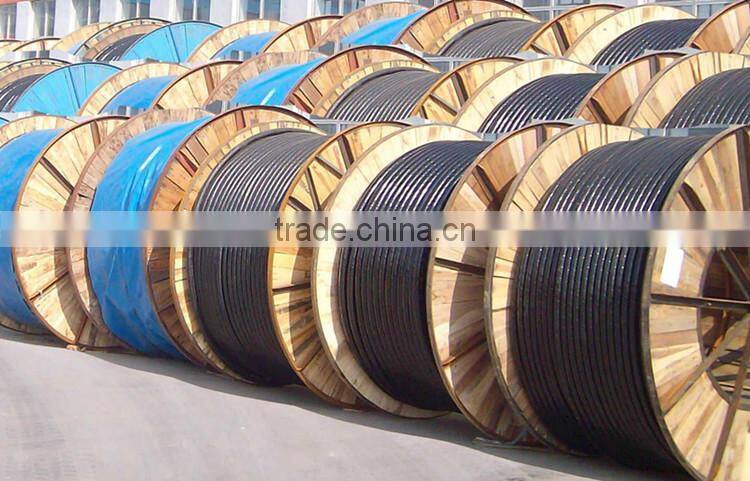

 5. Wooden Drums

♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

 own design are welcome.  We will produce according to ur requirment and description;

♦  Please send us inquiry for more products info and we will give you feedback in 12 hours.
