1/2/4/12 Core Single Mode Optic Fiber Cable Price

1/2/4/12 Core Single Mode Optic Fiber Cable Price thumbnail-1
1/2/4/12 Core Single Mode Optic Fiber Cable Price thumbnail-2
1/2/4/12 Core Single Mode Optic Fiber Cable Price thumbnail-3
1/2/4/12 Core Single Mode Optic Fiber Cable Price thumbnail-4
1/2/4/12 Core Single Mode Optic Fiber Cable Price thumbnail-5
1/2/4/12 Core Single Mode Optic Fiber Cable Price thumbnail-6
1/2/4/12 Core Single Mode Optic Fiber Cable Price photo-1
1/2/4/12 Core Single Mode Optic Fiber Cable Price photo-2
1/2/4/12 Core Single Mode Optic Fiber Cable Price photo-3
1/2/4/12 Core Single Mode Optic Fiber Cable Price photo-4
1/2/4/12 Core Single Mode Optic Fiber Cable Price photo-5
1/2/4/12 Core Single Mode Optic Fiber Cable Price photo-6
US$ 0.25 - 0.4 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
GL
Model Number:
12 core fiber optic cable
Contact Supplier Request Quote Chat Now
Hunan Guanglian Photoelectricity Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name GL
Model Number 12 core fiber optic cable
Type Cat 1

                              1/2/4/12 Core Single Mode optic fiber cable price



Welcom to Guanglian Cable

YOUR FIBER OPTIC CABLE PARTNER



1/2/4/12 Core Single Mode optic fiber cable price

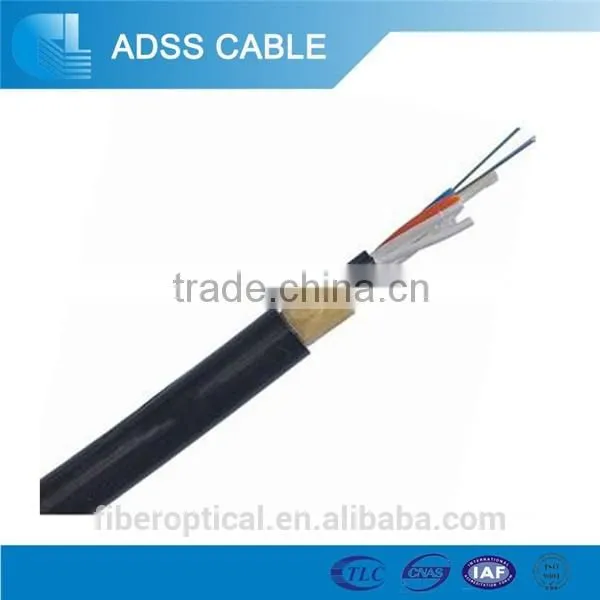

 All Dielectric Self-Supporting Optical Fiber Cable (Adss)

1/2/4/12 Core Single Mode optic fiber cable price   Models:
2~144 fibers All Dielectric Outdoor Fiber Optic Cable
Common Installations
Outdoor self-supporting aerial

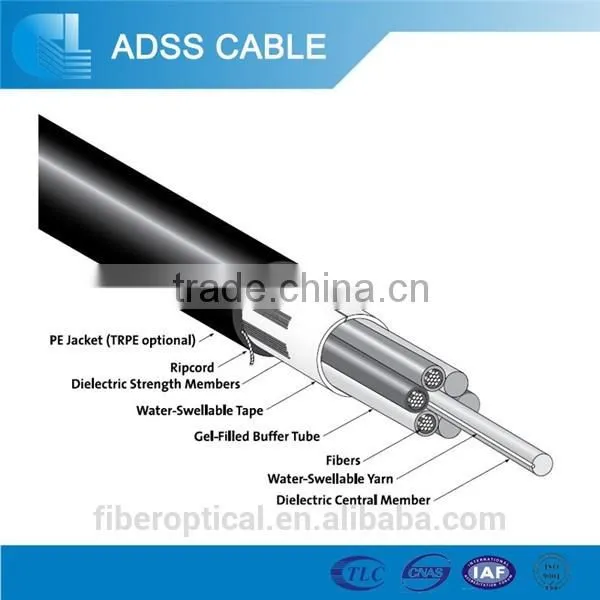

Cable Components
  • PE Jacket(AT Jacket is workable)
  • Dielectric Strength Members
  • Ripcord
  • Water-Swellable Tape
  • Buffer Tube
  • Fiber (up to 288 Fibers)
  • Water-Swellable Yarn
  • Dielectric Central Member
  • Fillers
Features and Benefits

1. Loose tube design

    Stable performance and compatibility with all common fiber types

2. Self-supporting

     Easy, one-step installation

3.Track-resistant &jacket available

    For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT) outer sheath.
4. Innovative waterblocking cable core

    Provides efficient and craft-friendly cable preparation



Photos Show



1/2/4/12 Core Single Mode optic fiber cable price







1/2/4/12 Core Single Mode optic fiber cable price



Technical Parameters



ADSS with grade PE sheath (Parts)

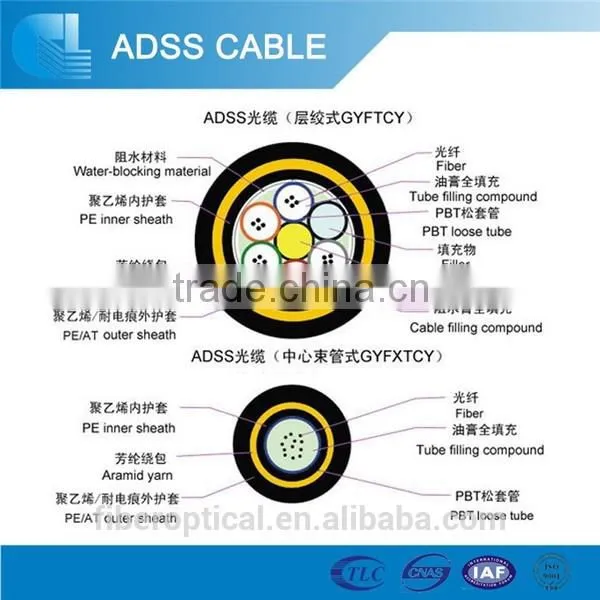

Structure drawing

Order Type Model

ADSS-PE 24 M15.5/ A

ADSS-PE48 M17.7 / C

ADSS-PE72 M21.2 / D



Fiber count

24fiber

48fiber

72fiber

Size of tube

φ2.1mm

φ2.6mm

φ3.0mm

Cable diameter

φ13.4mm

φ14.9mm

φ16.4mm

Cable weight

139kg/km

172kg/km

209kg/km

RTS

38.8kN

44.3kN

56.6kN

Linear expansion coefficient

2.2×10-6/°C

2.0×10-6/°C

1.8×10-6/°C

Young’s modulus

16.5kN/mm2

17.5kN/mm2

18.6kN/mm2



ADSS with grade AT sheath (Parts)

Structure drawing

Order Type Model

ADSS-AT 24 M14 / A

ADSS-AT48M15.2 / C

ADSS-AT72 M21.2 / D



Fiber count

24fiber

48fiber

72fiber

Size of tube

φ2.1mm

φ2.6mm

φ3.0mm

Cable diameter

φ13.2mm

φ14.3mm

φ16.3mm

Cable weight

146kg/km

169kg/km

220kg/km

RTS

35kN

37.9kN

52.9kN

Linear expansion coefficient

4.5×10-6/°C

4.8×10-6/°C

3.6×10-6/°C

Young’s modulus

15.5kN/mm2

14.9kN/mm2

17.9kN/mm2



ADSS with grade AT sheath (Parts)

Structure drawing

Order Type Model

ADSS-AT144 M12.3 / D



Fiber count

144fiber

Size of tube

φ3.0mm

Cable diameter

φ20.7mm

Cable weight

344kg/km

RTS

30.8kN

Linear expansion coefficient

3.5×10-6/°C

Young’s modulus

6.22kN/mm2

Note: Longer span avalible upon request

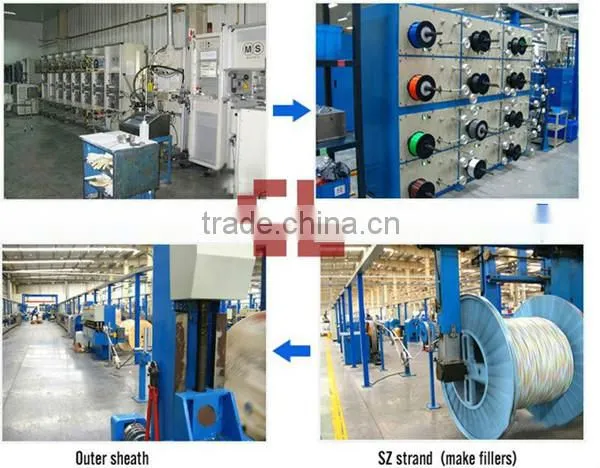

Our Professional Factory

1/2/4/12 Core Single Mode optic fiber cable price

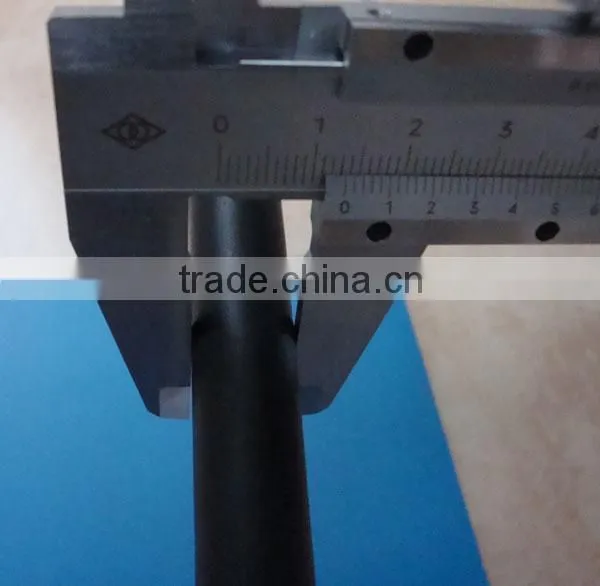

Fiber Optic Cable Testing



Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber

Cable to withstand mechanical stresses and strains likely to be encountered in its lifetime. Each

mechanical characteristics can be tested on testing machine for the particular test.


1/2/4/12 Core Single Mode optic fiber cable price

  • Here at Guanglian we provide you technical assistance and information as also coordinate product training to suit various levels of experience from basic theory through to fusion splicing and network testing.

1/2/4/12 Core Single Mode optic fiber cable price

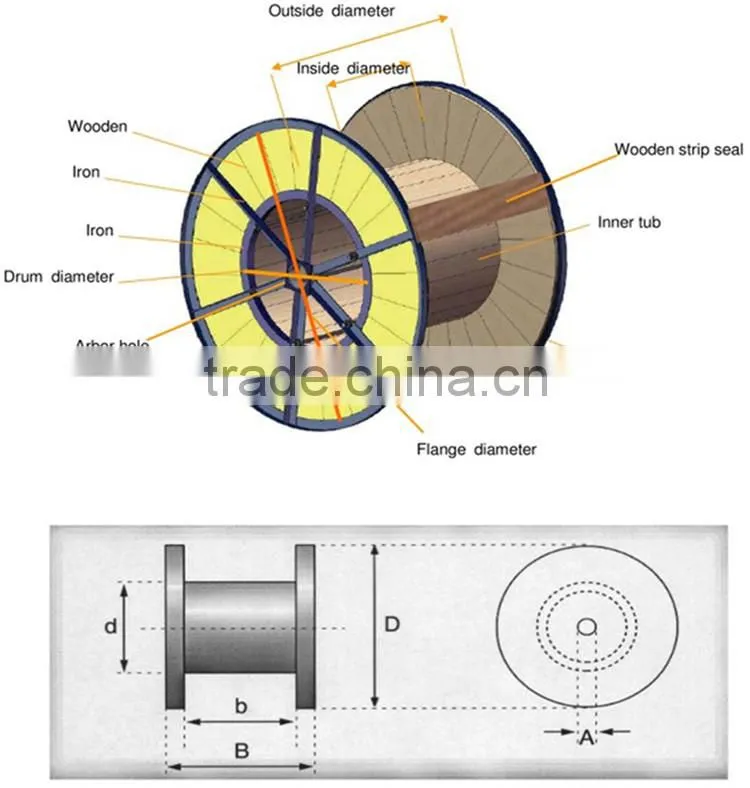

 Packaging Details



The cables will be shipped on disable wooden or treated wooden drums.

Inner packing: Steel reel on wooden drums which wrapped with insulated material;

Out packing: Protected by wooden batterns.

1/2/4/12 Core Single Mode optic fiber cable price



Shipping and Payment
  • FAST SHIPPING from factory
  • Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
  • Item shipped by sea and air or UPS,FedEX,DHL and others, depending on size and weight of total order.
  • We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.
Contact with us



Contact: MS. Coco Qin

Phone: +86-731-85501765 Fax: +86-731-89722708  Mobile: +86 15211134956

Address: No.318 Xizi Business center, Wanjiali Road, Yuhua District, Changsha. Hunan, China, 410000

Email: coco(at)

Skype:Coco Qin
