Famous In Africa Gold Grinding Pan Mill Cheaper Than Ball mill
| Product Description |

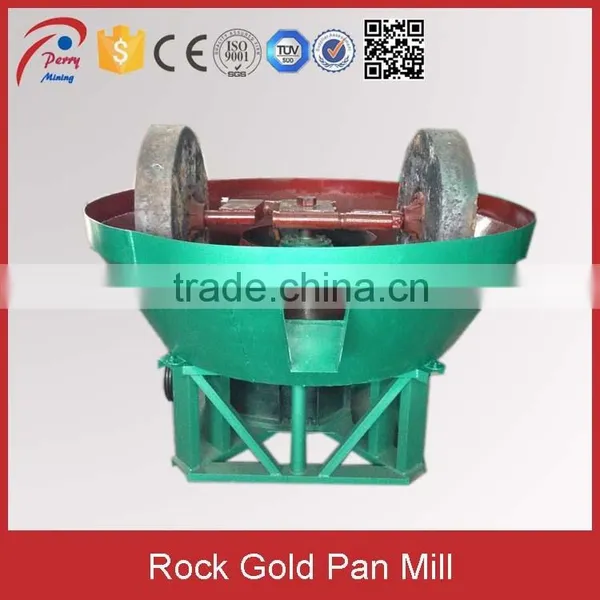

The gold grinding pan mill (wet pan mill), which is named by the diameter of grinding roller, is mainly applied for grinding of gold, silver, lead, zinc, iron, molybdenum, copper, antimony, and so on. Among the models, model 1200 & 1300 are the most popular one.
As an excellent equipment to work replacing the ball mill, the gold grinding pan mill (wet pan mill) has been very popular and widely applied by Small and Medium Enterprises because of its small investment, high yield, low production cost, low power, and good benefits.

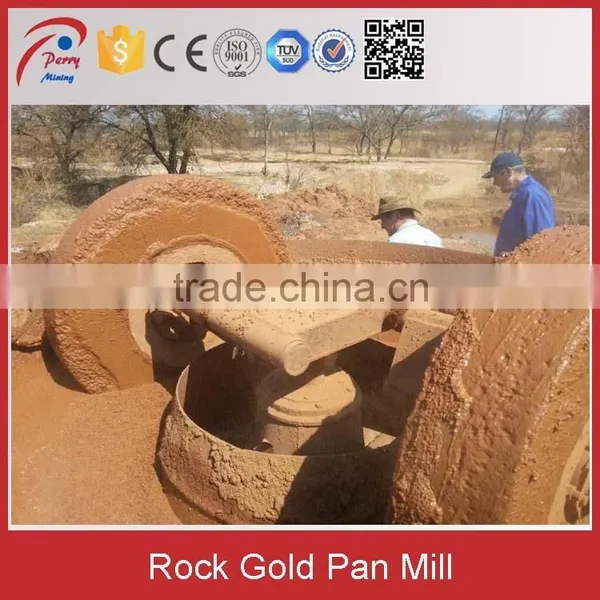

In Africa, at least 85% gold miners are using the gold grinding pan mill (wet pan mill) in there gold processing system instead of ball mill .
Technical Specification | |||||||
Model |
Roller dia. (mm) |
Roller thick (mm) |
Pan dia. (mm) |
Speed (r/min) |
Power (kw) |
Capacity (t/h) |
Weight (t) |
1600 |
1600±20 |
400±20 |
2100±20 |
20-22 |
30 |
9-10 |
16 |
1500 |
1500±20 |
300±20 350±20 400±20 |
2100±20 2100±20 |
20-22 |
22 |
7-8 |
12 |
1400 |
1400±20 |
250±20 |
2000±20 |
16-18 |
15 |
5-6 |
9.5 |
1300 |
1300±20 |
220±20 |
2000±20 |
16-18 |
11 |
3-4 |
8 |
1200A |
1200±20 |
220±20 |
1800±20 |
13-18 |
7.5 |
1-2 |
6 |
1200B |
1200±20 |
200±20 |
1800±20 |
13-18 |
7.5 |
0.8-1 |
5 |
1100 |
1100±20 |
200±20 |
1800±20 |
13-18 |
5.5 |
0.5-0.8 |
4.5 |
1000 |
1000±20 |
200±20 |
1800±30 |
13-18 |
5.5 |
0.3-0.5 |
4 |
900 |
900±20 |
160±20 |
1700±30 |
13-18 |
3 |
0.2-0.3 |
3 |
850 |
850±20 |
140±20 |
1700±30 |
13-18 |
3 |
0.1-0.2 |
2.5 |
| Structure |

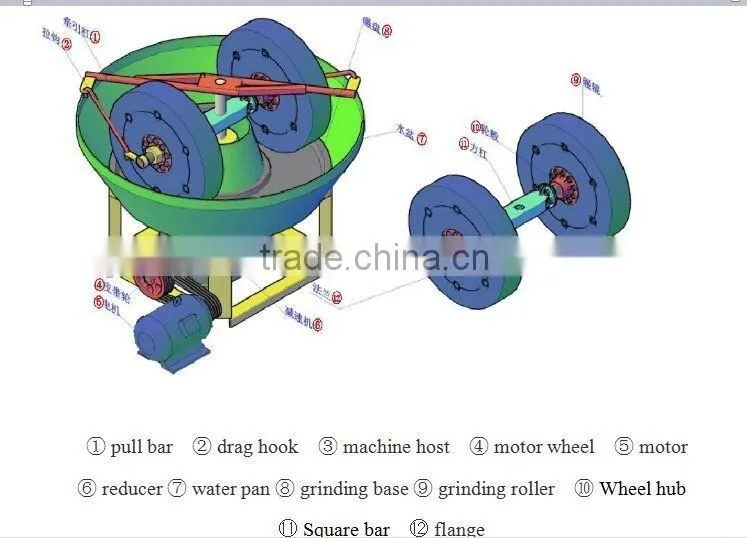

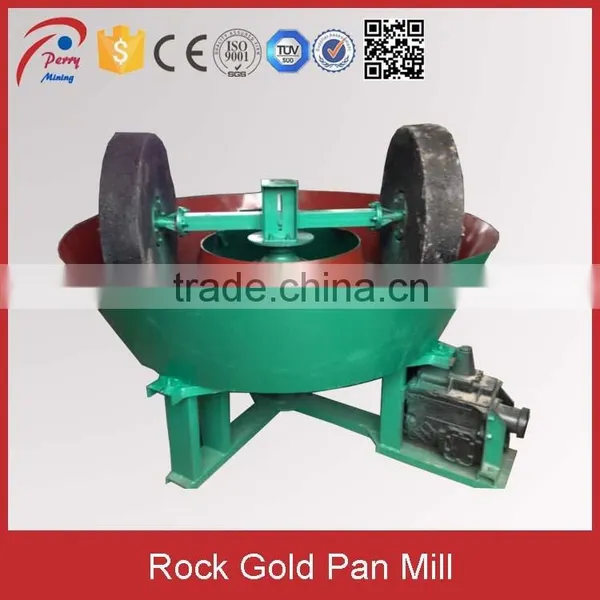

The gold grinding pan mill is mainly consist of the power plant, body frame, water basin, grinding roller, and grinding base. The grinding roller and grinding base are the most easy to wear. Model 1200 for rock gold grinding machine structure as below ;

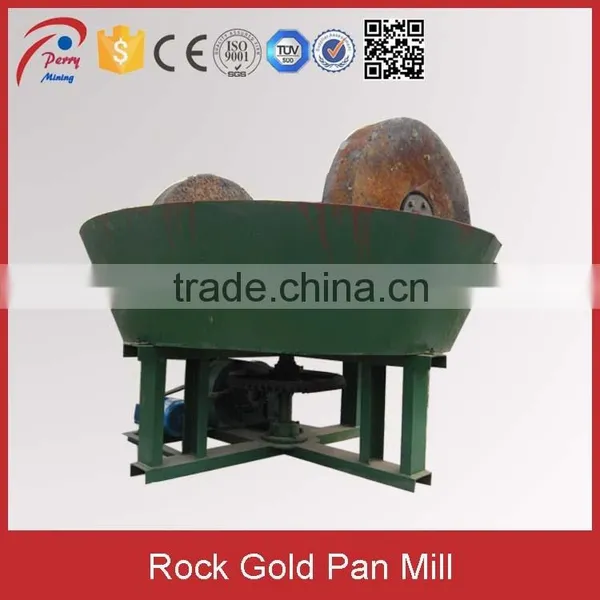

Model 1300 structure for gold grinding pan mill , there is differences with model 1200.
| Detailed Images |
|

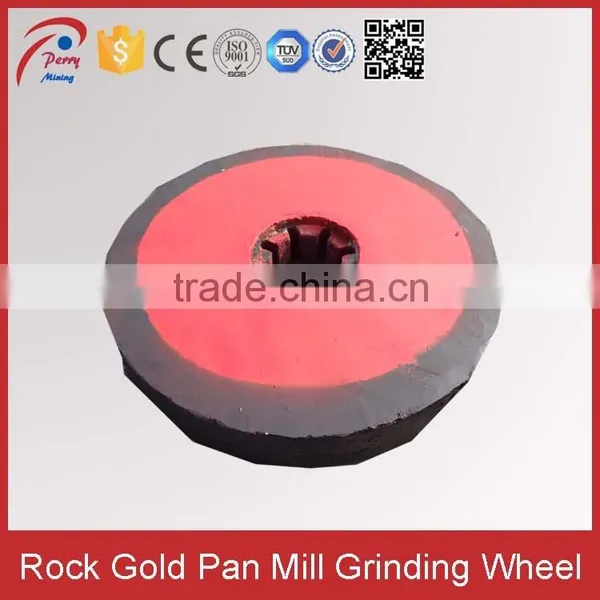

Part name: Grinding roller
Brand: Perry
Origin: China
Gold Grinding Mill Wet Pan Mill For model 1200A pan mill, the roller diameter is 1200mm, thickness is 220mm, weight is 1.5t/pcs. The smooth surface design will be good for the grinding efficiency. The material could be high Mn and high Chrome. |
|
Part name: Grinding base
Brand: Perry
Origin: China
Gold Grinding Mill Wet Pan Mill For model 1200A, the thickness of grinding base is 120mm. The material could be high Mn and high Chrome.
Gold Grinding Machine Gold Grinding Machine |
|
|
Part name: Water pan
Brand: Perry
Origin: China
The edge of the water pan is specially processed with the edge protecting.
Gold Grinding Machine Gold Grinding Machine |

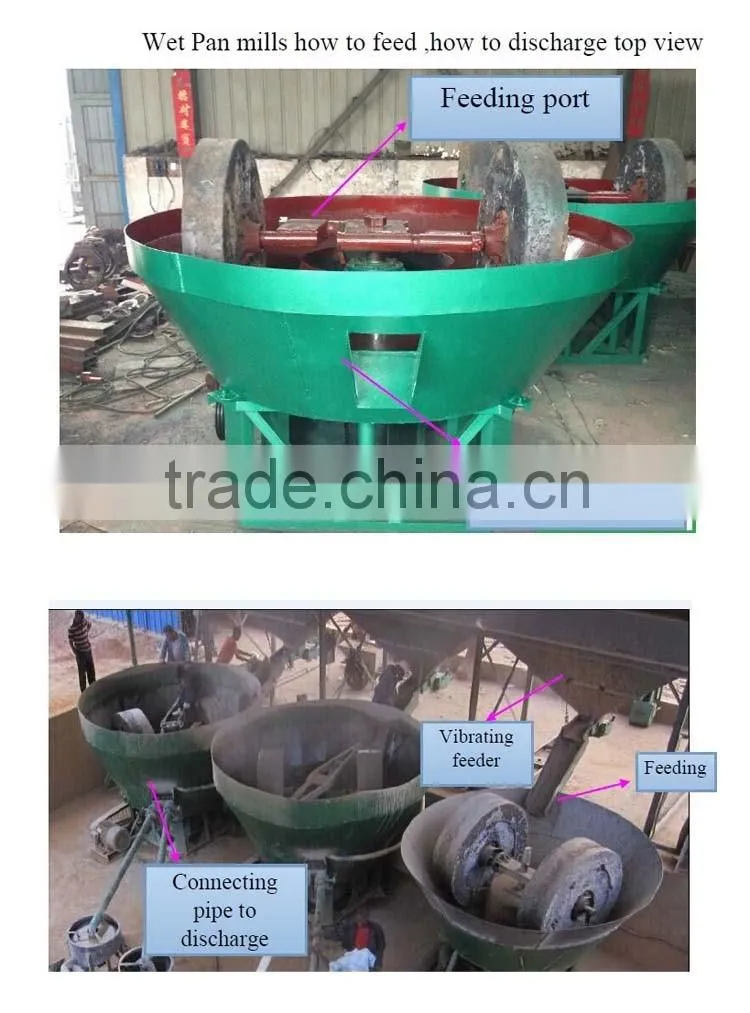

Here we would like to introduce our gold grinding pan mill feeding and discharging structure

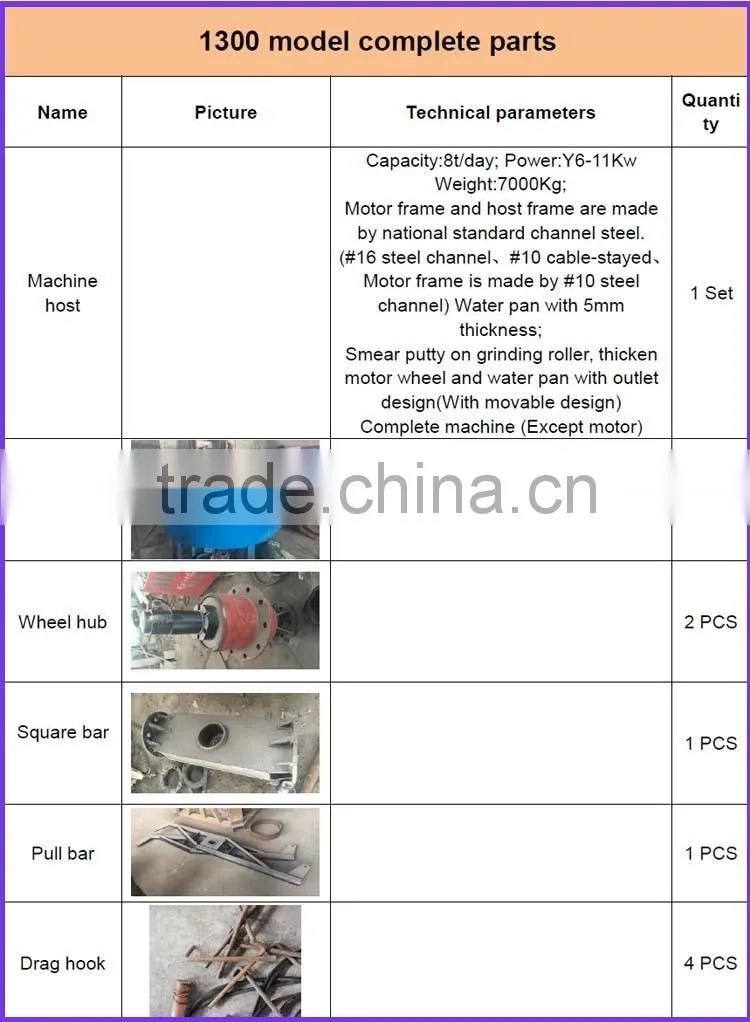

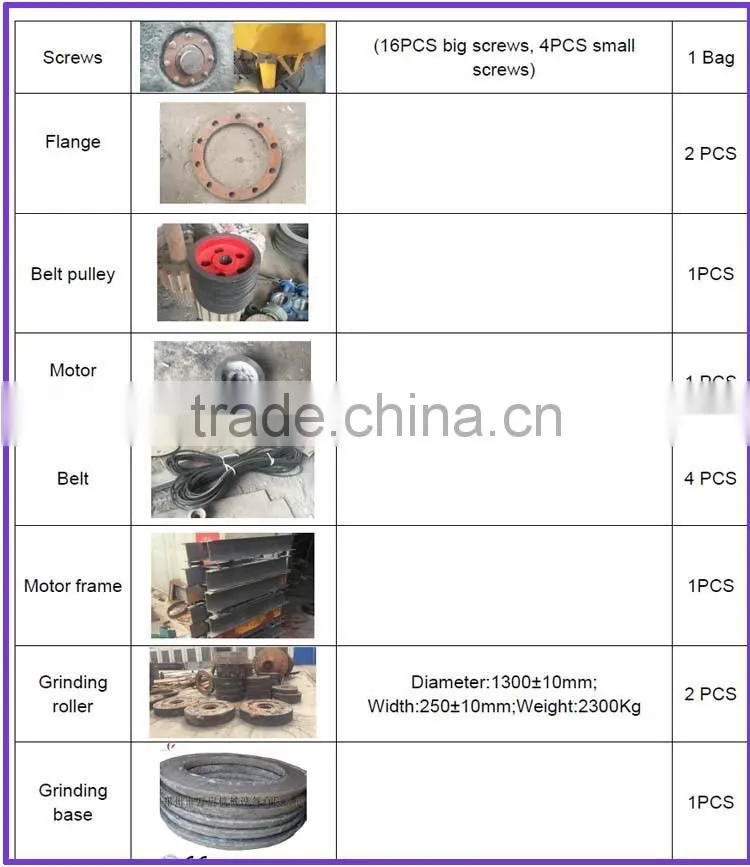

One complete 1300 model with below parts when we send you the gold grinding wet mill.

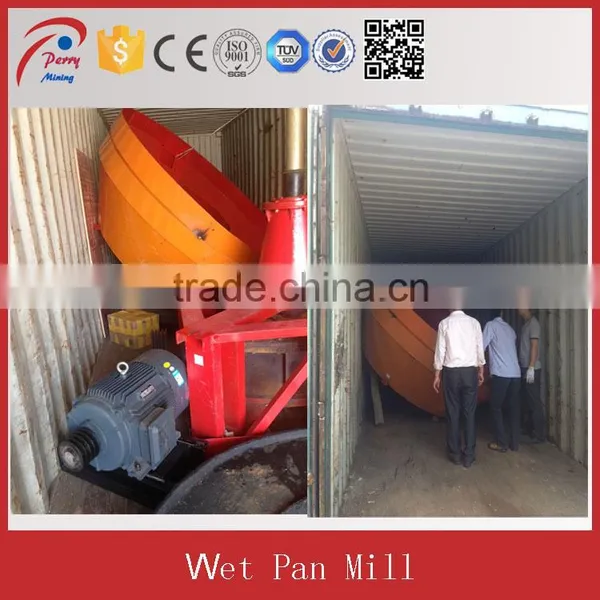

| Packing & Delivery |
|
FCL Gold Grinding Machine | |
| Size | one 40GP load 5 sets 1200A | |
| Weight | Model 1200A is 6t/set | |
| Packing details | The machine is usually loaded and fixed in the container mostly assembled. | |
|
|
LCL Gold Grinding Machine | |
| Size | ||
| Weight | Model 1200A is 6t/set | |
| Packing details |
LCL usually refers to the smaller models. The machine is packed inside in steel frame and outside in plywood |
|
Perry Mining will offer you the turnkey solution for your ore mining professionally. Just trust us and let us do it for you!
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd, professional in mining equipment manufacturing, has more than 25 years' manufacturing experiences. Our equipment had been exported to more than 50 foreign countries.
|
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.
Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on. |
