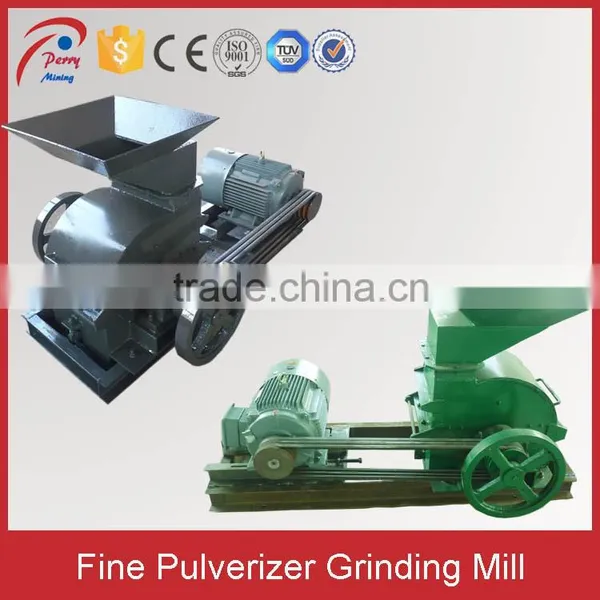

Output 1mm Ultra Fine Pulverizer Grinding Mill
| Product Description Ultra Fine Pulverizer Grinding Mill |
Crushing by the collisions between high-speed hammers and materials, the Grinding Mill were developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.
Ultra Fine Pulverizer Grinding Mill, Ultra Fine Pulverizer Grinding Mill Ultra Fine Pulverizer Grinding Mill
The Grinding Mill is widely applied in small and medium mining process because of its low cost and good efficiency.
| Specification of Ultra Fine Pulverizer Grinding Mill | |||||
| Model | Capacity (t/h) | Feed size (mm) | Output size (mm) | Engine power | |
| Motor (kw) | Diesel engine (HP) | ||||
| 200*500 | 1-2 | ≤50 | 0.1-3 | 15-18 | 24 |
| 300*500 | 3-6 | ≤50 | 0.1-5 | 18-22 | 30 |
| 400*600 | 5-10 | ≤50 | 0.1-12 | 25-30 | 45 |
Working principle of Ultra Fine Pulverizer Grinding Mill
1. Material is fed into the mill’s chamber typically by gravity. Ultra Fine Pulverizer Grinding Mill
2. The material is struck by ganged hammers which are attached to a shaft which rotates at a high speed inside the chamber. The materials are crushed or shattered by the repeated hammer impacts, collisions with the walls of the grinding chamber as well as particle on particle impacts. Ultra Fine Pulverizer Grinding Mill
3. Perforated metal screens, or bar grates covering the discharge opening of the mill retaining coarse materials for further grinding while allowing qualified sized materials to pass through as finished product. Ultra Fine Pulverizer Grinding Mill

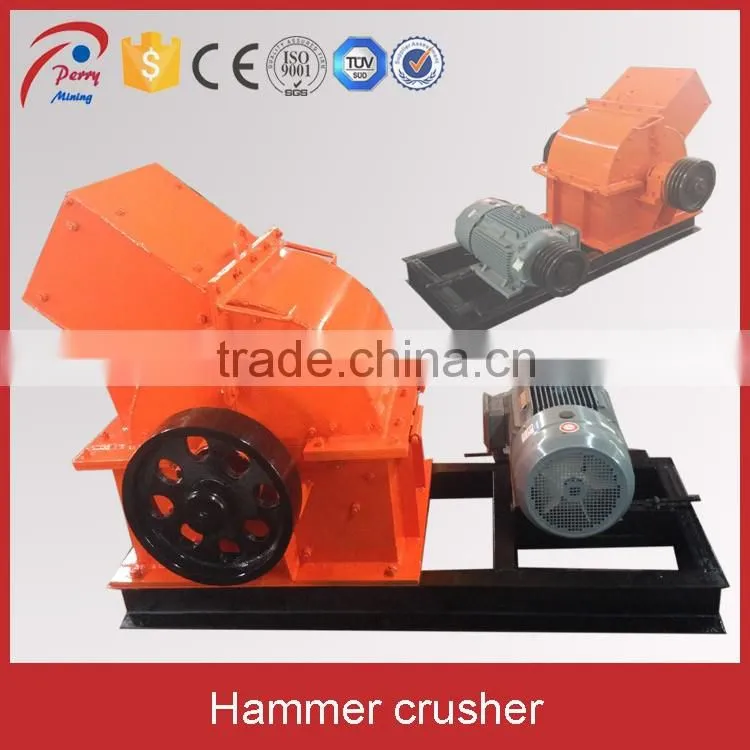

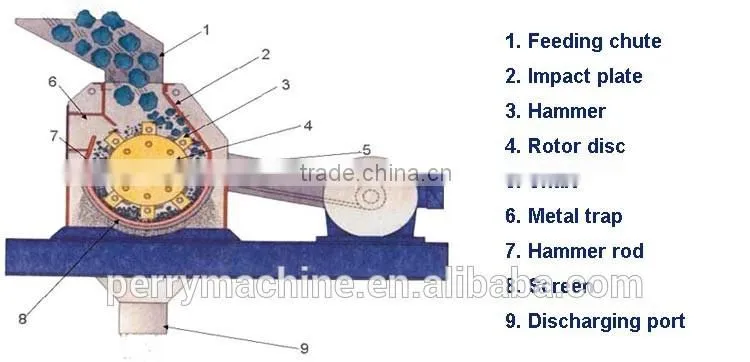

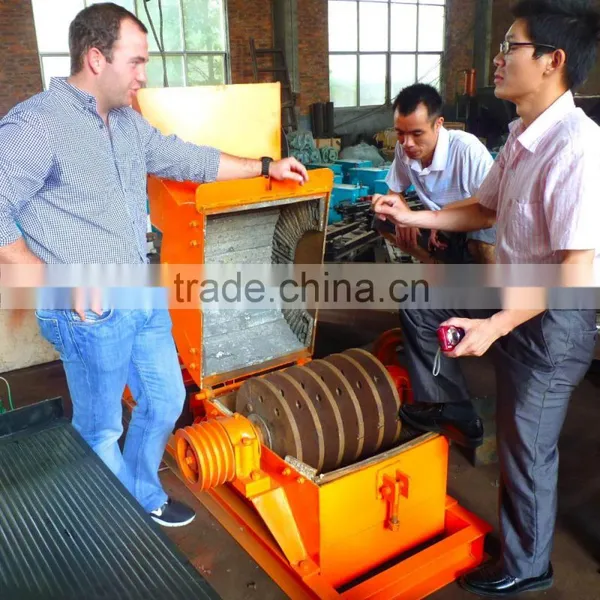

Structure of Ultra Fine Pulverizer Grinding Mill
The Grinding Mill is mainly consist of frame, rotor, hammers, and other parts:
Different engine of Grinding Mill

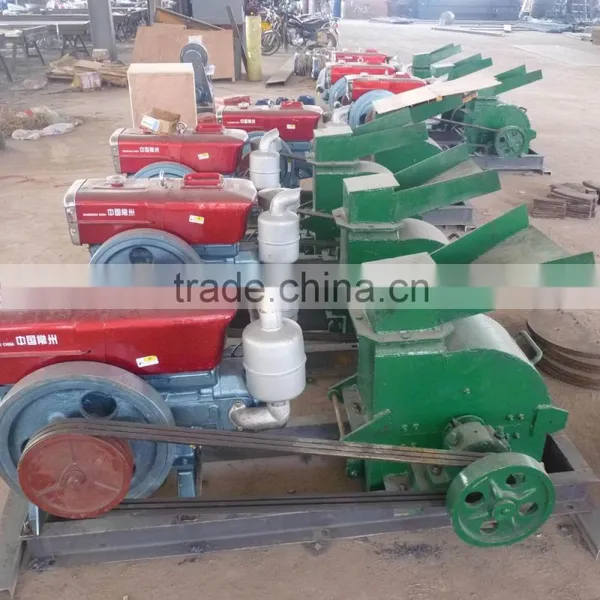

There are Grinding Mill with elec motor and Grinding Mill with diesel engine for option. If there is not electricity supply, the diesel engine is a good choice!

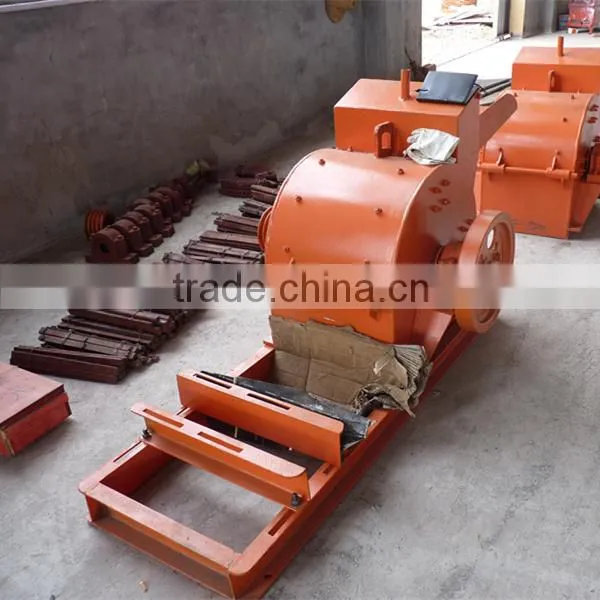

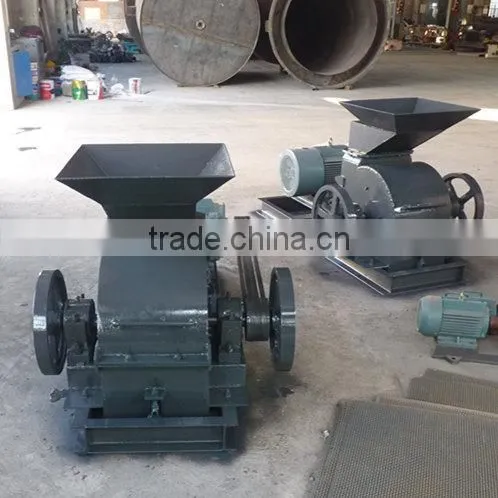

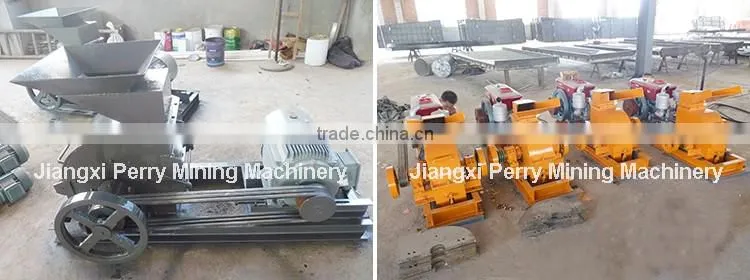

| Grinding Mill with elec motor | Grinding Mill with diesel engine |
Ultra Fine Pulverizer Grinding Mill, Ultra Fine Pulverizer Grinding Mill
| Detailed Image Ultra Fine Pulverizer Grinding Mill |
|

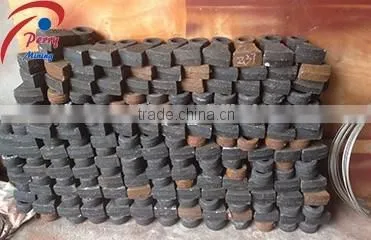

Part name: Hammer
Brand: Perry
Origin: China Ultra Fine Pulverizer Grinding Mill High chrome hammer which is more wear resistant than manganese hammers It saves your investment in long-term. Ultra Fine Pulverizer Grinding Mill |
|

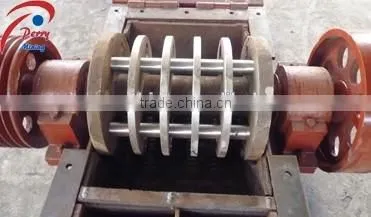

Part name: Rotary drum & main shaft
Brand: Perry
Origin: China Ultra Fine Pulverizer Grinding Mill One of the most important part of Grinding Mill. It is where the hammers located. Ultra Fine Pulverizer Grinding Mill
Grinding Gold Machine Grinding Gold Machine |
|
|

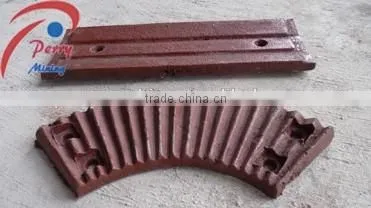

Part name: Guard liner
Brand: Perry
Origin: China Ultra Fine Pulverizer Grinding Mill The crushing cavity is linded with the liners so as to protect the hammer crusher.
It is replacable. Suggest to order some for replacement when ordering the crusher. |
|

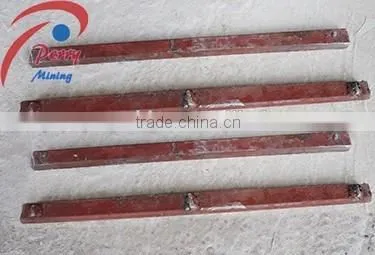

Part name: Screen bar
Brand: Perry
Origin: China
Ultra Fine Pulverizer Grinding Mill The screen sieve is made of by numbers of screen bars. The sieve opening is adjustable as request. Ultra Fine Pulverizer Grinding Mill
|
|
|

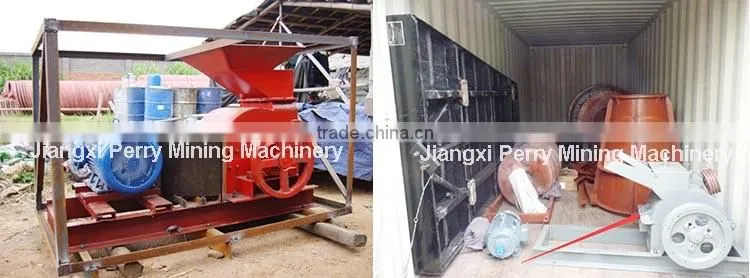

LCL The Grinding Mill is packed in steel frame innerly and plywood outside. |
FCL The Grinding Mill is firmed in the container, and spare parts are packed in wooden boxes. |

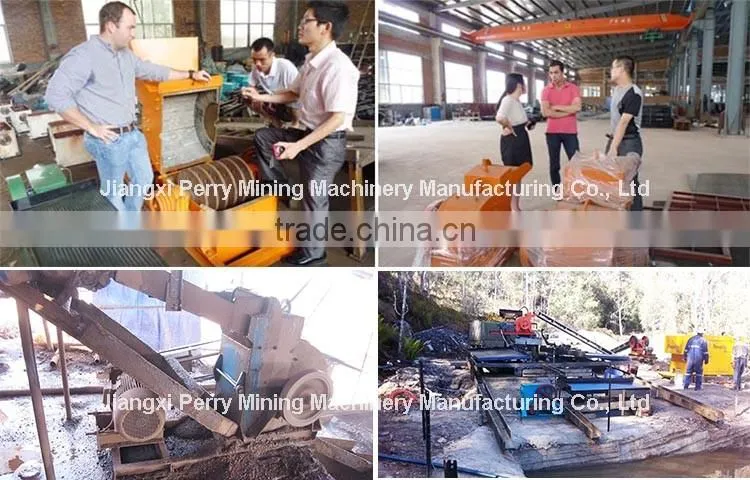

Perry Mining will offer you the turnkey solution for your ore mining professionally. Just trust us and let us do it for you!
|
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.
Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on. |
Name: Flynn |
| E-mail: flynn@ |
Mobile: 0086-15879778652 |
Skype: firon1818 |
