Home > Packaging & Printing > Printing Machinery > Rotogravure Printing Machine > 10 Color Rotogravure Printing Machine

10 Color Rotogravure Printing Machine

Name: 10 Color Rotogravure Printing Machine
Brand: RXSF
SKU: 125128755
Availability: InStock

10 Color Rotogravure Printing Machine thumbnail-1

10 Color Rotogravure Printing Machine thumbnail-2

10 Color Rotogravure Printing Machine thumbnail-3

10 Color Rotogravure Printing Machine thumbnail-4

10 Color Rotogravure Printing Machine thumbnail-5

10 Color Rotogravure Printing Machine thumbnail-6

10 Color Rotogravure Printing Machine photo-1

10 Color Rotogravure Printing Machine photo-2

10 Color Rotogravure Printing Machine photo-3

10 Color Rotogravure Printing Machine photo-4

10 Color Rotogravure Printing Machine photo-5

10 Color Rotogravure Printing Machine photo-6

US$ 70,000 - 125,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

RXSF

Contact Supplier Request Quote Chat Now

Ruian Huida Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Zhejiang, China

Brand Name RXSF

Model Number 10-1300

Usage Other, Film pinter

Automatic Grade Automatic

Voltage 380V 50Hz

Gross Power 180KW

Dimensions(L*W*H) 15.5*3.0*2.75 M

Weight 21000kg

Certification CE Certification

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

rotogravure printing machine
10 colors, 5 motor system
ARC & web video
Auto cutting & reloading

Product Description

1.Main Technical Parameters

A. Model (10 colors 12 units)	1200	Remarks
B. Printing Cylinder Dia (mm)	100-380	External Dia
C. Printing Width (mm)	1230/1200	Max/Effective
D. Printing Speed (m/min)	10-120
E. Register Precision (mm)	≤0.10
F. Unwinding Dia (mm)	600	Duplex
G. Rewinding Dia (mm)	600	Duplex
H. Tension Control Range (kg)	2-50
I. Drying Method	Electric-heating
J. Total Power (kw)	180
K. Weight (kg)	21000
L. Overall Dimension (M)	15.53.02.75	Removable Transport

2.Comprehensive Description

10 color rotogravure printing machine is our flagship product, specifically designed for large printing companies. It adopts PLC control, automatic registration, still picture system, with a high degree of automation. Printing speed 120m / min, registration accuracy 0.10mm, can provide medium speed, large-scale, high-precision gravure printing. This machine is suitable for film, paper and nonwoven and other flexible packaging materials, can also be used for heat transfer printing, water transfer printing.

3. Product Features

(1) Duplex unwinding & rewinding, automatic cutter, non-stop reloading

(2) Computer color register system, web video inspection system

(3) Total printing unit (color) can be increased or decreased, not affect the registration accuracy

(4) Automatic tension control, each printing unit has a separate web guide device

(5) 5 motor system (Siemens motors, Yaskawa Inverter ), high automation, less waste

(6) Fully automatic operation with Siemens PLC control system, touch screen HMI

(7) Printing cylinder and doctor blade are using pneumatic control

4. Details and photos

1. Every detail will be described in detail by text and pictures, as confirmation.

2. We provide customized manufacture according to customer demand.

3. manufactured in accordance with European CE safety standards.

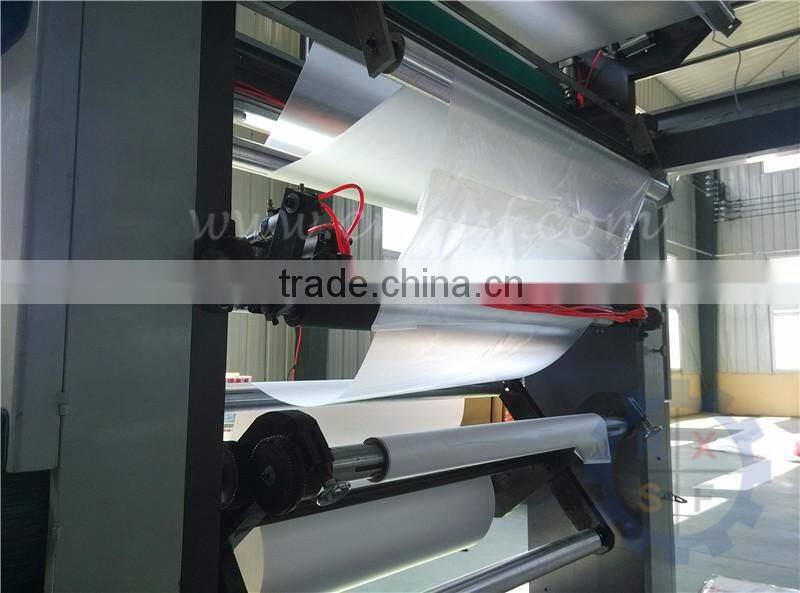

A. Rotating duplex unwinding, pneumatic cutter & automatic stitching:

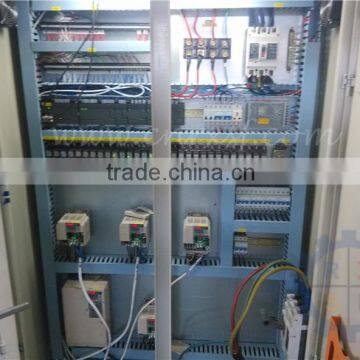

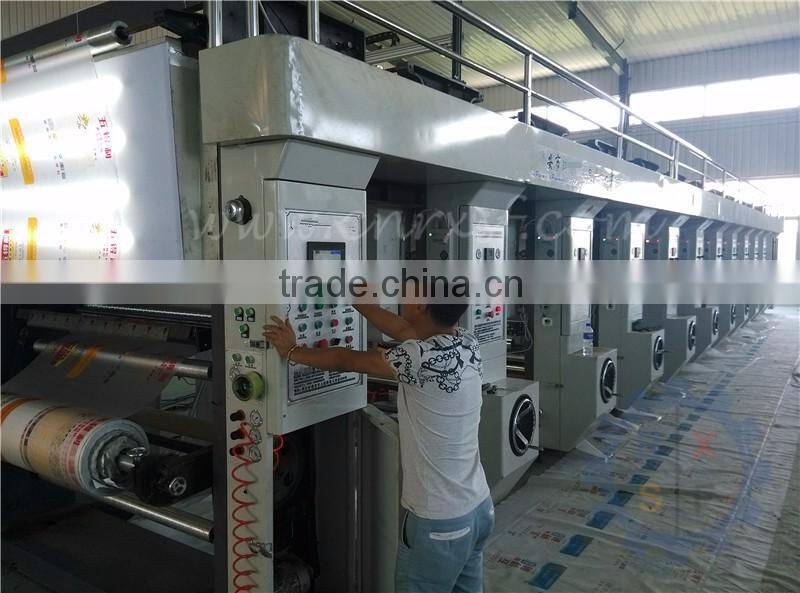

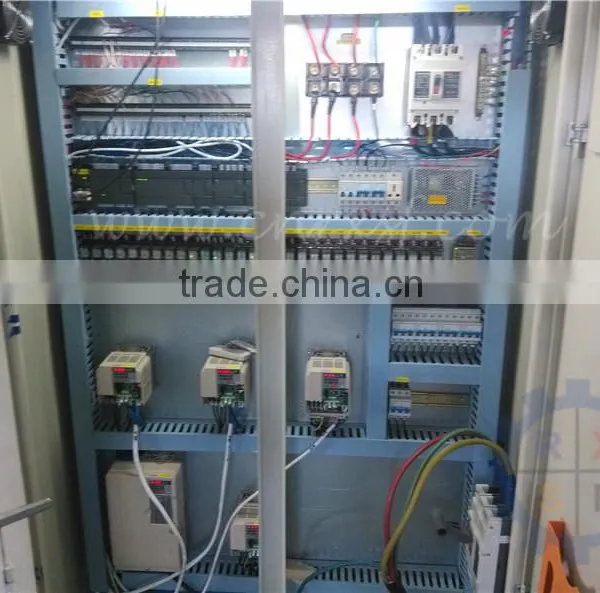

B. 5 motor (Yaskawa inverter) system, PLC touch screen (Chinese & English) operations:

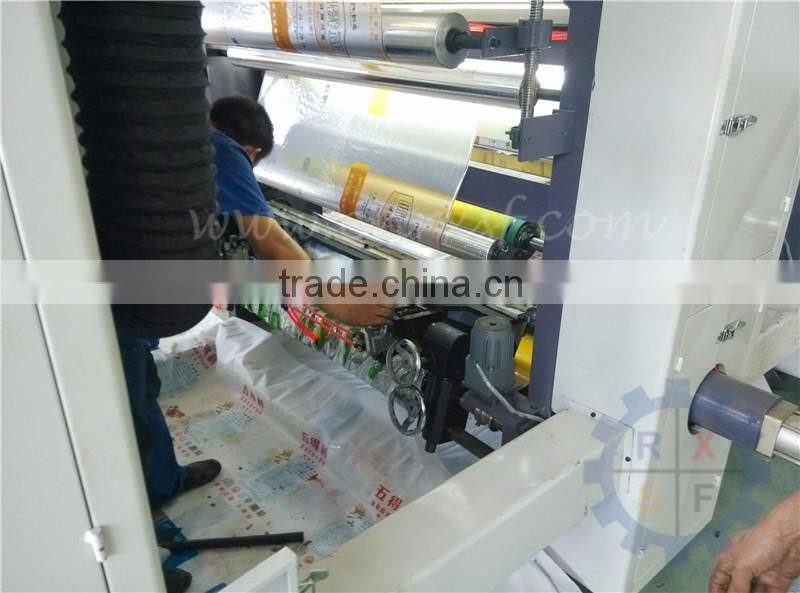

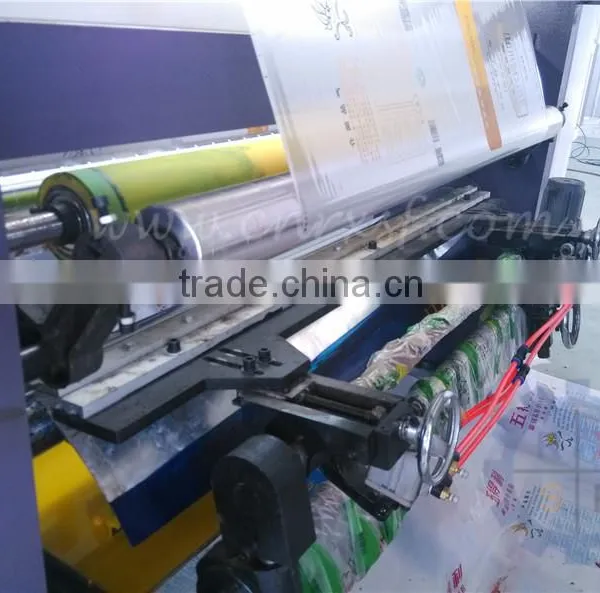

C. Heavy duty pneumatic control doctor blade, independent movement motor:

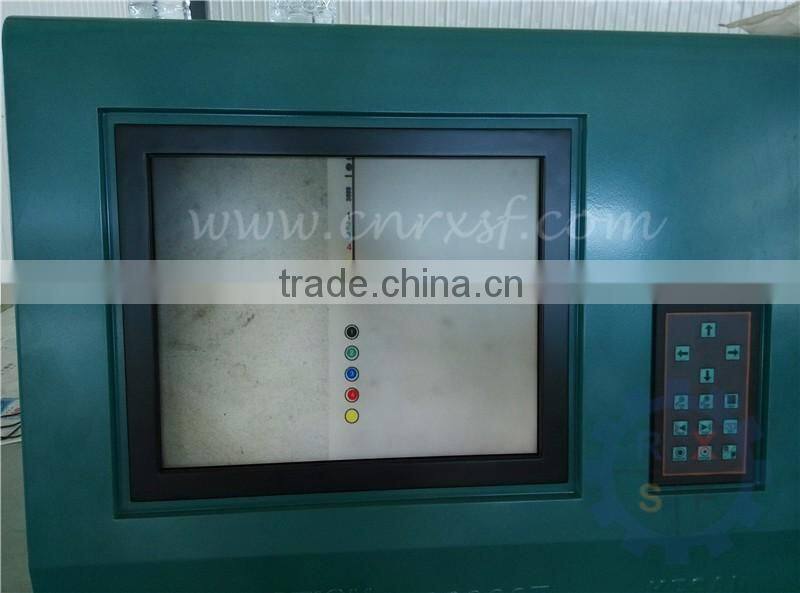

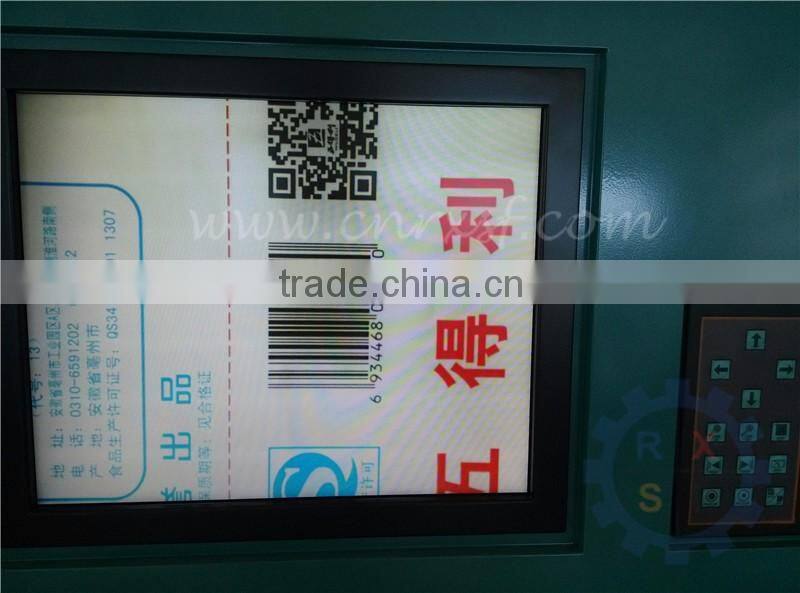

D. High-speed camera inspection system, 100x magnification effect:

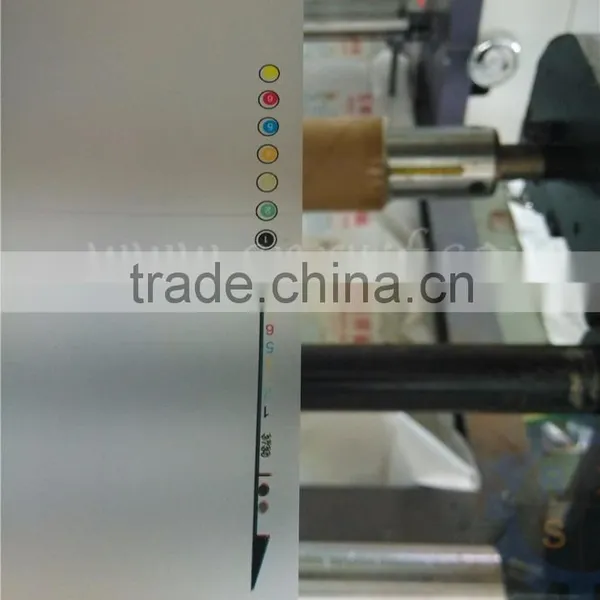

E. Kesai 2000C printing computer registration system, accuracy better than 0.10mm:

Through this link, to view the video of the machine running:
https: //youtu.be/ykQj2PZm0oM

Packaging & Shipping

5. Packaging and shipping

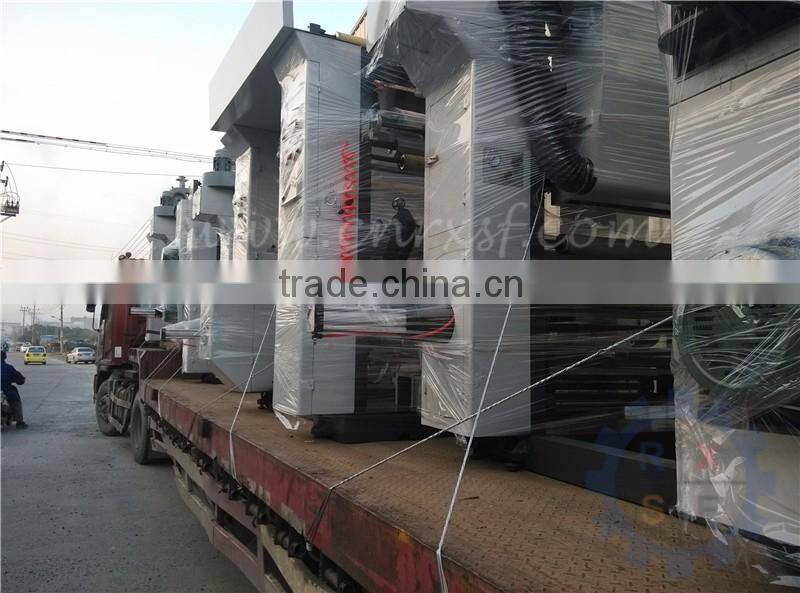

A. PE stretch film wrapping, corrugated cardboard protection, steel wire fixed:

B. Rubber roller, printing plate roller and spare parts, using felt and wooden box:

C. Electronic systems and wearing parts use wooden cases:

Our Services

6. Trading terms and after sales service

(1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.

(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.

(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.

(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.

(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.

(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.

(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.

(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention.

7. Documents

A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;

B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:
