2015 FMH new towable mini tractor backhoe loader for sale

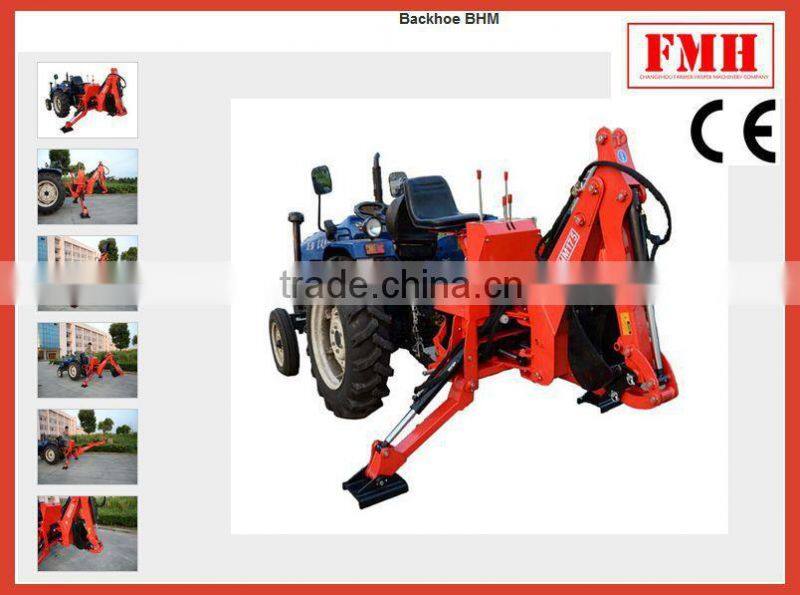

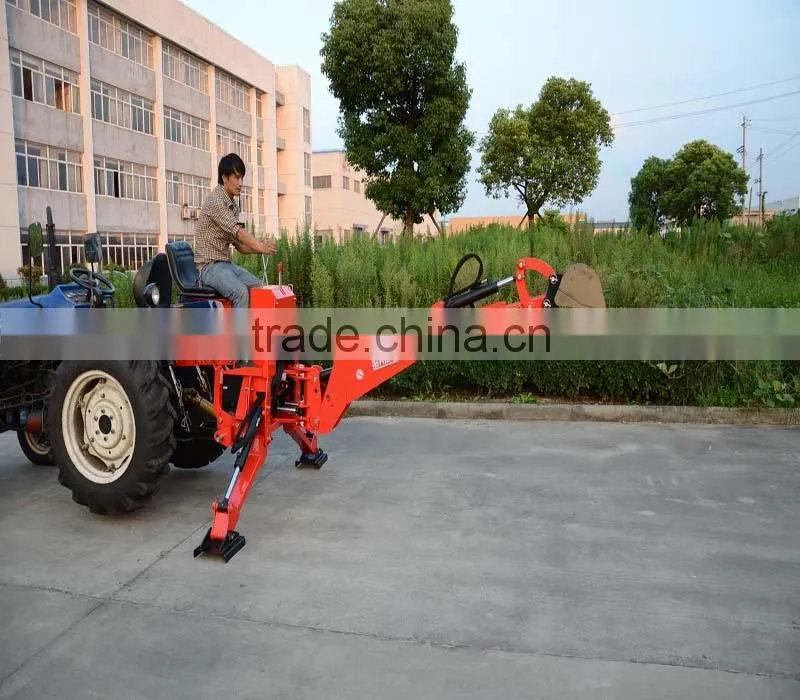

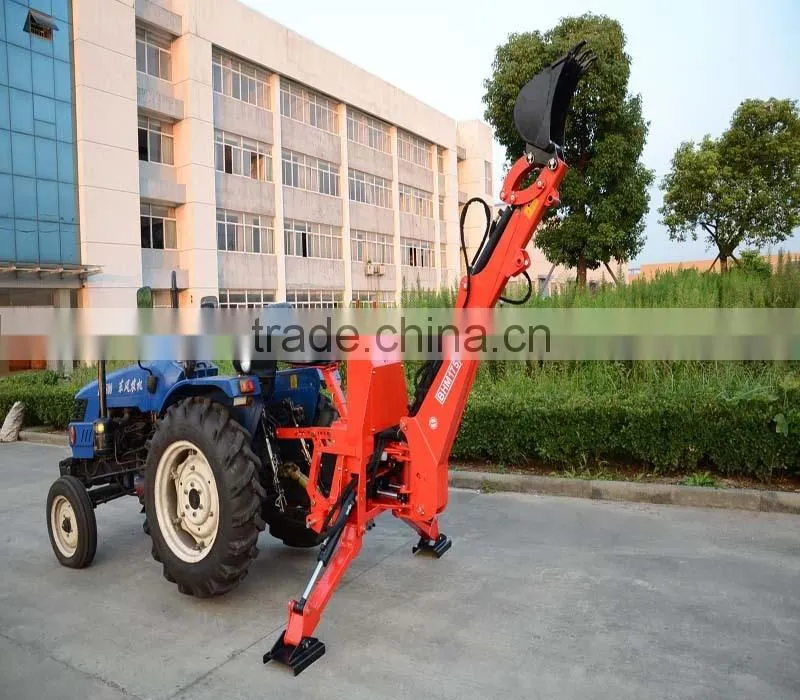

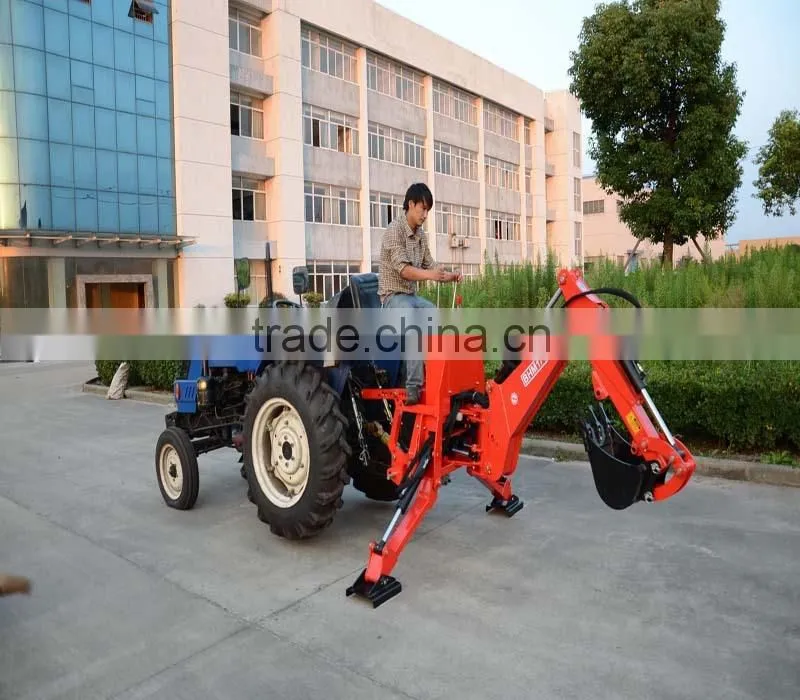

1.Product Show
2.Specification
BHM Backhoe
1.the backhoe includes PTO pump,gearbox&oil tank
2. With standard 300mm bucket.
3. Optional 400mm, 500mm,buckets.
| Model | BH175 | BH195 | |||
| Specification | Inch | Metric | Inch | Metric | |
| Tractor HP | 25-30HP | 30-45HP | |||
| 3-point Linkage | Cat-1 | Cat-1 | |||
| Structure Weight | 1060lb | 480kg | 1100lb | 500kg | |
| A | Digging Depth(two foot flat bottom) | 5.74’ | 1750mm | 6.4’ | 1950mm |
| B | Reach from center line of Swing pivot | 8.53' | 2600mm | 9.51’ | 2900mm |
| C | Loading Height(bucket at 60°) | 5.64’ | 1720mm | 6.03’ | 1840mm |
| D | Transport Height(maximum) | 6.03’ | 1840mm | 6.75’ | 2060mm |
| E | Extend Height | 9.41' | 2870mm | 10.2' | 3110mm |
| F | Loading Reach(bucket at 60°) | 3.11’ | 950mm | 3.87' | 1180mm |
| G | Transport Overhang | 3.54' | 1080mm | 3.64' | 1110mm |
| H | Undercut | 2.4' | 730mm | 2.72' | 830mm |
| I | Bucket Rotation | 180° | 180° | ||
| J | Stabilizer Spread(up position) | 4.3’ | 1310mm | 4.3’ | 1310mm |
| K | Stabilizer Spread(down position) | 4.3’ | 2100mm | 6.9’ | 2100mm |
| L | Swing Arc | 180° | 180° | ||
| Model | BH225 | BH255 | |||
| Specification | Inch | Metric | Inch | Metric | |
| Tractor HP | 45-60HP | 60-80HP | |||
| 3-point Linkage | CAT-1&2 | Cat-1&2 | |||
| Structure Weight | 1280lb | 580kg | 1370lb | 620kg | |
| A | Digging Depth(two foot flat bottom) | 7.38’ | 2250mm | 8.36’ | 2550mm |
| B | Reach from center line of Swing pivot | 10.5’ | 3200mm | 11.8’ | 3600mm |
| C | Loading Height(bucket at 60°) | 3.66’ | 1930mm | 7.25’ | 2210mm |
| D | Transport Height(maximum) | 6.98’ | 2130mm | 8.13' | 2480mm |
| E | Extend Height | 10.62’ | 3240mm | 11.77’ | 3590mm |
| F | Loading Reach(bucket at 60°) | 3.74’ | 1140mm | 4.46’ | 1360mm |
| G | Transport Overhang | 4’ | 1220mm | 4.16’ | 1270mm |
| H | Undercut | 1.54’ | 470mm | 1.7’ | 520mm |
| I | Bucket Rotation | 180° | 180° | ||
| J | Stabilizer Spread(up position) | 4.3’ | 1310mm | 4.3’ | 1310mm |
| K | Stabilizer Spread(down position) | 7.67’ | 2340m | 7.67’ | 2340mm |
| L | Swing Arc | 180° | 180° | ||

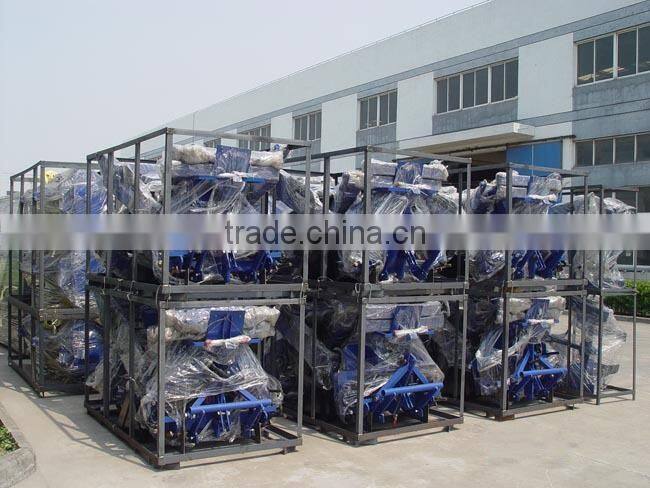

3.Packing Details- backhoe loader
4.Shiping Details----- backhoe loader
Shipment time: 45days after your payment
Shipment: By sea
Loading port: Shanghai port, China
Destination port: To be advised
Payment: 50% T/T in advance and the remains before lading
Warranty: 1 year
5.CE certification--- backhoe loader

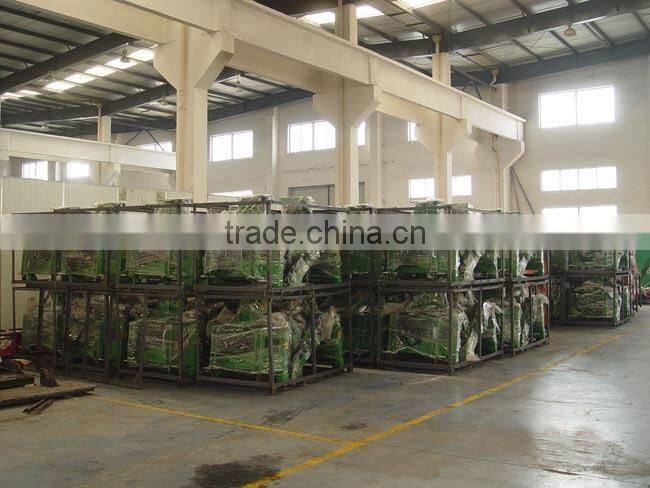

6.Factory Show
8.Company Information
Changzhou Farmer Helper Machinery Co.,Ltd (FMH) is established in 2009,located in Benniu Industrial Park,Changzhou,Jiangsu,China.
With its strong technique power,complete set of manufacture equipments and experimental devices,advanced CAD R&D means, the company has complete production capaicty from cutting,profiling,welding,maching,paiting to packing.
FMH has aleady manufactured a full range of high quality implements for the small to medium-sized tractor owners across the world,Such as Front End loader, Backhoe, Mower, rotary tiller, Wood Chipper, Log Splitter, Post Hole Diggers. more than 50 serials and more than 150 models of various implements.
9.Our Position
10.Contact Us
11.FAQ
1.Q: Full price list for these products
A:If you need the price list for these products, please notify the product model so that i can quote you accordingly.
Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Main market
A:Western Europe and Australia.
3. Q: Export quantity
A:20-30 units of 40ft container per month.
