Specifications

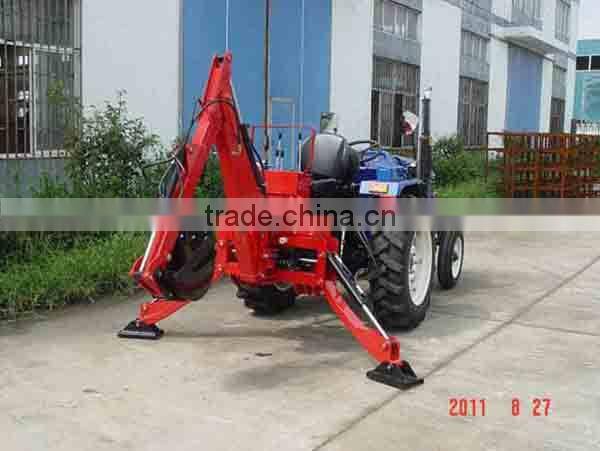

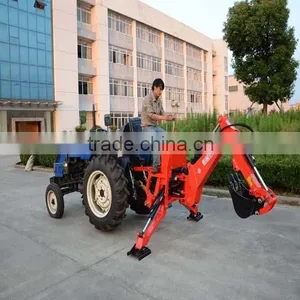

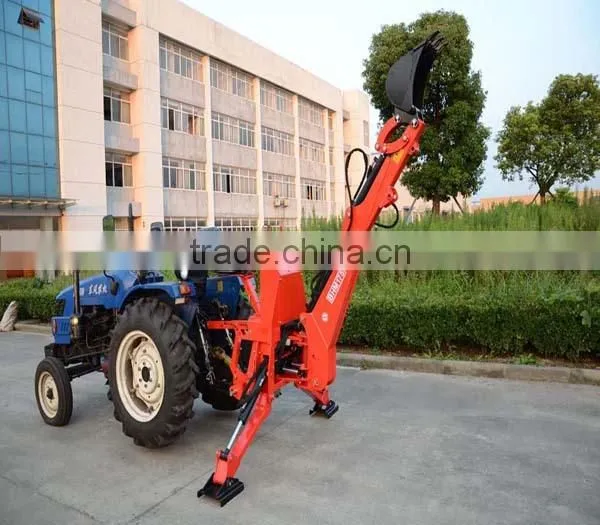

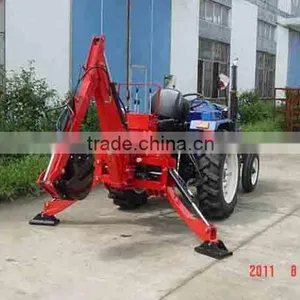

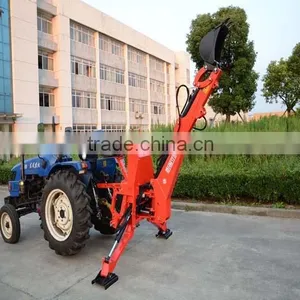

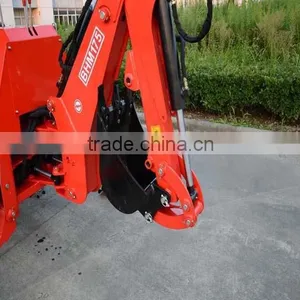

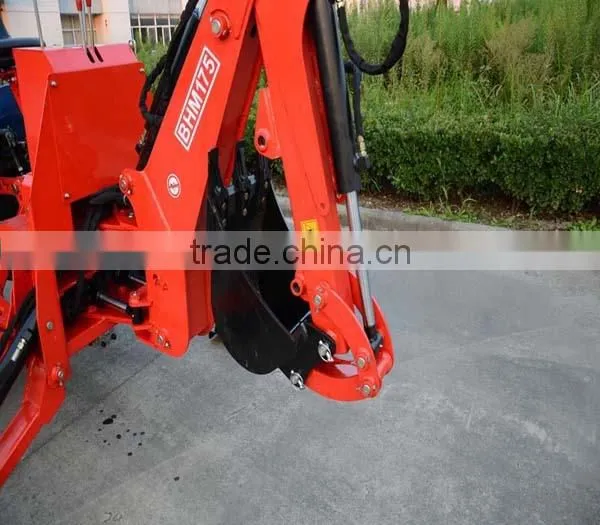

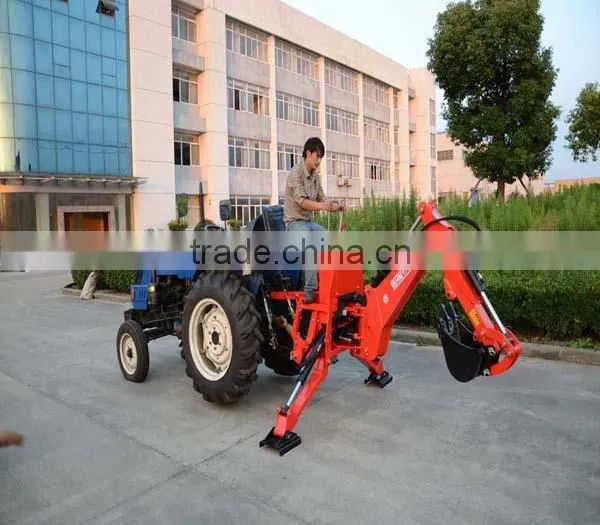

3 point hitch backhoe tractor kubota backhoe mini backhoe for tractorhigh quality
attractive design
3 point hitch backhoe tractor kubota backhoe mini backhoe for tractor
Hydraulic backhoe with movable frame and mechanical lock, independent hydraulic outrigger feet with safety valve, main joints equipped with pins and bushings made of tempered cemented steel, and mounting kit for farm tractor.
1. BH5 without PTO pump
2. BH5R with PTO pump
3. With standard 200mm bucket.
4. Optional 250mm, 300mm, 400mm buckets.
| odel | BH175 | BH195 | |||
| Specification | Inch | Metric | Inch | Metric | |
| Tractor HP | 25-30HP | 30-45HP | |||
| 3-point Linkage | Cat-1 | Cat-1 | |||
| Structure Weight | 1060lb | 480kg | 1100lb | 500kg | |
| A | Digging Depth(two foot flat bottom) | 5.74’ | 1750mm | 6.4’ | 1950mm |
| B | Reach from center line of Swing pivot | 8.53' | 2600mm | 9.51’ | 2900mm |
| C | Loading Height(bucket at 60°) | 5.64’ | 1720mm | 6.03’ | 1840mm |
| D | Transport Height(maximum) | 6.03’ | 1840mm | 6.75’ | 2060mm |
| E | Extend Height | 9.41' | 2870mm | 10.2' | 3110mm |
| F | Loading Reach(bucket at 60°) | 3.11’ | 950mm | 3.87' | 1180mm |
| G | Transport Overhang | 3.54' | 1080mm | 3.64' | 1110mm |
| H | Undercut | 2.4' | 730mm | 2.72' | 830mm |
| I | Bucket Rotation | 180° | 180° | ||
| J | Stabilizer Spread(up position) | 4.3’ | 1310mm | 4.3’ | 1310mm |
| K | Stabilizer Spread(down position) | 4.3’ | 2100mm | 6.9’ | 2100mm |
| L | Swing Arc | 180° | 180° | ||
| Model | BH225 | BH255 | |||
| Specification | Inch | Metric | Inch | Metric | |
| Tractor HP | 45-60HP | 60-80HP | |||
| 3-point Linkage | CAT-1&2 | Cat-1&2 | |||
| Structure Weight | 1280lb | 580kg | 1370lb | 620kg | |
| A | Digging Depth(two foot flat bottom) | 7.38’ | 2250mm | 8.36’ | 2550mm |
| B | Reach from center line of Swing pivot | 10.5’ | 3200mm | 11.8’ | 3600mm |
| C | Loading Height(bucket at 60°) | 3.66’ | 1930mm | 7.25’ | 2210mm |
| D | Transport Height(maximum) | 6.98’ | 2130mm | 8.13' | 2480mm |
| E | Extend Height | 10.62’ | 3240mm | 11.77’ | 3590mm |
| F | Loading Reach(bucket at 60°) | 3.74’ | 1140mm | 4.46’ | 1360mm |
| G | Transport Overhang | 4’ | 1220mm | 4.16’ | 1270mm |
| H | Undercut | 1.54’ | 470mm | 1.7’ | 520mm |
| I | Bucket Rotation | 180° | 180° | ||
| J | Stabilizer Spread(up position) | 4.3’ | 1310mm | 4.3’ | 1310mm |
| K | Stabilizer Spread(down position) | 7.67’ | 2340m | 7.67’ | 2340mm |
| L | Swing Arc | 180° | 180° | ||
CE CERTIFICATE
FACTORY SHOW
EXHIBITION NEWS
COMPANY INFORMATION
Changzhou Farmer Helper Machinery Co.,Ltd (FMH) is established in 2009,located in Benniu Industrial Park,Changzhou,Jiangsu,China.
The factory area is more than 20000 square meters and FMH owns 2 units of Metal Laser Cutting Machines and more than 80 precessing machines.
With its strong technique power,complete set of manufacture equipments and experimental devices,advanced CAD R&D means,
the company has complete production capaicty from cutting,profiling,welding,maching,paiting to packing.
FMH has aleady manufactured a full range of high quality implements for the small to medium-sized tractor owners across the world,
Such as Front End loader, Backhoe, Mower, rotary tiller, Wood Chipper, Log Splitter, Post Hole Diggers, etc.
more than 50 serials and more than 150 models of various implements
