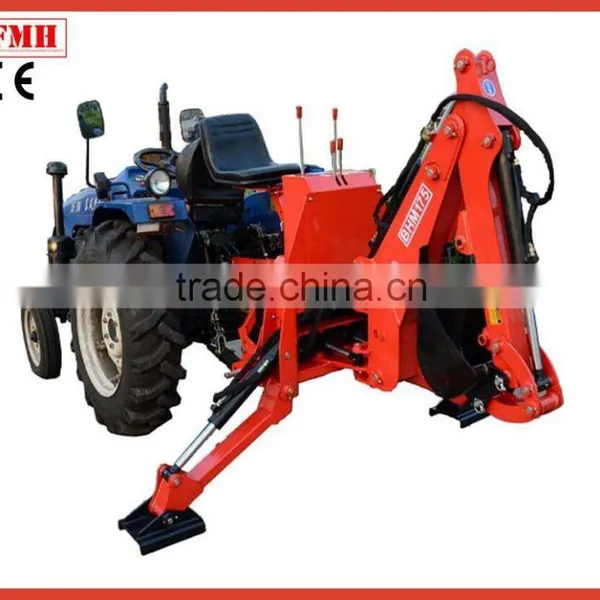

Changzhou FMH CE 3 point towable backhoe small garden towable mini tractor backhoe loader for sale
BHM Backhoe
1.the backhoe includes PTO pump,gearbox&oil tank
2. With standard 300mm bucket.
3. Optional 400mm, 500mm,buckets.
| Model | BHM175 | BHM195 | |||
| Specification | Inch | Metric | Inch | Metric | |
| Tractor HP | 25-30HP | 30-45HP | |||
| 3-point Linkage | Cat-1 | Cat-1 | |||
| Structure Weight | 1060lb | 480kg | 1100lb | 500kg | |
| A | Digging Depth(two foot flat bottom) | 5.74’ | 1750mm | 6.4’ | 1950mm |
| B | Reach from center line of Swing pivot | 8.53' | 2600mm | 9.51’ | 2900mm |
| C | Loading Height(bucket at 60°) | 5.64’ | 1720mm | 6.03’ | 1840mm |
| D | Transport Height(maximum) | 6.03’ | 1840mm | 6.75’ | 2060mm |
| E | Extend Height | 9.41' | 2870mm | 10.2' | 3110mm |
| F | Loading Reach(bucket at 60°) | 3.11’ | 950mm | 3.87' | 1180mm |
| G | Transport Overhang | 3.54' | 1080mm | 3.64' | 1110mm |
| H | Undercut | 2.4' | 730mm | 2.72' | 830mm |
| I | Bucket Rotation | 180° | 180° | ||
| J | Stabilizer Spread(up position) | 4.3’ | 1310mm | 4.3’ | 1310mm |
| K | Stabilizer Spread(down position) | 4.3’ | 2100mm | 6.9’ | 2100mm |
| L | Swing Arc | 180° | 180° | ||
| Model | BHM225 | BHM255 | |||
| Specification | Inch | Metric | Inch | Metric | |
| Tractor HP | 45-60HP | 60-80HP | |||
| 3-point Linkage | CAT-1&2 | Cat-1&2 | |||
| Structure Weight | 1280lb | 580kg | 1370lb | 620kg | |
| A | Digging Depth(two foot flat bottom) | 7.38’ | 2250mm | 8.36’ | 2550mm |
| B | Reach from center line of Swing pivot | 10.5’ | 3200mm | 11.8’ | 3600mm |
| C | Loading Height(bucket at 60°) | 3.66’ | 1930mm | 7.25’ | 2210mm |
| D | Transport Height(maximum) | 6.98’ | 2130mm | 8.13' | 2480mm |
| E | Extend Height | 10.62’ | 3240mm | 11.77’ | 3590mm |
| F | Loading Reach(bucket at 60°) | 3.74’ | 1140mm | 4.46’ | 1360mm |
| G | Transport Overhang | 4’ | 1220mm | 4.16’ | 1270mm |
| H | Undercut | 1.54’ | 470mm | 1.7’ | 520mm |
| I | Bucket Rotation | 180° | 180° | ||
| J | Stabilizer Spread(up position) | 4.3’ | 1310mm | 4.3’ | 1310mm |
| K | Stabilizer Spread(down position) | 7.67’ | 2340m | 7.67’ | 2340mm |
| L | Swing Arc | 180° | 180° | ||
1.About products
Model | BK-6N | BK-7.5N |
Digging Depth | 74'' | 90'' |
Swing Angle | 180 | 180 |
Loading Height | 65'' | 75.5'' |
Working Length | 98'' | 116.5'' |
Transport Height | 71'' | 80'' |
Bucket Width | 12'' | 12'' |
Bucket Rotation | 180 | 180 |
Leg Spread | 59'' | 59'' |
Structure Weight | 396kg | 425kg |
Tractor HP | 20-30hp | 20-40hp |
2.About us
Changzhou Farmer Helper Machinery Co.,Ltd (FMH) is established in 2009,located in Benniu Industrial Park,Changzhou,Jiangsu,China.
With its strong technique power,complete set of manufacture equipments and experimental devices,advanced CAD R&D means, the company has complete production capaicty from cutting,profiling,welding,maching,paiting to packing.
FMH has aleady manufactured a full range of high quality implements for the small to medium-sized tractor owners across the world,Such as Front End loader, Backhoe, Mower, rotary tiller, Wood Chipper, Log Splitter, Post Hole Diggers, etc. more than 50 serials and more than 150 models of various implements.
3.Contact us
Yours Bruce
