Sunlight readable AG Glass 10.1" CapacitiveTouch Panel

Specifications

Android Touch Panel Industrial
1. Glass+glass
2. Multi touch
3. AG cover glass
4. 5 years production life



Structure of Capacitive Touch Panel



Specification of 10.1" CapacitiveTouch Panel

Outline	234*142
TP AA	222.72*125.28
CTP IC	FT5406
Operating Temperature	-20 °C ~70 °C
Number of touch	5touch
Surface Hardness	6H

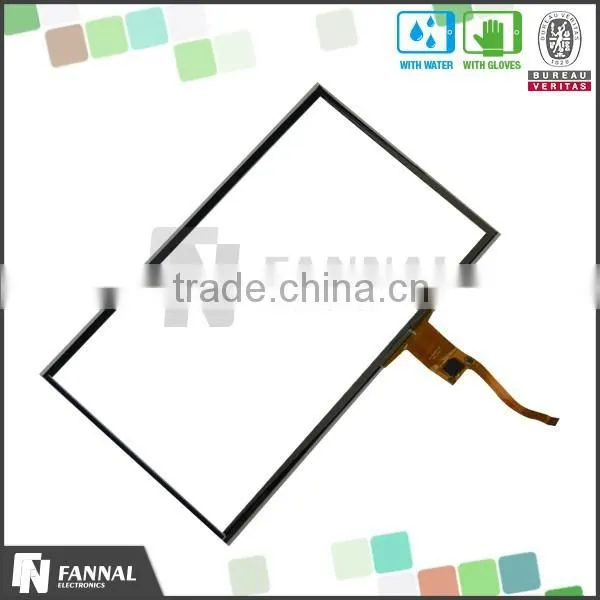

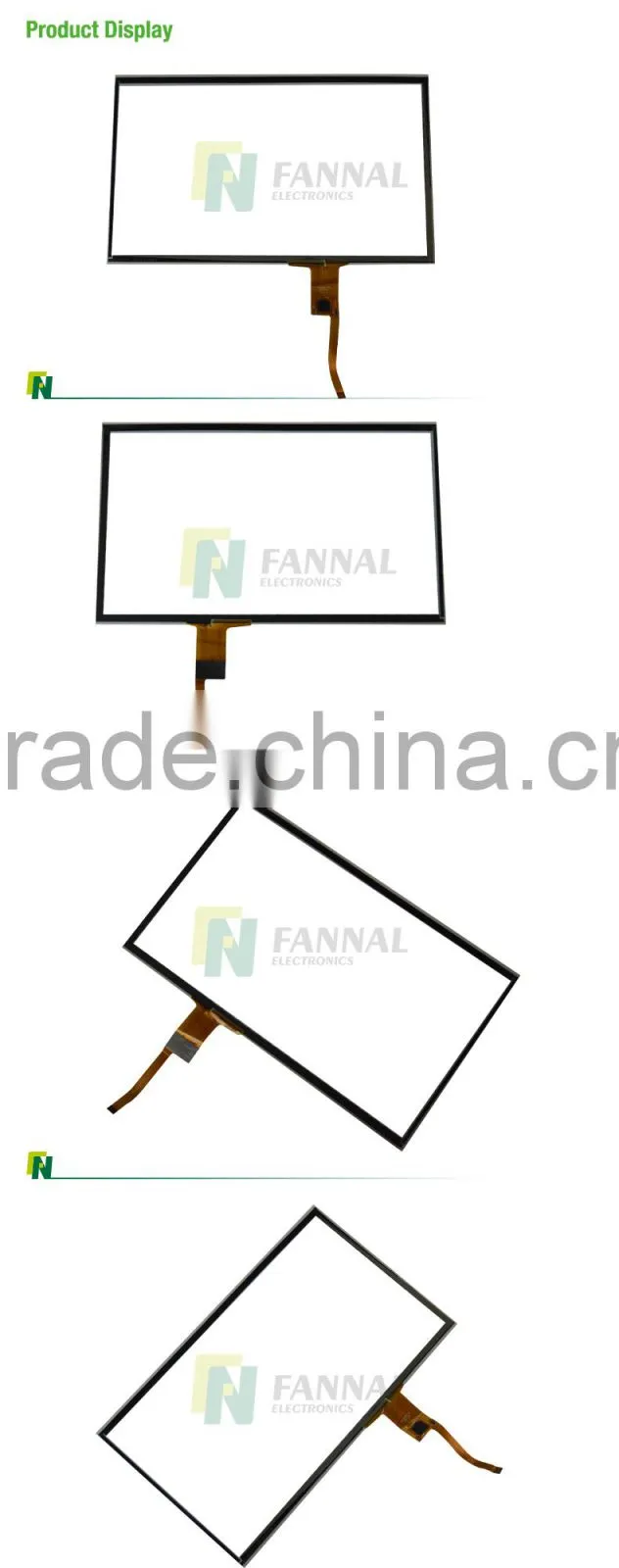

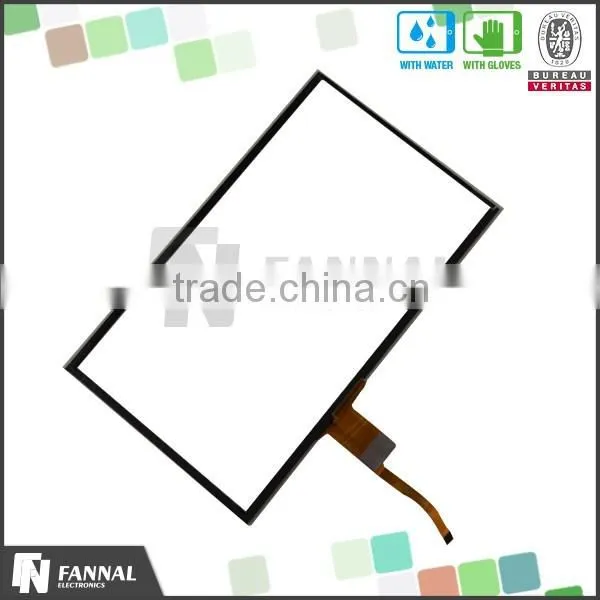

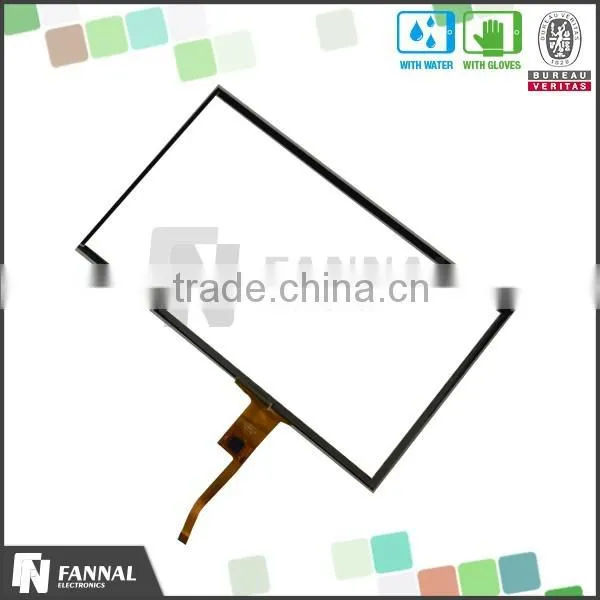

Photos of 10.1" CapacitiveTouch Panel





5.7 inch demo performance





Fannal's Standard   capacitive touch panel

Basic information					Capacitive touch panel
Panel size	P/N	TP AA             (mm)	Outline (mm)	Th (mm)	Structure	Interface	Number of touch	CTP IC
2.8	FN028AV01	43.2*57.6	50.0*69.2	1.5	G+G	IIC	2touch	SSD2532
3.5	FN035AY01	74.94*50.36	94.94*66.86	1.3	G+G	IIC	2touch	MSG 2133A
4.3	FN043AV01	89.10*49.37	105.1*66.8	1.5	G+G	IIC	2touch	SSD2532
	FN043S82329	93.6*56.16	106*63.56	1.83	G+G	IIC	2touch	S2202
	FN043S82344	93*55.8	103*67.5	1.43	G+G	IIC	5 touch	FT5336
	FN043AY02	97.04*55.86	114*77	1.28	G+G	IIC	2touch	MSG2138a
5	FN050AV02	108*64.8	120*75.9	1.5	G+G	IIC	2touch	SSD2532
	FN050AY01	108*64.8	127.0*85.8	1.83	G+G	IIC	5touch	FT5316
5.7	FN057AV01	112.29*83.44	130.9*104.8	3.5	G+G+G	IIC	2touch	SSD2533
7	FN070AV01	154.08*85.92	164.5*99.6	1.5	G+G	IIC	2touch	SSD2533
	FN070AV02	154.08*85.92	164.5*99.6	1.5	G+G	USB	2touch	SSD2533
	FN070AY02	156.48*88.32	163.5*99.6	1.43	G+G	IIC	5touch	FT5316
	FN070AH01	153.4*87.64	168.5*110.6	1.4	P+G	IIC	2touch	FT5406
	FN070AY82322	153.68*85.52	101.8*176.05	1.85	G+G	IIC	2touch	FT5206
	FN070AY82343	153.6*90.00	176.14*111.89	1.43	G+G	IIC	2touch	S7020
8	FN080AV01	162.01*121.51	175.3*136.55	2.2	G+G	IIC	5touch	SSD2533
10.1	FN101AY82331	222.72*125.28	234*142	1,5	G+G	IIC	5touch	FT5406
	FN101AE01	217.96*136.6	262.7*178.7	1.43	G+G	USB	10touch	EXC3062
10.2	FN102AE01	222.8*132.52	235*149.52	1.43	G+G	USB	5touch	EXC3062
	FN102AV01	222.0*133.2	253.6*162.6	5.4	G+G+G	IIC	10touch	SSD2533
12.1	FN121AF01	250.6*189.1	270*212.5	2.4	G+G	USB/IIC/RS232	4touch	EXC7200
	FN121F0.7-01	247*186	287.64*226.11	4.9	G+G	USB	2touch	EXC7200
15.0	FN150AF01	305*229	346.08*270.02	2.4	G+G	USB/IIC/RS232	4touch	EXC7200
15.6	FN156AF01	344*194	387*226	2.4	G+G	USB/IIC/RS232	4touch	EXC7200
	FN156AEKYL01	194.5*345.2	363.99*216	2	G+G	USB/IIC/RS232	4touch	EXC7200
17.0	FN170AF01	340.92*273.34	377*309	2.4	G+G	USB/IIC/RS232	4touch	EXC7200
17.3	FN173AE01	385.29*217.51	398.1*232.8	1.88	G+G	USB	10touch
18.5	FN185AF01	410.8*231.4	452.8*281.4	2.4	G+G	USB/IIC/RS232	4touch	EXC7200
19.0	FN190AF01	377.32*302.06	421*346	2.4	G+G	USB/IIC/RS232	4touch	EXC7200
21.5	FN215AF01	478*269.8	516*321	2.4	G+G	USB/IIC/RS232	4touch	EXC7200
27.0	FN270AF01	598*336	658*416	3.3	G+G	USB/IIC/RS232	4touch	EXC7200







Brief Introduction of Fannal's Capability and Service in LCD Display/Touch Screen Area:

Touch Controller	small and medium size	Focaltech, Mstar, Goodix, Elan, Solomen, Synaptics , cypress, Atmel
	medium and big size	EETI, SIS
CTP interface	USB,IIC,RS232
Customize service	Cover glass	AG/AF/AR, silk print,  anti-vandal
	Function	touch with water, touch with gloved
	Sun Readable Solution	High brightness backlight, optical bonding, AR
	Bongding size	CTP with tft: MAX 17 inch, CTP: MAX 27 inch
Quality certifications	SGS, UKAS Environmental Management Standard, IECQ











  All our products 10.1" CapacitiveTouch Panel are standard packed, for detailed information you can contact our customer service representatives.



Our company will deliver the order to you within one to eight weeks according to the details of the order.



Fannal is a professional supplier of capacitive touch screen, target at small and medium enterprises all over the world.



Our products are widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields. Our strength lies in understanding the special needs of clients, to provide the most suitable products and professional technical supports.





1. Have you ever exported to foreign countries?

We started our international trade at the beginning of 2013, so most of our customers still remain in the stage of sample testing and initial batch.

We have exported to Italy, UK, Poland, USA, Russia, Spain, Turkey, Ukraine, French, Colombia, Austria, Australia, Canada, Brazil, India and many other countries.

2. What is the lead time of the products?

Samples in stock will be delivered within a week after payment.

Mass production typically needs four to six weeks for delivery.

Tailor-made design drawings will begin after payment. The initial samples will be finished within 3 weeks after the drawing is approved.

3. Payment methods:

For samples: payment in advance.

For mass production: 50% deposit and 50% balance before shipment.

4. What certifications do you have?

ROHS, ISO9001, ISO14001, TS16949, QC080000 and OHSAS18001

5. What is the MOQ?

It depends on different products. Please keep in touch with sales to confirm the MOQ.

6. How long is the warranty period?

Generally the warranty period is one year. It depends on different products.

7. Could we place an order as OEM to produce under our own brand?

Yes, our company accepts OEM and ODM ONLY for the following types:

Resistive Touch Panel (1.8 inch to 19 inches)

Capacitive Touch Panel (1.5 inch to 32 inches)

The sizes of the Touch Panel can be adjusted according to the customers' requirements (customizing).
