Help CenterEXC7200 Glass+Glass Structure 15 Inch USB Multi Touch Screen Overlay Kit
Related Products
-
USB/RS232/I2C Interface 4 Touch Points Capacitive 15 Inch Touch ScreenUS$ 80 - 119MOQ: 1 Piece -
G+G EXC3062 Capacitive USB 10.1" Capacitive Touch PanelUS$ 40 - 60MOQ: 1 Piece
-
Customized 15.6 Touch Screen Kit With Rgb Touch ControllerUS$ 118 - 128MOQ: 1 Piece
-
4.3 Inch Projected Capacitive Touch Screen With Car Touch ScreenUS$ 8 - 14MOQ: 1 Piece
-
7" Capacitive Touch Screen Monitor With Waterproof WVGA 800*480US$ 46 - 61MOQ: 1 Piece
Specifications
USB Multi Touch Screen Overlay Kit1. 4-point touch
2. I2C/USB/RS232
3. Can be touch with gloves
4. custom service
EXC7200 Glass+Glass Structure 15 Inch USB Multi Touch Screen Overlay Kit
Structure of Capacitive Touch Panel
Specification of 15 Inch USB Multi Touch Screen Overlay Kit
| Outline | 346.08*270.02 |
| TP AA | 305*229 |
| CTP IC | EXC7200 |
| Operating Temperature | -20 °C ~70 °C |
| Number of touch | 4touch |
| Surface Hardness | 6H |

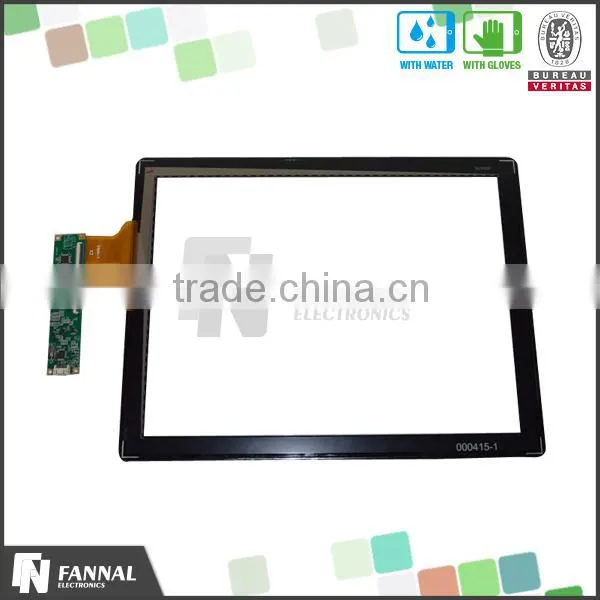

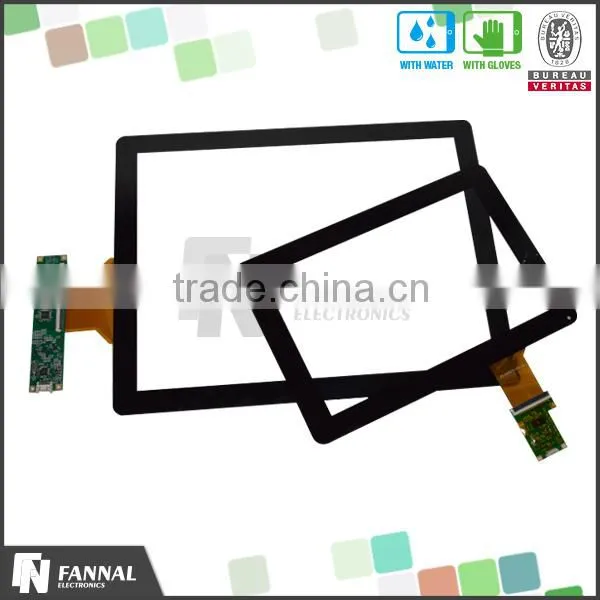

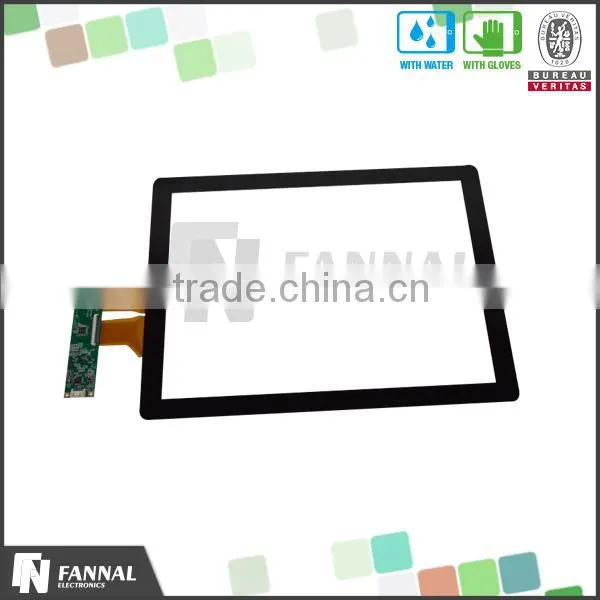

Photos of 15 Inch USB Multi Touch Screen Overlay Kit
5.7 inch demo performance:
Fannal's Standard capacitive touch panel
| Basic information | Capacitive touch panel | |||||||
| Panel size | P/N | TP AA (mm) | Outline (mm) | Th(mm) | Structure | Interface | Number of touch | CTP IC |
| 2.8 | FN028AV01 | 43.2*57.6 | 50.0*69.2 | 1.5 | G+G | IIC | 2touch | SSD2532 |
| 3.5 | FN035AY01 | 74.94*50.36 | 94.94*66.86 | 1.3 | G+G | IIC | 2touch | MSG 2133A |
| 4.3 | FN043AV01 | 89.10*49.37 | 105.1*66.8 | 1.5 | G+G | IIC | 2touch | SSD2532 |
| FN043S82329 | 93.6*56.16 | 106*63.56 | 1.83 | G+G | IIC | 2touch | S2202 | |
| FN043S82344 | 93*55.8 | 103*67.5 | 1.43 | G+G | IIC | 5 touch | FT5336 | |
| FN043AY02 | 97.04*55.86 | 114*77 | 1.28 | G+G | IIC | 2touch | MSG2138a | |
| 5 | FN050AV02 | 108*64.8 | 120*75.9 | 1.5 | G+G | IIC | 2touch | SSD2532 |
| FN050AY01 | 108*64.8 | 127.0*85.8 | 1.83 | G+G | IIC | 5touch | FT5316 | |
| 5.7 | FN057AV01 | 112.29*83.44 | 130.9*104.8 | 3.5 | G+G+G | IIC | 2touch | SSD2533 |
| 7 | FN070AV01 | 154.08*85.92 | 164.5*99.6 | 1.5 | G+G | IIC | 2touch | SSD2533 |
| FN070AV02 | 154.08*85.92 | 164.5*99.6 | 1.5 | G+G | USB | 2touch | SSD2533 | |
| FN070AY02 | 156.48*88.32 | 163.5*99.6 | 1.43 | G+G | IIC | 5touch | FT5316 | |
| FN070AH01 | 153.4*87.64 | 168.5*110.6 | 1.4 | P+G | IIC | 2touch | FT5406 | |
| FN070AY82322 | 153.68*85.52 | 101.8*176.05 | 1.85 | G+G | IIC | 2touch | FT5206 | |
| FN070AY82343 | 153.6*90.00 | 176.14*111.89 | 1.43 | G+G | IIC | 2touch | S7020 | |
| 8 | FN080AV01 | 162.01*121.51 | 175.3*136.55 | 2.2 | G+G | IIC | 5touch | SSD2533 |
| 10.1 | FN101AY82331 | 222.72*125.28 | 234*142 | 1,5 | G+G | IIC | 5touch | FT5406 |
| FN101AE01 | 217.96*136.6 | 262.7*178.7 | 1.43 | G+G | USB | 10touch | EXC3062 | |
| 10.2 | FN102AE01 | 222.8*132.52 | 235*149.52 | 1.43 | G+G | USB | 5touch | EXC3062 |
| FN102AV01 | 222.0*133.2 | 253.6*162.6 | 5.4 | G+G+G | IIC | 10touch | SSD2533 | |
| 12.1 | FN121AF01 | 250.6*189.1 | 270*212.5 | 2.4 | G+G | USB/IIC/RS232 | 4touch | EXC7200 |
| FN121F0.7-01 | 247*186 | 287.64*226.11 | 4.9 | G+G | USB | 2touch | EXC7200 | |
| 15.0 | FN150AF01 | 305*229 | 346.08*270.02 | 2.4 | G+G | USB/IIC/RS232 | 4touch | EXC7200 |
| 15.6 | FN156AF01 | 344*194 | 387*226 | 2.4 | G+G | USB/IIC/RS232 | 4touch | EXC7200 |
| FN156AEKYL01 | 194.5*345.2 | 363.99*216 | 2 | G+G | USB/IIC/RS232 | 4touch | EXC7200 | |
| 17.0 | FN170AF01 | 340.92*273.34 | 377*309 | 2.4 | G+G | USB/IIC/RS232 | 4touch | EXC7200 |
| 17.3 | FN173AE01 | 385.29*217.51 | 398.1*232.8 | 1.88 | G+G | USB | 10touch | |
| 18.5 | FN185AF01 | 410.8*231.4 | 452.8*281.4 | 2.4 | G+G | USB/IIC/RS232 | 4touch | EXC7200 |
| 19.0 | FN190AF01 | 377.32*302.06 | 421*346 | 2.4 | G+G | USB/IIC/RS232 | 4touch | EXC7200 |
| 21.5 | FN215AF01 | 478*269.8 | 516*321 | 2.4 | G+G | USB/IIC/RS232 | 4touch | EXC7200 |
| 27.0 | FN270AF01 | 598*336 | 658*416 | 3.3 | G+G | USB/IIC/RS232 | 4touch | EXC7200 |
Brief Introduction of Fannal's Capability and Service in LCD Display/Touch Screen Area:
|
Touch Controller |
small and medium size |
Focaltech, Mstar, Goodix, Elan, Solomen, Synaptics , cypress, Atmel |
medium and big size |
EETI, SIS | |
CTP interface |
USB,IIC,RS232 | |
|
Customize service |
Cover glass | AG/AF/AR, silk print, anti-vandal |
| Function | touch with water, touch with gloved | |
| Sun Readable Solution | High brightness backlight, optical bonding, AR | |
| Bongding size | CTP with tft: MAX 17 inch, CTP: MAX 27 inch | |
| Quality certifications |
SGS, UKAS Environmental Management Standard, IECQ |
|
All our products 15 Inch USB Multi Touch Screen Overlay Kit are standard packed, for detailed information you can contact our customer service representatives.
Our company will deliver the order to you within one to eight weeks according to the details of the order.
Fannal is a professional supplier of capacitive touch screen, target at small and medium enterprises all over the world.
Our products are widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields. Our strength lies in understanding the special needs of clients, to provide the most suitable products and professional technical supports.
1. Have you ever exported to foreign countries?
We started our international trade at the beginning of 2013, so most of our customers still remain in the stage of sample testing and initial batch.
We have exported to Italy, UK, Poland, USA, Russia, Spain, Turkey, Ukraine, French, Colombia, Austria, Australia, Canada, Brazil, India and many other countries.
2. What is the lead time of the products?
Samples in stock will be delivered within a week after payment.
Mass production typically needs four to six weeks for delivery.
Tailor-made design drawings will begin after payment. The initial samples will be finished within 3 weeks after the drawing is approved.
3. Payment methods:
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. What certifications do you have?
ROHS, ISO9001, ISO14001, TS16949, QC080000 and OHSAS18001
5. What is the MOQ?
It depends on different products. Please keep in touch with sales to confirm the MOQ.
6. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
7. Could we place an order as OEM to produce under our own brand?
Yes, our company accepts OEM and ODM ONLY for the following types:
Resistive Touch Panel (1.8 inch to 19 inches)
Capacitive Touch Panel (1.5 inch to 32 inches)
The sizes of the Touch Panel can be adjusted according to the customers' requirements (customizing).
