17 inch g+g structure capacitive touch screen controller
- 2500 Piece / Pieces per Month
- Shanghai/Ningbo China
- Credit Card
- 12.1" SVGA Open Frame Touch Screen Industrial LCD Display (LCD Module)
- 7" Open Type Module (OTM) Touch Screen Industrial LCD Display
- 7" Open Type Module (OTM) Touch Screen Embedded LCD Monitor
- 17" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 19" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 12.1" XGA Open Frame Touch Screen Embedded LCD Monitor (LCD Module)
Product Details
Products Status: | Stock | Screen Size: | Other, 17" | Type: | Capacitive |
Interface Type: | Other, IIC,RS232 | Brand Name: | FANNAL | Model Number: | FN170A03-V1.0 |
Place of Origin: | Zhejiang, China |
Product Description

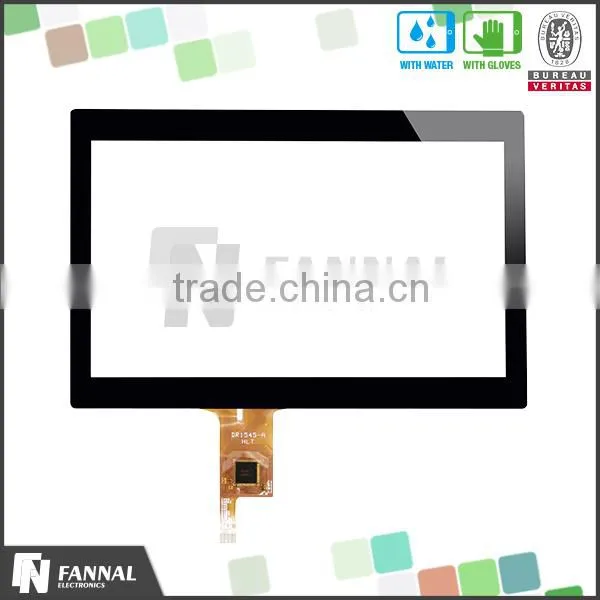

Product Specification
Item | Specification |
Type | Projected capacitive touch panel |
Model Number | FN170A03-V1.0 |
Size | 17 inch |
Structure | G+G |
Controller IC | EETI 3188 |
Visible Area,mm | 338.92*271.30 |
Outline Dimension,mm | 377.00*309.00*2.00 |
Cover Glass Thickness,mm | 1.10 |
Interface | USB/IIC/RS232 |
Touch Points | 10 touch |
Surface Hardness | 6H |
Transmittance | > 87% |
Operating temperature | -20℃~70℃ |
Storage temperature | -30℃~80℃ |
Durability | > 300 million touch |
Remark: For more information please go to our website Http://
We can also make the matching module ( TFT + CTP ). Please contact us for details.
l. Cover lens customization
Size:1.28”-42”
Irregular shaped:support punching(down to radius 0.4mm)
Color:different color silk printing or logo printing(UV resistance ink supportable)
Strengthen glass:Coring Gorilla,AGC,Schott
Thickness:0.55;0.7;1.0;1.1;1.8;2.0;2.5;3.0;4.0;5.0;6.0mm
2.Special function
support different gloves(Nylon,Latex,Cotton,Wool,Snow gloves),max 5mm thickness
Support touch with water,oil,water-oil mixture,salt water
Support thick cover lens,max 6mm tempered glass
3.Sunlight readability
1.hight brightness TFT 500nit~1600nit
2.Optical boning technology
3.AG/AR/AF coating
1. Standard capacitive touch panel (1.28 ~42 inch)and LCD touch screen in stock.
2. Complete customized solutions & special treatment.
3. Nearly 10 years experience in touch screen industry,we understand customer’s requests.
4. High quality and realiabity of our touch screen, and ensure long-term supply.
5. A strict quality control system.
6. High price-performance of touch screen.
7. Provide the best debugging and other after sales services worldwide.

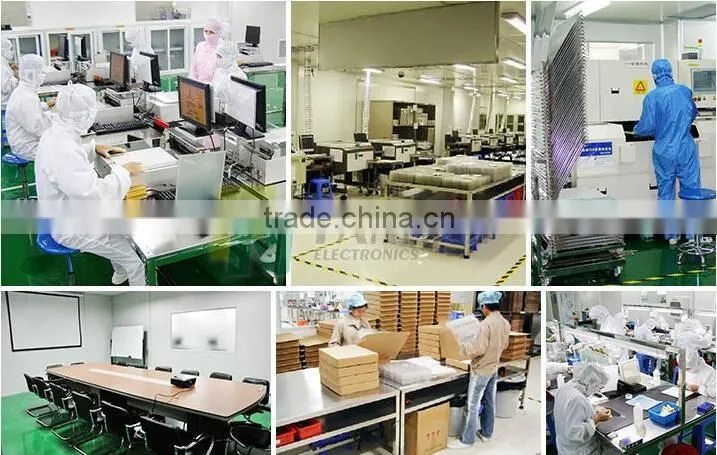

Our Factory
Trade terms | FOB CIF EXW CPT |
Payment terms | T/T |
MOQ | Normally 1k, but depends on different products |
Lead time | 4~8 weeks |
