Specifications
1.1Wan+4Lan Port Wireless Openwrt Router2.Pass FCC & CE
3.SMA 2dbi Antenna
4.Linux Platform
5.Openwr Preloade
Model: Openwrt Router
optional:Ralink 3050 4M Flash +32M SDRAM
Ralink 3052 8M Flash + 32M SDRAM(16M Flash + 64M SDRAM)
Description:
The OpenWrt is described as a Linux distribution for embedded devices. Instead of trying to create a single, static firmware, OpenWrt provides a fully writable file system with package management. This frees you from the application selection and configuration provided by the vendor and allows you to customize the device through the use of packages to suit any application. For developer, OpenWrt is the framework to build an application without having to build a complete firmware around it; for users this means the ability for full customization, to use the device in ways never envisioned.
Specification:
•Integrated 4-port 10/100M Switch
• Supports remote/local Web management and TFTP upgrade
• Cable Internet Access, 802.1X, with ditachable Antenna
• Supports WDS wireless network extension
• Supports DHCP server/client ,Integrated firewall for anti-attack
• Supports QoS function
• Providing routing capabilities to route the /29 subnet over the /30 subnet.
• Providing DHCP and DNS to the client network, firewall traffic appropriately.
• Providing a VPN termination for all wireless traffic.
• Customizing tune features, removing unwanted packages to make room for other packages and for developers
| |
Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|
Wireless Signal Rates With Automatic Fallback |
11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic) |
Frequency Range |
2.4-2.4835GHz |
|
Wireless Transmit Power |
20dBm(EIRP) |
Modulation Type |
DBPSK,DQPSK,CCK, OFDM |
Receiver Sensitivity |
270M: -68dBm@10% PER 135M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER |
Wireless Security |
64/128 bit WEPWPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
Interface |
4 10/100M LAN Ports and 1 10/100M WAN Ports |
Antenna Type |
2dBidetachable Omni-directional Antenna |
Power supply |
Input AC100~240V,output DC/12V/0.5A |
Operating Temperature |
0°C~40°C (32°F~104°F) |
Storage Temperature |
-40°C~70°C (-40°F~158°F) |
Relative Humidity |
10% ~ 90%, non condensation |
Storage Humidity |
5%~95% non-condensing |
Weight |
260.5g |

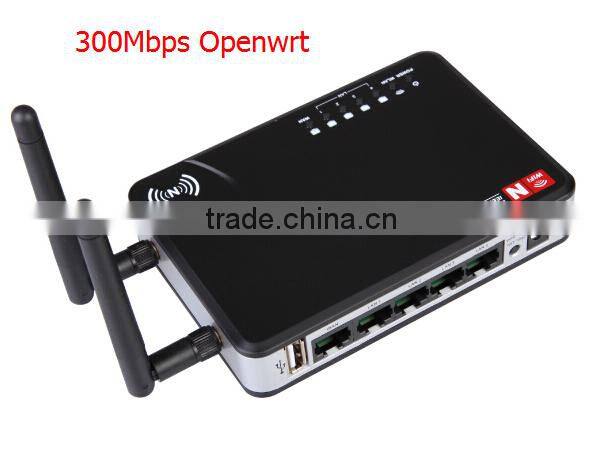

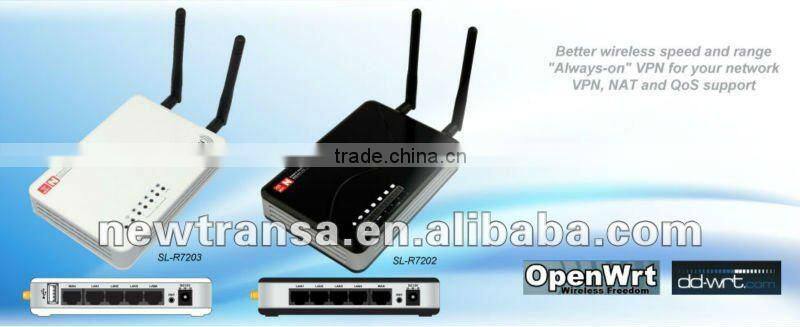

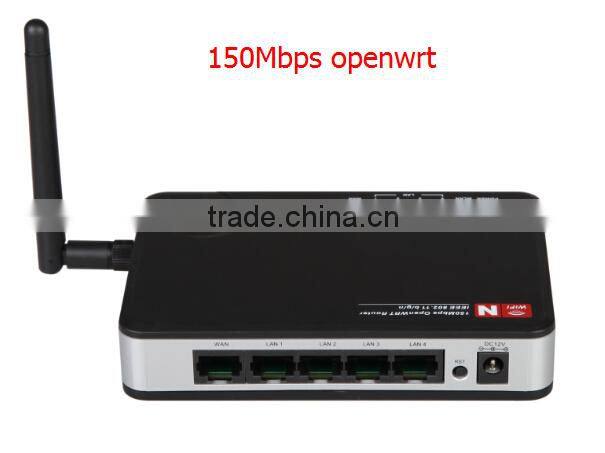

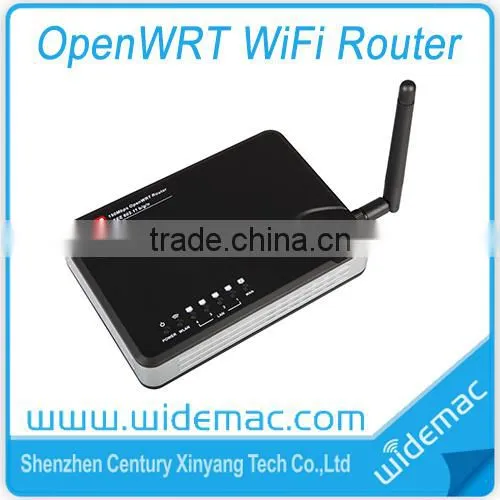

Picture:
