Product name |

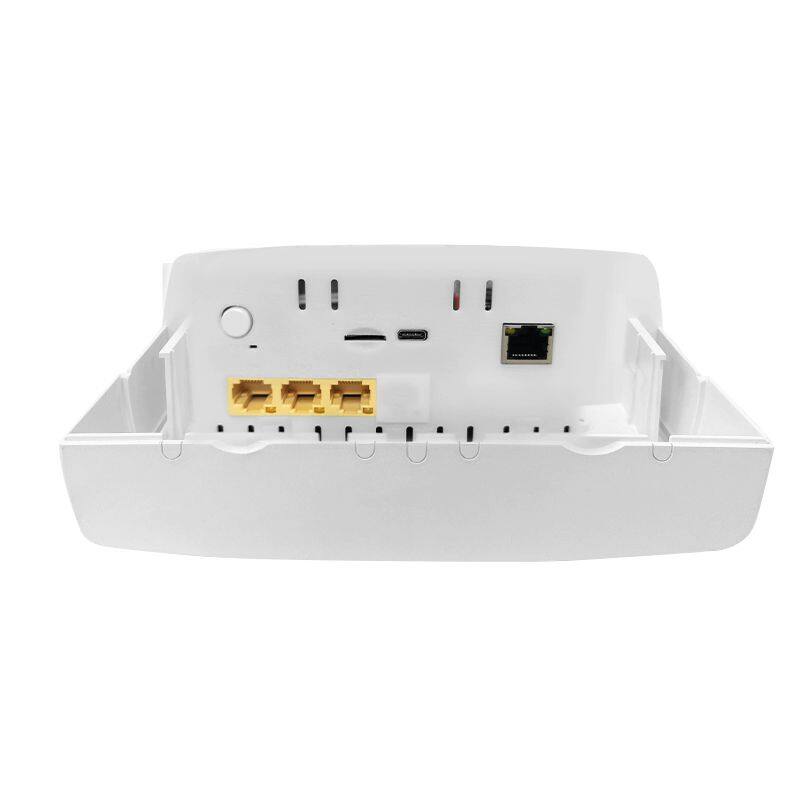

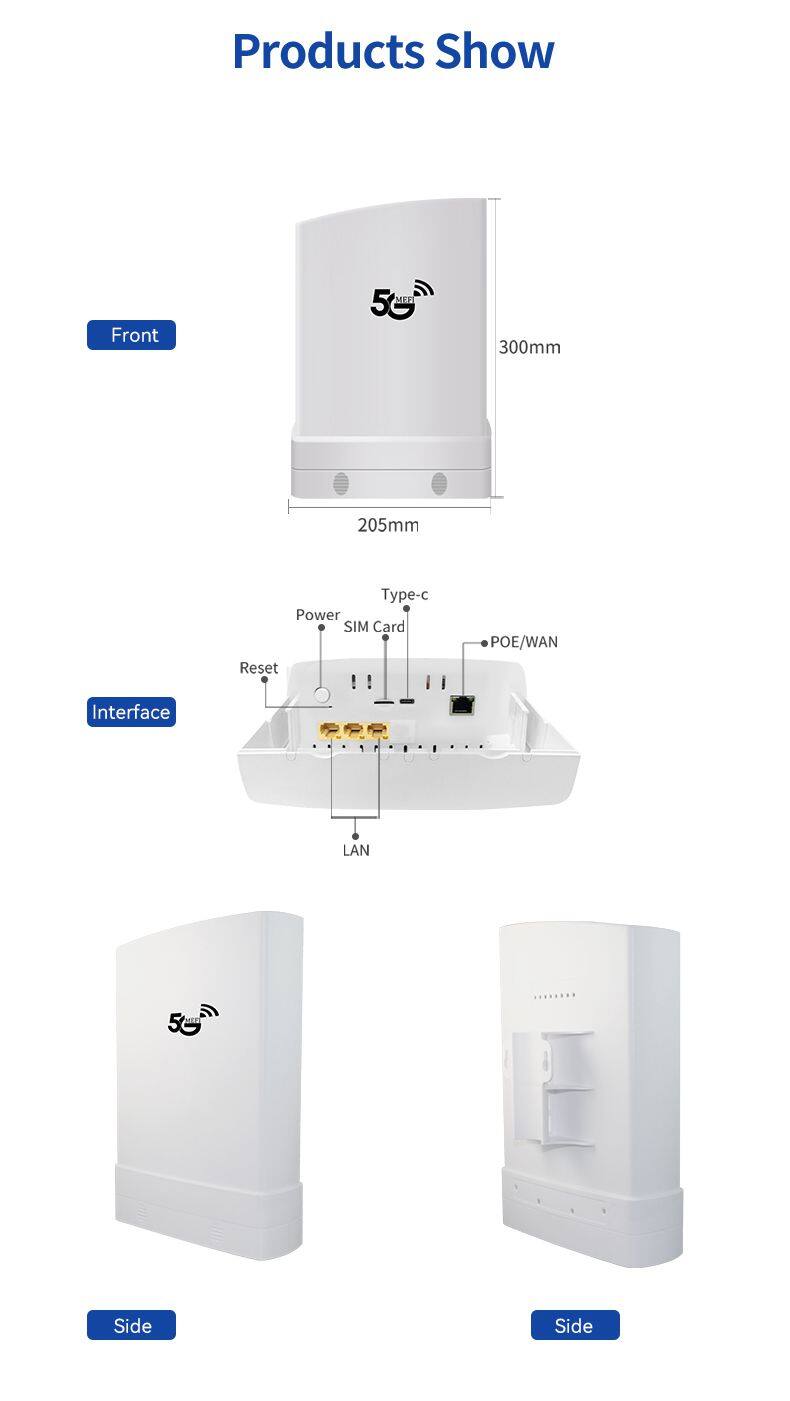

SA NSA waterproof IP 65 outdoor 5g router |
Model Number |
HY8510D |
|
Chipset |
5G/LTE: UNISOC IVY510, dual-core ARM Cortex-A55 processor, up to 1.35GHz |
Wi-Fi: MTK7621A+7612E+7603E | |
RF standard |
5G NR(3GPP Release 15 )/TDD-LTE/FDD-LTE |
Flash |
2 Gb |
RAM |
DDR 4 Gb |
Ethernet LAN |
3 * Gigabit RJ45 LAN Ports; 10/100/1000 auto-sensing |
LED |
5 LED Indicators (PWR, 5G/LTE, 5G Wi-Fi, 2.4G Wi-Fi, Network Signal) |
SIM |
1 SIM (3FF); Support 1,8V & 3.3V |
Power Indicator |
Indicate power on/off status |
Wi-Fi Indicator |
Indicate Wi-Fi on/off status |
Network Indicator |
Indicate network link status |
Signal Bar Indicator |
Indicate network signal strength |
|
Frequency |
5G NR: N1/N3/N8/N28/N41/N77/N78/N79 |
|
4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/ B28B, B32 can be customized; | |
4G TDD: B34/B38/B39/B40/B41 | |
Antenna |
7 Built-in 5G/LTE antennas, 4 Built-in Wi-Fi antennas (2.4G+5G) |
Power Consumption |
|
Waterproof |
IP65 |
Power Supply |
POE 48V 0.5A |
|
Buttons |
1. Power ON/OFF Button 2. Reset Key |
USIM Slot |
Support standard 1.8V / 3.3V USIM |
WPS Button |
Click to start WPS connection |
USB |
TYPE_A USB3.1, for test |
DC |
DC 2.0 |
|
MIMO |
5G DL MIMO 4*4, UL MIMO 1*1 LTE: MIMO 2*2 WIFI：MIMO 2*2(5G) MIMO 2*2(2.4G) |
TX/RX |
2T4R/1T2R |
Output Power |
5G NR: 23+-2dBm LTE: 23+-2dBm |
Antenna |
5 Built-in 5G antennas 2 Built-in 4G antennas |
Antenna Gain |
5 dBi |
Wi-Fi Frequency |
2.4GHz/5GHz |
Wi-Fi Antenna |
2 Built-in 5G Wi-Fi antennas |
2 Built-in 2.4G Wi-Fi antennas | |
Wi-Fi Output Power |
16 dBm/2.4G; 18 dBm/5G; |
Wi-Fi Channel BW |
20MHz,40MHz,80MHz(ac) |
Wi-Fi Antenna Gain |
4 dB |
Peak Output |
5G NR: 1Gbps (UL), 2Gbps (DL) |
APN Setup |
APN name, PDP(IPV4/IPV6/IPV4V6) |
DHCP Setup |
Enable/disable DHCP server Configure DHCP IP Pool Configure DHCP Lease Time |
Static Route |
Route Setup on WAN/LAN interface |
DDNS |
Support |
Work Mode |
NAT/ Router mode |
Dimension |
Box size:38*21*10cm; 1310g/pc |
Operating Temperature |
Normal:-10°C to +65°C; |
Storage Temperature |
-20° C to +85° C |
