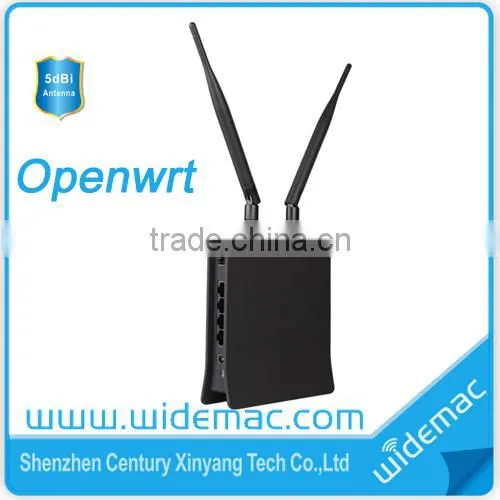

Factory OEM Ralink 3052 300M OpenWrt Wireless Router /Wifi Router with SFP port

Specifications

300Mbps Ralink 3052 Chipset Open WRT Wireless Router
Flash 8M + RAM 32M
1 SFP+4LAN port
SMA 5dBi Antenna(2T2R)



 300Mbps SFP openwrt router



Mode: WD-8310A

300Mbps Wireless Openwrt Router + 1 SFP + 4 LAN port

8MB FLASH +32 MB SDRAM



Instruction:



The 802.11n wireless router is compatible with IEEE802.11n standard, which supports data rate up to 300 Mbps in 2.4 GHz band.



The WD-8301A is a new design, it has a 10/100M SFP port, and applied to the optical fiber to home network environment. and combined wired/wireless network connection device integrated with internet-sharing router and 4-port switch. It is 802.11b/g/n technology and bring up to 300Mbps transmit rates .It helps user to set up a wired or wireless network, and lets your computers share a high-speed DSL or Cable Internet connection, data files and other resources, such as printers and hard disk storage space.



The WD-8310A provides a handy feature that allows users to almost instantly setup their security simply by pressing the WPS button on the wireless router and the WPS button on the wireless adapter The AUTO-RUN CD can help novice user setup the router step by step to complete the Internet connection, wireless network settings and security configurations.







Feature:



• 300M Wireless Router with Extended Range
• Built-in 4-port 10/100M Switch
• Supports far-distance transmission, 200 meters indoor, 400 meters outdoor (depends on the environments around)
• Supports remote/local Web management and TFTP upgrade
• Supports PPPoE, Dynamic IP, Static IP, L2TP, BigPond
• Cable Internet Access, 802.1X, with 5 dBi Detachable Antenna
• Supports WDS wireless network extension
• Supports DHCP server/client ,Built-in firewall for anti-attack
• Supports virtual server, DMZ host , SNTP
• Supports QoS, VPN function
• Provide 1 SFP port and 4 LAN ports
• Provide 8MB Flash/32MB RAM
• Support OPEN-WRT

 Specifications:



Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Signal Rates With Automatic Fallback	11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic)
Frequency Range	2.4-2.4835GHz
Wireless Transmit Power	20dBm(EIRP)
Modulation Type	DBPSK,DQPSK,CCK, OFDM
Receiver Sensitivity	270M: -68dBm@10% PER 135M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER
Wireless Security	64/128 bit WEPWPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Interface	4 10/100M LAN Ports and 1 10/100M SFP Ports
Antenna Type	5dBidetachable Omni-directional Antenna
Power supply	Input AC100~240V,output DC/12V/1A
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Relative Humidity	10% ~ 90%, non condensation
Storage Humidity	5%~95% non-condensing
Weight	400g
Dimensions	20.5*15*75cm













Packaging contains300Mbps Open WRT Wireless Router(SL-R7203)



1* 300Mbps openwrt Router

1* 12V/1A Power supply

1* User Manual

2* 5dBi antenna







We areLG, D-Link, Telecom of Russia, Telecom of India, Skyworth, China Netcom and China Telecom’s OEM supplier, and have our own brand WIDEMAC, SKYLINK, TIANHAO, BLUEWAY on the market.
