Home > Computer Products > Network Hardware & Parts > Router > Openwrt Router 2T2R 300Mbps Ralink RT3052 Chipset WiFi Router With 2dBi Detachable Antenna

Openwrt Router 2T2R 300Mbps Ralink RT3052 Chipset WiFi Router With 2dBi Detachable Antenna

Name: Openwrt Router 2T2R 300Mbps Ralink RT3052 Chipset WiFi Router With 2dBi Detachable Antenna
Brand: Widemac / OEM
SKU: 125004975

Openwrt Router 2T2R 300Mbps Ralink RT3052 Chipset WiFi Router With 2dBi Detachable Antenna thumbnail-1

Openwrt Router 2T2R 300Mbps Ralink RT3052 Chipset WiFi Router With 2dBi Detachable Antenna photo-1

US$ 22 - 24 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Products Status:

Stock

Type:

Wireless

Application:

Soho

Contact Supplier Request Quote Chat Now

Shenzhen Century Xinyang Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Products Status Stock

Type Wireless

Application Soho

Function Firewall, QoS, VPN

LAN Ports 4

WAN Ports 1

Certification FCC, RoHS

Brand Name Widemac / OEM

Model Number WD-R7203

Place of Origin Guangdong, China

Specifications

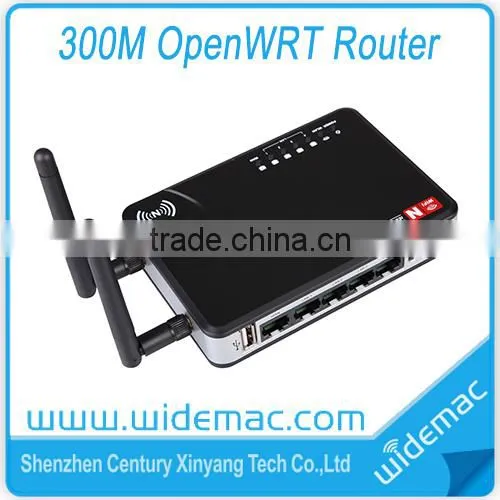

300Mbps Ralink 3052 Chipset Open WRT Wireless Router
Flash 8M + RAM 32M
SMA 2 dBi Antenna(2T2R)

300Mbps Ralink 3052 Chipset Open WRT Wireless Router(SL-R7203)

Mode: SL-R7203

300Mbps Wireless Router

The 802.11n wireless router is compatible with IEEE802.11n standard, which supports data rate up to 300 Mbps in 2.4 GHz band.

The WD-R7203 is a combined wired/wireless network connection device integrated with internet-sharing router and 4-port switch. It is 802.11b/g/n technology and bring up to 300Mbps transmit rates .It helps user to set up a wired or wireless network, and lets your computers share a high-speed DSL or Cable Internet connection, data files and other resources, such as printers and hard disk storage space.

The WD-R7203 provides a handy feature that allows users to almost instantly setup their security simply by pressing the WPS button on the wireless router and the WPS button on the wireless adapter The AUTO-RUN CD can help novice user setup the router step by step to complete the Internet connection, wireless network settings and security configurations.

300M Wireless Router with Extended Range
Built-in 4-port 10/100M Switch
Supports far-distance transmission, 150 meters indoor, 400 meters outdoor (depends on the environments around)
Supports remote/local Web management and TFTP upgrade
Supports PPPoE, Dynamic IP, Static IP, L2TP, BigPond
Cable Internet Access, 802.1X, with 2dBi Detachable Antenna
Supports WDS wireless network extension
Supports DHCP server/client ,Built-in firewall for anti-attack
Supports virtual server, DMZ host , SNTP
Supports QoS function
Provide 1WAN port and 4LAN ports
Provide 8*32 16*64 Ram/Flash for optional choose

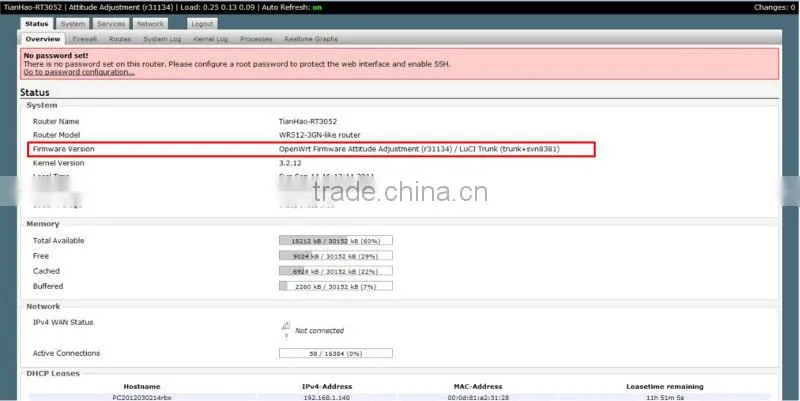

Support OPEN-WRT

Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Signal Rates With Automatic Fallback	11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic)
Frequency Range	2.4-2.4835GHz
Wireless Transmit Power	20dBm(EIRP)
Modulation Type	DBPSK,DQPSK,CCK, OFDM
Receiver Sensitivity	270M: -68dBm@10% PER 135M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER
Wireless Security	64/128 bit WEPWPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Interface	4 10/100M LAN Ports and 1 10/100M WAN Ports
Antenna Type	2dBidetachable Omni-directional Antenna
Power supply	Input AC100~240V,output DC/12V/1A
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Relative Humidity	10% ~ 90%, non condensation
Storage Humidity	5%~95% non-condensing
Weight	260.5g
Dimensions	130mm×90mm×25mm

OEM Service

Interface version:

Packaging contains300Mbps Open WRT Wireless Router(SL-R7203)

1* 300Mbps Router

1* 12V 0.5A Power supply

1* User Manual

2* 2dBi antenna
