802.11N Ralink 3050 Chipset 150Mbps Wireless Router/Wifi Router (SL-R6801)

Specifications

Chipset: Ralink 3050
Peak throughput: 150Mbps
Antenna: SMA 2dBi antenna (1T1R)
1WAN port + 4LAN ports

                          802.11N Ralink 3050 Chipset 150Mbps Wireless Router/Wifi Router (SL-R6801)



 Model: SL-R6801



 Description: Ralink 3050 Wireless Router

    The 802.11n wireless router is compatible with IEEE802.11n standard, which supports data rate up to 150 Mbps in 2.4 GHz band.

  The SL-R6801 is a combined wired/wireless network connection device integrated with internet-sharing router and 4-port switch. It is 802.11b/g/n technology and bring up to 150Mbps transmit rates .It helps user to set up a wired or wireless network, and lets your computers share a high-speed DSL or Cable Internet connection, data files and other resources, such as printers and hard disk storage space.

   The SL-R6801 provides a handy feature that allows users to almost instantly setup their security simply by pressing the WPS button on the wireless router and the WPS button on the wireless adapter.



Features: Ralink 3050 Wireless Router

• 150M Wireless Router with Extended Range
• Built-in 4-port 10/100M Switch
• Supports far-distance transmission, 150 meters indoor, 400 meters outdoor (depends on the environments around)
• Supports remote/local Web management and TFTP upgrade
• Supports PPPoE, Dynamic IP, Static IP, L2TP, BigPond
• Cable Internet Access, 802.1X, with 2dBi Detachable Antenna
• Supports WDS wireless network extension
• Supports DHCP server/client ,Built-in firewall for anti-attack
• Supports virtual server, DMZ host , SNTP
• Supports QoS function
• Provide 1WAN port and 4LAN ports
• Provide Bridge/Gateway/AP Client/Ethernet Converter mode

Specification:   Ralink 3050 Wireless Router

Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Signal Rates With Automatic Fallback	11n: Up to 150Mbps (Dynamic)  11g: Up to 54Mbps (Dynamic)  11b: Up to 11Mbps (Dynamic)
Frequency Range	2.4-2.4835GHz
Wireless Transmit Power	20dBm(EIRP)
Modulation Type	DBPSK,DQPSK,CCK, OFDM
Receiver Sensitivity	135M: -68dBm@10% PER  54M: -68dBm@10% PER  11M: -85dBm@8% PER
Wireless Security	64/128 bit WEPWPA/WPA2, WPA-PSK/WPA2-PSK  (TKIP/AES)
Interface	4 10/100M LAN Ports and 1 10/100M WAN Ports
Antenna Type	2dBi detachable Omni-directional Antenna
Power supply	Input AC100~240V,output DC/12V/1A
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Relative Humidity	10% ~ 90%, non condensation
Storage Humidity	5%~95% non-condensing
Weight	260.5g
Dimensions	130mm×90×25mm

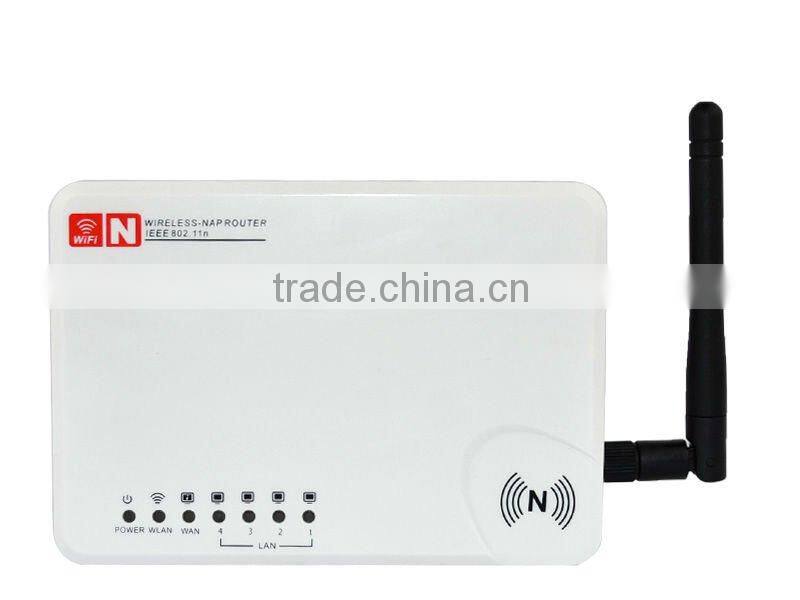

Pictures:

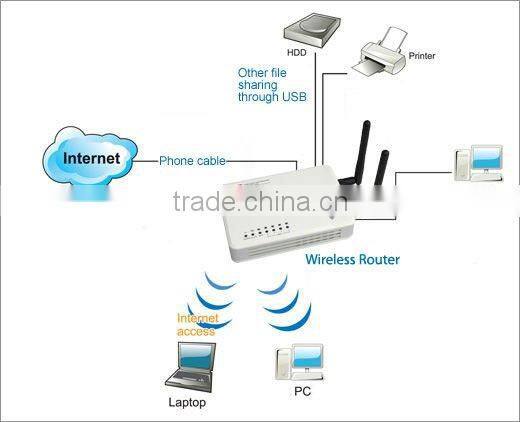

Application:
