Specifications
24 Port Gigabit Ethernet Switch24 10/100/1000Mbps Fast RJ45 Ports
BCM53314 Chipset

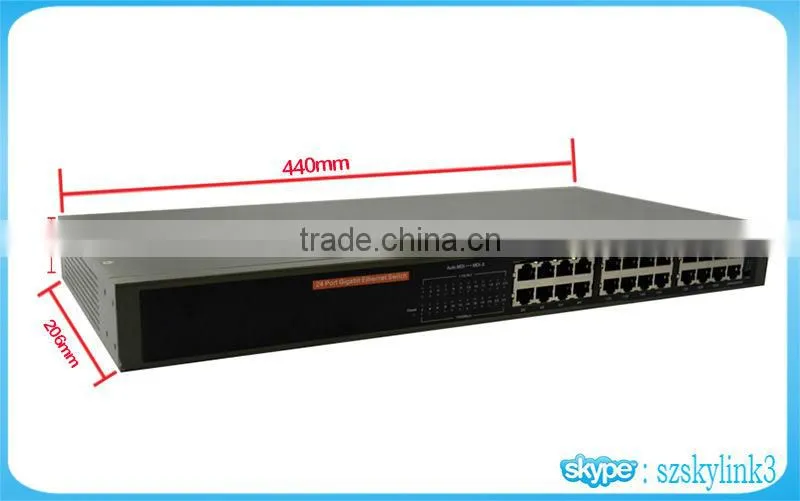

Size 440*206*44mm
Stee Case
Model: TH-1024G
24-Port Switch 10/100/1000Mbps Gigabit Ethernet Switch
Description:
What This Product Does
The TH-1024G 24-Port Gigabit rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play.
Gigabit Switch
Featured with 24 10/100/1000Mbps ports, TH-1024G greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Superior Performance
The TH-1024G features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.
GO GREEN WITH YOUR ETHERNET
You now have the choice to go green when upgrading to a gigabit network! This new product TH-1024G features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Features:
l 100% Data filtering rate eliminates all error packets
l Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
l Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
l 48Gbps Switching Capacity
l Auto-MDI/MDIX eliminates the need for crossover cables
l Supports MAC address auto-learning and auto-aging
l Support the port N-Way Auto-Negotiation, Store and Forward.
l Compact size design for desktops, Rackmountable
l Plug and Play design simplifies installation
Specification:
Hardware Features | |
Interface |
24 10/100/1000Mbps RJ45 Ports |
AUTO Negotiation/AUTO MDI/MDIX | |
Chipset |
BCM53314 Chipset |
Mac Address Table |
8K |
External Power Supplier |
100~240VAC, 50/60Hz |
Dimentions(W×D×H) |
17.3*7.2*1.7 in. (440*360*44 mm) |
Software Features | |
Transfer Method |
Store and Forward |
Aavance Functions |
802.3X Flow Control, Back Pressure |
Auto-Uplink Every Port | |
Others | |
Package Contents |
TH-1024G |
Power Adapter | |
User Guide | |
Enviroment |
Operating Temperature: 0°C~40C ; |
Storage Temperature: -40°C~70C ; | |
Operating Humidity: 10%~90% non-condensing; | |
Storage Humidity: 5%~90% non-condensing | |
