Specifications
Mini 5 Port Gigabit SwitchAtheros 8327 Chipset
5 10/100/1000Mbps RJ45 Ports
Steel case, Mini Size
Meet CE RoHS
Mode: TH-1005G
Mini 5 Port Gigabit Switch / 5Port 10/100/1000Mbps Gigabit Ethernet Network Switch
Description:
The TH-1005G 5-Port Gigabit desktop switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Featured with 5 10/100/1000Mbps ports, TH-1005G greatly expands your network capacity, enabling instant large files transferring. So power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

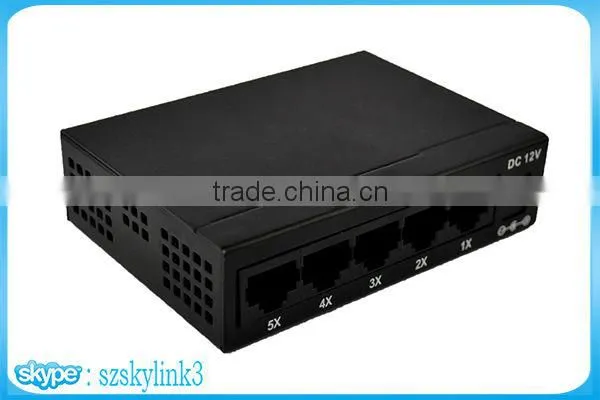

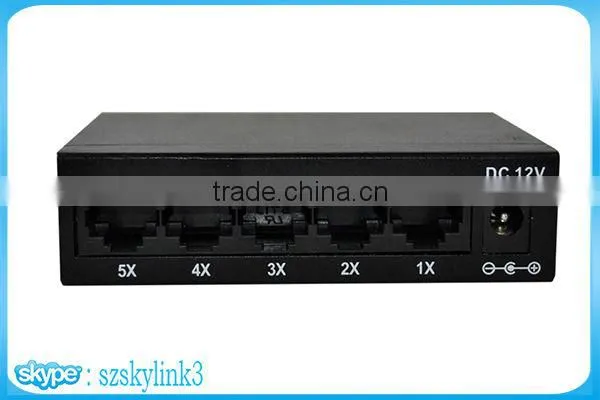

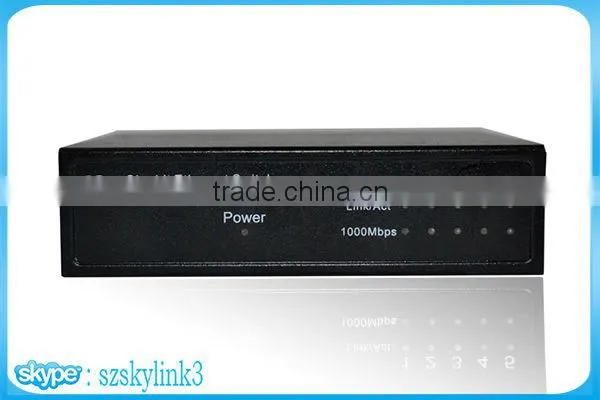

Pictures:
Features:
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
Auto-MDI/MDIX for all ports
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
Plug and Play design simplifies installation
Specification:
Standards and Protocols |
IEEE802.3, 802.3u, 802.3ab, 802.3x |
Network Media |
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) |
CSMA/CD, TCP/IP |
EIA/TIA-568 100Ù STP (maximum 100m) |
||
Chipset |
Atheros 8327 |
100Base-Tx: UTP category 5, 5e cable (maximum 100m) |
|
Switching Capacity |
10Gbps |
EIA/TIA-568 100Ù STP (maximum 100m) |
|
MTBF |
87,600hours (10 years) |
1000Base-T: UTP category 5, 5e cable (maximum 100m) |
|
Basic Function |
Wire-speed Performance |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) |
MAC Address Auto-Learning and Auto-aging |
Storage Temperature: -40°C~70°C (-40°F~158°F) |
||
Complies with IEEE 802.3x full-duplex and flow control |
Operating Humidity: 10%~90% non-condensing |
||
Backbound Bandwidth |
16Gbps |
Storage Humidity: 5%~90% non-condensing |
|
MAC Address Table |
4k |
LED Indicators |
Power, 10/100M, 1000M |
Forwarding Rate |
10BASE-T: 14880pps/port |
Size |
44.5*40*34.5cm |
100BASE-TX: 148800pps/port |
Unit weight |
350g |
|
1000BASE-T: 1488000pps/port |
AC adaptor |
12V 0.5A |
|
Transmission Method |
Store-and-Forward |
||
Ports |
5 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) |
Package Contents(what's inside the box)
1* 5 Port 10/100M/1000M Switch
1* 12V 0.5A Power supply
1* User Manual
