Home > Products > Ethernet Switch > 8 Port 10/100Mbps Fast Ethernet Network Switch /Desktop Switch(TH-1008S+)

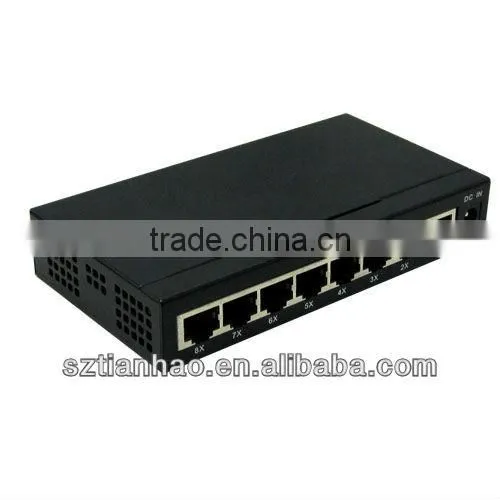

8 Port 10/100Mbps Fast Ethernet Network Switch /Desktop Switch(TH-1008S+)

FOB Price

US$ 6.6 - 7.2 / Piece

50 Pieces(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Ports	Other, ≤ 8
Transmission Rate	10/100Mbps	Communication Mode	Full-Duplex
Certification	FCC	Switch Capacity	10/100Mbps
Brand Name	Skylink/OEM	Model Number	TH-1008S+
Place of Origin	Guangdong, China

Product Description

Specifications

Chipset: IC+ 178
Case: steel case

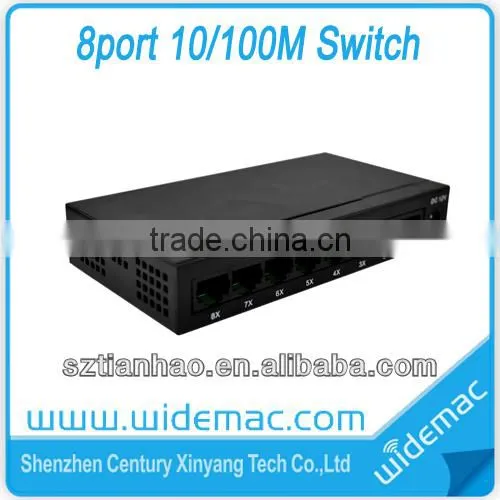

8port 10/100M fast Ethernet Network Switch(TH-1008S+)

Model: TH-1008S+

8-port 10/100M Desktop Switch

Description:

The Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.

Features:

•Complies with IEEE802.3, IEEE802.3u standards.

•8 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX.

•Supports IEEE802.3x flow control for Full Duplex mode and backpressure for half-duplex mode.

•Supports MAC address auto-learning and auto-aging.

•LED indicators for monitoring power, link, activity.

•Steel case, desktop

•External Power Adapter supply

•Dynamic data buffer assignment

Specification:

Standards and Protocols	IEEE802.3, 802.3u, 802.3z, 802.3x CSMA/CD, TCP/IP
Chipset	IC+ 178
Basic Function	full duplex wire-speed forwarding
	MAC Address Auto-Learning and Auto-updating
	IEEE802.3x flow control for Full-Duplex Mode and 802.3z asymmetric flow Control
Switching Capacity	1.6Gbps
MAC Address Table	4k
Forwarding Rate	10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port
Transmission Method	Store-and-Forward

Ports	8 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media	10Base-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100ÙSTP (maximum 100m), 100Base-Tx: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100ÙSTP (maximum 100m)
Environment	Operating Temperature: 0°C~40°C (32°~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
LED Indicators	Power, 10/100M
Package Size:	19.214.16.4cm
Unit weight	420g
AC adaptor	12V 0.3A

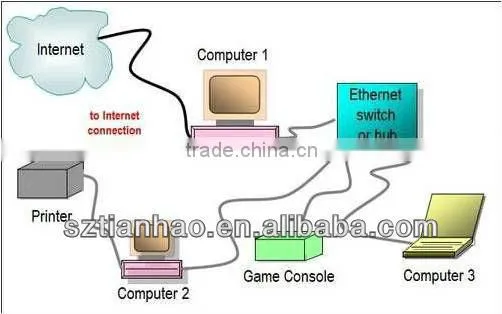

Application :
