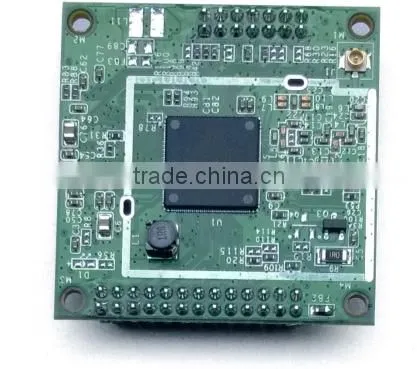

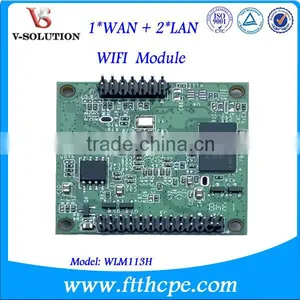

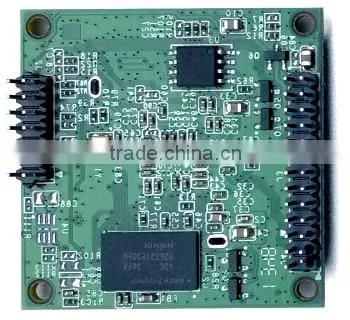

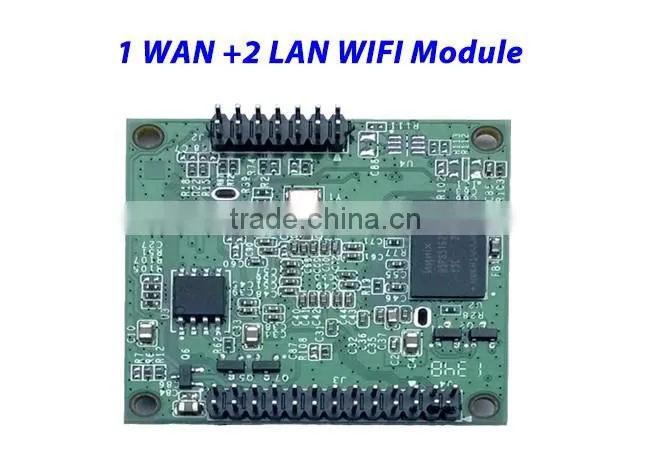

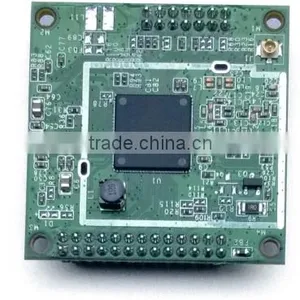

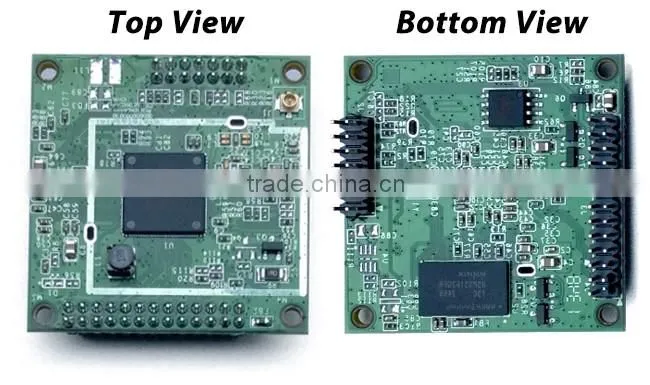

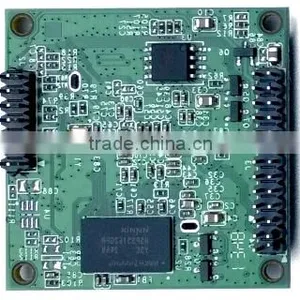

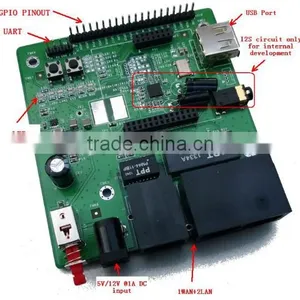

1 WAN +2 LAN WIFI Module with ATHEROS Chipset Extend Wireless Fidelity Function

Features

Specifications

 Wireless standard

802.11b/g/n, 2.4Ghz

Code size

8MByte Flash

Data size

64MByteDDR2

Antenna interface

1* I-PEX connector(can connect the external antenna)

Work mode

Router and bridge mode

Physics rate

IEEE 802.11b: 11Mbps

IEEE 802.11g: 54 Mbps

IEEE 802.11n: 150Mbps

Management mode

Support local WEB management

Radio

Frequency range

2.412 ~ 2.472 GHz

Channel

13 channels. which can be configured to the specifications

of the United States, Canada, Europe, Japan, China and other regions.

Modulation mode

DSSS , CCK and OFDM

Coding scheme

BPSK, QPSK, 16QAM and 64QAM

Antenna

Onboard i-pex receptacle to connect external antenna

RF Received Sensitivity

802.11b:

-82dBm @ 1 Mbps; -80dBm @ 2 Mbps;

-78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps

802.11g:

-82dBm @ 6 Mbps; -81dBm @ 9 Mbps;

-79dBm @ 12 Mbps; -77dBm @ 18 Mbps;

-74dBm @ 24 Mbps; -70dBm @ 36 Mbps;

-66dBm @ 48 Mbps; -65dBm @ 54 Mbps

802.11n:

-65dBm @ 72 MbpsHT20;

-62dBm @ 150 MbpsHT40;

RF Maximum output power

802.11b:

 18 ±1dBm

802.11g:

 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps;

15 ± 1dBm @ 36 Mbps; 16.5 ± 1dBm @6~24Mbps.

802.11nHT20:

12 ± 1dBm @ MCS7HT20; 13 ± 1dBm @ MCS6 HT20;

14 ± 1dBm @ MCS5 HT20; 15 ± 1dBm @ MCS4 HT20;

16± 1dBm @ MCS3 HT20; 17 ± 1dBm @ MCS2 HT20;

17 ± 1dBm @ MCS1 HT20; 17± 1dBm @ MCS0 HT20.

802.11nHT40:

12 ± 1dBm @ MCS7HT40; 13 ± 1dBm @ MCS6 HT40;

14 ± 1dBm @ MCS5 HT40; 15 ± 1dBm @ MCS4 HT40;

15.5± 1dBm@MCS3 HT40; 15.5± 1dBm @ MCS2 HT40;

15.5±1dBm @MCS1 HT40; 15.5 ± 1dBm @ MCS0 HT40.

Encryption mode

802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)

Ethernet

port

function

WAN Port

1 FE WAN interface, 10/100M auto adaptive, Full/Half duplex,support Auto-MDI/MDIX, Ethernet interface connect with mainboard by the pins in module.

LAN Port

2FE LAN interface, 10/100M auto adaptive, Full/Half duplex,support Auto-MDI/MDIX, Ethernet interface connect with mainboard by the pins in module.

 I/O Function

Function Interface

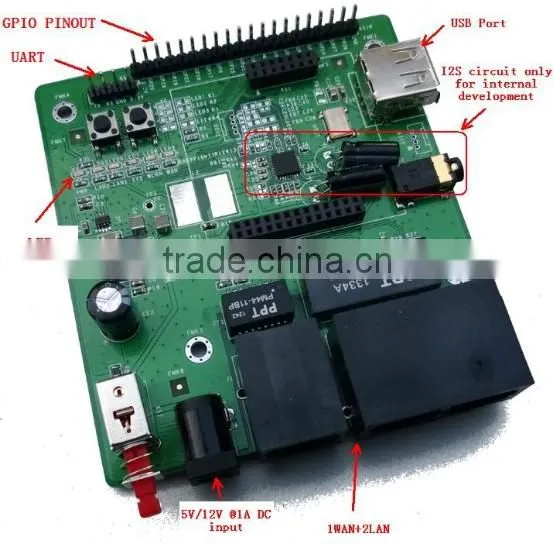

1xUART, 1x I2S, 1xUSB host/client, 1xWAN, 2xLAN

GPIO

18 general-purpose I / O ports (Part of the I / O ports will bemultiplexed with other interfaces)

Operating voltage

3.3V

3.3VPeak current

500mA

Operating temperature

0°C to +40°C

Operation humidity

10 ~ 90%(non-condensed)

Product size

40 mm x 40 mm
