Product Details
| Place of Origin: | Guangdong, China | Brand Name: | V-SOLUTION | Model Number: | WLM113H |
Product Description

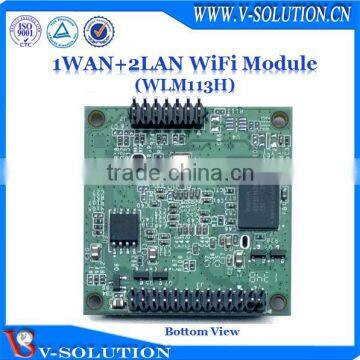

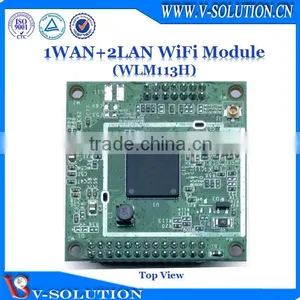

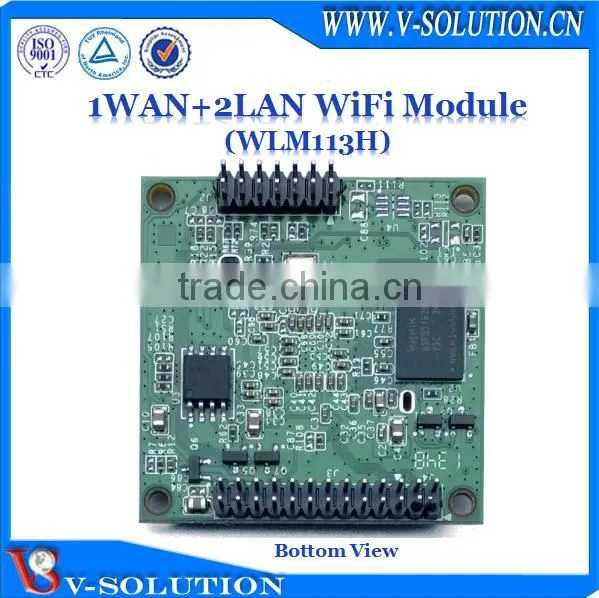

OpenWRT Ar9331 Atheros WiFi Module Work in Router and Bridge Mode for Wireless AP/ WiFi Router
Technical Parameters
Chipset | ATHEROS |
Connector | 38 male pins, used for connecting with customer’s PCB, including power signal, Ethernet signal, indicator signal, etc. |
Embedded OS | Linux V2.6.31 |
LAN | 1*10/100M auto-adaptive, AUTO MDIX, full/half duplex, IEEE802.3x, according to IEEE802.3, 802.3u, 802.3x |
WAN | 10/100M auto-adaptive, AUTO MDIX, full/half duplex, IEEE802.3x, according to IEEE802.3, 802.3u, 802.3x |
Console | 1, RS-232, used for CLI and telnet management |
Indicator | Using LEDs to show status of Power, Ethernet, and WiFi |
Button | 2, reset/default configuration, WPS |
Operating condition | operating temperature: -5 - +55°C operating humidity: 10 - 90%(non-condensed) |
Storing condition | storing temperature: -30 - +60°C storing humidity: 10 - 90%(non-condensed) |
Power | +3.3V DC, 2A, external AC-DC adaptor |
Power consumption | <5W |
Dimension | 40mm*40mm (length*width) |
PCB thickness | 1.6mm |
Net weight | 0.01Kg |
Main Function
1) Support for UART data serial, four baud rate options: 19200 / 38400 / 57600 / 115200bps.
2) Wireless data rates support the 802.11b/g/n Standard, the maximum rate is 150Mbps.
3) Integrate the functions of 802.11 MAC protocol Software.
4) Support for the STA appliances in the Infrastructure Network.
5) Support for the OPEN/WEP/WPA/WPA2 mode authentication.
6) Support for the wep64/wep128/ccmp/tkip data encryption transmission in the shared key mode
7) Support for the automatic networking mode and manual networking mode.
8) In the automatic networking mode. The module can automatically scan the target network, and automatically connect when disconnection.
9) In the manual networking mode, operation of connect and disconnect is touched off by order, this supports a flexible control space.
10) Support the network data transmission in RAW/UDP/TCP format.
11) Support seven groups of the basic parameters set, and can connect to seven target networks the most.
12) Support to configure the parameters through user serial.
13) Support to upgrade the firmware on line by the internet.
