1 WAN +2 LAN WIFI Module Extend Wireless Fidelity Function Support WEP/WPA/WPA2

Name: 1 WAN +2 LAN WIFI Module Extend Wireless Fidelity Function Support WEP/WPA/WPA2
Brand: V-Solution
SKU: 124923435
Availability: InStock

1 WAN +2 LAN WIFI Module Extend Wireless Fidelity Function Support WEP/WPA/WPA2 thumbnail-1

1 WAN +2 LAN WIFI Module Extend Wireless Fidelity Function Support WEP/WPA/WPA2 thumbnail-2

1 WAN +2 LAN WIFI Module Extend Wireless Fidelity Function Support WEP/WPA/WPA2 thumbnail-3

1 WAN +2 LAN WIFI Module Extend Wireless Fidelity Function Support WEP/WPA/WPA2 photo-1

1 WAN +2 LAN WIFI Module Extend Wireless Fidelity Function Support WEP/WPA/WPA2 photo-2

1 WAN +2 LAN WIFI Module Extend Wireless Fidelity Function Support WEP/WPA/WPA2 photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

V-Solution

Model Number:

WLM113H

Contact Supplier Request Quote Chat Now

Guangzhou V-Solution Telecommunication Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name V-Solution

Model Number WLM113H

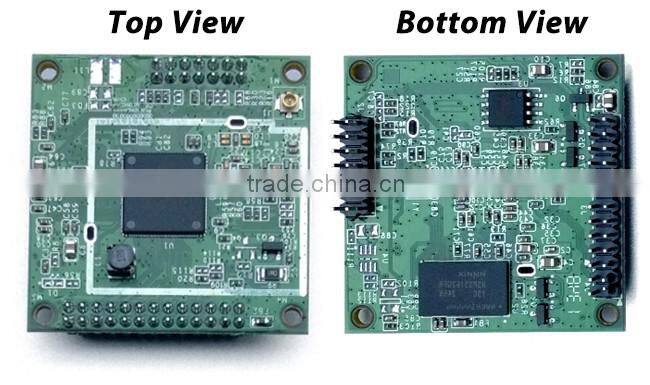

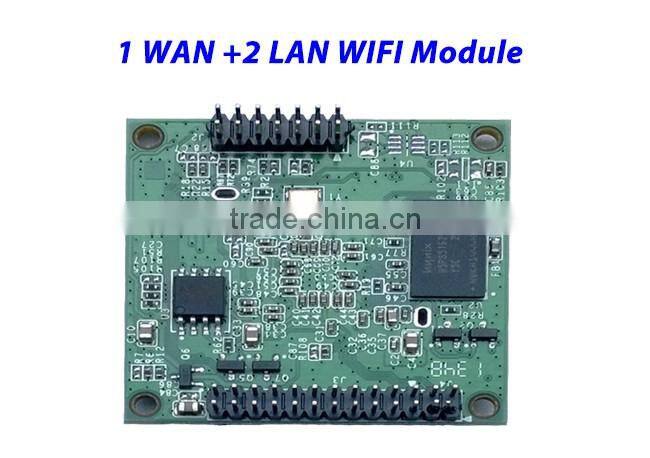

WLM113H WLAN module was designed according to IEEE802.11n, 802.11g and 802.11b. Its throughput is high up to 150Mbps. It bases on MIMO technology which can efficiently enhance wireless transmission performance, transmission rate, stability and cover range. It supports CCA technology channel selected feature, which can avoid channel conflicted automatically. What’s more, it supports WEP/WPA/WPA2 and various wireless encryption tandards, which guarantee the network transmission security.

Features		Specifications
Wireless standard		802.11b/g/n, 2.4Ghz
Code size		8MByte Flash
Data size		64MByteDDR2
Antenna interface		1* I-PEX connector(can connect the external antenna)
Work mode		Router and bridge mode
Physics rate		IEEE 802.11b: 11Mbps IEEE 802.11g: 54 Mbps IEEE 802.11n: 150Mbps
Management mode		Support local WEB management
Radio	Frequency range	2.412 ~ 2.472 GHz
	Channel	13 channels. which can be configured to the specifications of the United States, Canada, Europe, Japan, China and other regions.
	Modulation mode	DSSS , CCK and OFDM
	Coding scheme	BPSK, QPSK, 16QAM and 64QAM
	Antenna	Onboard i-pex receptacle to connect external antenna
RF Received Sensitivity		802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps; -78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps; -79dBm @ 12 Mbps; -77dBm @ 18 Mbps; -74dBm @ 24 Mbps; -70dBm @ 36 Mbps; -66dBm @ 48 Mbps; -65dBm @ 54 Mbps 802.11n: -65dBm @ 72 MbpsHT20; -62dBm @ 150 MbpsHT40;
RF Maximum output power		802.11b: 18 ±1dBm 802.11g: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 36 Mbps; 16.5 ± 1dBm @6~24Mbps. 802.11nHT20: 12 ± 1dBm @ MCS7HT20; 13 ± 1dBm @ MCS6 HT20; 14 ± 1dBm @ MCS5 HT20; 15 ± 1dBm @ MCS4 HT20; 16± 1dBm @ MCS3 HT20; 17 ± 1dBm @ MCS2 HT20; 17 ± 1dBm @ MCS1 HT20; 17± 1dBm @ MCS0 HT20. 802.11nHT40: 12 ± 1dBm @ MCS7HT40; 13 ± 1dBm @ MCS6 HT40; 14 ± 1dBm @ MCS5 HT40; 15 ± 1dBm @ MCS4 HT40; 15.5± 1dBm@MCS3 HT40; 15.5± 1dBm @ MCS2 HT40; 15.5±1dBm @MCS1 HT40; 15.5 ± 1dBm @ MCS0 HT40.
Encryption mode		802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)
Ethernet port function	WAN Port	1 FE WAN interface, 10/100M auto adaptive, Full/Half duplex,support Auto-MDI/MDIX, Ethernet interface connect with mainboard by the pins in module.
	LAN Port	2FE LAN interface, 10/100M auto adaptive, Full/Half duplex,support Auto-MDI/MDIX, Ethernet interface connect with mainboard by the pins in module.
I/O Function	Function Interface	1xUART, 1x I2S, 1xUSB host/client, 1xWAN, 2xLAN
	GPIO	18 general-purpose I / O ports (Part of the I / O ports will bemultiplexed with other interfaces)
Operating voltage		3.3V
3.3VPeak current		500mA
Operating temperature		0°C to +40°C
Operation humidity		10 ~ 90%(non-condensed)
Product size		40 mm x 40 mm

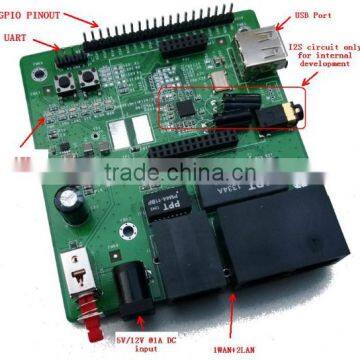

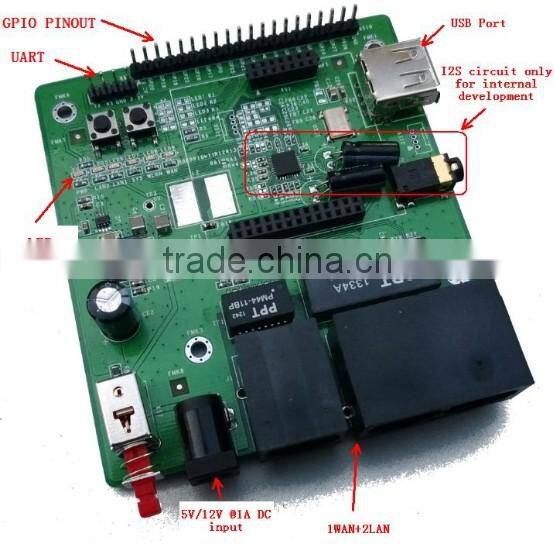

WLM113H development board

WLM113H development board supports DC 5V/12V @1A power supply, and DC5V is able to connect USB power pin when debugging USB functionality(by Soldering FB3,FB4 with 0Ohm resistors, and remove these two component when USB debugging is done is strongly recommended for safety). In addition,There are various peripheral interfaces, such as 1xWAN Ethernet port,2xLAN Ethernet ports, 1xUSB port, 1xUART port and16xGPIO ports which have been connected to 2.54mm spacing pin headers.
