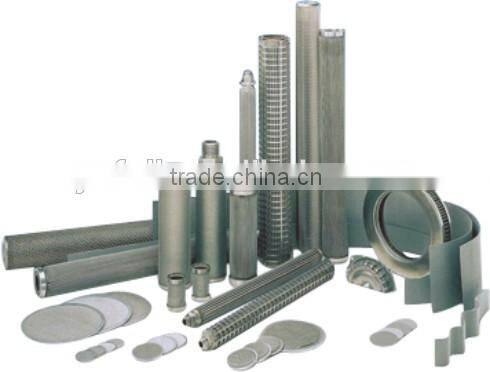

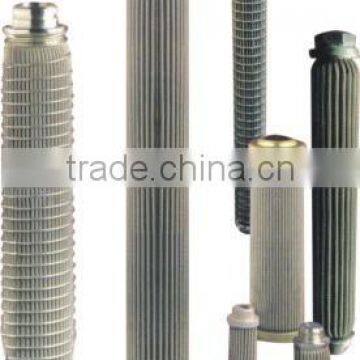

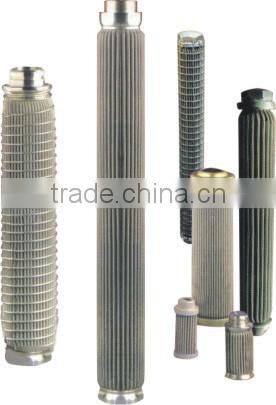

CPF Series Melt Filter Element
CPF series melt filter element

Filter material: import metal fiber sintered felt, domestic metal fiber sintered felt, 304Microgroove web, 304 Square hole webs.
Applications: the fields of chemical fiber, petroleum, chemical.
Features: pleated structure, able to bear huge amount of dirt, can ve cleansed repeatedly, firm adn not easy to be deformed, high filter rating,high-temperature resistance.
Structure chart
Main specfication
| Φ | L | M2 | M1 | Pattern | Filter rating | Operating Pressure | Operating temperature |
| 35 | 217 | M20*1.5 | M6 | Welded | 3~100µm | Max10Mpa | ≤ 300°c |
| 35 | 425 | M20*1.5/2 | M6 | welded | |||
| 35 | 485 | M20*1.5/2 | M6 | Welded/Assembled | |||
| 50 | 515 | M27*2 | M6 | Welded/Assembled | |||
| 50 | 515 | M27*3 | M6 | Welded/Assembled | |||
| 58 | 515 | M33*2 | M8 | Welded/Assembled | |||
| 58 | 515 | M36*3 | M8 | Welded/Assembled | |||
| 60 | 1215 | M36*3 | M8 | Welded/Assembled | |||
| 60 | 1215 | M42*2 | M8 | Welded/Assembled |
