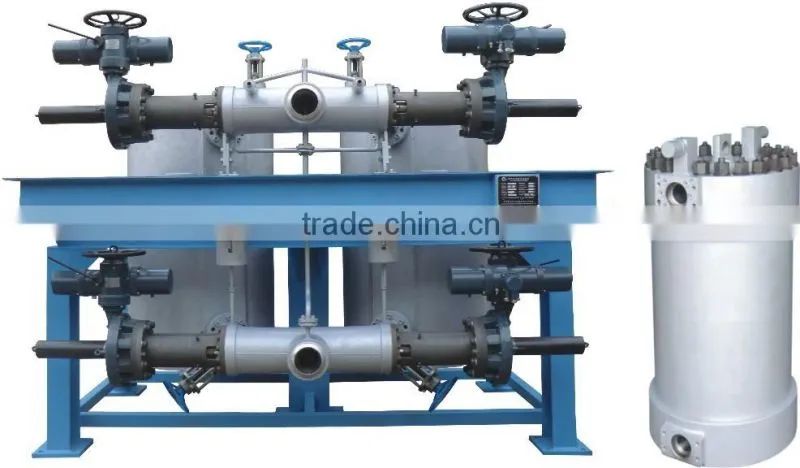

Polymer Melt Filter,Chemical Fiber Filtration Machinery,Industrial Filtration Equipment
It is used in the chemical fiber field. There are many chemical fiber factories all over China use our filter to select the granule of fixed filter rating and filter impurities. According to your requirement, we can supply you the exact products.
It is a nonstandard article. Hence, further understanding will lead further cooperation. If you have further interest, please let us know.
1. Advantages:
(1). High filter precision
(2). Widely applicable
(3). High efficiency
2. Applications: Polycondensed plastic prilling continuous polycondensation of polymerized fiber (e.g. PET, PBT, Nylon6) Special Fiber, carbon fiber, stock solution, milk fiber, soybean fiber
3. Heating Method: Heat transfer oil cycling & biphenyl cycling
4. Technical Parameter:
Model |
Diameter(mm) |
Filter Area(m2) |
Rated Flow(kg/h) |
System Pressure |
Biphenyl Jacket Pressure |
Allowable Pressure Differentia |
Operating Temperature |
Filter Fineness |
CPF-PT-19J |
80 |
19 |
110T/d |
Max 25Mpa |
≤0.6Mpa |
Max 8Mpa |
≤320 |
3~100 |
CPF-PT-31J |
80 |
31 |
180T/d |
|||||
CPF-PT-37J |
80 |
37 |
220T/d |
|||||
CPF-PT-48J |
100 |
48 |
280T/d |
|||||
CPF-PT-61J |
120 |
61 |
340T/d |
|||||
CPF-PT-80J |
125 |
80 |
450T/d |
Exhibition
